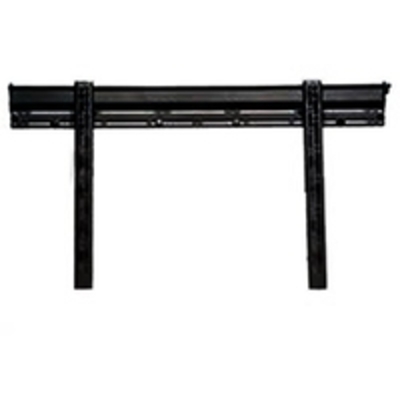

Designed for medium sized screens up to 80kg, the ultra-slim BT8220 mounts screens just 14mm from the wall & features post installation screen alignment, B-Tech's " On Wall Levelling System" & simple 'hook-on' installation to make screen mounting as quick & simple as possible. The BT8220 also features B-Tech's patented ' Torsion-Lock' security to help prevent un-authorised removal of the screen. All mounting hardware included.\n\n- Designed for flat screens up to 80&157; (203cm) / 70kg (154lbs)\n- Fits screens with mounting patterns up to H: 830mm (33.2") x V: 500mm (19.7") including VESA&174;:\n- 75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 200mm, 300 x 300mm\n- 400 x 200mm, 400 x 300mm, 400 x 400mm, 600 x 400mm, 800 x 400mm & 800 x 500mm\n- Ultra-slim design mounts screen only 14mm (0.6&157;) from wall\n- Features &152;OWLS&153;&132;&162; On Wall Levelling System\n- Suitable for concrete / brick or up to 32&157; stud walls\n- Security locking screws, Allen key & locking bar provided for secure installation\n- Universal screen fixing kit supplied, including M4, M5, M6, M8 screws & spacers\n- Simple &152;hook-on&153; installation with all mounting hardware included Feature Feature Value Maximum weight capacity 70kg Maximum screen size compatibility 2.03 m (80") Minimum VESA mount 75 x 75 mm Maximum VESA mount 800 x 500 mm Suitable for Computer monitor / TVPanel mounting interface 75 x 75, 100 x 100, 200 x 100, 200 x 200, 300 x 300, 300 x 200, 400 x 200, 400 x 400, 400 x 300, 600 x 400, 800 x 400, 800 x 500 Number of displays supported 1 Distance to the wall (min)1.4 cm Product colour Black Mounting kit Y Width 895 mm Depth 100 mm Height 628 mm Package weight 13.3kg ...

Designed to ceiling mount screens up to 50kg in either landscape or portrait orientation, the BT8424 is available in a choice of four different drop lengths; 1m, 1.5m, 2m & 3m. The mount uses B-Tech's unique ' Torsion-Tilt' mechanism for easy tilt up to +/-15&176;. Levelling screws are included on the interface arms to finely adjust the screen height & locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat & tidy installation.\n\n- Unique ' Torsion-Tilt' mechanism for easy tilt adjustment\n- Post installation screen alignment for perfect screen positioning\n- Arms feature levelling screws to adjust the screen height\n- Suitable for landscape or portrait mounting\n- Security screws help prevent unauthorised removal of screens\n- Poles are supplied with safety bolt & grub screws for a secure installation\n- Available in four pole lengths for more mounting flexibility\n- Integrated cable management\n- Cover plate included for a smart installation\n- Simple &152;hook-on&153; screen installation\n- All mounting hardware included Feature Feature Value Maximum weight capacity 50kg Maximum screen size compatibility 165.1 cm (65") Minimum screen size compatibility 99.1 cm (39") Suitable for Public display Minimum VESA mount 400 x 400 mm Maximum VESA mount 600 x 400 mm Number of displays supported 1 Tilt angle range-15
- 15&176; Product colour Black Cord management Y Width 620 mm Depth 150 mm Height 1503 mm Master (outer) case gross weight 7.48kg Master (outer) case 2 weight 3.09kg Quantity per master (outer) case 1 pc (s) Quantity per master (outer) case 21 pc (s) Master (outer) case 2 volume 0.041 cm&179; Master (outer) case 3 volume 0.005 cm&179;
...

Designed for large sized screens, the BT8442 supports weights up to 80kg & features a low-profile design that mounts screens just 30mm from the wall. The universal interface accommodates mounting patterns up to 655 x 400mm & comes with adjustment screws which allow the screen to be levelled once mounted.\n\n- Low profile design for a close to the wall installation\n- Lateral adjustment of screen once mounted\n- Levelling screws allow adjustment of screen height\n- Compatible with B-Tech's collar & pole system for pole mounting screens\n- Security locking screws help prevent unauthorised removal of screens\n- Simple &152;hook-on&153; installation\n- All mounting hardware included Feature Feature Value Maximum weight capacity 80kg Maximum screen size compatibility 2.03 m (80") Maximum VESA mount 655 x 400 mm Minimum screen size compatibility 124.5 cm (49") Number of displays supported 1 Distance to the wall (max)3 cm Product colour Black Width 700 mm Depth (max)3 cm Height 420 mm Master (outer) case weight 16kg Quantity per master (outer) case 4 pc (s) Master (outer) case volume 21100 cm&179; ...

Designed for medium & large sized screens, the BT8441 supports weights up to 80kg & features a low-profile design that mounts screens just 30mm from the wall. The universal interface accommodates mounting patterns up to 455 x 400mm & comes with adjustment screws which allow the screen to be levelled once mounted.\n\n- Low profile design for a close to the wall installation\n- Lateral adjustment of screen once mounted\n- Levelling screws allow adjustment of screen height\n- Compatible with B-Tech's collar & pole system for pole mounting screens\n- Security locking screws help prevent unauthorised removal of screens\n- Simple &152;hook-on&153; installation\n- All mounting hardware included Feature Feature Value Maximum weight capacity 80kg Maximum screen size compatibility 139.7 cm (55") Maximum VESA mount 455 x 400 mm Minimum screen size compatibility 99.1 cm (39") Number of displays supported 1 Distance to the wall (max)3 cm Product colour Black Mounting kit Y Width 500 mm Depth (max)3 cm Height 420 mm Master (outer) case weight 12.8kg Quantity per master (outer) case 4 pc (s) Master (outer) case volume 21100 cm&179; ...

Designed to mount large sized screens the BTV511 is ideal for home installations. With 5 fixed tilt poistions up to +15&176; available, this mount also features a simple &152;hook-on&153; installation & post installation screen alignment making screen mounting as quick & simple as possible. The BTV511

Includes:: a security locking bar to help prevent un-authorised removal of the screen. All fixings & mounting hardware included.\n\n- 5 fixed tilt positions up to +15&176;\n- Mounts screen only 44mm from wall when flat\n- Post installation screen alignment for perfect screen positioning\n- Security locking bar to prevent unauthorised screen removal\n- Suitable for concrete, brick or stud walls up to 16&157;\n- Simple &152;hook-on&153; installation\n- All mounting hardware included Feature Feature Value Maximum weight capacity 50kg Maximum screen size compatibility 139.7 cm (55") Maximum VESA mount 425 x 400 mm Suitable for Computer monitor / TVNumber of displays supported 1 Tilt angle range 0
- 15&176; Distance to the wall (max)15.3 cm Distance to the wall (min)4.4 cm Product colour Black Width 491 mm Depth (max)4.6 cm Height 455 mm Master (outer) case weight 15.6kg Quantity per master (outer) case 6 pc (s) Master (outer) case volume 0.037 cm&179;


...

'- Adaptor plate for flat screens which have holes in 200mm x 200mm or 200mm x 100mm patterns\n
- Simple installation with all
...

'- Fits most VC cameras with 1/4 inch thread\n- Ideal for Radvision&174; XT5000 Codec\n- Features 100 x 100mm fixing points\n- Can also be used with Nettop PCs with VESA&174; 75 x 75mm fixings\n- Max load: 4kg (9lbs)\n- Compatible with BT7052 & BT7260 Accessory Collars for use with &184;50mm or &184;60mm poles\n- Can also be wall mounted using a BT7075\n- Available in a sleek Satin Black finish Feature Feature Value Product type Shelf Product colour Black Maximum weight capacity 4kg Mounting type Pole clamp Width 120 mm Depth 235 mm Height 28 mm Quantity per pack 1 pc (s) ...

'- Designed to attach any B-Tech Premium or Full Motion desk mount to the wall:\n- BT7398, BT7382, BT7383, BT7384, BT7372, BT7373, BT7374\n- Retains all movement functionality of the attached desk mount\n- Features built in &152;level bubble&153;\n- Simple installation with all fixings included\n- Available in stylish Graphite Black finish Feature Feature Value Product type Base Product colour Black, Graphite Maximum weight capacity 9kg Mounting type Wall Maximum screen size compatibility 61 cm (24") Number of displays supported 1 Compatibility BT7398, BT7382, BT7383, BT7384, BT7372, BT7373, BT7374 Quantity per pack 1 pc (s) ...

Designed to mount &152;50mm poles onto walls, the BT7831 is ideal for installing flat screens & other AV equipment at locations where it is not possible to fix to the floor or ceiling (or both) or when there is a large section of wall behind the installation which is not strong enough to fix to.\n\n- Allows poles to be mounted vertically on to walls\n- ideal to be used with B-Tech ceiling / floor mounts to create ceiling-to-wall or floor-to-wall installations\n- Heavy duty steel capable of supporting substantial loads\n- Supplied with safety bolt for secure installation\n- All mounting hardware included Feature Feature Value Product type Bracket Product colour Black Maximum weight capacity 150kg Width 144 mm Depth 135 mm Height 44 mm Diameter 5.25 cm Quantity per pack 1 pc (s) ...

FLAT SCREEN FLOOR STAND/TROLLEYDesigned for medium & large sized screens the XRTROLLEY supports weights up to 40kg. 3 braked castors & adjustable height feet are both included for either fixed or mobile solutions. The universal interface accommodates mounting patterns up to 600 x 400mm & comes with adjustment screws which allow the screen to be levelled once mounted.\n\n FEATURES\n&162; AV accessory shelf included (an optional smaller shelf XRTROLLEYSH2 is available on request)\n&162; Adjustable levelling feet & 3 braked castors are included \n&162; Levelling screws allow adjustment of screen height\n&162; Padlock tabs on arms for additional security (padlock not included)\n&162; Security locking screws help prevent unauthorised removal of screens Features Bracket Type Trolley Bracket Function Flat Minimum VESA Compatibility 200 x 100 mm Maximum VESA Compatibility 600 x 400 mm Max Weight 40 KGColour Black / Silver Screen Size 55 Inch\n\n\n\n\n\n\n\n ...
