Made from heavy duty steel, the BT7807 is a robust, twin pole mounting solution designed to mount &152;50mm poles to the floor or ceiling. Capable of supporting heavy loads, it is the ideal solution for heavy duty flat screen installations or complex configurations that feature multiple screens or AV components.\n\n- Can be used to mount poles to the ceiling or to the floor\n- Heavy duty steel capable of supporting substantial loads\n- Multiple grub screws ensure mounted poles can hang perpendicular to the ceiling / floor\n- even with heavy loads attached\n- Ideal for multi-screen installations\n- Speeds up twin pole installations by eliminating the need\n- to measure the distance between pole centres\n- Integrated cable management through the top or side of the mount\n- Internal end stop prevents poles from dropping through the mount during the installation process (whilst floor mounting)\n- Supplied with safety bolt for secure installation Feature Feature Value Product type Base Product colour Black Maximum weight capacity 200kg Cord management Y Width 426 mm Depth 150 mm Quantity per pack 1 pc (s) ...

designed to extend the drop of System 2 installations. The joiner is made from a single piece of 4mm thick heavy duty steel, which easily bolts to the inside of the poles to create a rigid, seamless join whilst still allowing cables to pass through unimpeded.\n\n- Allows a rigid join of 2x &152;50mm Poles\n- Heavy duty steel supports substantial loads with minimal movement\n- Hidden from view once installed for a seamless pole join\n- Allows cables to pass through the poles & joiner\n- One-piece design for a quick install\n- Poles sold seperately Feature Feature Value Product colour Zinc Housing material Steel Width 30 mm Depth 40 mm Height 200 mm Material thickness 4 mm ...

'- Can be mounted directly to a wall or to poles
- when used in conjunction with B-Tech collars\n- ideal to be used with the B-Tech
...

Designed for large screens mounted in landscape or portrait style, the BT8503 is ideal for all professional applications. A simple 'hook-on' installation makes fitting a screen to the trolley quick & easy. The BT8503

Includes:: non-marking braked castors & alternative levelling feet, to create either a portable or freestanding configuration.\n\n- Heavy duty stylish flat screen trolley suitable for screens\n- up to 60&157; (127cm) / 50kg (110lbs)\n- Maximum distance between fixings: H: 800mm (31.5&157;)\n- Fits all VESA&174; fixings up to 800 x 600mm\n- (horizontal screen orientation, 800 x 400mm in portrait style)\n- Mounts screen in landscape or portrait style\n-

Includes:: universal flat screen Interface Kit\n- 1.8m &184;50mm black poles supplied with 5 cable management holes\n- Non-marking 3&157; locking/braked castors included\n- Also supplied with optional screw in levelling feet\n- Trolley

Dimensions (including wheels):\n-

Height: 1940mm (76.4&157;)

Depth: 782mm (30.8&157;),

Width: 1120mm (44.1&157;) Feature Feature Value Maximum weight capacity 50kg Maximum screen size compatibility 152.4 cm (60") Maximum VESA mount 800 x 600 mm Number of displays supported 1 Wheels Y Number of wheels 4 wheel (s) Lockable wheels Y Type Portable flat panel floor stand Product colour Black Width 1120 mm Depth 782 mm Height 1940 mm Mounting kit Y Quantity per master (outer) case 1 pc (s)











...

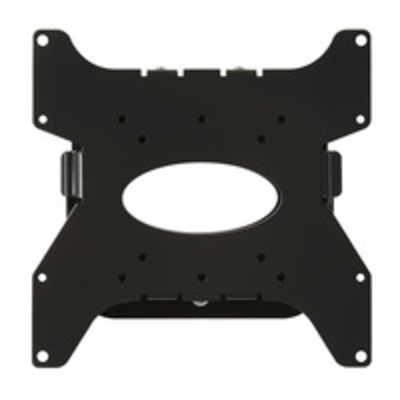

\n B-Tech LCD TV flat wall mount bracket Black\n \n \n \n \n \n \n Manufacturer:\n B-Tech\n \n \n Category:\n AV & Photo\n \n \n Sub-Category:\n TV Mounts\n \n \n SKU:\n BT7510/B\n \n \n EAN:\n 5019318751028 5037374356667 5019318751004 5054629593066 5019318100123 8944732555594\n \n \n \n \n \n Description\n \n \n For LCD TV or monitor up to 44lbs. LCD mounting plate has screw holes for 100mm & 75mm VESA mounting. Full metal construction. The unit features a special locking screw which offers a safe & secure installation keeping the screen only 3/4 of inch from the wall. All necessary mounting hardware is included.\n\n\n\n Mounting your flat panel to B-TECH products\n\n The VESA Flat Panel Monitor Physical Mounting Interface is a standard 75mm or 100mm Interface Pad for Flat panel monitor mounting.\n\n If your monitor conforms to the VESA standard 75 x 75mm (2.95-inch) or 100 x 100mm (3.93-inch)mounting interface, it will work with all B-TECH LCD mounts.\n \n \n \n Specifications\n \n Mounting Mounting type Wall Maximum weight capacity 20kg Technical details Product colour Black Weight (imperial)20kg (44 lbs) Mounting type Wall Design Product colour Black Other features Mounting type Wall Weight (imperial)20kg (44 lbs)\n \n \n\n\n\n\n\n\n\n ...

The BT8309 is designed for the installation of small to medium flat screens into recessed walls. The pop-out mechanism allows for a neat & tidy, flush to the wall installation, while still allowing access to the rear of the screen for easy installation & service access. Tool-less micro-adjustment is included on each corner to allow screens to be perfectly aligned to the recess or to other screens in a videowall installation. BT8309 also allows screens to be mounted in landscape or portrait orientation & is also compatible with B-Tech's professional pole & collar system for pole mounted installs if required.\n\n- Perfect solution for mounting screens into a recessed wall\n- Can also be used to create videowall installations\n- Push to open / push to close system provides quick & easy service access\n- Micro-adjustment of +/-5mm at each corner for seamless display alignment\n- Suitable for landscape or portrait screen mounting\n- Suitable for both wall or pole mounting\n- Keyhole mounting for quick & easy installation\n- Levelling screws allow adjustment of screen height\n- Integrated locking mechanism prevents accidental pop-out of mount\n- Integrated cable management\n- ' Hook-on' installation with all mounting hardware included Feature Feature Value Maximum weight capacity 25kg Maximum screen size compatibility 106.7 cm (42") Minimum VESA mount 75 x 75 mm Maximum VESA mount 200 x 200 mm Suitable for Computer monitor / TVPanel mounting interface 75 x 75, 200 x 200 mm Number of displays supported 1 Adjustable depth Y Distance to the wall (max)18.6 cm Distance to the wall (min)6.9 cm Product colour Black Cable management Y Mounting kit Y Width 220 mm Height 287 mm ...

'- Adjustable purlin mount for use with 50mm poles\n- Cable management\n- Supplied with safety bolt for secure installation\n- Locking bolt included to securely set the pole vertical at any angle up to 45&176;\n- Fits &156; Cee&157; & &156; Zee&157; section purlin with a minimum height of 95mm\n- Can also be mounted to beams & girders\n- POLE SOLD SEPARATELYFeature Feature Value Product colour Black Maximum weight capacity 140kg Material Metal Cable management Y Tilt angle range-45
- 45&176;
...

The BT7372 is a single arm desk mount made from durable aluminium with an anodised, polished finish. Suitable for use with screens up to 28", the arm features two swivel points plus 360&176; screen rotation at the interface, making this desk mount perfect for portrait or landscape mounting. The mount can be easily fixed to the rear or side of a desk or through a grommet hole & the integrated cable management ensures a neat & tidy installation.\n\n- High-end aesthetic quality with a durable anodised polished finish\n- Easy lateral screen positioning\n- Features two points of swivel at the pole & interface\n- Height adjustment using tool-less locking collar\n- Supplied with a desk / grommet clamp\n- Integrated cable management\n- 360&176; screen rotation makes it easy to adjust screens from landscape to portrait\n- Simple 'hook-on' installation\n- All mounting hardware included Feature Feature Value Maximum weight capacity 9kg Maximum screen size compatibility 71.1 cm (28") Suitable for Computer monitor / TVMinimum VESA mount 75 x 75 mm Maximum VESA mount 100 x 100 mm Number of displays supported 1 Mounting Clamp Height adjustment Y Height adjustment range 0
- 255 mm Tilt angle range-90
- 65&176; Swivel angle 360&176; Cord management Y Product colour Black Master (outer) case weight 5.6kg Quantity per master (outer) case 2 pc (s) Master (outer) case volume 0.044 cm&179;

...

BT8390 horizontal mounting rails are the central component of any System X installation, whether it be for a complex multi-screen install or a single screen application. Made from aluminium, the rail itself is sturdy yet lightweight & is designed to support a variety of interface arms & mounts, allowing screens & other AV equipment to be fitted to the rail. Available in a range of lengths, the BT8390 can be mounted onto walls, poles or System X support columns using a range of different fixing kits (available separately). Rails can be cut to shorter lengths as required or joined together using extension kits (also available separately) for much longer installs.\n\n- Part of the System X range for use in a variety of applications; wall, ceiling, trolley etc\n- Ideal for video walls, menu boards & other multi-screen installations\n- Can also be used for premium single screen applications\n- Compatible with a variety of interface arms & collar compatible accessory mounts\n- Suitable for landscape or portrait installs\n- High-end aesthetic quality\n- Available in a variety of lengths & can be cut if necessary\n- Multiple lengths can be joined together using BT8390-EXT to create longer rails\n- Lateral adjustment
- position interface arms anywhere along the length of the rail\n- Supplied with plastic end caps for a neat & tidy finish\n- Simple 'hook-on' installation Feature Feature Value Product type Rail Product colour Silver Housing material Aluminium Width 700 mm Depth 30 mm Height 120 mm Quantity per pack 1 pc (s)
...

BT8390 horizontal mounting rails are the central component of any System X installation, whether it be for a complex multi-screen install or a single screen application. Made from aluminium, the rail itself is sturdy yet lightweight & is designed to support a variety of interface arms & mounts, allowing screens & other AV equipment to be fitted to the rail. Available in a range of lengths, the BT8390 can be mounted onto walls, poles or System X support columns using a range of different fixing kits (available separately). Rails can be cut to shorter lengths as required or joined together using extension kits (also available separately) for much longer installs.\n\n- Part of the System X range for use in a variety of applications; wall, ceiling, trolley etc\n- Ideal for video walls, menu boards & other multi-screen installations\n- Can also be used for premium single screen applications\n- Compatible with a variety of interface arms & collar compatible accessory mounts\n- Suitable for landscape or portrait installs\n- High-end aesthetic quality\n- Available in a variety of lengths & can be cut if necessary\n- Multiple lengths can be joined together using BT8390-EXT to create longer rails\n- Lateral adjustment
- position interface arms anywhere along the length of the rail\n- Supplied with plastic end caps for a neat & tidy finish\n- Simple 'hook-on' installation Feature Feature Value Product type Rail Product colour Silver Housing material Aluminium Width 500 mm Depth 30 mm Height 120 mm Quantity per pack 1 pc (s)
...
