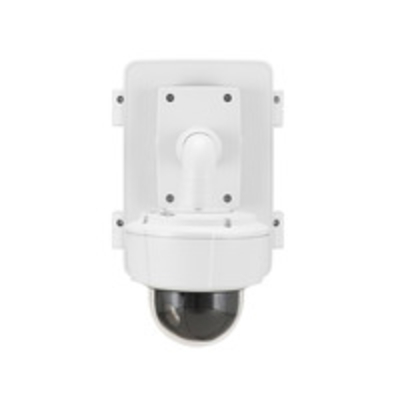

Axis T98A18-VE Housing & Mount

Product Description

\n Axis T98A18-VE Housing & mount\n \n \n \n \n \n \n Manufacturer:\n Axis\n \n \n Category:\n Home Security & Automation\n \n \n Sub-Category:\n Security Camera Accessories\n \n \n SKU:\n 5900-181\n \n \n EAN:\n 7331021003705 0746320100746 0761722347049 7106226110400\n \n \n \n \n\n Description\n \n \n Vandal-resistant to withstand adversities\n\n The polycarbonate, AXIS T98A-VE Surveillance Cabinet Series is IP66-rated for protection against the ingress of dust & high pressure water jets from any direction. The NEMA 4X rating protects against windblown dust, salt spray, rain, hose-directed water, & damage from external ice formation. It provides also IK10-rated material for protection against impact & vandalism. The surveillance cabinets support vibration rating 4M4 & 4M3 (AXIS T98A18-VE).\n\n\n\n Step-by-step installation\n\n The modularity of AXIS T98A-VE Surveillance Cabinet Series enables different categories of installers to do their part time separated in order to optimize the workflow.\n\n\n\n- Firstly, the installer mounts AXIS T98A-VE Mounting Plate with cable protection\n\n- Secondly, the certified electrician mounts the mains power parts & cover them with the power cover\n\n- Thirdly, the installer can finalize the installation of the low-voltage units\n\n\n\n Ease of installation\n\n AXIS T98A-VE offers several ease of installation features to simplify the work for the installers. With a selection of optional mounting brackets, AXIS T98A-VE Mounting Plate can be installed on a wall, pole or building corner.\n\n\n\n The polycarbonate cabinet base is extremely lightweight that can be easily carried in one h&. The cabinet door can be left or right hinged, thanks to removable hinge pins. Furthermore, the hinges have a stop that locks the cabinet door at 105&176; to avoid that the door hits back the installer.\n\n\n\n A DIN rail is pre-mounted for those units that can be snapped on it by using a DIN rail clip. A molded DIN rail is also designed on the inner right-side of the cabinet base. The cabinet base can hang on the hooks of the mounted plate while cables are routed & connected. In a secondary step the cabinet base is slid & secured on the mounting plate with screws.\n\n\n\n Separated compartments to enhance security\n\n For better installation & improve cost efficiency, the inner compartment with a DIN rail can be split into two sections: one to fit mains power units & a second for low-voltage units that do not require installation by a certified electrician. An optional electrical safety kit is available, which

Includes:: surge protection, a fuse & an alarm-door switch to detect cabinet intrusion or damage.\n \n \n\n Specifications\n \n Features Housing material Polycarbonate, Stainless steel Type Housing & mount Placement supported Outdoor Product colour Stainless steel, White Certification IEC 60529 IP66, NEMA 250 rating Type 4X, IEC 62262 IK10, AXIS T98A18-VE, UL 50E, IEC/UL/EN 60950-1, IEC/UL/EN 60950-22 Technical details Type Housing & mount Placement supported Outdoor Weight & dimensions Width 282 mm Weight 3.5kg Inner width 222 mm Inner height 26.3 cm Inner depth 82 mm Height 361 mm Depth 131 mm Colour Product colour Stainless steel, White Operational conditions Operating temperature (T-T)-40
- 75 &176;CCertificates Certification IEC 60529 IP66, NEMA 250 rating Type 4X, IEC 62262 IK10, AXIS T98A18-VE, UL 50E, IEC/UL/EN 60950-1, IEC/UL/EN 60950-22\n \n \n\n\n\n\n\n
