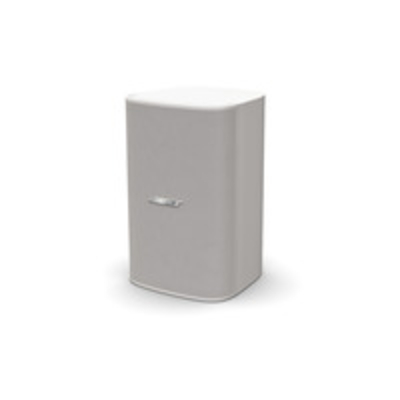

\n Bose Design Max DM8S 2-way White Wired 125 W\n \n \n \n \n \n \n Manufacturer:\n BOSE\n \n \n Category:\n AV & Photo\n \n \n Sub-Category:\n Loudspeakers\n \n \n SKU:\n 801332-0210\n \n \n EAN:\n 0017817786430\n \n \n \n \n \n Description\n \n \n Design Max DM8S\n\n Design Max loudspeakers bring outstanding audio & aesthetics to any commercial space. With 12 models to choose from, it&153;s easy to create tailored solutions that deliver instantly impressive sound. Quick Hold mounting mechanisms make installation efficient, reducing strain & hassle " & saving substantial time. & with both black & white versions available, Design Max loudspeakers integrate seamlessly with any d&169;cor. Delivering SPL suitable for foreground music, the 125-watt Design Max DM8S loudspeaker features a two-way, 8-inch coaxially mounted woofer & a center-firing 1-inch compression driver, producing a 50 Hz
- 20 k Hz frequency range. The DM8S is surface-mounted & locks onto a hidden Quick Hold U-bracket for fast, secure installation.\n- Combine models to complete any design, big or small " 12 loudspeakers to mix & match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers & outdoor-rated options\n- Deliver instantly impressive sound with custom Bose drivers " no DSP or EQ required. For even better sound, use select Bose DSPs & amplifiers to enable Bose loudspeaker EQ & Smart Bass processing, which expands performance & response at any listening level\n- Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, & removable logos\n- Reduce installation time with the patented Quick Hold mounting system, which also reduces strain, hassle, & the chance of product damage\n- Install easily " all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, & front-access audio wiring that makes installation & troubleshooting easier\n- Deliver high SPL for clear foreground music\n \n \n \n Specifications\n \n Loudspeakers Speaker type 2-way Speaker placement Wall-mountable Number of drivers 2 Woofer Yes Mid-range driver diameter (imperial)2.54 cm (1") Woofer diameter (imperial)20.3 cm (8") Mid-range driver diameter 2.54 cm Woofer diameter 20.3 cm Number of woofer drivers 1 Number of mid-range drivers 1 Recommended usage Conferencing system Audio Peak Music Power Output (PMPO)600 WFrequency range 52
- 20000 Hz Impedance 8 &206;&169; Sensitivity 118 d B Crossover frequency 1500 Hz RMS rated power 125 WPerformance Product colour White Housing material Plastic Certification UL-1480A, S5591/ UL, NFPA70, IEC60268-5, Ro HS, CERecommended usage Conferencing system Technical details Speaker type 2-way Product colour White Certification UL-1480A, S5591/ UL, NFPA70, IEC60268-5, Ro HS, CEDesign Product colour White Housing material Plastic Certification UL-1480A, S5591/ UL, NFPA70, IEC60268-5, Ro HS, CEPorts & interfaces Connectivity technology Wired Material Housing material Plastic Weight & dimensions Width 249 mm Depth 253 mm Height 395 mm Weight 10.3kg Package weight 13.2kg Packaging data Package weight 13.2kg Operational conditions Operating temperature (T-T)0
- 50 &176;C\n \n \n\n\n\n\n\n\n\n
