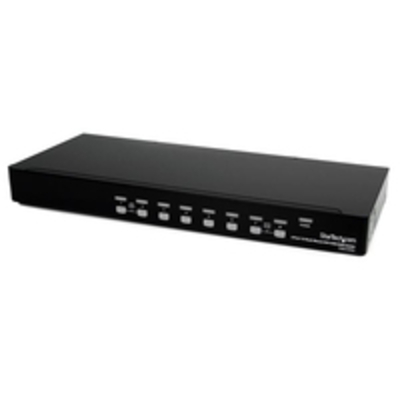

The SV831DVIU 8-Port 1U Rack Mount DVI USB (Universal Serial Bus) KVM Switch lets you control up to 8 USB (Universal Serial Bus)-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse & monitor.\n\n The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x 1200 via DVI or HDMI connection (using DVI to HDMI adapter
- see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.\n\n A perfect addition to any server room or software test lab, this rugged 8-port switch can be rack-mounted into 1U of cabinet space.\n\n Backed by a Star Tech.com 3-year warranty & free lifetime technical support.\n\n Note: This KVM supports digital signals only, & cannot be used with DVI-to-VGA adapters.\n\n The Star Tech.com Advantage\n- High-resolution 1920x 1200 DVI connections support control of DVI systems or HDMI systems (with adapter)\n- Supports wireless & combo style mouse & keyboard sets for added flexibility\n- Rugged, solid steel rack-mountable case offers durability even in harsh environments Feature Feature Value Number of computers controlled 8 Keyboard port type USBMouse port type USBVideo port type DVI-IUSB 2.0 ports quantity 10 Audio connections N Ethernet LANNMaximum resolution 1920 x 1200 pixels Maximum analog resolution 1920 x 1200 pixels Daisy chain N Rack mounting Y Product colour Black Rack capacity 1UHousing material Steel LED indicators Y Hot keys Y Mean time between failures (MTBF)45254 h Ro HS compliance Y Certification CE, FCCAC input voltage 100-240 VInput current 1.8 AOutput voltage 12 VOutput current 4 AExternal power adapter Y Power plug type Type MCompatible power plug types AU, EU, UK, USOperating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-20
- 60 &176;COperating relative humidity (H-H)0
- 80% Width 438 mm Depth 180 mm Height 44 mm Weight 3.5kg Package width 590 mm Package depth 261 mm Package height 87 mm Package weight 4kg Manual Y Rack mount kit YIP control Y
