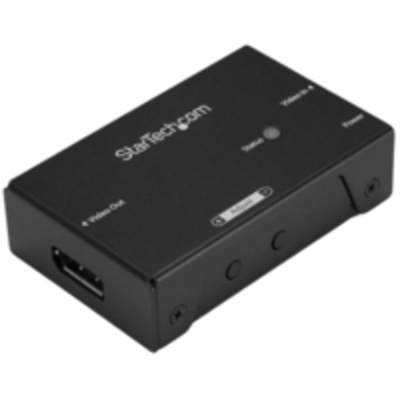

StarTech.com DisplayPort Signal Booster - DP Extender - 4K 60Hz
This DisplayPort signal booster lets you increase the signal strength of your DP video source using standard DisplayPort cables. You can achieve resolutions up to 4K at 60Hz, and depending on your desired resolution, the booster supports varying distances up to 65 ft. (20 m) away at 1080p 60Hz resolution. For inline installations, you can place the booster between two DisplayPort cables, up to 50 ft. in length at the video input, and up to 15 ft. in length at the video output.\n\nMaintains Ultra HD 4K video signals\nWhen extending DisplayPort over long distances using standard video cabling, higher resolutions can become unavailable. Using the DP signal booster ensures that you can depend on UHD resolutions up to 4K at 60Hz at up to 22 ft. (7 m). You can achieve even greater
distances with lower resolution support -- up to 4K at 30Hz, at up to 42 ft. (13 m), and 1080p at 60Hz at up to 65 ft. (20 m).\n\nEasy and discreet installation\nWith its small form factor, the DisplayPort booster is easy to hide, for a discreet installation. It includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard DP cables, the DisplayPort booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.\n\nCompatible with varying distances\nThe booster makes it easy to adjust your DisplayPort signal strength based on the distance of your cables, with equalization adjustment buttons. This means that you can adjust the amplification of your
DisplayPort signal, to ensure your DisplayPort signal will be flawless even at distances up to 65 ft. (20 m). Support for varying distances makes the booster perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.\n\nThe DPBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.FeatureFeature ValueTypeAV repeaterMaximum resolution3840 x 2160 pixelsMaximum transfer distance20 mAudio systemMultichannelAudio output channels7.1 channelsSupported video modes720p, 1080p, 2160pSupported graphics resolutions1280 x 720 (HD 720), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160Rack
mountingYProduct colourBlackRoHS complianceYCertificationCE, FCCVideo inDisplayPortVideo outDisplayPortAC input voltage100-240 VOperating voltage5 VInput current0.3 AOutput current1 APower consumption (typical)5 WExternal power adapterYDimensions (WxDxH)50 x 80 x 21 mmWidth50 mmDepth80 mmHeight21 mmWeight152 gPackage dimensions (WxDxH)143 x 168 x 63 mmPackage weight400 gAC adapter includedYCables includedUSBAudio supportY
distances with lower resolution support -- up to 4K at 30Hz, at up to 42 ft. (13 m), and 1080p at 60Hz at up to 65 ft. (20 m).\n\nEasy and discreet installation\nWith its small form factor, the DisplayPort booster is easy to hide, for a discreet installation. It includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard DP cables, the DisplayPort booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.\n\nCompatible with varying distances\nThe booster makes it easy to adjust your DisplayPort signal strength based on the distance of your cables, with equalization adjustment buttons. This means that you can adjust the amplification of your
DisplayPort signal, to ensure your DisplayPort signal will be flawless even at distances up to 65 ft. (20 m). Support for varying distances makes the booster perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.\n\nThe DPBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.FeatureFeature ValueTypeAV repeaterMaximum resolution3840 x 2160 pixelsMaximum transfer distance20 mAudio systemMultichannelAudio output channels7.1 channelsSupported video modes720p, 1080p, 2160pSupported graphics resolutions1280 x 720 (HD 720), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160Rack
mountingYProduct colourBlackRoHS complianceYCertificationCE, FCCVideo inDisplayPortVideo outDisplayPortAC input voltage100-240 VOperating voltage5 VInput current0.3 AOutput current1 APower consumption (typical)5 WExternal power adapterYDimensions (WxDxH)50 x 80 x 21 mmWidth50 mmDepth80 mmHeight21 mmWeight152 gPackage dimensions (WxDxH)143 x 168 x 63 mmPackage weight400 gAC adapter includedYCables includedUSBAudio supportY
