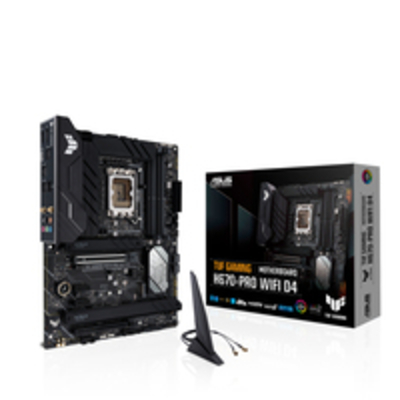

ASUS TUF GAMING H670-PRO WIFI D4 Intel H670 LGA 1700 ATX

Product Description

Durable. Stable. Reliable. ASUS TUF GAMING H670-PRO WIFI D4 takes all the essential elements of the latest Intel&174; processors & combines them with game-ready features & proven durability. Engineered with military-grade components, an upgraded power solution & a comprehensive cooling system, this motherboard offers rock-solid & stable performance for marathon gaming. Aesthetically, TUF GAMING H670-PRO WIFI D4 sports the new TUF Gaming logo & incorporates simple geometric design elements to reflect the dependability & stability that defines the TUF Gaming series. Rock-Solid Performance With upgraded power delivery & comprehensive cooling options to drive the 12th Gen Intel Core&132;&162; processors, plus support for faster memory & storage, TUF GAMING H670 motherboard is the perfect foundation for your next high-core-count battle rig. Power Design Dr MOS The onboard VRMs feature 14+1 Dr MOS power stages that combine high-side & low-side MOSFETs & drivers into a single package, delivering the power & efficiency that 12th Gen Intel Core processors dem&. The power stages are each rated to handle 50 amperes to provide stable performance for current & future Intel processors. Six-Layer PCB Design Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. Pro Cool Connectors Enhanced EATX 8-Pin & 4-Pin Connectors &227;&131;&187; Provide extreme durability &227;&131;&187; Prevent hotspots & connector failure Compared to traditional power inputs, ASUS Pro Cool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots & connector failure. TUF Components TUF Chokes Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability. TUF Capacitors Proprietary capacitors provide up to 20% wider temperature tolerance & five times longer lifespan. Digi+ VRM The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth & ultra-clean power delivery to the CPU at all times. COOLING Cooler by design 1. Enlarged VRM heatsink The extensive surface area of the massive heatsink covers the VRMs & chokes to improve heat dissipation. 2. Enlarged PCH heatsink An expanded surface area for the chipset cooler maximizes performance & heat dissipation. 3. Three M.2 slots with heatsinks Three out of four M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance & reliability. Comprehensive Fan Controls TUF GAMING H670 motherboard features comprehensive fan controls that can be configured via the Fan Xpert 4 utility or the award-winning ASUS UEFI BIOS. Each header can be set to monitor & react to three user-configurable thermal sensors for workload-based cooling, & all settings can be easily managed by Fan Xpert 4 or via the UEFI.&1 An integrated AIO system enables full control of PWM or DC water pumps, making it perfect for custom or self-contained cooling setups. All onboard chassis fan headers support auto-detection of PWM or DC fans. A dedicated integrated circuit protects each fan header from excess heat & electrical currents. MEMORY & STORAGE DRAM Overclocking Performance DDR4 OC 5333 Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, & it adds shielding zones that significantly reduce crosstalk. Four PCIe 4.0 M.2 The four PCIe 4.0 M.2 slots support up to two 22110 devices & also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds. CONNECTIVITY PCIe 5.0 The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, & backward compatibility with previous versions of PCI Express Front USB (Universal Serial Bus) Port A full complement of USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including a front-panel USB (Universal Serial Bus) 3.2 Gen 1 Type-C&174; connector that provides data transfer speeds of up to 5 Gbps. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C Extensive USB (Universal Serial Bus) support ensures connections to a wide array of peripherals. TUF GAMING H670-PRO WIFI D4

Includes:: a USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; port on the rear I/O panel that delivers increased bandwidth & transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 Support TUF GAMING H670 series features Thunderbolt&132;&162; 4 support via an on-board header. With an Intel-certified ASUS Thunderbolt EX 4 add-on card* TUF GAMING H670-PRO WIFI D4 can also enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. * ASUS Thunderbolt EX 4 add-on card is sold separately. Easy PC DIY TUF GAMING motherboards are designed to be easy to set up & configure just the way you want " even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software provides Fan Xpert 4 & hardware information & offers full full control of Two-Way AI Noise Cancellation, RGB lighting & peripheral settings. The TUF GAMING platform gives you the arsenal you need to build & optimize your dream gaming rig, without unnecessary complexity. Build with complete confidence TUF GAMING Alliance is a collaboration between ASUS & trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits & more. With new partnerships & components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. Safe Slot & Safe DIMM PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster Safe Slot, to ensure the highest data speeds. Safe Slot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS Safe DIMM sheathes support & protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy & confidence. ESD Guards ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 k V of air discharge & +/- 6 k V of contact discharge " greatly surpassing the respective industry standards of +/- 6 k V & +/- 4 k V. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes. TUF LANGuard TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology & premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes & static electricity. DRAM Overvoltage Protection Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless Steel Back I/O Panel TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that&153;s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing. EASY CONFIGURATION M.2 Q-Latch The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws. Q-LED The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components &149; CPU, RAM, graphics card, storage devices &149; are functioning normally during startup. Armoury Crate Armoury Crate is exclusive ASUS software that gives you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting & effects for every compatible device in your arsenal & synchronize them with Aura Sync for uni&2&172;&129;ed system lighting effects. It also provides hardware information & control of settings for a select & growing number of products, including keyboard & mouse preferences, Fan Xpert 4 & Two-Way AI Noise Cancelation, making it easier to tune the look & feel of your system. Armoury Crate even features dedicated product registration & news sections to help you stay in touch with the gaming community.&1 Immersive Gaming TUF GAMING H670 motherboard provides a high-performance gaming package with a long list of features to improve your experiences, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, & onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Networking Intel&174; Wi Fi 6 The Intel&174; Wi Fi 6 module is compatible with the 802.11ax standard & pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi Fi 6 routers to fully experience the networking potential of Wi Fi 6. The Wi Fi antenna designs with four-way positioning that enables better signal reception, & a magnetic base to secure the antenna on the top or side of the PC case. Intel&174; 2.5 Gb Ethernet Onboard 2.5 Gb Ethernet gives your wired connection a boost with speeds that are up to 2.5x faster than standard Ethernet connections. This translates to incredibly fast file transfers, low-lag online gaming, & high-res video streaming. Two-Way AI Noise Cancelation This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* & incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks & other ambient noises are removed so you can hear & be heard with perfect clarity while gaming or during calls. * An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset. Gaming Audio Realtek 7.1 Surround Sound 1.TUF Gaming audio chip protection Enhanced electrical shielding preserves the integrity of audio signals to ensure the best quality. 2. High-definition audio Premium audio capacitors provide warm, natural & immersive sound. 3. Audio shielding Our specialized audio path design separates analog & digital signal domains to significantly reduce multi-lateral interference. DTS Audio Processing DTS Audio Processing enhances gaming headset & speaker audio experiences by reducing distortion & by providing deeper bass, so games, movies & music sound better. It also means that you can customize audio settings.\n\n\n\n Internal I/ONumber of M.2 (M) slots 4 Thunderbolt headers 1USB 3.2 Gen 2 (3.1 Gen 2) connectors 112V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Peripheral (Molex) power connectors (4-pin)1 Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 4 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Number of displays supported 2 Motherboard chipset family Intel Motherboard chipset Intel H670HDMI version 2.1 Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64, Windows 11 x 64 Motherboard chipset family Intel Motherboard chipset Intel H670RAID levels 0, 1, 5, 10 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel&174; Pentium&174;, Intel&174; Pentium&174; Gold Maximum number of SMP processors 1 Processor socket LGA 1700 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4266, 4400, 4600, 4800, 5000, 5066, 5333 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATARAID levels 0, 1, 5, 10 Graphics Number of displays supported 2 Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Display Port version 1.4USB connector type USB Type-A, USB (Universal Serial Bus) Type-CS/PDIF out port Yes Microphone in Yes Headphone outputs 1HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1USB 3.2 Gen 2x 2 Type-C ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Ethernet interface type 2.5 Gigabit Ethernet Bluetooth Yes Bluetooth version 5.2 Top Wi-Fi standard Wi-Fi 6 (802.11ax) Features Windows operating systems supported Windows 10 x 64, Windows 11 x 64 Motherboard chipset family Intel Motherboard chipset Intel H670 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCExpansion slots Number of M.2 (M) slots 4PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 3.x) slots 1PCI Express x 16 (Gen 5.x) slots 1BIOSBIOS type UEFI AMIBIOS memory size 192 Mbit Software Windows operating systems supported Windows 10 x 64, Windows 11 x 64 Drivers included Yes Weight & dimensions Width 305 mm Depth 244 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n
