DURABLE. STABLE. RELIABLE.\n TUF Gaming B550M-Plus distills essential elements of the latest AMD platform & combines them with game-ready features & proven durability. Engineered with military-grade components, an upgraded power solution & A superbly comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.\n \n When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance " an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, & complementary aesthetics from components to case.\n \n ROCK-SOLID PERFORMANCE\n With upgraded power delivery & comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory & storage, TUF Gaming B550M-Plus is the perfect foundation for your next high-core-count battle rig.\n \n Dr MOS\n The onboard VRM of TUF Gaming B550M-Plus utilizes 8+2 Dr MOS power stages that combine high-side & low-side MOSFETs & driver into a single package, delivering the power & efficiency that 3rd Gen AMD Ryzen&132;&162; Processors dem&.\n \n EASY PC DIY\n TUF Gaming motherboards are designed to be easy to set up & configure just the way you want " even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.\n \n IMMERSIVE GAMING\n TUF Gaming B550M-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, & onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.\n \n EXCLUSIVE 2.5 GIGABIT ETHERNET\n 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos & enjoy faster file transfers.\n \n Turbo LAN\n NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION\n Turbo LAN is a network-optimization software for customizable packet prioritization. With c Fos Speed traffic-shaping technology, it means that you can configure application priority via an intuitive interface, & reduces network lag.\n\n Technical details Motherboard chipset family AMDMotherboard chipset AMD B550 Parallel processing technology support 2-Way Cross Fire X Motherboard form factor Micro ATXPerformance Motherboard chipset family AMDMotherboard chipset AMD B550 Motherboard form factor Micro ATXProcessor Processor manufacturer AMDCompatible processor series AMD Ryzen Processor socket Socket AM4 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMSupported memory clock speeds 2133, 2400, 2666, 2800, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MHz Maximum internal memory 128 GBStorage controllers Supported storage drive interfaces M.2, Serial ATAGraphics Parallel processing technology support 2-Way Cross Fire X Internal I/OSupported storage drive interfaces M.2, Serial ATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Number of SATA connectors 4 Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2USB 2.0 ports quantity 2S/PDIF out port Yes PS/2 ports quantity 1 Headphone outputs 5HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi No Features Motherboard chipset family AMDMotherboard chipset AMD B550 Motherboard form factor Micro ATXBIOSBIOS type UEFI\n\n\n\n ...

DURABLE. STABLE. RELIABLE. TUF GAMING B550M-E distills essential elements of the latest AMD platform & combines them with game-ready features & proven durability. Engineered with military-grade components, an upgraded power solution & A superbly comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance " an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, & complementary aesthetics from components to case. ROCK-SOLID PERFORMANCE With upgraded power delivery & comprehensive cooling options to fuel the latest AMD Ryzen TM CPUs, plus support for faster memory & storage, TUF GAMING B550M-E is the perfect foundation for your next high-core-count battle rig. Power Design Stack Cool 3+ 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures & provide more headroom to push CPUs beyond stock speeds. TUF COMPONENTS TUF CHOKES Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. TUF CAPACITORS Proprietary capacitors provide up to 20% greater temperature tolerance & 5X-longer lifespan. DIGI+ VRM The integrated DIGI+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth & ultra-clean power delivery to the CPU at all times. Cooler by design 1. VRM HEATSINK A large, high-mass heatsink with extensive surface that covers the VRM & choke areas improves heat dissipation. THERMAL PAD High-quality thermal pads help transfer heat from the inductor & phase array to the heatsink. 2. M.2 HEATSINK The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance & reliability. 3. PCH HEATSINK Mass & surface area of the heatsink is carefully designed & balanced to maximize thermal dissipation for the latest AMD B550 chipset. COMPREHENSIVE FAN CONTROLS TUF Gaming B550M-E features comprehensive fan controls that can be configured via Fan Xpert 2+ utility or via the award-winning ASUS UEFI BIOS. PCIe 4.0 M.2 (up to 64 Gbps) TUF Gaming B550M series motherboards support PCIe 4.0 M.2 slot & provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data transfer speeds on AMD Ryzen&132;&162; 5000 Series/ 3000 Series processors. USB (Universal Serial Bus) 3.2 Gen 2 Type-A Extensive USB (Universal Serial Bus) support ensures connections to a wide array of peripherals. TUF GAMING B550M-E series motherboards include two USB (Universal Serial Bus) 3.2 Gen 2 Type-A ports that deliver increased bandwidth & transmission speeds of up to 10 Gbps. USB (Universal Serial Bus) 3.2 GEN 1 TYPE"C&174; CONNECTOR Numerous USB (Universal Serial Bus) ports support gaming rigs loaded with peripherals, including a front-panel USB (Universal Serial Bus) Type-C&174; connector with fast USB (Universal Serial Bus) 3.2 Gen 1 connectivity for compatible cases. EASY PC DIY TUF Gaming motherboards are designed to be easy to set up & configure just the way you want " even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. Build with complete confidence TUF Gaming Alliance is a collaboration between ASUS & trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits & more. With more partnerships & components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF PROTECTION SAFESLOT CORE+ Safe Slot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, & the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards. ESD guards ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 k V of air discharge & +/- 6 k V of contact discharge " greatly surpassing the respective industry standards of +/- 6 k V & +/- 4 k V. KEYBOARDS & MOUSE CONNECTORS Additional on-circuit ESD transient-voltage-suppression. VGA PROTECTION Additional on-circuit ESD TVS diodes to protect VGA output functionality. USB (Universal Serial Bus) CONNECTORS TVS diode for surface-mount & dual in-line package. TUF LANGuard TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology & premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes & static electricity. DRAM overvoltage protection Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-steel back I/O panel TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing. IMMERSIVE GAMING TUF Gaming B550M-E provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, & onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Turbo LAN NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION Turbo LAN is a network-optimization software for customizable packet prioritization. With c Fos Speed traffic-shaping technology, it means that you can configure application priority via an intuitive interface, & reduces network lag. 1. ONE CLICK TURBO Adjust the network transmission priority by one click! 2. AUTO DETECT GAME LIST Turbo Lan will detect every game in system, & add in list automatically. Outshine the Competition A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header The addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.\n\n\n\n Internal I/ONumber of M.2 (M) slots 212V power connector Yes Supported storage drive interfaces M.2, PCI Express 3.0, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2TPM connector Yes S/PDIF out connector Yes Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 2 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family AMDMotherboard chipset AMD B550 Supported processor sockets Socket AM4 Parallel processing technology support Not supported HDMI version 2.1 Motherboard form factormicro ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family AMDMotherboard chipset AMD B550RAID levels 0, 1, 10 Supported processor sockets Socket AM4 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer AMDCompatible processor series AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, 3rd Generation AMD Ryzen 9, AMD Ryzen 9 5th Gen Supported processor sockets Socket AM4 Processor socket Socket AM4 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4100, 4133, 4200, 4266, 4333, 4400, 4466, 4600, 4800 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, PCI Express 3.0, SATA IIIRAID levels 0, 1, 10 Number of storage drives supported 6 Graphics Parallel processing technology support Not supported Maximum resolution 3840 x 2160 pixels Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Display Port version 1.2USB connector type USB Type-AUSB 2.0 ports quantity 2VGA (D-Sub) ports quantity 1PS/2 ports quantity 1 Microphone in Yes Headphone outputs 3HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi No Wake-on-LAN ready Yes Ethernet interface type Gigabit Ethernet Features Windows operating systems supported Windows 10 x 64 Motherboard chipset family AMDMotherboard chipset AMD B550 Supported processor sockets Socket AM4 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCAudio chip Realtek ALC887 / Realtek ALC897 Expansion slots Number of M.2 (M) slots 2PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 3.x) slots 1PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 256 Mbit Video Maximum resolution 3840 x 2160 pixels Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Width 244 mm Depth 244 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n ...

DURABLE. STABLE. RELIABLE. TUF GAMING B550M-E WIFI distills essential elements of the latest AMD platform & combines them with game-ready features & proven durability. Engineered with military-grade components, an upgraded power solution & A superbly comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance " an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, & complementary aesthetics from components to case. ROCK-SOLID PERFORMANCE With upgraded power delivery & comprehensive cooling options to fuel the latest AMD Ryzen TM CPUs, plus support for faster memory & storage, TUF GAMING B550M-E WIFI is the perfect foundation for your next high-core-count battle rig. Power Design Stack Cool 3+ 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures & provide more headroom to push CPUs beyond stock speeds. TUF COMPONENTS TUF CHOKES Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. TUF CAPACITORS Proprietary capacitors provide up to 20% greater temperature tolerance & 5X-longer lifespan. DIGI+ VRM The integrated DIGI+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth & ultra-clean power delivery to the CPU at all times. Cooler by design 1. VRM HEATSINK A large, high-mass heatsink with extensive surface that covers the VRM & choke areas improves heat dissipation. THERMAL PAD High-quality thermal pads help transfer heat from the inductor & phase array to the heatsink. 2. M.2 HEATSINK The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance & reliability. 3. PCH HEATSINK Mass & surface area of the heatsink is carefully designed & balanced to maximize thermal dissipation for the latest AMD B550 chipset. COMPREHENSIVE FAN CONTROLS TUF Gaming B550M-E WIFI features comprehensive fan controls that can be configured via Fan Xpert 2+ utility or via the award-winning ASUS UEFI BIOS. PCIe 4.0 M.2 (up to 64 Gbps) TUF Gaming B550M series motherboards support PCIe 4.0 M.2 slot & provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data transfer speeds on AMD Ryzen&132;&162; 5000 Series/ 3000 Series processors. USB (Universal Serial Bus) 3.2 Gen 2 Type-A Extensive USB (Universal Serial Bus) support ensures connections to a wide array of peripherals. TUF GAMING B550M-E series motherboards include two USB (Universal Serial Bus) 3.2 Gen 2 Type-A ports that deliver increased bandwidth & transmission speeds of up to 10 Gbps. USB (Universal Serial Bus) 3.2 GEN 1 TYPE"C&174; CONNECTOR Numerous USB (Universal Serial Bus) ports support gaming rigs loaded with peripherals, including a front-panel USB (Universal Serial Bus) Type-C&174; connector with fast USB (Universal Serial Bus) 3.2 Gen 1 connectivity for compatible cases. EASY PC DIY TUF Gaming motherboards are designed to be easy to set up & configure just the way you want " even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. Build with complete confidence TUF Gaming Alliance is a collaboration between ASUS & trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits & more. With more partnerships & components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF PROTECTION SAFESLOT CORE+ Safe Slot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, & the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards. ESD guards ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 k V of air discharge & +/- 6 k V of contact discharge " greatly surpassing the respective industry standards of +/- 6 k V & +/- 4 k V. KEYBOARDS & MOUSE CONNECTORS Additional on-circuit ESD transient-voltage-suppression. VGA PROTECTION Additional on-circuit ESD TVS diodes to protect VGA output functionality. USB (Universal Serial Bus) CONNECTORS TVS diode for surface-mount & dual in-line package. TUF LANGuard TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology & premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes & static electricity. DRAM overvoltage protection Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-steel back I/O panel TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing. EASY CONFIGURATION BIOS Flash Back&132;&162; BIOS Flash Back&132;&162; is the simplest & safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB (Universal Serial Bus) stick, plug it into the USB (Universal Serial Bus) BIOS Flash Back&132;&162; port & press the button. Updates can even be performed without having memory or a CPU installed. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting & effects for every compatible device in your arsenal & synchronize them with Aura Sync for uni&2&172;&129;ed system lighting effects. The software also provides control of settings for a select & growing number of products, including keyboard & mouse preferences as well as laptop overclocking & fan speeds, making it easier to tune the look & feel of your system. Armoury Crate even features dedicated product registration & news areas to help you stay in touch with the gaming community. IMMERSIVE GAMING TUF Gaming B550M-E WIFI provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, & onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Intel&174; WI-FI 6 AX200 The Intel&174; Wi-Fi 6 AX200 module is compatible with the 802.11ax standard & pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi Fi 6 routers to fully experience the networking potential of Wi Fi 6. Turbo LAN NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION Turbo LAN is a network-optimization software for customizable packet prioritization. With c Fos Speed traffic-shaping technology, it means that you can configure application priority via an intuitive interface, & reduces network lag. 1. ONE CLICK TURBO Adjust the network transmission priority by one click! 2. AUTO DETECT GAME LIST Turbo Lan will detect every game in system, & add in list automatically. My ASUS My ASUS offers a variety of support features to help you contact customer service, troubleshoot issues & optimize product performance. You can also use My ASUS to enable the Wi Fi Smart Connect function to automatically connect to the wireless router with the best signal. DTS&174; Custom for gaming headsets Hone your battle skills with exclusive DTS&174; Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS&174; Custom takes onboard audio to a new frontier. With three presets &149; Aerial, Soundscape, & Tactical &149; for different genres, you'll have a distinct advantage in every game. AERIAL MODE Experience audio as though hovering above the game world, with sound coming from ahead " perfect for MOBA, RTA, strategy & sports titles! SOUNDSCAPE MODE The ideal audio envelope for MMO, RPG, action & horror games " your ears will put you in the center of the action! TACTICAL MODE Shhh " is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect & locate every footstep! Outshine the Competition A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header The addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.\n\n\n\n Internal I/ONumber of M.2 (M) slots 212V power connector Yes Supported storage drive interfaces M.2, PCI Express 3.0, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2TPM connector Yes S/PDIF out connector Yes Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 2 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family AMDMotherboard chipset AMD B550 Supported processor sockets Socket AM4 Parallel processing technology support Not supported HDMI version 2.1 Motherboard form factormicro ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family AMDMotherboard chipset AMD B550RAID levels 0, 1, 10 Supported processor sockets Socket AM4 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer AMDCompatible processor series AMD Ryzen&132;&162; 3, AMD Ryzen&132;&162; 5, AMD Ryzen&132;&162; 7, 3rd Generation AMD Ryzen&132;&162; 9, AMD Ryzen 9 5th Gen Supported processor sockets Socket AM4 Processor socket Socket AM4 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4100, 4133, 4200, 4266, 4333, 4400, 4466, 4600, 4800 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, PCI Express 3.0, SATA IIIRAID levels 0, 1, 10 Number of storage drives supported 6 Graphics Parallel processing technology support Not supported Maximum resolution 3840 x 2160 pixels Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Display Port version 1.2USB connector type USB Type-AUSB 2.0 ports quantity 2 Wi Fi-AP antenna jack 1VGA (D-Sub) ports quantity 1PS/2 ports quantity 1 Microphone in Yes Headphone outputs 3HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Wake-on-LAN ready Yes Ethernet interface type Gigabit Ethernet Bluetooth Yes Bluetooth version 5.1 Top Wi-Fi standard Wi-Fi 6 (802.11ax)WLAN controller model Intel Wi-Fi 6 AX200 Features Windows operating systems supported Windows 10 x 64 Motherboard chipset family AMDMotherboard chipset AMD B550 Supported processor sockets Socket AM4 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCAudio chip Realtek ALC887 / Realtek ALC897 Expansion slots Number of M.2 (M) slots 2PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 3.x) slots 1PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 256 Mbit Video Maximum resolution 3840 x 2160 pixels Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Width 244 mm Depth 244 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n ...

Intel&174; B560 (LGA 1200) ATX motherboard, 8+1 Dr MOS Power stages, PCIe 4.0 support, DDR4 5000 (OC), Dual M.2 slot with flexible heatsink, HDMI 2.0, Display Port 1.4, SATA 6 Gbps, 2.5 Gb Ethernet, Front USB (Universal Serial Bus) Type-C&174;, USB (Universal Serial Bus) 3.2 Gen 2 Type-C&174;, Thunderbolt&132;&162; 4 support, & Aura Sync RGB lighting\n\n\n\n Internal I/ONumber of M.2 (M) slots 2 Thunderbolt headers 1 Total number of SATA connectors 6 Audio connector Yes 12V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 Peripheral (Molex) power connectors (4-pin)6 Number of SATA connectors 6 Number of COM connectors 1 Number of chassis fan connectors 3EPS power connector (8-pin) Yes CPU fan connector Yes Chassis intrusion connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Number of displays supported 2 Motherboard chipset family Intel Motherboard chipset Intel B560HDMI version 2.0 Motherboard form factor ATXComponent for PCTotal number of SATA connectors 6 Number of mounting holes 9 Audio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel B560 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCExpansion card interfaces Audio connector Yes Processor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel&174; Pentium&174; Maximum number of SMP processors 1 Processor socket LGA 1200 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3200, 3333, 3466, 3600, 3733, 4000, 4266, 4400, 4600, 4800, 5000 MHz Maximum internal memory 128 GBStorage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATANumber of storage drives supported 8 Graphics Number of displays supported 2 Maximum resolution 4096 x 2304 pixels Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Display Port version 1.4USB connector type USB Type-A, USB (Universal Serial Bus) Type-CUSB 2.0 ports quantity 3S/PDIF out port Yes Microphone in Yes Headphone outputs 1HDMI version 2.0HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Ethernet interface type 2.5 Gigabit Ethernet Bluetooth Yes Bluetooth version 5.0 Top Wi-Fi standard Wi-Fi 6 (802.11ax) Features Number of mounting holes 9 Windows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel B560 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCAudio chip Realtek ALC897 Expansion slots Number of M.2 (M) slots 2PCI Express x 1 (Gen 3.x) slots 3PCI Express x 16 (Gen 3.x) slots 1PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIBIOS memory size 128 Mbit Video Maximum resolution 4096 x 2304 pixels Packaging data Package width 338 mm Package depth 273 mm Package height 68 mm Package weight 1.83kg Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Package width 338 mm Package depth 273 mm Package height 68 mm Package weight 1.83kg Width 305 mm Depth 244 mm Packaging content Drivers included Yes Cables included SATAOther features Package width 338 mm Package depth 273 mm Package height 68 mm Package weight 1.83 kg\n\n\n\n ...

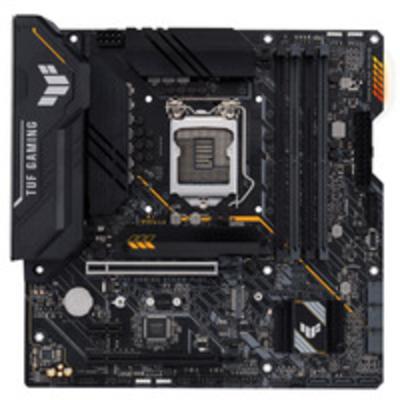

ntel&174; B560 (LGA 1200) m ATX motherboard with PCIe 4.0, two M.2 slots, 8+1 Power stages, Realtek 2.5 Gb Ethernet, Display Port 1.4, HDMI 2.0, USB (Universal Serial Bus) 3.2 Gen 2, USB (Universal Serial Bus) 3.2 Gen 1 Type-C&174;, Thunderbolt&132;&162; 4 support, Aura Sync RGB Lighting, Addressable RGB\n\n\n\n\n\n Product Model: TUF GAMING B560M-PLUS\n\n\n ...

Intel&174; B560 (LGA 1200) m ATX motherboard with PCIe 4.0, two M.2 slots, 8+1 Power stages, Realtek 2.5 Gb Ethernet, Intel&174; Wi-Fi 6, Display Port 1.4, HDMI 2.0, USB (Universal Serial Bus) 3.2 Gen 2, USB (Universal Serial Bus) 3.2 Gen 1 Type-C&174;, Thunderbolt&132;&162; 4 support, Aura Sync RGB Lighting, Addressable RGB\n\n\n\n Internal I/ONumber of M.2 (M) slots 2 Thunderbolt headers 112V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 Peripheral (Molex) power connectors (4-pin)4 Number of SATA III connectors 6 Number of EATX power connectors 1 Number of COM connectors 1 Number of chassis fan connectors 2 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes Chassis intrusion connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel B560HDMI version 2.0 Motherboard form factormicro ATXComponent for PCNumber of mounting holes 8 Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel B560 Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel&174; Pentium&174; Maximum number of SMP processors 1 Processor socket LGA 1200 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3200, 3466, 3600, 3733, 4000, 4266, 4400, 4600, 4800, 5000 MHz Maximum internal memory 128 GBStorage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATANumber of storage drives supported 8 Graphics Maximum resolution 4096 x 2304 pixels Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Display Port version 1.2USB connector type USB Type-A, USB (Universal Serial Bus) Type-CUSB 2.0 ports quantity 4 Wi Fi-AP antenna jack 2S/PDIF out port Yes Microphone in Yes Headphone outputs 1HDMI version 2.0HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Ethernet interface type 2.5 Gigabit Ethernet Bluetooth Yes Bluetooth version 5.0 Top Wi-Fi standard Wi-Fi 6 (802.11ax) Features Power source type ATXNumber of mounting holes 8 Windows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel B560 Motherboard form factormicro ATXComponent for PCExpansion slots Number of M.2 (M) slots 2PCI Express x 1 (Gen 3.x) slots 1PCI Express x 16 (Gen 3.x) slots 1PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 128 Mbit Power Power source type ATXVideo Maximum resolution 4096 x 2304 pixels Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Width 244 mm Depth 244 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n ...

Durable. Stable. Reliable. ASUS TUF GAMING B660M-PLUS D4 takes all the essential elements of the latest Intel&174; processors & combines them with game-ready features & proven durability. Engineered with military-grade components, an upgraded power solution & a comprehensive cooling system, this motherboard offers rock-solid & stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-PLUS D4 sports the new TUF Gaming logo & incorporates simple geometric design elements to reflect the dependability & stability that defines the TUF Gaming series. Rock-Solid Performance With upgraded power delivery & comprehensive cooling options to drive the 12th Gen Intel Core&132;&162; processors, plus support for faster memory & storage, TUF GAMING B660M series motherboards are the perfect foundation for your next high-core-count battle rig. Power Design Dr MOS The onboard VRMs feature 10+1 Dr MOS power stages that combine high-side & low-side MOSFETs & drivers into a single package, delivering the power & efficiency that 12th Gen Intel Core processors dem&. Six-Layer PCB Design Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. Pro Cool Connectors Enhanced EATX 8-Pin & 4-Pin Connectors &227;&131;&187; Provide extreme durability &227;&131;&187; Prevent hotspots & connector failure Compared to traditional power inputs, ASUS Pro Cool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots & connector failure. TUF Components TUF Chokes Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability. TUF Capacitors Proprietary capacitors provide up to 20% wider temperature tolerance & five times longer lifespan. Digi+ VRM The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth & ultra-clean power delivery to the CPU at all times. COOLING Cooler by design 1. Enlarged VRM heatsink The extensive surface area of the massive heatsink covers the VRMs & chokes to improve heat dissipation. 2. Flexible M.2 Heatsink TUF GAMING B660M Series have flexible M.2 heatsink to use one more M.2 slot & keep the M.2 SSD at the optimum operating temperature for consistent performance & reliability. Comprehensive Fan Controls TUF GAMING B660M series motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 2+ utility or the award-winning ASUS UEFI BIOS. DRAM Overclocking Performance DDR4 OC 5333 Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, & it adds shielding zones that significantly reduce crosstalk. Two PCIe 4.0 M.2 The Two PCIe 4.0 M.2 slots support up to two 2280 devices & also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds. CONNECTIVITY PCIe 5.0 The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, & backward compatibility with previous versions of PCI Express Front USB (Universal Serial Bus) Port A full complement of USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including a front-panel USB (Universal Serial Bus) 3.2 Gen 1 Type-C&174; connector that provides data transfer speeds of up to 5 Gbps. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Extensive USB (Universal Serial Bus) support ensures connections to a wide array of peripherals. TUF GAMING B660M-PLUS D4

Includes:: a USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; port on the rear I/O panel that delivers increased bandwidth & transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 Support TUF GAMING B660M series features Thunderbolt&132;&162; 4 support via an on-board header. With an Intel-certified ASUS Thunderbolt EX 4 add-on card* TUF GAMING B660M-PLUS D4 can also enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. * ASUS Thunderbolt EX 4 add-on card is sold separately. Easy PC DIY TUF GAMING motherboards are designed to be easy to set up & configure just the way you want " even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software provides Fan Xpert 2+ & hardware information & offers full full control of Two-Way AI Noise Cancellation, RGB lighting & peripheral settings. The TUF GAMING platform gives you the arsenal you need to build & optimize your dream gaming rig, without unnecessary complexity. Build with complete confidence TUF GAMING Alliance is a collaboration between ASUS & trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits & more. With new partnerships & components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. Learn More TUF PROTECTION Safe Slot & Safe DIMM PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster Safe Slot, to ensure the highest data speeds. Safe Slot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS Safe DIMM sheathes support & protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy & confidence. ESD Guards ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 k V of air discharge & +/- 6 k V of contact discharge " greatly surpassing the respective industry standards of +/- 6 k V & +/- 4 k V. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes. TUF LANGuard TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology & premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes & static electricity. DRAM Overvoltage Protection Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless Steel Back I/O Panel TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that&153;s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing. Immersive Gaming TUF GAMING B660M series motherboards provide a high-performance gaming package with a long list of features to improve your experiences, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, & onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Networking EXCLUSIVE 2.5 GIGABIT ETHERNET 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos & enjoy faster file transfers. Two-Way AI Noise Cancelation This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* & incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks & other ambient noises are removed so you can hear & be heard with perfect clarity while gaming or during calls. Realtek 7.1 Surround Sound 1.TUF Gaming audio chip protection Enhanced electrical shielding preserves the integrity of audio signals to ensure the best quality. 2. High-definition audio Premium audio capacitors provide warm, natural & immersive sound. 3. Audio shielding Our specialized audio path design separates analog & digital signal domains to significantly reduce multi-lateral interference. DTS Audio Processing DTS Audio Processing enhances gaming headset & speaker audio experiences by reducing distortion & by providing deeper bass, so games, movies & music sound better. It also means that you can customize audio settings. Outshine the Competition A well-tuned system deserves a matching aesthetic. TUF Gaming B660M series features edge lighting to enhance its rugged look, & now the PCH heatsink gets RGB lighting to take the style even further. ASUS Aura offers full RGB control with a variety of functional presets for built-in LEDs as well as third-party strips you can connect to onboard RGB headers. & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing addressable RGB gear.\n\n\n\n Internal I/ONumber of M.2 (M) slots 2 Thunderbolt headers 1 Front panel connector Yes 12V power connector Yes Supported storage drive interfaces M.2, PCI Express 4.0, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 Serial port headers 1 Number of SATA III connectors 4 Number of chassis fan connectors 3 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes Chassis intrusion connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel B660 Supported processor sockets LGA 1700 Serial port headers 1HDMI version 2.1 Motherboard form factormicro ATXComponent for PCAudio Audio output channels 7.1 channels Performance Number of HDDs supported 4 Supported storage drive types HDD & SSDMotherboard chipset family Intel Motherboard chipset Intel B660RAID levels 0, 1, 5, 10 Supported processor sockets LGA 1700 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel&174; Core&132;&162; i 5, Intel&174; Core&132;&162; i 7, Intel&174; Core&132;&162; i 9, Intel&174; Pentium&174; Gold Supported processor sockets LGA 1700 Processor socket LGA 1700 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4600, 4800, 5000, 5066, 5333 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Number of HDDs supported 4 Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, PCI Express 4.0, SATA IIIRAID levels 0, 1, 5, 10 Number of storage drives supported 6RAID support Yes Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Display Port version 1.4USB 2.0 ports quantity 2 Headphone outputs 5HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Digital audio optical out 1 Network Ethernet LANYes Wi-Fi No Ethernet interface type 2.5 Gigabit Ethernet Features Power source type ATXMotherboard chipset family Intel Motherboard chipset Intel B660 Supported processor sockets LGA 1700 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCExpansion slots Number of M.2 (M) slots 2PCI Express x 16 (Gen 3.x) slots 1PCI Express x 1 slots 1PCI Express x 16 (Gen 5.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 128 Mbit Power Power source type ATXWeight & dimensions Width 244 mm Depth 244 mm Packaging content Cables included SATA\n\n\n\n

...

Durable. Stable. Reliable. ASUS TUF GAMING B660M-PLUS WIFI D4 takes all the essential elements of the latest Intel&174; processors & combines them with game-ready features & proven durability. Engineered with military-grade components, an upgraded power solution & a comprehensive cooling system, this motherboard offers rock-solid & stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-PLUS WIFI D4 sports the new TUF Gaming logo & incorporates simple geometric design elements to reflect the dependability & stability that defines the TUF Gaming series. Rock-Solid Performance With upgraded power delivery & comprehensive cooling options to drive the 12th Gen Intel Core&132;&162; processors, plus support for faster memory & storage, TUF GAMING B660M series motherboards are the perfect foundation for your next high-core-count battle rig. Power Design Dr MOS The onboard VRMs feature 10+1 Dr MOS power stages that combine high-side & low-side MOSFETs & drivers into a single package, delivering the power & efficiency that 12th Gen Intel Core processors dem&. Six-Layer PCB Design Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. Pro Cool Connectors Enhanced EATX 8-Pin & 4-Pin Connectors &227;&131;&187; Provide extreme durability &227;&131;&187; Prevent hotspots & connector failure Compared to traditional power inputs, ASUS Pro Cool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots & connector failure. TUF Components TUF Chokes Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability. TUF Capacitors Proprietary capacitors provide up to 20% wider temperature tolerance & five times longer lifespan. Digi+ VRM The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth & ultra-clean power delivery to the CPU at all times. COOLING Cooler by design 1. Enlarged VRM heatsink The extensive surface area of the massive heatsink covers the VRMs & chokes to improve heat dissipation. 2. Flexible M.2 Heatsink TUF GAMING B660M Series have flexible M.2 heatsink to use one more M.2 slot & keep the M.2 SSD at the optimum operating temperature for consistent performance & reliability. Comprehensive Fan Controls TUF GAMING B660M series motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 2+ utility or the award-winning ASUS UEFI BIOS. MEMORY & STORAGE DRAM Overclocking Performance DDR4 OC 5333 Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, & it adds shielding zones that significantly reduce crosstalk. Two PCIe 4.0 M.2 The Two PCIe 4.0 M.2 slots support up to two 2280 devices & also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds. CONNECTIVITY PCIe 5.0 The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, & backward compatibility with previous versions of PCI Express Front USB (Universal Serial Bus) Port A full complement of USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including a front-panel USB (Universal Serial Bus) 3.2 Gen 1 Type-C&174; connector that provides data transfer speeds of up to 5 Gbps. USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; Extensive USB (Universal Serial Bus) support ensures connections to a wide array of peripherals. TUF GAMING B660M-PLUS WIFI D4

Includes:: a USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C&174; port on the rear I/O panel that delivers increased bandwidth & transmission speeds of up to 20 Gbps. Thunderbolt&132;&162; 4 Support TUF GAMING B660M series features Thunderbolt&132;&162; 4 support via an on-board header. With an Intel-certified ASUS Thunderbolt EX 4 add-on card* TUF GAMING B660M-PLUS WIFI D4 can also enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. * ASUS Thunderbolt EX 4 add-on card is sold separately. 40 Gbps via Thunderbolt 4 Consistent, superfast performance Easy PC DIY TUF GAMING motherboards are designed to be easy to set up & configure just the way you want " even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software provides Fan Xpert 2+ & hardware information & offers full full control of Two-Way AI Noise Cancellation, RGB lighting & peripheral settings. The TUF GAMING platform gives you the arsenal you need to build & optimize your dream gaming rig, without unnecessary complexity. Build with complete confidence TUF GAMING Alliance is a collaboration between ASUS & trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits & more. With new partnerships & components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF PROTECTION Safe Slot & Safe DIMM PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster Safe Slot, to ensure the highest data speeds. Safe Slot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS Safe DIMM sheathes support & protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy & confidence. ESD Guards ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 k V of air discharge & +/- 6 k V of contact discharge " greatly surpassing the respective industry standards of +/- 6 k V & +/- 4 k V. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes. TUF LANGuard TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology & premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes & static electricity. DRAM Overvoltage Protection Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless Steel Back I/O Panel TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that&153;s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing. EASY CONFIGURATION M.2 Q-Latch The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws. Q-LED The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components &149; CPU, RAM, graphics card, storage devices &149; are functioning normally during startup. Armoury Crate Armoury Crate is exclusive ASUS software that gives you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting & effects for every compatible device in your arsenal & synchronize them with Aura Sync for uni&2&172;&129;ed system lighting effects. It also provides hardware information & control of settings for a select & growing number of products, including keyboard & mouse preferences, Fan Xpert 2+ & Two-Way AI Noise Cancelation, making it easier to tune the look & feel of your system. Armoury Crate even features dedicated product registration & news sections to help you stay in touch with the gaming community.&1 Immersive Gaming TUF GAMING B660M series motherboards provide a high-performance gaming package with a long list of features to improve your experiences, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, & onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Networking Intel&174; Wi Fi 6 The Intel&174; Wi Fi 6 module is compatible with the 802.11ax standard & pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi Fi 6 routers to fully experience the networking potential of Wi Fi 6. The Wi Fi antenna designs with four-way positioning that enables better signal reception, & a magnetic base to secure the antenna on the top or side of the PC case. EXCLUSIVE 2.5 GIGABIT ETHERNET 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos & enjoy faster file transfers. Two-Way AI Noise Cancelation This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* & incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks & other ambient noises are removed so you can hear & be heard with perfect clarity while gaming or during calls. Gaming Audio Realtek 7.1 Surround Sound 1.TUF Gaming audio chip protection Enhanced electrical shielding preserves the integrity of audio signals to ensure the best quality. 2. High-definition audio Premium audio capacitors provide warm, natural & immersive sound. 3. Audio shielding Our specialized audio path design separates analog & digital signal domains to significantly reduce multi-lateral interference. DTS Audio Processing DTS Audio Processing enhances gaming headset & speaker audio experiences by reducing distortion & by providing deeper bass, so games, movies & music sound better. It also means that you can customize audio settings. Outshine the Competition A well-tuned system deserves a matching aesthetic. TUF Gaming B660M series features edge lighting to enhance its rugged look, & now the PCH heatsink gets RGB lighting to take the style even further. ASUS Aura offers full RGB control with a variety of functional presets for built-in LEDs as well as third-party strips you can connect to onboard RGB headers. & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing addressable RGB gear.\n\n\n\n Internal I/ONumber of M.2 (M) slots 2 Thunderbolt headers 1 Front panel connector Yes 12V power connector Yes Supported storage drive interfaces M.2, PCI Express 4.0, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 Serial port headers 1 Number of SATA III connectors 4 Number of chassis fan connectors 3 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes Chassis intrusion connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel B660 Supported processor sockets LGA 1700 Serial port headers 1HDMI version 2.1 Motherboard form factormicro ATXComponent for PCAudio Audio output channels 7.1 channels Performance Number of HDDs supported 4 Supported storage drive types HDD & SSDMotherboard chipset family Intel Motherboard chipset Intel B660RAID levels 0, 1, 5, 10 Supported processor sockets LGA 1700 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel&174; Pentium&174; Gold Supported processor sockets LGA 1700 Processor socket LGA 1700 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4600, 4800, 5000, 5066, 5333 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Number of HDDs supported 4 Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, PCI Express 4.0, SATA IIIRAID levels 0, 1, 5, 10 Number of storage drives supported 6RAID support Yes Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Display Port version 1.4USB connector type USB Type-A, USB (Universal Serial Bus) Type-CUSB 2.0 ports quantity 2 Wi Fi-AP antenna jack 2 Headphone outputs 5HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Digital audio optical out 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Ethernet interface type 2.5 Gigabit Ethernet Bluetooth Yes Bluetooth version 5.2 Top Wi-Fi standard Wi-Fi 6 (802.11ax) Features Power source type ATXMotherboard chipset family Intel Motherboard chipset Intel B660 Supported processor sockets LGA 1700 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCExpansion slots Number of M.2 (M) slots 2PCI Express x 16 (Gen 3.x) slots 1PCI Express x 1 slots 1PCI Express x 16 (Gen 5.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 128 Mbit Power Power source type ATXWeight & dimensions Width 244 mm Depth 244 mm Packaging content Cables included SATA\n\n\n\n

...

Durable. Stable. Reliable. ASUS TUF GAMING B660M-E D4 takes all the essential elements of the latest Intel&174; processors & combines them with game-ready features & proven durability. Engineered with military-grade components, an upgraded power solution & a comprehensive cooling system, this motherboard offers rock-solid & stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-E D4 sports the new TUF Gaming logo & incorporates simple geometric design elements to reflect the dependability & stability that defines the TUF Gaming series. Rock-Solid Performance With upgraded power delivery & comprehensive cooling options to drive the 12th Gen Intel Core&132;&162; processors, plus support for faster memory & storage, TUF GAMING B660 motherboards are the perfect foundation for your next high-core-count battle rig. Power Design Six-Layer PCB Design Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. Pro Cool Connector Enhanced EATX 8-Pin &227;&131;&187; Provide extreme durability &227;&131;&187; Prevent hotspots & connector failure Compared to traditional power inputs, ASUS Pro Cool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots & connector failure. TUF Components TUF Chokes Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability. TUF Capacitors Proprietary capacitors provide up to 20% wider temperature tolerance & five times longer lifespan. Digi+ VRM The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth & ultra-clean power delivery to the CPU at all times. COOLING Cooler by design 1. Enlarged VRM heatsink The extensive surface area of the massive heatsink covers the VRMs & chokes to improve heat dissipation. 2. Flexible M.2 Heatsink TUF GAMING B660M-E D4 has a flexible M.2 heatsink to use on more M.2 slots & keep the M.2 SSD at the optimum operating temperature for consistent performance & reliability. Comprehensive Fan Controls TUF GAMING B660 motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 2+ utility or the award-winning ASUS UEFI BIOS. MEMORY & STORAGE DRAM Overclocking Performance DDR4 OC 5333 Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS Opti Mem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, & it adds shielding zones that significantly reduce crosstalk. Two PCIe 4.0 M.2 The two PCIe 4.0 M.2 slots support up to two 2280 devices & also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds. * Actual transmission speed will be lower than theorectical maximum speed. CONNECTIVITY Front USB (Universal Serial Bus) Port A full complement of USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including a front-panel USB (Universal Serial Bus) 3.2 Gen 2 Type-C&174; connector that provides data transfer speeds of up to 10 Gbps. V-M.2 Slot (Key E) for Wi-Fi TUF GAMING B660M-E D4 comes along with an vertical M.2 (Key E) slot & ASUS exclusive Wi-Fi card holder which provide you the flexibility to upgrade your networking solution by installing an M.2 Wi-Fi/ Bluetooth module. Easy PC DIY TUF GAMING motherboards are designed to be easy to set up & configure just the way you want " even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software provides Fan Xpert 2+ & hardware information & offers full full control of Two-Way AI Noise Cancellation, RGB lighting & peripheral settings. The TUF GAMING platform gives you the arsenal you need to build & optimize your dream gaming rig, without unnecessary complexity. Build with complete confidence TUF GAMING Alliance is a collaboration between ASUS & trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits & more. With new partnerships & components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF PROTECTION Safe Slot Core+ & Safe DIMM Safe Slot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, & the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards. ASUS Safe DIMM sheathes support & protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy & confidence. ESD Guards ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 k V of air discharge & +/- 6 k V of contact discharge " greatly surpassing the respective industry standards of +/- 6 k V & +/- 4 k V. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes. TUF LANGuard TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology & premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes & static electricity. DRAM Overvoltage Protection Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless Steel Back I/O Panel TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that&153;s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing. EASY CONFIGURATION M.2 Q-Latch The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws. Q-LED The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components &149; CPU, RAM, graphics card, storage devices &149; are functioning normally during startup. Armoury Crate Armoury Crate is exclusive ASUS software that gives you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting & effects for every compatible device in your arsenal & synchronize them with Aura Sync for uni&2&172;&129;ed system lighting effects. It also provides hardware information & control of settings for a select & growing number of products, including keyboard & mouse preferences, Fan Xpert 2+ & Two-Way AI Noise Cancelation, making it easier to tune the look & feel of your system. Armoury Crate even features dedicated product registration & news sections to help you stay in touch with the gaming community.&1 Immersive Gaming TUF GAMING B660 motherboards provide a high-performance gaming package with a long list of features to improve your experiences, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, & onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Networking EXCLUSIVE 2.5 GIGABIT ETHERNET 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos & enjoy faster file transfers. Two-Way AI Noise Cancelation This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* & incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks & other ambient noises are removed so you can hear & be heard with perfect clarity while gaming or during calls. Gaming Audio DTS Audio Processing DTS Audio Processing enhances gaming headset & speaker audio experiences by reducing distortion & by providing deeper bass, so games, movies & music sound better. It also means that you can customize audio settings. Outshine the Competition A well-tuned system deserves a matching aesthetic. TUF Gaming B660 series features edge lighting to enhance its rugged look, & now the PCH heatsink gets RGB lighting to take the style even further. ASUS Aura offers full RGB control with a variety of functional presets for built-in LEDs as well as third-party strips you can connect to onboard RGB headers. & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 RGB Header The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing addressable RGB gear.\n\n\n\n Internal I/ONumber of M.2 (M) slots 2USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Front panel connector Yes Supported storage drive interfaces M.2, PCI Express 4.0, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1S/PDIF out connector Yes Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 2 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes Chassis intrusion connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel B660 Supported processor sockets LGA 1700HDMI version 2.1 Motherboard form factormicro ATXComponent for PCAudio Audio output channels 7.1 channels Performance Number of HDDs supported 4 Supported storage drive types HDD & SSDMotherboard chipset family Intel Motherboard chipset Intel B660RAID levels 0, 1, 5, 10 Supported processor sockets LGA 1700 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel&174; Pentium&174; Gold Supported processor sockets LGA 1700 Processor socket LGA 1700 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4266, 4400, 4600, 4800, 5000, 5333 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Number of HDDs supported 4 Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, PCI Express 4.0, SATA IIIRAID levels 0, 1, 5, 10 Number of storage drives supported 6RAID support Yes Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Display Port version 1.4USB connector type USB Type-AUSB 2.0 ports quantity 2PS/2 ports quantity 1 Headphone outputs 3HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi No Ethernet interface type 2.5 Gigabit Ethernet Features Power source type ATXMotherboard chipset family Intel Motherboard chipset Intel B660 Supported processor sockets LGA 1700 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCAudio chip Realtek ALC897 Expansion slots Number of M.2 (M) slots 2PCI Express x 1 (Gen 3.x) slots 1PCI Express x 16 (Gen 3.x) slots 1PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 128 Mbit Power Power source type ATXWeight & dimensions Width 244 mm Depth 244 mm Packaging content Cables included SATA\n\n\n\n ...

The compact, ready-to-stream ASUS TUF Gaming Capture Box delivers incredible 4K30 video with near-zero latency to captivate fans & followers. TUF Gaming Capture Box Whether you want to broadcast to your followers while playing on a console or PC, ASUS TUF Gaming Capture Box lets you unleash top-notch gaming streams that&153;ll make the crowd go wild. Capture Every Detail of the Action ASUS TUF Gaming Capture Box supports up to 4K60 HDR passthrough via two HDMI 2.0 ports & keeps your gameplay smooth by offloading up to 4K30 video to your external workstation or laptop via a USB (Universal Serial Bus) 3.2 Gen 1x 1 Type-C port. Get ready to amaze your followers with livestreams in mind-blowing quality. Streaming with Squad or Solo For streamlined capturing of console parties or live solo commentary, a headset & controller can be connected to ASUS TUF Gaming Capture Box via two 3.5 mm jacks. The headset connection seamlessly transmits audio to party members & allows the audience to listen in on all the action. Certified for OBS&132;&162; Backed by OBS Studio&132;&162; certification, ASUS TUF Gaming Capture Box delivers masterful video content tailored for your favorite streaming platform. Compact, Ready-to-Go Design Inside & out, ASUS TUF Gaming Capture Box is crafted for hassle-free operation. Its half-palm-sized aluminum chassis reduces desktop clutter & silently boosts reliability by dissipating heat generated by internal components. & USB (Universal Serial Bus) class video support allows PC or laptop hookup without requiring dedicated drivers, for rapid deployment anytime, anywhere. RGB Lighting Signals Status The front of ASUS TUF Gaming Capture Box is illuminated by an RGB lighting strip that conveniently indicates functional status. Get Ready to Capture & Conquer Gaming device, streaming PC, controller, & headset " just hook up each to immediately start streaming the action to your followers!\n\n\n\n Technical details Internal No Host interface USB 3.2 Gen 1 (3.1 Gen 1) Product colour Silver Ports & interfaces HDMI in 1 Number of HDMI outputs 1 Headphone outputs 1HDMI ports quantity 2HDMI version 2.0 High Dynamic Range (HDR) supported Yes Weight & dimensions Width 105 mm Depth 80 mm Height 21 mm Weight 173 g System requirements Minimum system requirements- Intel&174; Core&132;&162; i 5-6XXX or above
- AMD&174; Ryzen&132;&162; 5 1XXX or above
- Recommended&2&188;&154; Intel&174; Core&132;&162; i 7-6XXX or above
- Recommended&2&188;&154;AMD&174; RYZEN&132;&162; 7 1XXX or above
- 8GB or above (Dual-channel)
- Recommended&2&188;&154;16GB or above (Dual-channel)
- You have to set your memory on dual channel mode in your computer system.
- NVIDIA&174; Ge Force&174; GTX660 or above
- AMD&174; Radeon&132;&162; HD7870 or above
- Recommended&2&188;&154;NVIDIA&174; Ge Force&174; GTX 1060 or above
- Recommended&2&188;&154;AMD&174; Radeon&132;&162; RX570 or above
- Requires an USB (Universal Serial Bus) 3.2 Gen 1x 1 Minimum RAM8192 MBPackaging content Quantity 1\n\n\n\n










...
