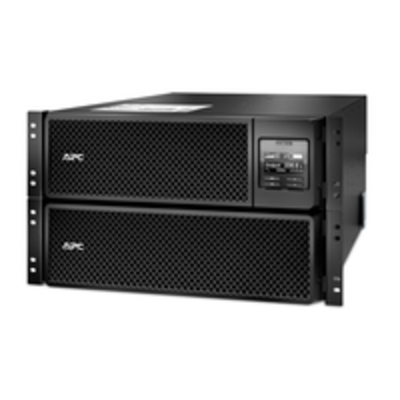

APC Smart-UPS On-Line, 8000 Watts /8000 VA, Input 230V / Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB (Universal Serial Bus), Extended runtime model, Rack Height 6 U\n\n
Includes:: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, USB (Universal Serial Bus) cable, Warranty card Feature Feature Value UPS topology Double-conversion (Online) Output power capacity 8000 VAOutput power 8000 WWaveform Sine Input operation voltage (min)100 VInput operation voltage (max)476 VInput frequency 40
- 70 Hz Output operation voltage (min)220 VOutput operation voltage (max)240 VOutput frequency regulation 50/60 Hz Surge energy rating 480 JNumber of output phases 1 Efficiency 94.8% Crest factor 3:1 Emergency Power Off (EPO)YOutput voltage Total Harmonic Distortion (THD)3% Noise level 55 d B Surge protection Y Audible alarm (s)YAuto-restart YAC outlet types C13 coupler, C19 coupler Power plug Terminal AC outlets quantity 10 AC outlet (s) Number of output IEC jumpers 3USB port Y Serial interface Y Serial interface type RJ-45 Smart Slot Y Battery technology Sealed Lead Acid (VRLA) Battery capacity 1728 VAh Typical backup time at full load 5.2 min Typical backup time at half load 14.5 min Battery life (max)5 year (s) Battery recharge time 1.5 h Hot-swap battery Y Automatic battery test Y Cold start Y Form factor Rackmount/ Tower Product colour Black Rack capacity 6ULED indicators Status Display LCDRo HS compliance Y Certification REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDEOperating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-15
- 45 &176;COperating relative humidity (H-H)0
- 95% Storage relative humidity (H-H)0
- 95% Operating altitude 0
- 3000 m Non-operating altitude 0
- 15000 m Width 715 mm Depth 432 mm Height 263 mm Weight 111.8kg Rack mount kit Y Bracket Y Cables included USB cable Temperature sensor Y Quick installation guide Y Warranty card Y Software CDYPackage width 600 mm Package depth 1000 mm Package height 461 mm Package weight 130kg Quantity per pallet 1 pc (s) Packaging content Web/SNMP Management Card
