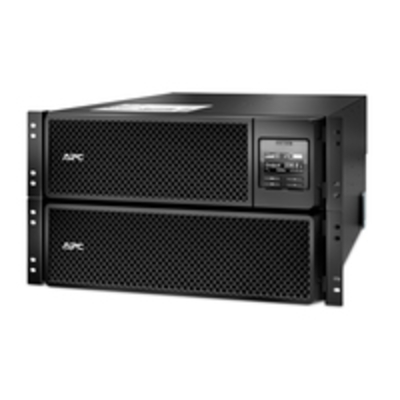

APC Smart-UPS On-Line, 10 k W /10 k VA, Input 230V / Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB (Universal Serial Bus), Extended runtime model, Rack Height 6 U\n\n
Includes:: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, USB (Universal Serial Bus) cable, Warranty card Feature Feature Value UPS topology Double-conversion (Online) Output power capacity 10000 VAOutput power 10000 WWaveform Sine Input operation voltage (min)100 VInput operation voltage (max)476 VInput frequency 40
- 70 Hz Output operation voltage (min)220 VOutput operation voltage (max)240 VOutput frequency regulation 50/60 Hz Surge energy rating 480 JNumber of output phases 1 Efficiency 94.6% Crest factor 3:1 Emergency Power Off (EPO)YOutput voltage Total Harmonic Distortion (THD)3% Noise level 55 d B Surge protection Y Audible alarm (s)YAuto-restart YAC outlet types C13 coupler, C19 coupler Power plug Terminal AC outlets quantity 10 AC outlet (s) Number of output IEC jumpers 3USB port Y Serial interface Y Serial interface type RJ-45 Smart Slot Y Battery technology Sealed Lead Acid (VRLA) Battery capacity 1805 VAh Typical backup time at full load 3.8 min Typical backup time at half load 11.5 min Battery life (max)5 year (s) Battery recharge time 3 h Hot-swap battery Y Automatic battery test Y Cold start Y Form factor Rackmount/ Tower Product colour Black Rack capacity 6ULED indicators Y Display LCDEnergy Star certified Y Ro HS compliance Y Certification CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACHOperating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-15
- 45 &176;COperating relative humidity (H-H)0
- 95% Storage relative humidity (H-H)0
- 95% Operating altitude 0
- 3000 m Non-operating altitude 0
- 15000 m Width 432 mm Depth 715 mm Height 263 mm Weight 111.8kg Rack mount kit Y Bracket Y Cables included USB cable Temperature sensor Y Quick installation guide Y Warranty card Y Software CDYPackage width 600 mm Package depth 1000 mm Package height 461 mm Package weight 130kg Interface RJ-45 10/100 Base-TNominal output voltage 230 VNominal input voltage 230 VPackaging content Web/SNMP Management Card
