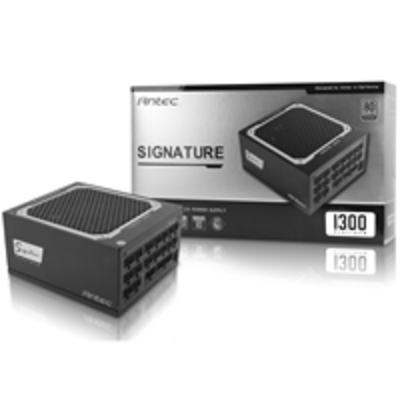

SIGNATURE 1300 PLATINUM\n\n Equipped with superior features that ensure peak performance for the enthusiast & gaming-oriented segment, the Signature power supply Series boasts unparalleled stability & 80 PLUS Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence & cooling. The Circuit Shield&132;&162; suite of industrial-grade protections ensures that the power delivered to your system is safe & reliable in any environment. Signature Series are a great choice for a reliable & efficient PC system for gamers & professionals.\n- Continuous Power\n- 80 PLUS Platinum Certified\n- 100% Japanese Heavy-Duty Caps\n- Full Modular\n- Phase Wave DC-DC Converter Design\n- OC Link Design\n\n FDB 135mm Silent Fan\n Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability & longevity.\n\n Zero RPM Mode\n The Zero RPM fan mode further ensures a longer-lasting & quieter system by using thermal sensors to activate the fan only when you need it.\n\n 100% Top-Grade Japanese Capacitors\n Achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system&153;s performance.\n\n Phase Wave Design\n A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.\n\n OC Link Feature\n Allows 2 Signature PSUs to work in tandem to power the most demanding systems.\n\n 10-year Warranty\n This new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections & is backed by a 10-year warranty.\n\n Full Modular Cable Management\n Enables users to use only the cables which are needed & help clear out excess cables that can obstruct & reduce airflow.\n\n Model\n Signature 1300 Platinum\n\n Wattage\n 1300W\n\n Form Factor\n ATX\n\n Modular\n Fully\n\n Connections\n 1 x 24-pin\n 2 x 8 (4+4) pin ATX12V / EPS12V\n 12 x 8 (6+2) pin PCI-E\n 14 x SATA\n 5 x Molex\n 1 x FDD\n\n Certification\n 80 PLUS Platinum\n\n Input Voltage\n 100
- 240\n\n Input Current\n 15A
- 7.5A\n\n Input Frequency Range\n 47 Hz
- 63 Hz\n\n PFC\n APFC\n PFC at half load: >0.95 at AC 110v 60 Hz (typical)\n PFC at full load: >0.90 at AC 230v 50 Hz (typical)\n\n Power Good Signal\n 100
- 500 m S\n\n Protection\n OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO\n\n Regulatory\n CB, CE, FCC, BSMI, TUV, c TUVus, 3C, RCM\n\n Dimensions (W x L x H )\n 150 x 170 x 86mm\n\n Weight\n Net: 2.12 Kgs\n Gross: 4.05 Kgs\n\n\n\n\n\n\n\n\n
