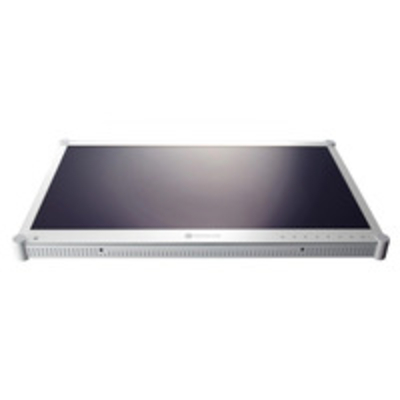

\n AG Neovo DR-22G LED display 54.6 cm (21.5") 1920 x 1080 pixels Full HD White\n \n \n \n \n \n \n Manufacturer:\n AG Neovo\n \n \n Category:\n Monitors & Accessories\n \n \n Sub-Category:\n Computer Monitors\n \n \n SKU:\n DR-22G\n \n \n EAN:\n \n \n \n \n \n \n Description\n \n \n Knowing that providing a safe operative environment to the patients is a dentist&153;s major concern; the DR-Series dental monitors are certified with EN/IEC 60601-1, ensuring a safe & reliable medical power supply by equipped with medical grade power adapter & equipotential terminal connector. Along with Neo V&132;&162; Optical Hard Glass Screen & white metal casing, the dental monitors can be cleaned & disinfected with standard cleaning solutions for the dental clinics. Besides, to accommodate the need to view x-ray films, the DR-Series dental monitors feature an X-ray illuminator mode, which allows dentists to diagnose without switching to other dedicated X-ray view box. From dental practice to patient education, the DR-Series dental monitors are the best fit for any dental office setting.\n\n Versatility & Adaptability\n The DR-Series dental monitors are adaptable to fit every conceivable dental environment. Designed with DC 24V power supply, the displays are ideal for long-distance (up to 5 meters) cable management between dental equipment & monitors. Compatible with VESA standard mounts, the monitors can be mounted on a rotatable arm with handles for easy movement on a dental chair.\n\n Medical Grade Safety Certification\n The dental monitors with exceptionally clear images help dental professionals to be more effective with patients. With cutting-edge gamma correction, black-level alignment adjustability, & high contrast ratio, the DR-Series dental monitors can capture darker details & deliver premium medical images, thereby enhancing dental treatment quality.\n\n Easy X-ray Film Viewing\n The DR-Series monitors feature a unique X-ray illuminator mode that allows dental professionals to easily view X-ray films without separately installing a dedicated X-ray view box " just switch in or out of illuminator mode on the on-board keypad. Both physical films & digitalized colour images are viewable on the same display, making the displays an optimal solution for the dental practice.\n\n Easy to Clean & Reliable Design\n The anti-acid & anti-alkali coating treatment of Neo V&132;&162; Optical Hard Glass Screen ensures that the DR-Series dental monitors withstand cleaning & disinfection. Coupled with front-sided IP22 compliance & white metal casing, the DR-Series dental monitors are dust & waterproof & easy to detect contamination for any dental use.\n \n \n \n Specifications\n \n Audio Built-in speaker (s) Yes RMS rated power 4 WPerformance Built-in speaker (s) Yes RMS rated power 4 WBuilt-in camera No AMD Free Sync No NVIDIA G-SYNCNo Power Power cable length 5 m External power adapter Yes Power consumption (standby)0.7 WPower consumption (typical)21 WAnnual energy consumption 31 k Wh Power consumption (off)0.7 WCamera Built-in camera No Technical details External power adapter Yes Height (without stand)32.4 cm Depth (without stand)5.62 cm Width (without stand)51.3 cm Cable lock slot Yes HDMIYes Product colour White Sustainability certificates Ro HSRS-232 interface Yes Weight (with stand)6.8kg Transmission rate 97% Surface hardness 9HDisplay Display brightness (typical)250 cd/m&178; Screen shape Flat Display number of colours 16.78 million colours HD type Full HDDisplay technology LEDViewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Pixel pitch 0.248 x 0.248 mm Horizontal scan range 24
- 83 k Hz Vertical scan range 50
- 75 Hz Supported graphics resolutions 1920 x 1080 (HD 1080) Display resolution 1920 x 1080 pixels Response time 3 ms Display diagonal 54.6 cm (21.5") Contrast ratio (typical)20000000:1 Surface hardness 9HPanel type TFTMultimedia Number of speakers 2 Built-in speaker (s) Yes RMS rated power 4 WBuilt-in camera No Design Market positioning Medical Certification FCC, BSMI, CE, IEC / EN 60601-1, MDD, Ro HS, WEEE, REACHProduct colour White Ports & interfaces Built-in USB (Universal Serial Bus) hub No Headphone out No DVI port Yes DC-in jack Yes DVI-D ports quantity 1HDMI ports quantity 1S-Video inputs quantity 1 Display Ports quantity 1RS-232 ports 1 Audio input Yes Audio output Yes Headphone connectivity 3.5 mm HDMIYes BNC input ports 2HDMI version 1.4 Ergonomics VESA mounting Yes Cable lock slot Yes Panel mounting interface 75 x 75, 100 x 100 mm Tilt angle range 0
- 17&176; Height adjustment No Cable lock slot type Kensington Tiltable Yes Operational conditions Operating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-20
- 60 &176;COperating relative humidity (H-H)10
- 90% Storage relative humidity (H-H)5
- 90% Weight & dimensions Height (without stand)32.4 cm Depth (without stand)5.62 cm Width (without stand)51.3 cm Width (with stand)513.2 mm Depth (with stand)155 mm Height (with stand)368.5 mm Package width 614 mm Package depth 204 mm Package height 477 mm Package weight 9.3kg Weight (with stand)6.8kg Weight (without stand)6.2kg Packaging data Stand included Yes Power cable length 5 m Package width 614 mm Package depth 204 mm Package height 477 mm Package weight 9.3kg Package type Box Cables included AC, Audio (3.5mm), VGAOther features RS-232 interface Yes Power cable length 5 m Height (without stand)32.4 cm Depth (without stand)5.62 cm Width (without stand)51.3 cm HDMIYes Transmission rate 97% Surface hardness 9HEnergy efficiency class (old)AExternal power adapter Yes Package type Box Certificates Certification FCC, BSMI, CE, IEC / EN 60601-1, MDD, Ro HS, WEEE, REACHPackaging content Stand included Yes Power cable length 5 m Cables included AC, Audio (3.5mm), VGA\n \n \n\n\n\n\n\n\n\n
