HT70 Misc HT Lead, Fittings & Sets HT Cable Ignition Lead Markers 7mm Cable Plug Lead Numbers
- Markers 1 to 12 White markers
...

HT69 Misc HT Lead, Fittings & Sets HT Cable Ignition Lead Markers 7mm Cable Plug Lead Numbers
- Markers 1 to 12 Yellow markers
...

GPLSBK7 Misc HT Lead, Fittings & Sets 7mm HT Ignition Lead Cable High Resistance Cable Hypalon Black Ignition Cable, Suppressed Graphite Price is per 1 metre. If you require a longer length simply add the Qty: of meters. (Supplied in multiples of 1m) Cable is sent as one uncut length up to a max of 100m ...

7mm HT Ignition Lead Cable Ferroflex Core Translucent Red, Silicone Insulated, Silicone Sheath Price is per 1 metre. If you require a longer length simply add the Qty: of meters. (Supplied in multiples of 1m) Cable is sent as one uncut length up to a max of 30m Ferroflex&174;
- Premium cable used in the majority of our high performance lead sets. The core consists of a fibreglass base coated with a ferromagnetic compound & tightly wound with a stainless steel resistance wire under a coat of conductive lacquer. The design ensures maximum spark quality with minimum voltage loss while maintaining excellent Electro Magnetic Pulse suppression. Overall Diameter: 7mm Covering: Insulation: Silicone Outer Sheath: Silicone Temperature Rating: -40 to +220&186;C Resistance: 5.6k Ohms per metre (nom) as standard Reinforcement: Glass fibre braid over insulation Test Voltage: 7.0mm dia Silicone
- 35.0
- 40.0 k V RMS BDV (typically) Specification: Fully approved to ISO3808:2002 (R) Class E Type 4 Termination: All lead sets use brass, beryllium copper or stainless terminals with silicone or EPDM connector covers, many of which are sourced from the Original Equipment manufacturers. Our lead sets are designed to equal or exceed the design of the original lead set without compromising on fit or function.


...

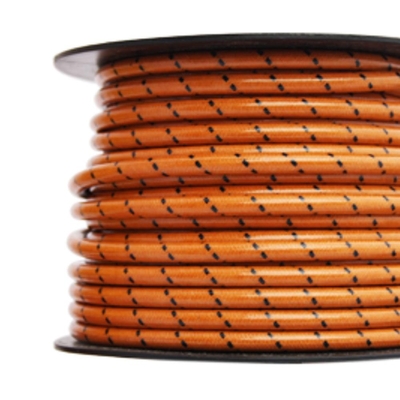

GPLGCBBLK7 Misc HT Lead, Fittings & Sets 7mm Cotton Braided Copper Core Multi Strand HT Lead Price is per 1 metre. If you require a longer length simply add the Qty: of meters. (Supplied in multiples of 1m) Cable is sent as one uncut length up to a max of 30m ...

GPLGCBRBWF7 Misc HT Lead, Fittings & Sets 7mm Cotton Braided Copper Core Multi Strand HT Lead Price is per 1 metre. If you require a longer length simply add the Qty: of meters. (Supplied in multiples of 1m) Cable is sent as one uncut length up to a max of 30m ...

GPLGCBRBYF7 Misc HT Lead, Fittings & Sets 7mm Cotton Braided Copper Core Multi Strand HT Lead Price is per 1 metre. If you require a longer length simply add the Qty: of meters. (Supplied in multiples of 1m) Cable is sent as one uncut length up to a max of 30m ...

GPLGCBYBRF7 Misc HT Lead, Fittings & Sets 7mm Cotton Braided Copper Core Multi Strand HT Lead Price is per 1 metre. If you require a longer length simply add the Qty: of meters. (Supplied in multiples of 1m) Cable is sent as one uncut length up to a max of 30m ...

GPLHRSG Misc HT Lead, Fittings & Sets 7mm HT Ignition Lead Cable High Resistance Hypalon Green Looks & feels like rubber & is good where high temperature prevail. Ignition Cable, Suppressed Graphite 40KV Price is per 1 metre. If you require a longer length simply add the Qty: of meters. (Supplied in multiples of 1m) Cable is sent as one uncut length up to a max of 100m ...

7mm HT Ignition Lead Cable Suppressed Core Grey, Silicone Insulated, Silicone Sheath Price is per 1 metre. If you require a longer length simply add the Qty: of meters. (Supplied in multiples of 1m) Cable is sent as one uncut length up to a max of 30m ...
