By 1995 Dia-Compe's A-headset was becoming the norm & the Pitchfork evolved with the change to " Oversized" frames. Larger 1 1/4" legs, once piece flame-cut 1/4" drop-outs, & a stout. 120" thick thread-less steerer tube kept pace with an oversized Redneck that had shed it's shaft. section Product Specs Steerer Length: TBC Wheel Size: 20" Material: Chromoly Dropout Size: 10mm Offset: 33mm Weight: 2.5 lb / 1.1kg ...
By 1995 Dia-Compe's A-headset was becoming the norm & the Pitchfork evolved with the change to " Oversized" frames. Larger 1 1/4" legs, once piece flame-cut 1/4" drop-outs, & a stout. 120" thick thread-less steerer tube kept pace with an oversized Redneck that had shed it's shaft. section Product Specs Steerer Length: TBC Wheel Size: 20" Material: Chromoly Dropout Size: 10mm Offset: 33mm Weight: 2.5 lb / 1.1kg ...
By 2000, heavy peg use resulted in a larger " Wrap-Under" Pitchfork drop-out design. Along with the larger drops, the Y2K Pitch featured an industry first, one-piece CNC machined steerer-tube. section Product Specs Steerer Length: TBC Wheel Size: 20" Material: Chromoly Dropout Size: 10mm Offset: 33mm Weight: 2.5 lb / 1.1kg ...
By 2000, heavy peg use resulted in a larger " Wrap-Under" Pitchfork drop-out design. Along with the larger drops, the Y2K Pitch featured an industry first, one-piece CNC machined steerer-tube. section Product Specs Steerer Length: TBC Wheel Size: 20" Material: Chromoly Dropout Size: 10mm Offset: 33mm Weight: 2.5 lb / 1.1kg ...
Produced from 1987 to 1991 with no model name, but sometimes referred to as "S&M Standard Forks" these forks were included with early K-9 D-zine, Mad Dog & Dirtbike frames as part of a frame-set. Made for use with a shafted stem & 1" threaded headset, these forks feature extended legs, double thick (welded together) drop-outs & are drilled for front brakes. This fork was replaced by our original Pitchfork in 1991. section Product Specs Steerer Length: TBC Wheel Size: 20" Material: Chromoly Dropout Size: 10mm Offset: 26mm Weight: 2.1 lb /. 95kg ...
Tapered versio of the classic Pitchfork from S&M, made from true temper air hardened & heat 4Q Baked 4130 in USA, come complete with a CNC top cap, extruded insert, welded 990 brake mounts & laser cut dropouts. section Product Specs Steerer Length: 166mm Wheel Size: 20" Material: Chromoly Dropout Size: 10mm Offset: 33mm Weight: 1.99 lbs ...
22" version of the ATF bmx frame from S&M. This is the base model of all of S&M's lastest signature frames. The ATF (Alcohol, tobacco & firearms) uses S&M's standard heat treated supertherm tube set with a tapered & butted top tube for extra strength, dent resistant down tube, tapered rear stays with massive rear tire clearance & heat treated micro dropouts. section Product Specs Material: Chromoly HEAD TUBE ANGLE: 75° SEAT TUBE ANGLE: 71° CHAIN STAY LENGTH: 14.1" BB Height: 11.7" WHEEL Size: 22" STANDOVER Height: 8.5" DROPOUT Size: 14mm HEADSET TYPE: Integrated BB TYPE: Mid BRAKE MOUNTS: Removable GYRO TABS: N/A WEIGHT: TBC section Product Highlights Geometry Specially designed for taller riders Great all round frame for all types of riding Top Tube gussets with butted tubing for added strength Dent resistant downtube Made in U.S.A shogun-image-section ...
22" version of the ATF bmx frame from S&M. This is the base model of all of S&M's lastest signature frames. The ATF (Alcohol, tobacco & firearms) uses S&M's standard heat treated supertherm tube set with a tapered & butted top tube for extra strength, dent resistant down tube, tapered rear stays with massive rear tire clearance & heat treated micro dropouts. section Product Specs Material: Chromoly HEAD TUBE ANGLE: 75° SEAT TUBE ANGLE: 71° CHAIN STAY LENGTH: 14.1" BB Height: 11.7" WHEEL Size: 22" STANDOVER Height: 8.5" DROPOUT Size: 14mm HEADSET TYPE: Integrated BB TYPE: Mid BRAKE MOUNTS: Removable GYRO TABS: N/A WEIGHT: 5.29lbs section Product Highlights Geometry Specially designed for taller riders Great all round frame for all types of riding Gusseted tubing for added strength Dent resistant down tube Made in the USA shogun-image-section ...
Available

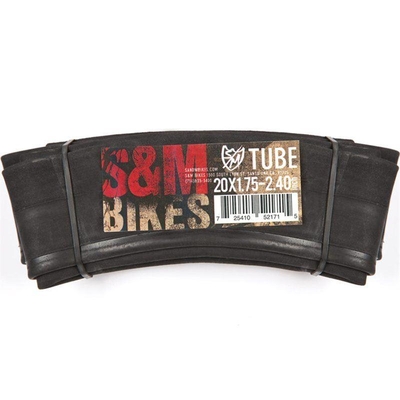

S&M 20" Innertube
Standard 20 BMX innertube from S&M. Comes with the standard Schrader valve and fits 20x1.75 to 20x2.4 tyres.
