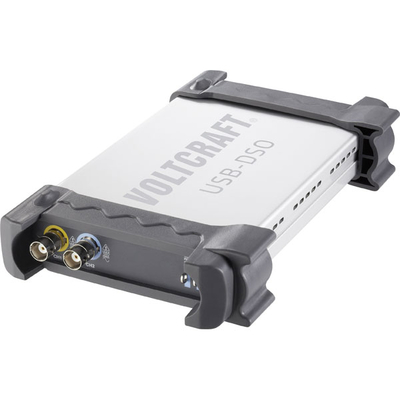

VOLTCRAFT DSO-2020 USB 2 Channel Oscilloscope 20 MHz

Product Description

VOLTCRAFT DSO-2020 USB (Universal Serial Bus) 2 Channel 20 M Hz Oscilloscopes
- VOLTCRAFT DSO-2020 USB (Universal Serial Bus), The Voltcraft DSO-2020 USB (Universal Serial Bus) is a USB (Universal Serial Bus) Oscilloscope that is used in combination with a Windows based computer with a USB (Universal Serial Bus) 2.0 interface. The attachment can be used as a fully Digital Storage Oscilloscope (DSO) for the visualisation of electrical quantities & signals. There are two independent input channels available for measurement. The probes are connected to the DSO via BNC connectors. Operation & display is performed using the enclosed measurement program on the computer. It is equivalent to a real oscilloscope operating interface. There are additional automatic measuring functions & cursor for the signal measurement. The spectrum is 20 M Hz & the sampling rate is 48MS/s. The measured signals can be stored in different formats & called up or processed in other programs. The auto-set function for automatically adjusting the settings to the respective measurement signal, along with the trigger functions provided make operation easy. What's included: Voltcraft DSO-2020 USB (Universal Serial Bus) Software CDInstallation Instructions USB cable VOLTCRAFT DSO-2020 USB (Universal Serial Bus) 2 Channel Oscilloscope 20 MHz
