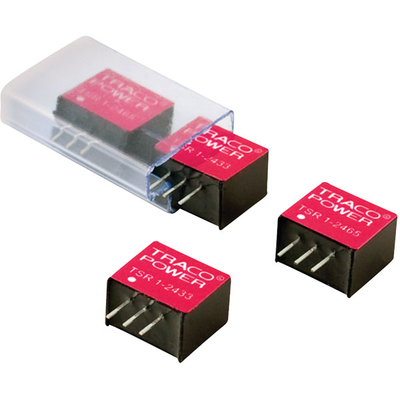

TracoPower TSR 1-2418 Single Output DC-DC Converter 1W

Product Description

Traco Power TSR Series 1W DC-DC Converters
- Single Output
- Traco Power TSR 1-2418, The Traco Power 1W DC-DC Converter Vin: 4.75-32VDC to Vout: 1.8VDC 1A is a TSR-1 Series step-down switching regulator that acts as a drop-in replacement for inefficient 78xx linear regulators. A high efficiency up to 96% allows full load operation up to +60°C ambient temperature without the need of any heat-sink or forced cooling. The TSR-1 switching regulator provides other significant features over linear regulators, i.e. better output accuracy (±2 %), lower standby current of 2m A & no requirement of external capacitors. The high efficiency & low standby power consumption make this regulator an ideal solution for many battery powered applications. Traco Power TSR 1-2418 Single Output DC-DC Converter 1W
