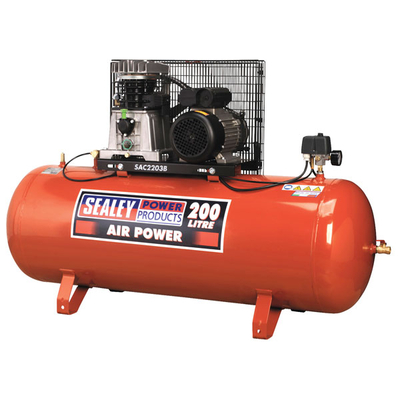

Sealey SAC2203B Compressor 200ltr Belt Drive 3hp With Cast Cylinders

Sealey Compressors Belt Drive 3hp with Cast Cylinders - Sealey SAC2203B, Our top of the range single phase 200L compressor, this unit is suitable for the professional workshop and is fitted with a genuine 3hp motor. Twin capacitors and a centrifugal switch aid trouble free start up on a good 13Amp supply. However on this model we recommend fitting a 16Amp plug and connecting to a 20Amp supply protected by a type C circuit breaker for easier start up. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long life. Heavy-duty drive guard protects belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.Model NoSAC2203BAir
Displacement cfm(L/min):15(425)Maximum Free Air Delivery cfm(L/min):10.9(309)Maximum Pressure:145psi(10bar)Minimum Rated Supply:16AMotor Output:3hpNett Weight:97kgOutlet:1/2"BSP Female TapPhase:1phReceiver Capacity:200LSize (W x D x H):1440 x 440 x 900mmSpeed:1280rpmSupply:230V Sealey SAC2203B Compressor 200ltr Belt Drive 3hp with Cast Cylinders

Availability: In Stock
Supplier: Rapid Online Rapid Electronics Ltd
SKU: 89-7678

Description Reviews / Comments Add New

Product Description

Sealey Compressors Belt Drive 3hp with Cast Cylinders
- Sealey SAC2203B, Our top of the range single phase 200L compressor, this unit is suitable for the professional workshop & is fitted with a genuine 3hp motor. Twin capacitors & a centrifugal switch aid trouble free start up on a good 13 Amp supply. However on this model we recommend fitting a 16 Amp plug & connecting to a 20 Amp supply protected by a type C circuit breaker for easier start up. Pump features heavy-duty full cast cylinders, capped by an alloy head for enhanced heat dissipation & long life. Heavy-duty drive guard protects belt & flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates & operating/maintenance manual. Model No SAC2203 B Air Displacement cfm (L/min):15 (425) Maximum Free Air Delivery cfm (L/min):10.9 (309) Maximum Pressure:145psi (10bar) Minimum Rated Supply:16 A Motor Output:3hp Nett Weight:97kg Outlet:1/2"BSP Female Tap Phase:1ph Receiver Capacity:200 L Size (W x D x H):1440 x 440 x 900mm Speed:1280rpm Supply:230V Sealey SAC2203B Compressor 200ltr Belt Drive 3hp with Cast Cylinders
