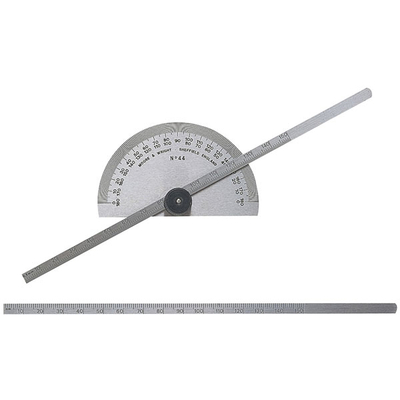

Protractor Type Depth Gauge Metric/ Imperial 0-6in
- Moore & Wright 44, The Moore & Wright Protractor Type Depth Gauge has a full range rule adjustment & the readings can be fixed by means of a locknut. Rules are graduated on both sides. Protractor plate is graduated 0 degrees
- 180 degrees
- 0 degrees. Scale Resolution: 1/2°. The Moore & Wright 44 Protractor Type Depth Gauge Metric/ Imperial has the following specifications: Size of Base: 79mm/3.11in.
Width: 5.5mm/0.22in. Thickness: 1.0mm/0.04in. Length of Blade: 195mm/7.68in. Metric/ Imperial Scale Graduations: Front Face: 1/32nd, Rear Face: 1.0mm. Moore & Wright 44 Protractor Type Depth Gauge Metric/ Imperial 0-6in
