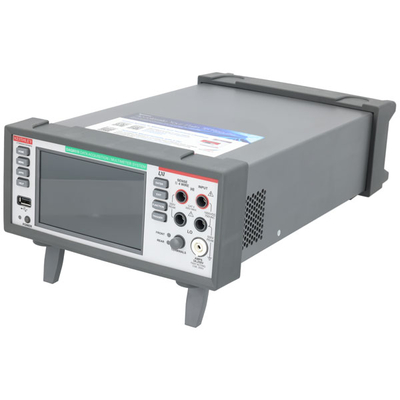

Keithley DAQ6510 Data Acquisition And Multimeter System
Keithley Data Acquisition and Multiplexer Range - Keithley DAQ6510, The Keithley DAQ6510 is a precision data acquisition and logging system that creates a new level of simplicity compared with the often complicated configuration and control found in many stand-alone solutions. A large 5-inch (12.7 cm) multi-touch display will guide users through set-up, data visualisation, and analysis, removing the necessity of a PC and custom software for many applications. If you prefer or require a PC, a complement of IVI and Labview drivers and the Keithley KickStart Instrument Control Software are available to help with any application.With 12 plug-in switching and control modules available and two module slots, you can build a test system that can measure or control up to 80 devices-under-test
(DUTs) in a multiplexing configuration. With two 6&215;8 matrix modules, a total of 96 crosspoints, the DAQ6510 can test one or multiple ICs. For high volume production testing, select a solid state multiplexer module to maximise throughput with 800 channels/s scanning speed and minimise downtime compared with fixed life, electro-mechanical relays. A number of modules have cold junction compensation, temperature references for thermocouple temperature monitoring of devices during environmental testing, and HALT and HASS accelerated life testing. Even switch signals from wireless devices with RF modules having a maximum switching frequency of 3.5 GHz. Keithley DAQ6510 Data Acquisition and Multimeter System
(DUTs) in a multiplexing configuration. With two 6&215;8 matrix modules, a total of 96 crosspoints, the DAQ6510 can test one or multiple ICs. For high volume production testing, select a solid state multiplexer module to maximise throughput with 800 channels/s scanning speed and minimise downtime compared with fixed life, electro-mechanical relays. A number of modules have cold junction compensation, temperature references for thermocouple temperature monitoring of devices during environmental testing, and HALT and HASS accelerated life testing. Even switch signals from wireless devices with RF modules having a maximum switching frequency of 3.5 GHz. Keithley DAQ6510 Data Acquisition and Multimeter System
