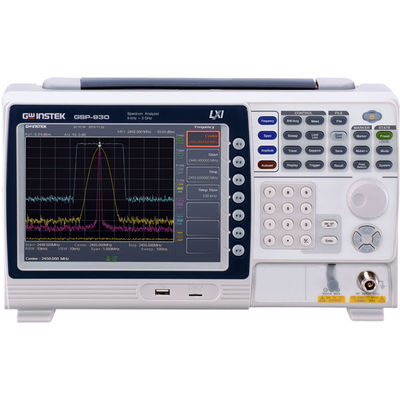

GW Instek GSP-930 Spectrum Analyzer Bandwidth 9KHZ TO 3GHZ

Product Description

GW Instek Spectrum Analyzers Bandwidth 9/150k Hz ~ 3 G Hz
- GW Instek GSP-930, This GSP-930 spectrum analyzer bandwidth 9k Hz ~ 3 G Hz from GW Instek has been designed upon a new generation platform. The high stability, large screen display, lightweight & compact size benchmark a new standard for 3 G Hz spectrum analyzers in the market. Its advanced features, spectrogram & topography, greatly expand the application range & elevate the importance of a spectrum analyzer in the role as the irreplaceable RF analysis instrument. Providing a high frequency-stability of 25ppb (0.025ppm) & a low noise floor of -142d Bm (pre-amplifier on) as the high sensibility measurement base, while the flexible selection among 58 RBW ranges, along with the pectrogram & topographic features, enables the GSP-930 to capture & display transient, drifting & hopping signals in detail. The mixture of frequency domain information & time domain information facilitates the tracing of RF signal variations over time. Other remarkable features like Spectrum Emission Mask (SEM), Power Measurements, AM/FM Analysis & TOI/CNR/CSO/CTB measurements, make GSP-930 a useful instrument right fit into a broad range of applications. User friendly courtesy of the on-screen-help providing definition description on the screen to guide the user through measurement processes without checking into documents. The widely used icons on the display indicate current setting & operation status of the product, allowing the user to handle the measurement scenario all at a glance. The wake-up clock automatically turns on the power, which can be used to warm up the instrument in advance before the measurements are made to ensure the accuracy of measurement results. The pass/fail limit function allows repetitive go/no-go measurements by template inspection, instead of time-consuming value reading. The sequence function provides an easy programming feature for edit & run measurement routines on screen without a PC. in addition equipped with various interfaces, including LXI, USB (Universal Serial Bus), RS-232 & GPIB (optional). The IVI driver is for the remote control software development by means of Lab VIEW or Lab Windows/CVI, while a micro SD slot & a USB (Universal Serial Bus) host interface enables mass data storage. The IF output (886 M Hz) is provided as the intermediate frequency signal of RF inputfor users to develop their own applications. GW Instek GSP-930 Spectrum Analyzer Bandwidth 9KHZ TO 3GHZ
