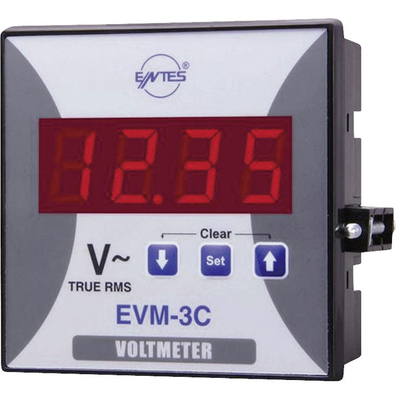

ENTES EVM-3C-96 Digital Panel Meter

Product Description

ENTES Panel Mount Voltmeters, EVM-3C Series
- ENTES EVM-3C-96, The ENTES EVM-3C-96 is a Panel Mount Digital Voltmeter from the EVM-3C-xx Series. The Voltmeter has been designed for accurate measuring of the AC RMS voltage & for saving the minimum & maximum values of the measured voltages. The minimum & maximum values remain stored in the memory when the power supply is off. The stored values can be read when the power is on. Although the EVM-3C-96 is mainly used for electrical panels, this device can also be used with any application in which accurate voltage readings should be done between 10-600V. The measurement (3-4) & power supply (1-2) connections are located on the rear panel & the digital display is cantered on the front panel. In addition to these functions, a high voltage level & time delay can be set. When the measured voltage is over the high set point value, the output relay is activated at the end of the adjusted time delay, generates an alarm signal & display starts blinking. Each phase is displayed individually. With voltage transformer, a measuring range up to 40k V is possible. The voltage transformer ratio is adjustable via the program menu. The meter can be protected with a password to prevent unauthorized access. ENTES EVM-3C-96 Digital Panel Meter
