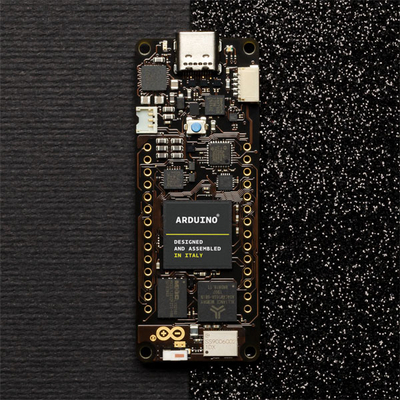

Arduino ABX00042 Portenta H7 Module

Product Description

Arduino ABX00042 Portenta H7 Module
- Arduino ABX00042, The Portenta H7 has two parallel cores & simultaneously runs high level code along with real time tasks.H7's main processor is the dual core STM32H747 including a Cortex M7 running at 480 MHz & a Cortex M4 running at 240 MHz. The two cores communicate via a Remote Procedure Call mechanism that allows calling functions on the other processor seamlessly. Both processors share all the in-chip peripherals & can run: Arduino sketches on top of the Arm Mbed™ OSNative Mbed™ applications Micro Python / Java Script via an interpreter Tensor Flow™ Lite The onboard wireless module allows to simultaneously manage Wi Fi & Bluetooth connectivity. The Wi Fi interface can be operated as an Access Point, as a Station or as a dual mode simultaneous AP/STA & can handle up to 65 Mbps transfer rate. Bluetooth interface supports Bluetooth Classic & BLE. The Portenta H7 follows the Arduino MKR form factor, but enhanced with the Portenta family 80 pin high-density connector. The Portenta family adds two 80 pin high density connectors at the bottom of the board. This ensures scalability for a wide range of applications by simply upgrading your Portenta board to the one suiting your needs. Arduino ABX00042 Portenta H7 module
