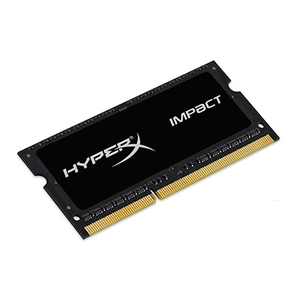

Hyper X HX318LS11IB/8 is a 1G x 64-bit (8GB) DDR3L-1866 CL11 SDRAM (Synchronous DRAM) 2 Rx 8, low voltage, memory modules, based on sixteen 512M x 8-bit DDR3 FBGA components. This module has been tested to run at DDR3L-1866 at a low latency timing of 11-11-11 at 1.35V or 1.5V. Hyper X Impact memory boasts the world's fastest SO-DIMM frequency
- 2666 M Hz
- to keep you ahead of the curve & level up your game. It automatically recognises the platform it's plugged into & auto overclocks to the highest frequency published (up to 2400 M Hz) with no need to adjust system BIOS settings. So you get extreme performance that supports notebooks & other small form factor systems using either AMD or the latest Intel CPU technologies with no hassle at all
- even if you're a newbie. Pn P JEDEC TIMING PARAMETERS:
- DDR3-1866 CL11-11-11 @1.35V or 1.5V
- DDR3-1600 CL10-10-10 @1.35V or 1.5V
- DDR3-1333 CL8-8-8 @1.35V or 1.5V Key Features
- JEDEC standard 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) Power Supply
- VDDQ = 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V)
- 933 M Hz f CK for 1866 Mb/sec/pin
- 8 independent internal bank
- Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6, 5
- Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock
- 8-bit pre-fetch
- Burst Length: 8 (Interleave without any limit, sequential with starting address â000â only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
- Bi-directional Differential Data Strobe
- Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%)
- On Die Termination using ODT pin
- Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
- Asynchronous Reset
- PCB: Height 1.180â (30.00mm), double sided component Specifications Brand: Kingston Application: Laptop Capacity: 8GB Memory Frequency: 1866 M Hz Memory Transmission Type: DDR3L CAS Latency: CL11 Number of Pins: 204-pin Error Checking: Non-ECC Form Factor: So DIMM Product weight: 0.0100kg Package weight: 0.0490kg Product Size (L x W x H): 6.70 x 3.00 x 0.20 cm / 2.64 x 1.18 x 0.08 inches Package Size (L x W x H): 17.00 x 5.60 x 1.50 cm / 6.69 x 2.2 x 0.59 inches Box Contents 1 x Hyper X 8GB 1G x 64-Bit DDR3L-1866 CL11 204-Pin SODIMM
