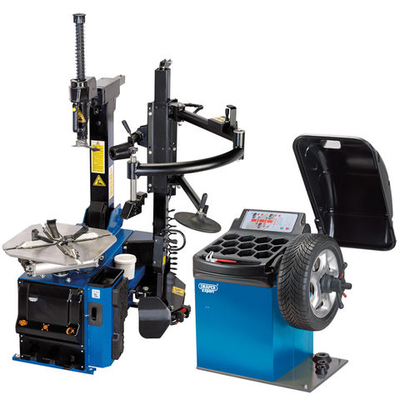

Draper Draper TC200/WB100 Tyre Changer With Assist Arm And Wheel
Balancer Kit
A comprehensive wheel servicing kit, consisting of a semi-automatic tyre changer with assist arm and wheel balancer. The semi-automatic tyre changer, capable of removing and replacing tyres on wheels up to 26” is fitted with an assist arm (also known as a third arm) to aid the user when changing low profile and run-flat tyres. The fully motorised turntable, which is pneumatically operated with clamping jaws, has a powerful pneumatic bead breaker and tilt column which enables the changing of low profile, and run flat tyres quickly and easily. The self-centering four-jaw chuck, controlled by two clamping cylinders, always ensures wheel rims are correctly clamped for added peace of mind. Alloy rims are treated particularly gently as the mounting head is provided with plastic
protectors. The bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres and rims. The semi automatic wheel balancer is supplied with a calibration weight for easy set up and is able to balance wheels up to 65kg, 24” in diameter and with an accuracy of 1 gram. This product is also suitable for passenger and LGV wheel/tyre combinations. Both machines are operated with standard 13 amp plugs for easy installation and supplied with the following accessories: 4 x centering cones, centering shaft, wheel weight pliers, hub nut and rim width calipers, tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose. Optional installation and instruction service
available from Draper Tools. Please call us for a"e. Tyre Changer Specifications • Motor: 1.1KW • Power supply: 230V • Bead breaker force: 2100kg • Pneumatic supply: 80 -115psi (6 - 8bar) • Suitable for use on wheel width: 3” to 18” • For rim dia. (internal locking): 13” to 26” • For rim dia. (external locking): 12” to 25” • Max tyre outside diameter: 45” • Dimensions: 1900mmH x 1950mmD x 1650mmW • Weight: 350kg Wheel Balancer Specifications • Balance speed: 200RPM • Power supply: 230V • Balance accuracy: 1gram • Cycle Time: 8-10 seconds • Max wheel and tyre diameter capacity: 43” • Max wheel and tyre width capacity: 35” • Min/max rim diameter
capacity: 10” - 39” • Min/max rim width capacity: 1.2” - 35” • Max tyre/rim weight capacity: 65kg • Dimensions (guard open): 1321mm x 1016mm x 1651mm • Dimensions (guard closed): 1321mm x 965mm x 1276mm
protectors. The bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres and rims. The semi automatic wheel balancer is supplied with a calibration weight for easy set up and is able to balance wheels up to 65kg, 24” in diameter and with an accuracy of 1 gram. This product is also suitable for passenger and LGV wheel/tyre combinations. Both machines are operated with standard 13 amp plugs for easy installation and supplied with the following accessories: 4 x centering cones, centering shaft, wheel weight pliers, hub nut and rim width calipers, tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose. Optional installation and instruction service
available from Draper Tools. Please call us for a"e. Tyre Changer Specifications • Motor: 1.1KW • Power supply: 230V • Bead breaker force: 2100kg • Pneumatic supply: 80 -115psi (6 - 8bar) • Suitable for use on wheel width: 3” to 18” • For rim dia. (internal locking): 13” to 26” • For rim dia. (external locking): 12” to 25” • Max tyre outside diameter: 45” • Dimensions: 1900mmH x 1950mmD x 1650mmW • Weight: 350kg Wheel Balancer Specifications • Balance speed: 200RPM • Power supply: 230V • Balance accuracy: 1gram • Cycle Time: 8-10 seconds • Max wheel and tyre diameter capacity: 43” • Max wheel and tyre width capacity: 35” • Min/max rim diameter
capacity: 10” - 39” • Min/max rim width capacity: 1.2” - 35” • Max tyre/rim weight capacity: 65kg • Dimensions (guard open): 1321mm x 1016mm x 1651mm • Dimensions (guard closed): 1321mm x 965mm x 1276mm
Product Description
Reviews/Comments
Add New
Intelligent Comparison
Available
Draper Draper TC100/WB100 Tyre Changer And Wheel Balancer Kit (230V) Machine Mart
£2999.00
