Easy Rail Technology Provides Maximum Power Unique, continuous Easy Rail technology enables you to maximize available power & make set-up easy. Stack numerous power-hungry components without fear of crashing. Its also a perfect solution for hardcore gamers. The worlds only PSUs with Easy Rail Key Features * 650W of continuous power at 50 * Tight voltage regulation (±5%) * High efficiency operation up to 85% (80 Plus Bronze) * Single, high power +12V rail (up to 53A/636W) * High quality Japanese brand capacitors (105 degrees C) * Quiet 135mm ball bearing fan provides superior cooling * Supports multiple high-end graphic adapters (NVIDIA SLI & ATI Cross Fire Ready) * Supports the latest ATX12V & EPS12V standards * Active PFC with Universal AC input * Energy Star 4.0 & Ro HS compliant * 5-Year Limited Warranty Cable Connectors: 20+4pin Power 4+4pin ATX12v 8pin ATX12v 2x 6pin PCI-Express 2x 8pin PCI-Express (4x PCI-E Total) 9x SATA 9x 4pin Molex 1x Floppy

Specification Input Voltage
- 90-264 Vac Input Frequency Range
- 47-63 Hz Input Current
- 9A (rms) Efficiency
- up to 85% PFC
- >0.95 at full load Maximum Wattage
- 650 Multi-Graphics Cards Support
- NVIDIA SLI ready certified ATX12V 2.2 & ESP12V 2.91 Compliant
- Yes Efficiency @ Typical Load
- 85% 80PLUS Certification
- Bronze Maximum Operation Temperature
- 50 Degrees C +12V Output Rail Design
- Single Rail Quality of Capacitors
- High quality Japanese brand capacitors Temperature Rating of Capacitors
- 105 Degrees C Fully Sleeve Cables
- Yes DC to DC Converters (+3.3V & +5V)
- Yes Intake Fan: Diameter
- 135 x 135 x 25 mm Intake Fan: Airflow
- 82 CFM min



















...

Easy Rail Technology Provides Maximum Power Unique, continuous Easy Rail technology enables you to maximize available power & make set-up easy. Stack numerous power-hungry components without fear of crashing. Its also a perfect solution for hardcore gamers. The worlds only PSUs with Easy Rail™ Key Features * 750W of continuous power at 50°C * Tight voltage regulation (±5%) * High efficiency operation up to 85% (80 Plus Bronze) * Single, high power +12V rail (up to 62A/744W) * High quality Japanese brand capacitors (105°C) * Quiet 135mm ball bearing fan provides superior cooling * Supports multiple high-end graphic adapters (NVIDIA SLI & ATI Cross Fire Ready) * Supports the latest ATX12V & EPS12V standards * Active PFC with Universal AC input * Energy Star 4.0 & Ro HS compliant * 5-Year Limited Warranty Cable Connectors: 20+4pin Power 4+4pin ATX12v 8pin ATX12v 2x 6pin PCI-Express 2x 8pin PCI-Express (4x PCI-E Total) 9x SATA 9x 4pin Molex 1x Floppy

Specification Input Voltage
- 90-264 Vac Input Frequency Range
- 47-63 Hz Input Current
- 10A (rms) Efficiency
- up to 85% PFC
- >0.95 at full load Maximum Wattage
- 750 Multi-Graphics Cards Support
- NVIDIA SLI ready certified ATX12V 2.2 & ESP12V 2.91 Compliant
- Yes Efficiency @ Typical Load
- 85% 80PLUS Certification
- Bronze Maximum Operation Temperature
- 50°C +12V Output Rail Design
- Single Rail Quality of Capacitors
- High quality Japanese brand capacitors Temperature Rating of Capacitors
- 105°C Fully Sleeve Cables
- Yes DC to DC Converters (+3.3V & +5V)
- Yes Intake Fan: Diameter
- 135 x 135 x 25 mm Intake Fan: Airflow
- 82 CFM min



















...

One Rail One Setup... The worlds only PSUs with Easy Rail Easy Rail Technology Provides Maximum Power Unique, continuous Easy Rail™ technology enables you to maximize available power & make set-up easy. Stack numerous power-hungry components without fear of crashing. Its also a perfect solution for hardcore gamers. KEY FEATURES 850W of continuous power at 50°C Tight voltage regulation (±5%) High efficiency operation up to 85% (80 Plus Bronze) Single, high power +12V rail (up to 70A/840W) High quality Japanese brand capacitors (105°C) Quiet 135mm ball bearing fan provides superior cooling Supports multiple high-end graphic adapters (NVIDIA SLI & ATI Cross Fire Ready) Supports the latest ATX12V & EPS12V standards Active PFC with Universal AC input Detachable modular cables Energy Star 4.0 & Ro HS compliant 5-Year Limited Warranty Cable Connectors: 20+4pin Power 4+4pin ATX12v 8pin ATX12v 2x 6pin PCI-Express 2x 8pin PCI-Express (4x PCI-E Total) 9x SATA 9x 4pin Molex 1x Floppy Specifications: Input Voltage 90-264 Vac Input Frequency Range 47-63 Hz Input Current 12A (rms) Efficiency up to 85% PFC >0.95 at full load Maximum Wattage 850 Multi-Graphics Cards Support NVIDIA SLI ready certified ATX12V 2.2 & ESP12V 2.91 Compliant Efficiency @ Typical Load 85% 80PLUS Certification Bronze Maximum Operation Temperature 50°C +12V Output Rail Design Single Rail Quality of Capacitors High quality Japanese brand capacitors Temperature Rating of Capacitors 105°C Fully Sleeve Cables DC to DC Converters (+3.3V & +5V) Intake Fan: Diameter 135 x 135 x 25 mm Intake Fan: Airflow 82 CFM min ...

Specifications Manufacturer
- XFX Model Number
- R5-230A-ZLH2 Product Name
- AMD Radeon R5 230 Product Description
- CORE



...

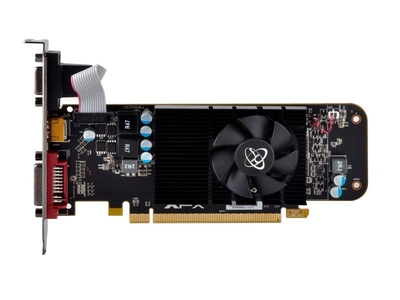

XFX R7 240 2GB DDR3 VGA DVI HDMI Display Port PCI-E Graphics Card The AMD Radeon R7 250/240 GPUs are packed with incredible features & unprecedented performance. These advanced graphics cards feature the award-winning GCN Architecture for spectacular performance & efficiency.1 Equipped with the latest technologies, such as PCI Express 3.0, AMD Power Tune technology, the incredibly efficient AMD Zero Core Power technology, & AMD App Acceleration “ enhanced performance to accelerate your game & multimedia applications “ why settle for anything less? Specifications: General Product Description: CORE RADEON R7 240 780M BOOST READY 2GB D3 LP HDMI DVI VGA UPC Number: 778656063174 Processor & Bus Bus Type: PCI-E 3.0 Chipset version: Oland Pro GPU Boost Clock: 780 M Hz GPU Bus (bit): 128 GPU Clock: 730 M Hz Performance Category: Warrior Stream Processors: 320 Memory Memory Bus: 128 bit Memory Clock: 1.6 GHz Memory Size: 2 GB Memory Type: DDR3 Feature Technologies AMD HD3D Technology: Y AMD Hybrid Graphics Technology: Y AMD Power Play Technology: Y AMD Stream Technology: Y Environmental Ro HS: Y Display Output Dual link Support: Y HDMI Ready: 1.4a Max Supported Resolution (ANALOG): 2048 x 1536 Max Supported Resolution (DIGITAL): 4096 x 2160 (HDMI) Output
- HDMI: 1 Output
- SL-DVI-D: 1 Output
- VGA: 1 Physical: Card Profile: Single Thermal Solution: Heatsink Thermal Type: Dual slot Card Dimension (cm): 17.7 x 6.88 x 3.81 Card Dimension (inch): 6.9 x 2.7 x 1.5 Requirements: Minimum Power Supply Requirement: 400 watt XFX Recommended Power Supply: XFX 450W PSU


...

Key Features 320 Stream Processors 600 MHz Core Clock 2GB 64-Bit DDR3 1300 MHz Effective Memory Clock PCI Express 3.0 Specifications Bus Type - PCI-E 3.0 Chipset version
- Oland Pro GPU Bus (bit)
- 64 GPU Clock
- 600 MHz Performance Category
- Warrior Stream Processors
- 320 Memory Memory Bus
- 64 bit Memory Clock
- 1.3 GHz Memory Size
- 2 GB Memory Type
- DDR3 Feature Technologies AMD HD3D Technology
- Y AMD Hyper Memory
- Y AMD Stream Technology
- Y Display Output HDMI Ready
- 1.4a Max Supported Resolution (ANALOG)
- 2048 x 1536 Max Supported Resolution (DIGITAL)
- 1920 x 1080 (DVI);4096 x 2160 (HDMI) Output
- HDMI
- 1 Output
- SL-DVI-D
- 1 Output
- VGA
- 1 Physical Card Profile
- Single Thermal Solution
- LP Fansink Thermal Type - Single Slot Card Dimension (cm)
- 15 x 6.88 x 1.41 Card Dimension (inch)
- 5.9 x 2.7 x 0.55 Requirements Minimum Power Supply Requirement: 400 watt XFX Recommended Power Supply: XFX 450W PSU
























...

XFX Radeon R7 250 1GB GDDR5 VGA DVI HDMI PCI-E Graphics Card New
- New
- XFX Radeon 250
- Low Profile
- Low Noise Cooler
-




...

XFX AMD Radeon R7 250X 1GB DDR5 Dual DVI HDMI Display Port PCI-E Graphics Card Specifications Bus Type PCI-E 3.0 GPU Clock 950 MHz Stream Processors 640 Memory Bus 128 bit Memory Clock 4.5 GHz Memory Size 1 GB Memory Type DDR5 Card Profile Dual Thermal Solution Fansink Outputs Dual link Support Y Max Supported Resolution (ANALOG) 2048 x 1536 Max Supported Resolution (DIGITAL) 2560 x 1600 (DVI);4096 x 2160 (HDMI;DP) Output
- Display Port 1 Output
- DL-DVI-I 1 Output
- HDMI 1 Output
- SL-DVI-D 1 Features Display Port ready 1.2 HDMI Ready 1.4a Requirements External Power
- 6-pins 1 Minimum Power Supply Requirement 450 watt XFX Recommended Power Supply XFX 550W PSU Technologies AMD Cross Fire Technology Y AMD Eyefinity Technology Y AMD HD3D Technology Y Certifications Ro HS Y




...

XFX Radeon R7 260X 2GB GDDR5 VGA Dual DVI HDMI PCI-E Graphics Card New
- New
- XFX Radeon Black Edition 260X
- Ghost 2.0


...

Specifications PROCESSOR & BUS Bus Type: PCI-E 3.0 Chipset version: Pitcairn Pro GPU Boost Clock: 925 MHz GPU Bus (bit): 256 GPU Clock: 900 MHz Performance Category: Warrior Stream Processors: 1280 MEMORY Memory Bus: 256 bit Memory Clock: 5.6 GHz Memory Size: 2 GB Memory Type: DDR5 FEATURE TECHNOLOGIES AMD Cross Fire Technology: Y AMD Eyefinity Technology: Y AMD HD3D Technology: Y AMD Stream Technology: Y ENVIRONMENTAL Ro HS: Y DISPLAY OUTPUT Display Port ready: 1.2 HDMI Ready: 1.4a Max Supported Resolution (ANALOG): 2048 x 1536 Max Supported Resolution (DIGITAL): 2560 x 1600 (DVI);4096 x 2160 (HDMI;DP) Output
- Display Port: 1 Output
- DL-DVI-D: 1 Output
- DL-DVI-I: 1 Output
- HDMI: 1 REQUIREMENTS Minimum Power Supply Requirement: 500 watt XFX Recommended Power Supply: XFX 650W PSU



...
