Specifications Bus Type
- PCI-E 3.0 External Power
- 6-Pins 2 GPU Clock
- 800 MHz Memory Bus
- 384 bit Memory Clock
-




...

AMD Radeon HD 7950 A Quantum Leap In Graphics Technology The AMD Radeon HD 7950 graphics processor harnesses the visionary GCN Architecture. As the worlds first 28nm GPU, this chip is primed to enable astonishing performance & breathtaking image quality, making it the only solution for gamers who expect the best. Black Edition: Overclocked This card features XFXs unique Overclock GPU core at 900 MHz which is 100 MHz more than the base models. Push your gaming experience to the max. Double Dissipation Edition XFXs unique dual fan design allows air to cool everything including the thermal, GPU, heatsinks, components & the PCB board. Specifications Processor & Bus GPU Clock
- 900 MHz Chipset version
- AMD Radeon HD 7950 Memory Memory Bus
- 384 bit Memory Clock
- 5.5 GHz Memory Size
- 3 GB Memory Type
- GDDR5 Feature Technologies AMD Eyefinity Technology
- Y AMD HD3D Technology
- Y Other Features AMD
- Cross Fire ready
- Y Display Output Display Port ready
- 1.2 Dual link Support
- Y HDMI Ready
- 1.4a Max Supported Resolution (ANALOG)
- 2048 x 1536 Max Supported Resolution (DIGITAL)
- 2560 x 1600 Output
- DL-DVI-I x 1 Output
- HDMI x 1 Output
- mini DP x 2 Requirements External Power
- 6-Pins
- 2 Minimum Power Supply Requirement
- 500 watt XFX Recommended Power Supply
- XFX 650W PSU





















...

A Quantum Leap In Graphics Technology The AMD Radeon HD 7950 graphics processor harnesses the visionary GCN Architecture. As the world’s first 28nm GPU, this chip is primed to enable astonishing performance & breathtaking image quality, making it the only solution for gamers who expect the best. XFX’s unique dual fan design allows air to cool everything including the thermal, GPU, heatsinks, components & the PCB board. The XFactor
- See The XFX Difference Quality components, greater durability Solid Capacitors Ferrite Core Choke 2oz Copper Layer Dust-Free IP-5X Fan XFX Bracket Design GPU Clock
- 900 MHz Chipset version
- AMD Radeon HD 7950 Memory Bus
- 384 bit Memory Clock
- 5.0 GHz Memory Size
- 3 GB Memory Type
- GDDR5






...

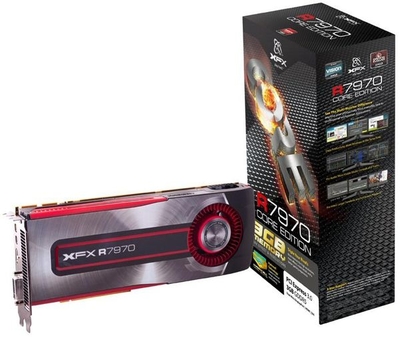

The AMD Radeon HD 7970 graphics processor harnesses the visionary GCN Architecture. As the worlds first 28nm GPU, this chip is primed to enable astonishing performance & breathtaking image quality, making it the only solution for gamers who expect the best. Specifications GPU Clock
- 925 MHz Memory Bus
- 384 bit Memory Clock
- 5.5 GHz Memory Size
- 3 GB Memory Type
- DDR5 Thermal Solution
- 790 4HP DD Minimum Power Supply Requirement
- 500 watt XFX Recommended Power Supply
- XFX 650W PSU Features AMD
- Cross Fire ready
- Yes Display Port ready
- 1.2 HDMI Ready
- 1.4a Low Profile Compatible
- No Outputs Dual link Support
- Yes Max Supported Resolution (ANALOG)
- 2048 x 1536 Max Supported Resolution (DIGITAL)
- 2560 x 1600 Output
- DL-DVI-I
- 1 Output
- HDMI
- 1 Output
- mini DP
- 2 Output
- SL-DVI-D
- 1 Technologies AMD Eyefinity Technology
- Yes AMD HD3D Technology
- Yes Double Dissipation Cooling Technology
- Yes


























...

The AMD Radeon HD 7970 graphics processor harnesses the visionary GCN Architecture. As the world’s first 28nm GPU, this chip is primed to enable astonishing performance & breathtaking image quality, making it the only solution for gamers who expect the best. Processor & Bus: Chipset version: ATI Radeon HD 7970 GPU Clock: 1000 MHz Memory: Memory Bus: 384 bit Memory Clock: 5.7 GHz Memory Size: 3 GB Memory Type: DDR5 Feature Technologies: AMD Eyefinity Technology: Y AMD HD3D Technology: Y Other

Features: AMD
- Cross Fire ready: Y Display Output: Display Port ready: 1.2 Dual link Support: Y HDMI Ready: 1.4a Max Supported Resolution (ANALOG): 2048 x 1536 Max Supported Resolution (DIGITAL): 2560 x 1600 Output
- DL-DVI-I: 1 Output
- HDMI: 1 Output
- mini DP: 2 Output
- SL-DVI-D: 1 Physical: Card Profile: Dual Thermal Solution: HD7970 MBA Ghost Dual fan fansink Thermal Type: Dual slot Card Dimension (cm): 27.5 x 11.12 x 3.81 Card Dimension (inch): 10.8 x 4.4 x 1.5 Requirements: External Power
- 6-pins: 1 External Power
- 8-pins: 1 Minimum Power Supply Requirement: 500 watt XFX Recommended Power Supply: XFX 650W PSU








...

AMD Radeon HD 7970 A Quantum Leap In Graphics Technology The AMD Radeon HD 7970 graphics processor harnesses the visionary GCN Architecture. As the world’s first 28nm GPU, this chip is primed to enable astonishing performance & breathtaking image quality, making it the only solution for gamers who expect the best. Double Dissipation Edition XFX’s unique dual fan design allows air to cool everything including the thermal, GPU, heatsinks, components & the PCB board. GHz Edition The first generation of ground breaking GPUs with core clocks above 1 G Hz. The GHz Edition graphics cards from XFX & AMD are designed with massive headroom for overclocking beyond 1 G Hz Specifications Processor & Bus GPU Clock
- 1050 MHz Chipset version
- AMD Radeon HD 7970 Memory Memory Bus
- 384 bit Memory Clock
- 6.0 GHz Memory Size
- 3 GB Memory Type
- GDDR5 Feature Technologies AMD Eyefinity Technology
- Y AMD HD3D Technology
- Y Other Features AMD
- Cross Fire ready
- Y Display Output Display Port ready
- 1.2 Dual link Support
- Y HDMI Ready
- 1.4a Max Supported Resolution (ANALOG)
- 2048 x 1536 Max Supported Resolution (DIGITAL)
- 2560 x 1600 Output
- DVI x 2 Output
- HDMI x 1 Output
- mini DP x 2 Requirements External Power
- 6-Pins x 1 External Power
- 8-Pins x 1 Minimum Power Supply Requirement x 500 watt XFX Recommended Power Supply x XFX 650W PSU



















...

Key Features
- We are continuing with our Dissipation Fan technology with some key enhancements Introducing Triple Dissipation
...

Everything you need to transform your low-profile-compatible XFX graphics card into a low-profile configuration. Simply replace the standard bracket with the low-profile bracket. Allows for the installation of a compatible full profile graphics card in a low profile system through the changing of the bracket. ...

Everything you need to transform your low-profile-compatible XFX graphics card into a low-profile configuration. Simply replace the standard bracket with one of the three low-profile bracket options included in the kit. We’ve also included a VGA port ribbon for buyers whose XFX low-profile-compatible XFX graphics card didn’t come standard with a VGA port. ...

Easy Rail Technology Provides Maximum Power Unique, continuous Easy Rail technology enables you to maximize available power & make set-up easy. Stack numerous power-hungry components without fear of crashing. Its also a perfect solution for hardcore gamers. The worlds only PSUs with Easy Rail Key Features * 650W of continuous power at 50 * Tight voltage regulation (±5%) * High efficiency operation up to 85% (80 Plus Bronze) * Single, high power +12V rail (up to 53A/636W) * High quality Japanese brand capacitors (105 degrees C) * Quiet 135mm ball bearing fan provides superior cooling * Supports multiple high-end graphic adapters (NVIDIA SLI & ATI Cross Fire Ready) * Supports the latest ATX12V & EPS12V standards * Active PFC with Universal AC input * Energy Star 4.0 & Ro HS compliant * 5-Year Limited Warranty Cable Connectors: 20+4pin Power 4+4pin ATX12v 8pin ATX12v 2x 6pin PCI-Express 2x 8pin PCI-Express (4x PCI-E Total) 9x SATA 9x 4pin Molex 1x Floppy

Specification Input Voltage
- 90-264 Vac Input Frequency Range
- 47-63 Hz Input Current
- 9A (rms) Efficiency
- up to 85% PFC
- >0.95 at full load Maximum Wattage
- 650 Multi-Graphics Cards Support
- NVIDIA SLI ready certified ATX12V 2.2 & ESP12V 2.91 Compliant
- Yes Efficiency @ Typical Load
- 85% 80PLUS Certification
- Bronze Maximum Operation Temperature
- 50 Degrees C +12V Output Rail Design
- Single Rail Quality of Capacitors
- High quality Japanese brand capacitors Temperature Rating of Capacitors
- 105 Degrees C Fully Sleeve Cables
- Yes DC to DC Converters (+3.3V & +5V)
- Yes Intake Fan: Diameter
- 135 x 135 x 25 mm Intake Fan: Airflow
- 82 CFM min



















...
