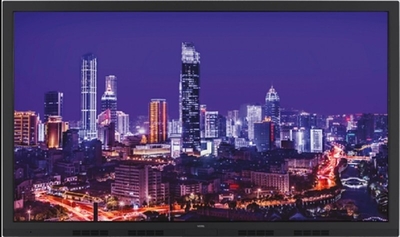

Panel Screen Size 65" Panel Technology Direct-Type LED Brightness (typical) 350 cd/m-square Native Resolution UHD: 3840 x 2160
- HDR10 Contrast Ratio (typical) 4000:1 Dynamic Constrast Ratio 35000:1 Panel Life Time (Min. ) 30000 Hrs Response Time (typical) 8 ms Active Area (H x V) 1428 x 804 mm Pixel Pitch (H x V) 0.372 x 0.372 mm PPI (pixel per inch) 68 Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 Color value 1.07 B (10-bit) Screen Treatment 2H Haze Level 8% Refresh Rate 60 Hz Orientation Horizontal Operation Hours 16/7 Area of Usage Indoor Mainboard Mainboard Model 130VS Monitor Connectivity RGB Input VGA (DE-15F) RGB Output N/A Video Input 1x HDMI2.0 Video Output N/A Audio Input Line In Audio Output Line Out External Control Service (RJ12) USB (Universal Serial Bus) 1x Type B for touch Touch Technology Type of Touch Technology Infrared (IR) Technology Supported Point 10 Points Sensitivity Any touch with finger, gloved hand or pointer Connectivity HID, TUIO, Flash Supported OS & Applications Windows 7, Windows 8, Windows 10, Vista, XP, Mac OS, Linux, Androi Orientation Landscape Support Calibration No need Accuracy 90% < Reporting Rate Up to 450 fps Glass Type Anti Glared (AG), 4mm Tempered Frame Rate Up to 450 fps Communication USB2.0 Power Supply Mode USB (Universal Serial Bus) Supply Voltage DC 5V +/- 5% Average Current < 400 m A Response Time < 10 ms Touch Accuracy +/-2mm (over 90% area) Object Sizes for Touch 5 mm Touch Durability Unlimited HID Compatibility Yes USB (Universal Serial Bus) Mechanical Product
Dimensions (Wx Dx H) 1525 x 116 x 915 mm Package
Dimensions (Wx Dx H) 1765 x 265 x 1100 mm Product Weight 34kg Package Weight 43kg Vesa Mounting 400 x 400 mm Bezel Width B:56 T:41 L/R:41 mm Environmental Conditions Operating Temperature +40°C / 0°C Operating Humidity 90% Power Power Supply 110 VAC
- 240 VAC Power Consumption Typical 235W Deep Standby ≤ 0.5W Features Main Features External PC & OPS PC usage Mechanical Features Front Buttons, Rocker Switch Speaker 2x 16W
