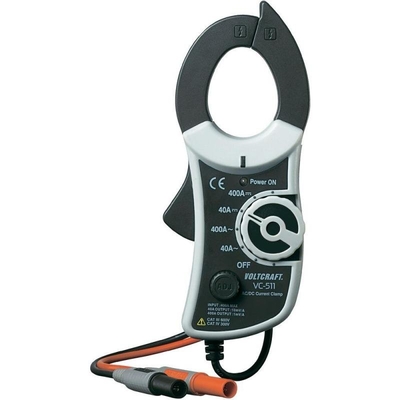

Current pliers adapter VC-511. Highlights &
Details: Current measurement up to 400 A/AC & 400 A/DC. Integrated non-contact voltage tester. Description: You can now measure AC currents up to 400 A contact less with your digital multimeter, without disconnecting wires. simply attach the adapter of clip-on ammeter via the 4 mm. of banana plug to a multimeter oscilloscope or the like. The output of the clip-on ammeter adapter takes place in m V/A. The device is very sturdy by the soft rubber protection & is in addition equipped with a contact less voltage tester. Included in delivery. 2 batteries (type AAA). Instructions for use. Technical data: A/AC measurement range 0
- 400 A/AC. Resolution 1 m V = 1 A.
Dimensions (L x W x H) 149 x 63 x 37 mm. 63 x 37 mm. Measurement range A DC 0
- 400 A/DC. Weight 220 g. Power supply 2 x AAA batteries. Overvoltage category CAT III 600 V. Opening range of current clamps 30 mm. Base accuracy ± 2.5 %.
