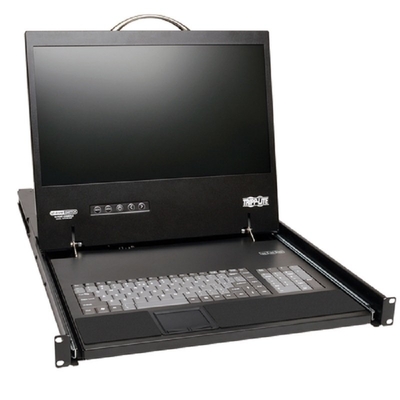

Tripp Lite NetCommander 16-Port Cat5 1U Rack Mount 1+1 User Console
KVM Switch With 19'' LCD And IP Remote Access
Tripp Lite’s B070-016-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet. The B070-016-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 30.5 m away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 16 ports using an on-screen display (OSD). Multi-level password protection prohibits
unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19” LCD screen supports video resolutions up to 1366 x 768. Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-016-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM
switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-016-19-IP, or via searching NetCommander-AXS on www.tripplite.com Saves Space and Money &9679; Combines 16-port KVM switch, 19” LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer &9679; Mounts into 19”-wide rack, 27”-42” deep; to mount in a 2-post rack, use Tripp Lite’s B019-000 &9679; Inexpensive Cat5e/6/6a cabling lets you locate servers up to 30.5 m from the switch &9679; Use a Server Interface Unit, B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
&9679; To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary. IP Remote Access for Fewer Trips to the Server Room &9679; Remote access means there’s no need to travel to the server room or network closet &9679; Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection &9679; A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java &9679; 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session &9679; Supports both IPv4 and IPv6 &9679; Free Management Software
available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface Simplifies IT Tasks &9679; On-screen display, hot keys and remote toolbar for easy use &9679; 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers &9679; Add IP PDUs as devices that can be controlled by the KVM; assign individual ports to an IP PDU port to power on/off the server connected to that port &9679; Virtual Media allows a. iso file to be mounted to a target server and accessed as if it were directly stored on it &9679; Fast Virtual Media KVM System patented under Pat. No. US 9, 417, 720 &9679; System-sent messages to SNMP server notify you of LAN failures &9679; Supports RADIUS and LDAP/S authentication &9679;
Log tracks events on your installation Large 19” LCD &9679; Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely &9679; DDC emulation allows for optimal output to LCD Advanced Security Features &9679; Multi-level password protection: create administrator accounts with full access and user accounts with limited access &9679; Supports TLS 1.2 security protocol &9679; You can install SSL certificates to ensure secure transactions between web servers and browsers Long-Lasting Reliability &9679; Flash-upgradeable firmware over the network &9679; Heavy-duty steel housing stands up to use &9679; Control computers/servers locally or via LAN, WAN or Internet &9679; Occupies just 1U of space in a rack-mountable drawer &9679; Low-cost Cat5 cabling allows longer distances, reduces
cable clutter &9679; 19” LCD screen supports video resolutions up to 1366 x 768 &9679; Simultaneous support for 2 users – 1 local, 1 remote &9679; Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface &9679; Fast Virtual Media KVM System patented under Pat. No. US 9, 417, 720 System Requirements &9679; Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports &9679; User-supplied Cat 5e/6/6a cabling &9679; B078-101-USB-1 (USB) or B078-101-USB2 (USB) Server Interface Unit is required for each connected computer/server; the B078-101-USB2 is required for Fast Virtual Media speeds up to 12Mbps; the B078-101-USB-1 can be used for Virtual Media, but only at speeds up to 1Mbps
&9679; For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary. &9679; Compatible with Windows and Linux operating systems &9679; Currently not compatible with HP Gen 10 Servers &9679; Remote access supported using Windows computers &9679; Remote console computers require minimum Pentium 4 with 2 GB memory &9679; Hardware versions: A new hardware version (v2) of the B070-016-19-IP was released in 2014, and it requires different firmware than was used in the previous version (v1). In the Support tab on this web page you will find a zip folder for the v1 KVM. In addition to including the applicable firmware, it contains a FW Notes file that will tell you how to determine which hardware
version you have, and therefore, which firmware you need to use. If you have a v2 KVM, the latest firmware is that which came pre-installed on the KVM. &9679; Power consumption: 120V, 60Hz, 30W Package Includes &9679; B070-016-19-IP 1U rackmount console KVM switch with 19” LCD &9679; C13 to 5-15P power cord &9679; Rackmount hardware &9679; CD with owner's manual &9679; Quick start guide
unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19” LCD screen supports video resolutions up to 1366 x 768. Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-016-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM
switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-016-19-IP, or via searching NetCommander-AXS on www.tripplite.com Saves Space and Money &9679; Combines 16-port KVM switch, 19” LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer &9679; Mounts into 19”-wide rack, 27”-42” deep; to mount in a 2-post rack, use Tripp Lite’s B019-000 &9679; Inexpensive Cat5e/6/6a cabling lets you locate servers up to 30.5 m from the switch &9679; Use a Server Interface Unit, B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
&9679; To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary. IP Remote Access for Fewer Trips to the Server Room &9679; Remote access means there’s no need to travel to the server room or network closet &9679; Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection &9679; A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java &9679; 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session &9679; Supports both IPv4 and IPv6 &9679; Free Management Software
available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface Simplifies IT Tasks &9679; On-screen display, hot keys and remote toolbar for easy use &9679; 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers &9679; Add IP PDUs as devices that can be controlled by the KVM; assign individual ports to an IP PDU port to power on/off the server connected to that port &9679; Virtual Media allows a. iso file to be mounted to a target server and accessed as if it were directly stored on it &9679; Fast Virtual Media KVM System patented under Pat. No. US 9, 417, 720 &9679; System-sent messages to SNMP server notify you of LAN failures &9679; Supports RADIUS and LDAP/S authentication &9679;
Log tracks events on your installation Large 19” LCD &9679; Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely &9679; DDC emulation allows for optimal output to LCD Advanced Security Features &9679; Multi-level password protection: create administrator accounts with full access and user accounts with limited access &9679; Supports TLS 1.2 security protocol &9679; You can install SSL certificates to ensure secure transactions between web servers and browsers Long-Lasting Reliability &9679; Flash-upgradeable firmware over the network &9679; Heavy-duty steel housing stands up to use &9679; Control computers/servers locally or via LAN, WAN or Internet &9679; Occupies just 1U of space in a rack-mountable drawer &9679; Low-cost Cat5 cabling allows longer distances, reduces
cable clutter &9679; 19” LCD screen supports video resolutions up to 1366 x 768 &9679; Simultaneous support for 2 users – 1 local, 1 remote &9679; Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface &9679; Fast Virtual Media KVM System patented under Pat. No. US 9, 417, 720 System Requirements &9679; Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports &9679; User-supplied Cat 5e/6/6a cabling &9679; B078-101-USB-1 (USB) or B078-101-USB2 (USB) Server Interface Unit is required for each connected computer/server; the B078-101-USB2 is required for Fast Virtual Media speeds up to 12Mbps; the B078-101-USB-1 can be used for Virtual Media, but only at speeds up to 1Mbps
&9679; For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary. &9679; Compatible with Windows and Linux operating systems &9679; Currently not compatible with HP Gen 10 Servers &9679; Remote access supported using Windows computers &9679; Remote console computers require minimum Pentium 4 with 2 GB memory &9679; Hardware versions: A new hardware version (v2) of the B070-016-19-IP was released in 2014, and it requires different firmware than was used in the previous version (v1). In the Support tab on this web page you will find a zip folder for the v1 KVM. In addition to including the applicable firmware, it contains a FW Notes file that will tell you how to determine which hardware
version you have, and therefore, which firmware you need to use. If you have a v2 KVM, the latest firmware is that which came pre-installed on the KVM. &9679; Power consumption: 120V, 60Hz, 30W Package Includes &9679; B070-016-19-IP 1U rackmount console KVM switch with 19” LCD &9679; C13 to 5-15P power cord &9679; Rackmount hardware &9679; CD with owner's manual &9679; Quick start guide
