The TL-R860 multifunctional broadband router is especially designed for SOHO (Small Office/ Home Office) to access the Internet. It features strong functions, high performance, & easy configuration router. The TL-R860 provides many management functions. The TL-R860 router provides flexible access control, limiting staff or children to browse selected sites. The TL-R860 router is also a smart helper. It connects to the Internet automatically on demand & disconnects when idle to save on network costs. It’s easy to configure. What This Product Does Create a wired network in your home using the TP-LINK 8-Port Cable/DSL Router (TL-R860). Connect this wired router to a broadband modem & share your high-speed Internet access, check email, share files, & enjoy online gaming. With the Easy Setup Assistant, you can easily build a wired network & share your high speed internet connection with all the PCs connected to surf the internet, chat online & check mails. Share Resources & Simplify the Network The built-in 8-port switch provides computers on the LAN with network connectivity & Internet access. Connect up to eight PCs directly or other networking devices to access home or office resources & use the Internet. Switching capabilities have been integrated into this device to efficiently manage your network traffic. Network Security Protection TL-R860

Includes:: a built-in strong firewall for safeguarding your network from hackers & malicious attacks from across the Internet, such as Do S attack, ARP virus attack, etc. For added convenience, it supports access control based on the time of day, MAC address, IP address, or domain name. So parents & network administrators can establish restricted access policies for children or staff. IP Qo S IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC. Easy Setup Either using the optimized user interface & setup wizard or the CD (included) setup wizard will allow you to get ‘online’ quickly & easily. 8 10/100 Mbps LAN ports for Internet sharing locally, ideal for home & office users IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC which guarantees the performance of Vo IP or video application Flexible control features allows parents or administrators to establish restricted access policies for children or staff Supports Dynamic DNS, IP & MAC binding

...

7 Po E input & 1 Po E output 10/100/1000 Mbps RJ45 Ports 1 DC output port that supports both 5V and 12 V voltage switching Durable metal casing of superior quality & professional appearance Intelligent management via a web user interface & downloadable utility Green technology reduces power consumption The Passive Po E switch TL-RP108GE has seven gigabit Po E input ports that allow it to receive power from user outlets via Po E injectors. Equipped with one Po E output port, the switch can supply power to CPEs & similar devices via Port 8. The DC output port supports both 5 V & 12 V optional output voltage & can be used to power devices like ONTs. With data switching & Po E integrated into a single unit, TL-RP108GE saves space, minimizes cabling, & eliminates the need for dedicated electrical outlets—lowering deployment costs & simplifying installation for Po E-capable devices. ...

The TL-SC2020 Network Security Camera is a versatile solution for your home & office monitoring. It can be placed in your living room, office, or anywhere else you would like to keep an eye on things. After a hassle-free installation, you can view & control the camera from a Web browser, bundled software, or compatible cell phone. The surveillance software coming with the IP camera assists you manage multiple cameras at the same time. With it, video from 16 cameras can be displayed on one screen. You can archive streaming video & audio straight to your hard drive, playback video, & monitor up to 16 cameras on a single screen. The low-light-sensitive CMOS sensor on this camera adapts Progressive Scan technology, boosting the performance greatly compared to traditional Interlaced Scan technology, provides good image quality even in the dawn. MJPEG streams for remote recording & local surveillance 1/4 inch progressive scan CMOS sensor produces clear & crisp images, even in low light environment Bundled management software accommodates up to 16 cameras at the same time Motion triggered e-mail alerts to keep you updated on the situation on the ground Frame rate at 30fps in VGA resolution (640 x 480) for smooth video Camera
-
- Image Sensor
- 1/4" Progressive scan CMOS sensor
- Digital Zoom
- 10x Digital
- Minimum Illumination
- 0.5 Lux Video/ Image
-
- Video Compression
- Motion JPEG
- Frame Rate & Resolutions
- Up to 30 (NTSC) / 25 (PAL) fps at 640x 480, 320x 240, 160x 120
- Video Streaming
- Motion JPEG
- Image Settings
- Rotation: Mirror, Flip, Mirror Flip;
- Brightness, Contrast, Saturation, Hue; Overlay capabilities: Time, Date, Text & Privacy image Audio
-
- Audio Communication
- One-way
- Audio Input
- Built-in microphone
- Audio Compression
- G.711 PCM, 8 k Hz, 64 kbit/s Alarm & Event Management
-
- Events Trigger
- Built-in motion detection, schedule
- Notification Method
- E-mail, FTP, HTTP Network
-
- Standards & Protocols
- TCP/IP, DHCP, PPPo E, ARP, ICMP, FTP, SMTP, DNS, NTP, UPn P, RTSP, RTP, RTCP, HTTP, TCP, UDP, 3GPP/ISMA RTSP Interfaces
-
- Network Interface
- 1 RJ- 45 for Ethernet 10/100 Base-T
- Power Connector
- DC power jack
- Audio Input
- Built-in microphone
- Button
- Reset push button General
-
- External Power Supply
- 5VDC, Max 3W
- Certification CE, FCC, Ro HS
- Environment
- Operating Temperature: 0&8451;~40&8451; (32&8457;~104&8457;); 0 Storage Temperature: -40&8451;~70&8451; (-40&8457;~158&8457;); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing.
- Dimensions (H X W X D ) 96 x 66 x 28 mm (3.8 x 2.9 x 1.1 in.)















































...

The TL-SC3130G surveillance camera is a versatile solution for your home & office monitoring, whose 54 Mbps wireless connectivity enables you to deploy the camera where inaccessible previously by Ethernet connection such as ceiling & walls. This camera can be placed in your living room, office, or anywhere else you would like to keep an eye on things. After a hassle-free installation, you can view & control the camera from a web browser, bundled software, or compatible cell phone. ...

TL-SC3171 IP surveillance camera is a versatile solution for your home & office monitoring. It watches your home, your kids, your workplace, whatever you care for most. After connecting directly to a local network using wired Ethernet connection, it can send live video to your home PC or through the Internet to a Web browser or 3G mobile phone, anywhere in the world! Even more exciting is that the TL-SC3171 features 12 IR (infrared) LEDs & an industrial mechanical ICR (IR Cut-filter Removable), providing you true day / night surveillance experience. Ultimately, the TL-SC3171 is perfect to keep an eye on your family, property, or anything important to you, bringing you peace of mind. Did you know that more than 80% of burglary cases happen in the dead of night? With this in mind, the only viable solution to truly ensure the safety of your home or business is to have around the clock surveillance. This camera was developed in order to correct traditional inadequacies of network connected day/night cameras. This day/night camera uses all available Infrared light as a means to produce clear images in the dark & completely filters that light during the day ensuring vivid video as clear as you would see with the naked eye, both functions unavailable on traditional day/night cameras that resulted in poor image quality during both the day & the night. ...

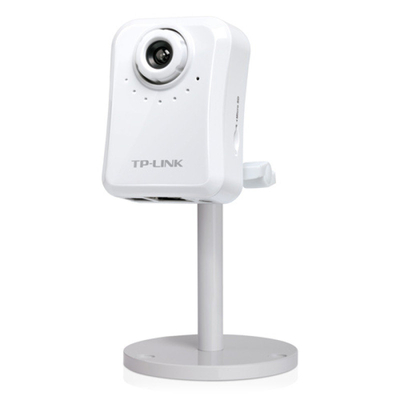

1.3 megapixel progressive scan CMOS sensor produces high definition video quality Supports wireless 802.11b/g/n with speeds up to 150 Mbps Micro SD card local storage & Network Storage (NAS) for convenient video recording H.264 & MJPEG video streaming for different quality requirements & bandwidth environments Multiple easy remote viewing options
- view live video via 3G mobile phones, laptops or tablets Email or FTP notifications triggered by motion Detection, Audio Detection or Schedule Timer offer sensitive invasion alert 10 x digital zoom for detailed close-ups 2 way audio allows users to listen & speak remotely Advanced SSL/HTTPS encryption & IP filter protect users’ privacy from malicious intrusions Free bundled software supports simultaneous monitoring of up to 64 cameras Quick Universal Plug & Play Installation What's in the Box H.264 Wireless N Megapixel Surveillance Camera TL-SC3230N Power Adaptor RJ-45 Ethernet Cable Quick Installation Guide Resource CD Camera Mount Kit
...

The TL-SC4171G is dedicated to providing 24-hour security monitoring of a home, office, store or any other location needing day & night security. By easily mounting this camera on a ceiling or wall, it offers wide-range pan/tilt monitoring of the entire space in which it is located. Moreover, live video can be accessed through the Internet on a PC/laptop, or even via 3G mobile devices such as Blackberries or iPhones! Featuring a 54 Mbps wireless connection, 2-way audio & other practical functions, the TL-SC4171G is a fantastic solution that allows users to keep an eye on whatever they value most. The TL-SC4171G can offers extra wide, whole-room surveillance coverage with 354 degree horizontal pan (left & right) & 125 degree vertical tilt (up & down). Moreover, 4 patrol tours that consist of 8 preset positions each make the camera automatically move along a desirable route to allow users to easily capture a number of specific points around a room to ensure that the most sensitive areas are covered, using the camera’s easy-to-use user interface. The TL-SC4171G is equipped with an industrial level IR-Cut filter Removable (ICR) component with high performance & stability. The filter completely removes infrared light that is used for night-time surveillance, allowing the camera to produce the most vibrant video without color distortion during the day. Meanwhile, in low-light, even completely dark environments, 12 IR (Infrared) LEDs turn on automatically to reveal clear monochrome video of the surrounding area. This unique function is unavailable on other traditional day/night cameras that offer moderately less video clarity. The TL-SC4171G automatically records video when needed, detects unexpected intrusions & alerts users via e-mail when motion is detected. It also supports digital input/output for external sensors & alarms. With the TL-SC4171 Gs built-in microphone or one purchased separately, users can hear whats happening within range of their cameras remotely. Whats more, by connecting an external speaker to the TL-SC4171G, users may also speak to someone near the camera or give a public address depending on the speakers strength. This brings users more convenience allowing for better communication when monitoring their cameras from a remote location. The TL-SC4171 Gs bundled surveillance software assists users with managing multiple cameras at the same time. With it, video from 16 cameras can be displayed on one screen. Users can archive streamed video & audio straight to their hard drives, playback video, & monitor up to 16 cameras on a single screen. CAMERA Image Sensor
- 1/4" Progressive scan CMOS sensor Resolution
- 0.3 Megapixel (640x 480) Lens
- F: 2.0, f: 4.3mm Viewing Angle
- Diagonal 61°, Horizontal 48°, Vertical 36° Day/ Night Mechanism
- Mechanical IR-Cut filter Removable; 12 Infrared LEDs around the lens (850nm) IR Working Distance
- 10-meter (33-feet) Minimum Illumination
- 0.5 Lux (0 Lux when IR On) PTZ Pan/tilt Range
- 354° pan/125° tilt range Pan/tilt Speed
- Max. 60°/sec pan speed, Max. 80°/sec tilt speed Digital Zoom
- 10x Digital PT Controls
- Remote manual control, 32 preset positions, 4 patrol tours VIDEO/IMAGE Video Compression
- Motion JPEG; MPEG-4 Frame Rate & Resolutions
- Max. 30fps @ 640x 480, 320x 240, 160x 120 (MPEG-4). Max. 15 fps @ 640x 480, 320x 240, 160x 120 (Motion JPEG) Video Streaming Simultaneous Motion JPEG & MPEG-4 (Dual streaming) Image Settings
- Rotation: Mirror, Flip, Mirror Flip Brightness, contrast, saturation, hue Overlay capabilities: time, date, text & privacy image AUDIO Audio Communication
- 2-Way full duplex Audio Compression
- G.711 PCM, 8k Hz, 64 kbit/s Audio I/O
- Built-in microphone & External input connector External output connector MINIMUM SYSTEM REQUIREMENTS CPU
- Pentium 4 1.8 G Hz (or equivalent AMD) Graphic Card
- 64MB RAM graphic cards (or equivalent on-board graphic cards) Memory
- 512MB RAM Supported OS
- Windows 98/ME/2000/2003/XP/ Vista/7, Mac OS, Linux Dimensions (H X W X D ) 112 x 114 (φ)mm (4.4" x 4.4")




















...

The TL-SF1005D Fast Ethernet switch is designed for SOHO (Small Office/ Home Office) or workgroup users. All 5-port support auto MDI/MDIX, no need to worry about the cable type, simply plug & play. Moreover, with the energy-efficient technology, the TL-SF1005D is an eco-friendly solution for your business network. Energy-efficient technology saves power up to 70% Supports IEEE 802.3x flow control for full duplex mode & backpressure for half duplex mode Non-blocking switching architecture that forwards & filters packets at full wire-speed for maximum throughput Auto-MDI/MDIX eliminates the need for crossover cables Supports MAC address auto-learning & auto-aging Fanless design ensures quiet operation Desktop or wall-mounting design Plug & Play design simplifies installation ...

Key Features 5 10/100 Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX Green Ethernet technology saves the power up to 68% IEEE 802.3x flow control provides reliable data transfer Plastic case, desktop design Plug & play, no configuration required The TL-SF1005D 5-Port 10/100 Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200 Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 68% of power consumption, making it an eco-friendly solution for your home or office network. High Performance TL-SF1005D Fast Ethernet Switch provides 5 10/100 Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports.. Featuring non-blocking switching architecture, TL-SF1005D forwards & filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is enhanced significantly. & IEEE 802.3x flow control for Full Duplex mode & backpressure for Half Duplex mode alleviate the traffic congestion & make TL-SF1005D work reliably. Easy to Use The auto features of this ethernet switch make installation plug & play & hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) & intelligently adjusts for compatibility & optimal performance. ...

TL-SF1005D 5-port 10/100 Mbps Fast Ethernet Switch provides 5 10/100 Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-&-Play & each port can be used as general ports or Uplink ports & can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable. The TP-LINK TL-SF1005D 5-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless & standard upgrade to improve your old network to a 100 Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them. Please note: networking components such as switches, routers & wireless devices require that speeds & standards be consistent throughout the network to gain optimum performance. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...
