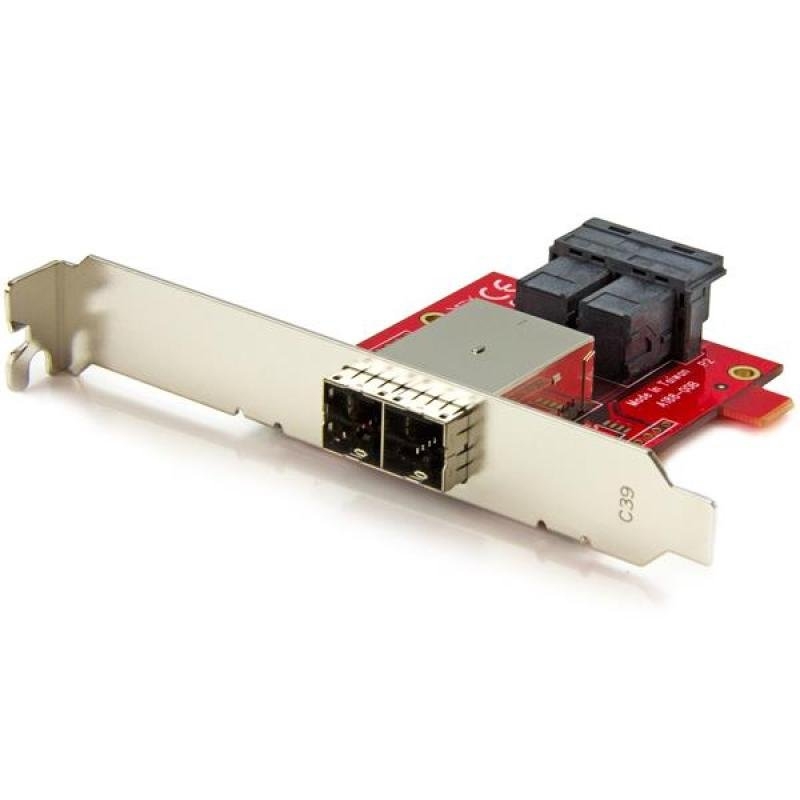

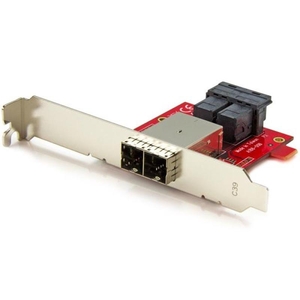

Star Tech.com Mini-SAS Adapter
- Dual SFF-8643 to SFF-8644
- with Full & Low-Profile Brackets
- 12 Gbps Convert two internal SFF-8643 ports into two external SFF-8644 ports Compatible with 12 Gbps SAS drives & backward compatible with 6 Gbps SAS & SATA drives Equipped with a full-profile bracket &
Includes:: a half-height/low-profile bracket for installation in small form-factor computers This Mini-SAS adapter lets you convert two internal SFF-8643 ports on a controller card into two external SFF-8644 ports. This enables you to connect external SAS or SATA drives in devices such as a Direct Attached Storage (DAS) device to an internal backplane or SAS controller for additional storage. The adapter can connect up to eight drives in total & is compatible with 12 Gbps SAS drives as well as 6 Gbps SATA drives. For installation in small form-factor computers, the adapter
Includes:: an optional half-height (low-profile) bracket, in addition to the preinstalled standard-height bracket. The SFF86448PLT2 is backed by a Star Tech.com 2-year warranty & free lifetime technical support. Applications Convert two internal SFF-8643 ports into two external SFF-8644 ports Connect external SAS or SATA drives to an internal backplane or SAS controller Warranty Information Warranty 2 Years Hardware Ports 4 Performance Supported Protocols SATA & SAS Connector (s) Connector A 2
- SFF-8643 (36 pin; Internal HD Mini SAS) Receptacle Connector B 2
- SFF-8644 (36 pin; External HD Mini SAS) Receptacle Physical Characteristics Product Height 22 mm [0.9 in] Product Length 74 mm [2.9 in] Product Weight 58 g [2 oz] Product Width 120 mm [4.7 in] Packaging Information Shipping (Package) Weight 121 g [4.3 oz] What's in the Box Included in Package 1
- dual SFF-8643 to SFF-8644 Mini-SAS HD adapter 1
- low-profile bracket
