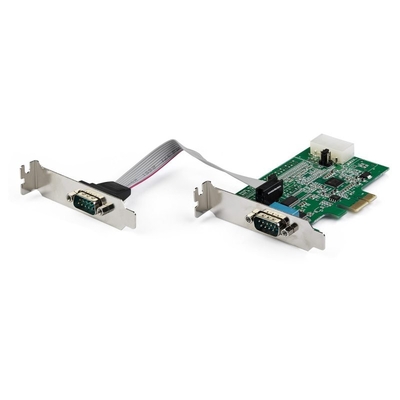

Overview This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, & modems, at speeds of up to 921.4 Kbps. Features Maximum Compatibility With broad OS support, including for Windows & Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, &
Includes:: an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology This PCIe to serial adapter supports the following
Features: Compatible with industry standard 16950 UART Supports max baud rate of up-to 921.4 Kbps Provides 5/12V power output on Pin 9 when external power is connected 256-byte depth FIFO per transmitter & receiver Supports 9, 8, 7, 6, 5 data bits Asix AX99100 chipset PCI Express 1.1 compliant PEX2S953LP is backed by a Star Tech.com lifetime warranty & free lifetime technical support. Applications Install in home or office workstations Connect in retail POS applications Connect to automated self-service kiosks or ATM machines
