Features Fanless & whisper-quiet Low energy consumption Multiformat card reader Anti-theft protection Inbuilt stereo speakers Suitable for Linux operating systems Connections without all those annoying cables Integrated Webcam Fan-less external power supply The fastest connection to external peripheral devices available to date HDMI interface Intel chipset inside Product Overview A Fanless All-in-one PC for business solutions Shuttle’s X50V5 with 15.6-inch touch screen is powered by Intel Celeron 3855U dual-core processor. This All-in-One PC is made to drive KIOSK, POS, POI, & queuing systems. Shuttle’s stylish AIO is VESA mountable & is easily mounted on the wall or propped up with a st&. The X50V5 front panel features IP54 design which is dust-protected & protected from splashing of water. Thanks to its fanless design, the X50V5 has been approved for 24/7 nonstop operation & tested to ensure long-term stability & silent operation. In addition, the X50V5 offers a PCL71 accessory (RS232, RS232/RS422/RS485, & parallel port) & a POS01 accessory (RS232, RS232/RS422/RS485, Parallel Port, & DIO port) easily to connect with cash drawers, bar code scanners, & other peripheral devices. Simply touch The 16:9 15.6” single touch screen does not require a mouse & keyboard, making it particularly suitable for interactive kiosk & point-of-sale applications. Intel Celeron dual-core processor The X50V5 supports the latest Intel Skylake-U platform technology. It is equipped with an Intel Celeron 3855U 1.6 Ghz dual-core processor with max TDP of 15W, memory frequency support for up to DDR3L-1600, & built-in Intel HD Graphics to play Full HD/1080P contents. Fanless design The unique fanless design eliminates the power consumption required by a fan as well as the cost of replacing fans. Use solid-state disks & create a noise-free operational platform. 24/7 Certified Made with high quality material & Shuttle exclusive heat pipe cooling technology, the X50V5 is approved for 24/7 nonstop operation to keep things cool for long-term operation. Support wire & wireless high-speed networks The X50V5 has one built-in Intel Gigabit LAN interface & Realtek RTL 8821AE b/g/n/a & BT combo wireless network card. Transmission rates reach up to 433.3 Mbps for significantly enhanced data transfer efficiency & operation speeds. It also supports Wake On LAN function so that users can turn on the X50V5 from the sleep mode, rest mode, or when powered off via the internet. * Please refer to spec sheet for detailed Wi Fi support Internal USB (Universal Serial Bus) port – Theft Protection Internal USB (Universal Serial Bus) ports ensure theft protection as USB (Universal Serial Bus) connected devices are guarded within the chassis. In addition to the USB (Universal Serial Bus) ports at the front & back panel, the X50V5 provides one USB (Universal Serial Bus) 2.0 port inside the chassis so users can install a USB (Universal Serial Bus) TV tuner, USB (Universal Serial Bus) 3G Module, or other USB (Universal Serial Bus) expanders. Supports Power on by RTC Enter BIOS to set up the Power on by RTC function that means that you can set a time to boot up the computer & to turn off with the Windows task scheduler. This feature means saving electricity & energy as well as eliminating the cost of on-site service. VESA Mount Remove the stand at the rear of X50V5 & the device is VESA compatible for a variety of commercial applications. IP54 design The X50V5 front panel is IP54 certified for dust & splash water resistance. It can be used for those indoor applications, where the touch screen may be exposed to humidity & occasional splashing of water. Support three independent displays The rear panel of X50V5 provides HDMI & D-sub video outputs, which can be connected to the other two monitors to support three independent displays. Use an adaptor to convert HDMI into DVI for diversified signal selection. Operable in 0-40 &8304;C ambient temperatures The X50V5 uses industrial capacitors & is suitable for 0 ~ 40 &8304;C ambient temperatures* to meet the environmental operation demands of commercial applications. * With use of SSD & Wide Range Temp. SODIMM Optional COM, LPT, & DIO ports The X50V5 offers a PCL71 accessory (1*RS232, 1*RS232/RS422/RS485, & 1*parallel port) & a POS01 accessory which is provided one RJ11 type DIO port (support 12V/24V), one Parallel Port, one RS232, one RS232/RS422/RS485, & one RJ45 type RS232 as well as one RJ45 type RS232/RS422/RS485 for various kiosk, digital signage, & POS applications needing to connect with cash drawers, bar code scanners, & other peripherals. The RS232 & RS232/RS422/RS485 ports are 0V/5V/12V compatible. USB3.0 High Speed Transmission The back panel of X50V5 provides USB (Universal Serial Bus) 3.0 ports which support up to 5 Gbps, providing 10 times greater data access speed than a USB (Universal Serial Bus) 2.0 port. Flexible configuration of storage The X50V5 features SATA 6 Gbps high speed storage interface. It can be configured with a 2.5” hard disk or SSD, but also provides one M.2 (2280) expansion slot for installing M.2 SSD or other compatible devices. The Watch Dog Use Shuttle’s Watch Dog utility to maintain the normal operation & stability of the system at all times. Multiple Operating System Support
- Window 7
- Window 8.1
- Windows 10
- Linux Specifications FORM FACTOR Shuttle AIO form factor PROCESSOR Intel Celeron 3855U Processor MEMORY Support DDR3L 1333/1600 Mhz SODIMM memory Max. 16G VIDEO OUTPUT Intel HD Graphics AUDIO Realtek ALC269 two Channel High 2W x 2 Stereo speaker ETHERNET Intel i 219LM Realtek 802.11 ac/b/g/n + Bluetooth 4.0 10MB/s, 100MB/s, 1000MB/s Support Wake-On-LAN, Wake on WLAN function STORAGE INTERFACE 2.5" SATA3 device bay x 1 BACK PANEL DC in USB2.0 port x 2 USB3.0 port x 2 HDMI x 1 LAN X 1 MIC in X 1 Headphone X 1 D-sub port x 1 Kensington lock DIMENSIONS 391.7 x 328.5 x 42.6 (mm) POWER Input:100- 240V AC Output: 19V/3.42A or 12V/5.42A DC 65W 19V Adapter bundled ACCESSORIES Quick Guide x 1 Driver DVD x 1 65W Power Adapter x 1 power cord x 1 EXPANSION SLOT (1) M.2 2280 Type B, M key socket (1) M.2 2230 Type A, E Key socket LCD Panel 15.6" 16:9 Wide Panel, 1366 x 768 pixels Touch screen Single touch Web Cam 2.0M FULL HD Pixel Mic Electret Condenser Microphone Left Side Power-on button Stylus pen USB2.0 port x 2 SD card reader Clear CMOS Wireless LAN Realtek 802.11 ac/b/g/n Card Reader SD Card Reader



...

Features HDMI interface High-resolution Display Port The fastest connection to external peripheral devices available to date Generous supply of USB (Universal Serial Bus) ports 6-channel audio Communication in the fast lane Intelligent fan control Pre-assembled cabling saves time Intel chipset inside Intelligent cooling The interface for the fastest of memory media Dual-slot graphic cards? No problem! PCI Express technology Product Overview A cost-effective entry-level Mini PC for your solutions Shuttle launches the new entry-level cube PC-SH110R4 with impressive performance for diverse applications. Equipped with Intel H110 chipsets, the SH110R4 supports Intel 6th generation LGA 1151 95W processors. With Core™ i 3/i 5/i 7 built-in graphics engine, it can support 4K/ Ultra HD video playback. The SH110R4 supports dual-screen displays via HDMI, Display Port, or VGA port & is compatible with Mini-ITX form factor mainboard. In a mere 13-liter barebones, the machine features highly expandable with PCI-E x 16 slot & PCI-E x 4, allowing for installation of dual slot graphics cards, video surveillance cards, & more. Also, the SH110R4 has built-in one M.2 2280/2260/2242 Type M & one M.2 2230 Type A/E slots to install M.2 SSD & a Wi Fi card or other compatible devices. Equipped with Shuttle’s I.C.E 2™ cooling engine as well as 80 Plus Bronze certified with a 300W power supply, the SH110R4 is highly energy-efficient & stable for home, office, or even gaming. Support Intel 6th generation Core™ processor The SH110R4 supports Intel sixth-generation (Skylake) Core™ i 3/i 5/i 7, Pentium, & Celeron processors. The Core™ i 3/i 5/i 7 processors are integrated Intel HD Graphics support for Direct X 12 & significantly enhanced CPU or GPU performance. Integrated Cooling Engine 2 (I.C.E. 2) Heat pipe technology The XPC cube features stable, cool, & silent operation with Shuttle’s I.C.E. 2 heat pipe technology. It uses convection cooling to dissipate heat away from & around the CPU. The I.C.E.2 copper tubes, coated in nickel for enhanced tube hardness & rust-proof protection, are filled with distilled water to effectively channel heat & provide highly efficient processor & chassis cooling. Support PCI-E expansion cards The SH110R4 provides one PCI-E x 16 & one PCI-E x 1 slots to meet various needs of users. Select the card you want to use, such as multi-display graphic cards, monitor cards, RAID cards, & professional sound cards, etc. Dual-screen display Outputs The SH110R4 features Display Port, HDMI, & VGA*outputs to support dual-screen displays. Use an adaptor to convert HDMI into DVI interface & Display Port into HDMI or DVI interface for diversified signal selection, providing the option for dual monitors or standalone display. *VGA port cannot support 4K/ Ultra HD high resolution Built-in Intel Gigabit LAN interface With Intel i 219-LM chip, SH110R4 has a built-in Intel 10/100/1000 Mbps LAN interface & supports Wake On LAN function to provide high-speed data transfer capability. It also offers a better compatibility for business network environment. Support Power-on by RTC Enter Bios to set-up Power On by RTC function can set system automatic power on. With Windows task scheduler, the system can power off automatically to achieve the goal of saving energy & operation cost. Support Mini-ITX Motherboard For various market demands, Shuttle expands its capabilities by adding support for Mini-ITX mainboards (17x 17 cm or 6.7x 6.7 inches). The Shuttle chassis goes beyond the Shuttle mainboard, so you can easily upgrade to the mainboard of your desire without any modifications to the chassis. Customizable Front Panel The front of R4 chassis is easily customized by simply changing the acrylic front plate. Add any design, such as a photo, graphic, or a company logo to the front panel. Equipped with an Intel 100 series Chipset With new LGA 1151 socket, the SH110R4 is equipped with an Intel H110 Chipset & supports dual-channel DDR4 2133 memory with maximum memory capacity of up to 32GB (16 G Bx 2). The device supports Intel Gigabit LAN, SATA 6 Gbps, & USB3.0 high-speed storage interfaces, providing superb data transfer speed. Support two M.2 expansion slots The SH110R4 is built-in one M.2 2280/2260/2242 Type M & one M.2 2230 Type A/E slots to install M.2 SSD & a Wi Fi card or other compatible devices, proving a strong expansion capacity. Support 4K Ultra HD The SH110R4 provides Display Port & HDMI video outputs to support 4K high resolution (3840x 2160)*. Now with four times the resolution of Full HD, viewers can enjoy the super detailed & crystal clear imaging of 4K. * Intel Pentium & Celeron processors built-in Intel HD graphics cannot support 4K video playback capability. Flexible expansion of hard disk installation Shuttle’s XPC cube reserves space for installation of one 5.25” CD-ROM drive (ODD) & two 3.5” hard disks. With an optional PHD3 accessory users can install a maximum of four 2.5” hard drives (or SSDs). Support Wake On LAN Use BIOS to set up the Wake ON LAN function so that users can power-on from sleep mode, rest mode, or when powered off via the internet. The Watchdog– Protecting System Security Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle’s Watch Dog utility to maintain normal operation & stability of the system at all times. 80 Plus Bronze Certified 300W Power Supply Shuttle’s SH110R4 is equipped with an 80 Plus Bronze 300W power supply for guaranteed energy efficiency & energy saving. Shuttle’s 300W power supply cuts down on unnecessary power consumption for a higher level of energy saving. Multiple Operating System Support -Windows 7 -Windows 8.1 -Windows 10 -Linux Specifications FORM FACTOR Shuttle Form factor PROCESSOR Support Skylake 95W Core i 3/i 5/i 7 LGA 1151 CPU processor CHIPSET Intel Skylake H110 Express chipset MEMORY (2)DDR4 2133 M Hz support, dual channel up to 32GB (16GB*2) VIDEO OUTPUT (1)HDMI + (1) Display Port support dual independent display 4K/2K playback Integrated in CPU (Intel HD 530 Graphics) AUDIO Realtek ALC662 5.1 Channel high definition audio ETHERNET Intel Chip i 219-LM 10 Mb/s, 100 Mb/s, 1 Gb/s operation Support Wake-on-LAN function STORAGE INTERFACE SATA 3.0 (6.0 Gb/s) interface ONBOARD CONNECTORS (2) 4 Pin fan connector (3) SATA 6.0 connector (1) ATX main power (2*10) (1) ATX main power (2*2) (1) RS232 header (1) Low Pin Count header (1) Front AUDIO header (1) Front USB2.0 header (1) 4pin USB (Universal Serial Bus) wafer FRONT PANEL (2) USB (Universal Serial Bus) 3.0 Port (1) External microphone jack 1/8” (1) External headphone jack 1/8” Power button HDD/ODD Led BACK PANEL (2) USB (Universal Serial Bus) 3.0 port (4) USB (Universal Serial Bus) 2.0 port (1) Display Port (1) HDMI port (1) VGA port (1) LAN (1) PS/2 port (1) Line in (1) Line out (1) MIC in (1) CMOS clear button DRIVE BAYS (1) 5.25" ODD bay (2) 3.5" HDD bay Support 2.5" HDD x 2 or 4, if use accessory PHD3 x 1 or 2 DIMENSIONS 332 (L) x 216 (W) x 198 (H) mm POWER 80 Plus 300W power supply Input:100
- 240V AC Support 80 PLUS Bronze ACCESSORIES XPC Multi-Language quick guide XPC DVD Driver Heat-sink compound (2) SATA cable Power cord Screw package EXPANSION SLOT (1) PCI-E X16 slot (1) PCI-E X1 slot (1) M.2 MAX to 2280 type M key socket (1) M.2 MAX to 2230 type A, E key socket OS SUPPORT Windows 7 Windows 8.1 Windows 10 Linux
...

Features Support Intel 6th generation Core™ processor Equipped with Intel 100 series Chipset Integrated Cooling Engine 2 (ICE 2) Heat pipe technology Support PCI-E expansion cards M.2 & Mini PCIe expansion slots Support 4K Ultra HD Three independent displays Support Intel Rapid Storage Technology Built-in Intel Gigabit LAN interface Product Overview The high performance Mini PC with Intel Skylake platform The new Shuttle XPC SH170R6 supports Intel Skylake platform technology. This new model packs Intel the latest 6th generation LGA 1151 95W processor. With Core™ i 3/i 5/i 7 processors built-in graphics core, the SH170R6 is able to support 4k/ Ultra HD video playback. At back panel of SH170R6 provides one HDMI & two Display Port to support three independent screen displays. The SH170R6 features one PCI-E x 16 slot & one PCI-E x 4, allowing for installation of dual slot graphics cards, video surveillance cards, RAID cards, & more applications. It also features strong expandability with one M.2 & one half-size Mini PCIe slots support for M.2 SSD & a Wi Fi card or other compatible modules. Equipped with Shuttle’s I.C.E 2™ cooling engine as well as 80 Plus Bronze certified with a 300W power supply, allows the SH170R6 to feature high energy efficiency & maintain high stability for long-term operation. Support Intel 6th generation Core™ processor Equipped with the new LGA 1151 socket, the SH170R6 supports Intel 6th generation (Skylake) Core™ i 3/i 5/i 7, Pentium, & Celeron 95W processors. Built-in Direct X 12 compatible with the Intel HD Graphics, it is significantly increased CPU or GPU performance. Integrated Cooling Engine 2 (ICE 2) Heat pipe technology Shuttle XPC features stable, cool, & silent operation with Shuttle’s ICE 2 heat pipe technology. It uses convection cooling to dissipate heat away from the CPU. The ICE2 copper tubes, coated in nickel for enhanced tube hardness & rust-proof protection, are filled with distilled water to effectively channel heat & provide highly efficient processor & chassis cooling. M.2 & Mini PCIe expansion slots The SH170R6 is built-in one M.2 2280 with type M & one half-size Mini PCIe slots to install M.2 SSD & a Wi Fi card, or other compatible device, providing a strong expansion capability. Three independent displays Support three independent screens & dual-screen displays via (2) Display Port & (1) HDMI interfaces. Use an adaptor to convert HDMI into DVI or Display Port to HDMI or DVI interface for diversified signal selection. Support Intel Rapid Storage Technology The SH170R6 is equipped with Intel latest H170 chipset which supports for four SATA 6 Gbps slots as well as supports Intel Rapid Storage Technology. It provides RAID 0/5/10 disk array operation modes, allowing for faster & more secured data access rates. Support Wake On LAN Use BIOS to set up the Wake ON LAN function so that users can power-on from sleep mode, rest mode, or when powered off via the internet. The Watchdog– Protecting System Security Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle’s Watch Dog utility to maintain normal operation & stability of the system at all times. 80 Plus Bronze Certified 300W Power Supply Shuttle’s SH170R6 is equipped with an 80 Plus Bronze 300W power supply for guaranteed energy efficiency & energy saving. Shuttle’s 300W power supply cuts down on unnecessary power consumption for a higher level of energy saving. Equipped with Intel 100 series Chipset The SH170R6 is equipped with Intel H170 chipset & supports dual-channel DDR4 2133 with the maximum memory capacity of up to 64GB (16 G Bx 4). Able to support Gigabit LAN, SATA 6 Gbps, & USB3.0 high-speed storage interfaces, providing superb data transfer speed. Support PCI-E expansion cards The SH170R6 provides one PCI-E x 16 & one PCI-E x 4 slots to meet various needs of users. Select the card you want to use, such as multi-display graphic cards, monitor cards, RAID cards, & professional sound cards, etc. Support 4K Ultra HD The SH170R6 provides Display Port & HDMI video outputs to support 4K Ultra HD (3840x 2160). With four times the resolution of Full HD, viewers can enjoy super detailed & crystal clear imaging of 4K. * Intel Pentium & Celeron processors built-in Intel HD graphics cannot support 4K video playback capability. Flexible expansion of hard disk installation Shuttle XPC series reserves space for installation of one 5.25” ODD & two 3.5” hard disks. With optional PHD3 accessory users can install a maximum of four 2.5” hard drives or SSDs. Built-in Intel Gigabit LAN interface With Intel i 219-LM chipset, SH170R6 has a built-in Intel 10/100/1000 Mbps LAN interface & supports Wake On LAN function to provide high-speed data transfer capability. It also offers a better compatibility for business network environment. Support Power-on by RTC Enter Bios to set-up Power On by RTC function can set system automatic power on. With Windows task scheduler, the system can power off automatically to achieve the goal of saving energy & operation cost. Mini-ITX Mainboard Support Shuttle expands the capabilities of its chassis, adding support for Mini-ITX mainboards (17x 17 cm or 6.7x 6.7 inches). Shuttle chassis goes beyond the Shuttle mainboard so you can easily upgrade to the mainboard of your desire without any modifications to the chassis. Multiple Operating System Support -Windows 7 -Windows 8.1 -Windows 10 -Linux Specifications FORM FACTOR Shuttle Form factor PROCESSOR Support Skylake 95W Core i 3/i 5/i 7 LGA 1151 CPU processor CHIPSET Intel Skylake H170 Express chipset MEMORY (4)DDR4 2133 M Hz support, dual channel up to 64GB (16GB*4) VIDEO OUTPUT (1)HDMI + (2) Display Port support triple independent display 4K/2K playback Integrated in CPU (Intel HD 530 Graphics) AUDIO Realtek ALC892 7.1 Channel high definition audio ETHERNET Intel Chip i 219-LM 10 Mb/s, 100 Mb/s, 1 Gb/s operation Support Wake-on-LAN function STORAGE INTERFACE SATA 3.0 (6.0 Gb/s) interface ONBOARD CONNECTORS (2) 4 Pin fan connector (4) SATA 6.0 connector (1) ATX main power (2*10) (1) ATX main power (2*2) (1) RS232 header (1) Low Pin Count header (1) Front USB3.0 header (1) Front AUDIO header (1) Front USB2.0 header (1) 2x 5 pin USB (Universal Serial Bus) header FRONT PANEL (1) USB (Universal Serial Bus) 2.0 Port (1) USB (Universal Serial Bus) 2.0 Port with mobile charger mobile device charger feature (2) USB (Universal Serial Bus) 3.0 Port (1) External microphone jack 1/8” (1) External headphone jack 1/8” Power button HDD/ODD Led BACK PANEL (6) USB (Universal Serial Bus) 3.0 Port (1) e SATA Port (1) Line in jack 1/8” (1) Line out jack 1/8” (1) Side surrond out jack 1/8” (1) Rear surrond out jack 1/8” (1) Center bass out jack 1/8” (1) LAN (1) CMOS clear button (2) Display Port (1) HDMI Port DRIVE BAYS (1) 5.25" ODD bay (2) 3.5" HDD bay Support 2.5" HDD x 2 or 4, if use accessory PHD3 x 1 or 2 DIMENSIONS 332 (L) x 216 (W) x 198 (H) mm POWER 80 Plus 300W power supply Input:100
- 240V AC Support 80 PLUS Bronze ACCESSORIES XPC Multi-Language quick guide XPC DVD Driver Heat-sink compound SATA cable x 2 Power cord Screw package EXPANSION SLOT (1) PCI-E X16 slot (1) PCI-E X4 slot (1) M.2 MAX to 2280 type M key socket (1) Half-size Mini PCI-E slot OS SUPPORT Windows 7 Windows 8.1 Windows 10 Linux
...

The R8 among the XPC cubes The Shuttle XPC cube Barebone SZ170R8, as the company's first model, is able to accommodate up to four 3.5 inch hard drives which makes an overall maximum capacity of up to 40TB a reality. Ideal for both home & commercial applications. Still, there's much room for expansion in the form of a M.2 SSD for PCI-E which means transfer rates of up to 2, 5 GB/s making it up to four times faster as compared to current SATA-SSDs. However, this barebones platform is way more than just about storage
- the SH170R8 has enough grunt under its aluminium bonnet to be a high-end gaming PC or a workstation for intensive graphics or even video applications. The mainboard sports Intel's high-performance Z170 chipset that is designed for next-gen LGA 1151 Skylake processors up to the top-end Core i 7 ones of the K-Series. in addition, large dual-slot graphics cards & up to 64GB of DDR4 memory can be fitted. Chassis Black aluminium chassis Front panel: brushed aluminium Front doors for USB (Universal Serial Bus) ports Kensington Security Slot at the back panel (also called K-Slot or Kensington lock) as a part of an anti-theft system Dimensions: 33.2 x 21, 6 x 19.8 cm (LWH), 14.2 litre Weight: 3.5kg net / 5.0kg gross Storage bays Storage bays: 4x 3.5" (internal) Using the optional accessory PHD3 two 2.5" drives can be installed into one 3.5" bay. Mainboard / Chipset Shuttle "FZ170", Shuttle Form Factor proprietary design for XPC cube Barebone SH170R6 Dimensions: 270 x 195 mm Chipset: Intel Z170 Chipset (Intel GL82Z170 PCH, code name " Sunrise Point") Platform Controller Hub (PCH) as Single-Chip-Solution Solid Capacitors for sensitive areas provide excellent heat resistance for enhanced system durability BIOS AMI BIOS, SPI Interface, 32 MBit Flash-ROM with SPI interface Supports Pn P, ACPI 3.0, Hardware Monitoring Supports Unified Extensible Firmware Interface (UEFI) Supports boot up from external USB (Universal Serial Bus) flash memory Power supply Built in 500 Watt mini switching power supply (PC63J) AC input voltage: supports 100~240V, 50~60 Hz 80 PLUS Silver [9] compliant: the PSU provides at least 85/89/85% of efficiency at 20/50/100% of load. Active PFC circuit (Power Factor Correction) ATX main power connectors: 2x 10 & 2x 2 pins Graphics power connector: 6 pins & 8 pins Other connectors: 4x SATA, 2x Molex, 1x Floppy Operation System This system comes without operating system. It is compatible with Windows 10 / 8.1 / 7 & Linux.- 64 bit. For note on Windows 7, see [7] Processor support Socket LGA 1151 (H4) supports the sixth generation of Intel Core i 7 / i 5 / i 3, Pentium & Celeron processors Maximum supported processor power consumption (TDP) = 95W Codename " Skylake", 14nm process technology, up to 8 MB of L3 cache Not compatible with Intel Xeon E3 V5 processors with Socket LGA1151 & processors with the older Socket LGA 1150. Supports the unlock-function of Intel K-Series processors. The processor integrates PCI-Express, memory controller & the graphics engine on the same die (performance features depending on processor type) Please refer to the support list for detailed processor support information at global.shuttle.com. Processor cooling Shuttle I.C.E. (Integrated Cooling Engine) Advanced I.C.E. Heatpipe technology with 3 pipes Temperature controlled 92 mm fan Silent X cooling & noise reduction technology with Active Airflow Memory support 4 x 288-pin slots Supports DDR4-2133 memory (PC4-17066) at 1.2V Supports 2+2 Dual Channel mode Supports max. 16 GB per DIMM, maximum total size of 64 GB Integrated Graphics The features of the integrated Intel HD graphics function depend on the processor type used. Supports Direct X 12, OGL 5.x, OCL 2.x The PC features three digital video outputs [6]:
- HDMI v 1.4 (supports 1080p/60 & 2160p/30)
- 2x Display Port v 1.2 (support 1080p/60 & 2160p/60) Supports displays with 4K Ultra HD resolution at 3840 x 2160 [3] Supports three independent Full HD displays with the integrated graphics function Supports more displays in combination with a discrete graphics card [2] Supports Blu-ray (BD) playback with HDCP content protection Supports multi-channel digital audio over the same cable Maximum shared memory of 512 MB PCIe Expansion Slots 1x PCI-Express x 16 v 3.0 slot (PEG, for graphics cards only) 1x PCI-Express x 4 v 3.0 slot This XPC supports dual-slot (double-width) graphics cards
- in this case the second PCI-Express slot will be occupied. Graphics power connector: 6-pin M.2 SSD slot The M.2 2280 BM slot provides the following interfaces:
- PCI-Express Gen. 3.0 X4 (max. 32 Gbps), supports NVMe
- SATA v 3.0 (max. 6 Gbps) It supports M.2 cards with a width of 22 mm & a length of 42, 60 or 80 mm (type 2242, 2260, 2280). Supports M.2 SSDs with SATA or PCI-Express interface Mini PCIe Slot Mini-PCIe Half-Size slot with PCIe 2.0 & USB (Universal Serial Bus) 2.0 interface supports one optional Wireless Network (WLAN) card 7.1-Channel HD audio 7.1 channel High Definition Audio with Realtek ALC892 codec Analog: line-out (7.1-ch), line-in, microphone, AUX input (onboard) Digital Audio via HDMI & Display Port outputs Gigabit LAN Intel i 219LM PHY connected to the MAC of the processor Supports 10 / 100 / 1.000 MBit/s operation Supports WAKE ON LAN (WOL) Supports network boot by Preboot e Xecution Environment (PXE) SATA connectors The mainboard provides six Serial-ATA 3.0 interfaces, max. 6 Gbps supported 4x Serial ATA connector onboard 1x External Serial ATA (e SATA) connector at the back panel 1x M.2 slot onboard for flash memory cards Supports Intel Rapid Storage Technology (RST, Raid 0/1/5/10, JBOD) Front Panel Connectors & Buttons Microphone input Headphone output (line-out) 2x USB (Universal Serial Bus) 3.0 Power button Power indicator (blue LED) Hard disk drive indicator (yellow LED) Back Panel Connectors HDMI v 1.4 2x Display Port v 1.2 [5] 6x USB (Universal Serial Bus) 3.0 Giga Bit LAN (RJ45) External Serial ATA (e SATA 6 Gb/s) 7.1-ch Audio line-out (2x rear/front, bass/center, surround/back) Audio Line-in Clear CMOS button Optional: serial port RS-232 (Accessory: H-RS232) 3x perforation for optional WLAN antennas Other Onboard Connectors 2x USB (Universal Serial Bus) 2.0 (2x 5-pin) 1x RS232 (2x 5-pin) for optional accessory H-RS232 2x fan connectors (4 pin), one connector is occupied Low Pin Count header (LPC, 2x 10 pin, 2 mm pitch size) Occupied front connectors: USB (Universal Serial Bus) 3.0, USB2.0, audio, power buttons, LEDs Included Accessories Multi-language XPC Installation Guide (EN, DE, FR, ES, JP, KR, SC, TC) 32/64 bit driver disk for Windows 4x Serial ATA cables AC Power Cord (with protective-earth contacts) Heatsink Compound Protector cap for the CPU socket (do not use if heat-pipe or fan is mounted) Bag with screws Optional Accessories PHD3: 3.5" to 2.5" adapter H-RS232: Backpanel COM port adapter for RS232 serial interface WLN-C: Wireless LAN 802.11n module with two external antennas WLN-P: Wireless LAN 802.11ac + BT4.0 module with two external antennas Environmental Spec Operating temperature range: 0~40°C Relative humidity range: 10~90% (non-condensing) Certifications / Compliance:: EMI: FCC, CE, BSMI, C-Tick Safety: ETL, CB, BSMI Other: Ro HS, Energy Star 5.0, Er P Conformity This device is classed as a technical information equipment (ITE) in class B & is intended for use in living room & office. The CE-mark approves the conformity by the EU directives: (1) 2004/108/EC relating to electromagnetic compatibility (EMC), (2) 2006/95/EC relating to Electrical Equipment designed for use within certain voltage limits (LVD), (3) 2009/125/EC relating to ecodesign requirements for energy-related products (Er P)





...

Shuttle XPC nano NC01U3 Intel Core i 3-5005U Mini-PC Barebone No Operating System With the NC01 Series, Shuttle introduces its first Mini-PC with less than 600 ml in volume. These small computers are powered by Intel's highly efficient Broadwell ULV processors ranging from Celeron up to Core i 7. This barebone can be equipped with up to 16 GB of DDR3L memory, one M.2 (2242) SSD card & one 2.5 storage drive (HDD or SSD). It also comes with a vast array of connectivity options such as HDMI, Mini-Display Port, USBs, LAN, WLAN-AC, COM port, Audio & an SD card reader. This makes it the ideal platform for applications such as digital signage, POS, Kiosk, Thin Client, Cloud Computing, Office PC & Multimedia. Product Features High-resolution Display Port HDMI interface Multiformat card reader Intel chipset inside Anti-theft protection Just 2.5 inch HDDs Fan-less external power supply Product Specifications CPU Processor Intel Core i 3 (5005U ) 2.0 GHz 0.128 MB (L1 Cache) 0.512 MB (L2 Cache) 3 MB (L3 Cache) Motherboard Integrated Network Yes Integrated WLAN Yes Integrated Graphics Yes, Intel HD Graphics 5500, Integrated Bluetooth Yes Integrated Sound Yes Memory Memory (Maximum) (16384 MB ) PC3-10600/PC3-12800 1333/1600 MHz DDR3L Memory Slot 2 x 204-pin SODIMM Storage Hard Disk 0 GB (0 x 0 GB ) Hard Drive Sound Sound Card Audio Realtek ALC 269Q-VC3 High-Definition Audio Codec Interfaces/ Ports HDMI Port 1 x HDMI (1.4a) Display Port 1 x Mini Display Port 1.2 USB (Universal Serial Bus) Ports 2 x USB (Universal Serial Bus) 3.0 • 2 x USB (Universal Serial Bus) 2.0 RJ-45 Ports 1 x RJ-45 Serial Ports 1 x Serial Port DC Power 1 x DC in Media Adaptor Secure Digital Supported: SD • SDHC • SDXC Network Wired Network Yes Network Interface 10/100/1000 Mbps Wireless Network Yes Wireless LAN IEEE 802.11 ac/n/b/g Bluetooth Yes Bluetooth Type Bluetooth 4.0 Compliance EMI CE, FCC, BSMI, C-Tick Safety CB, BSMI, ETL Certifications This device is classed as a technical information equipment (ITE) in class B & is intended for use in living room & office. The CE-mark approves the conformity by the EU-guidelines: EMV-guideline 89/336/EWG electromagnetic tolerance • LVD-guideline 73/23/EWG use of electric devices within certain voltage-limits Electrical Electrical Power Available 65 W Voltage/ Power/ Frequency 110 to 240 VAC / / 50 to 60 Hz Environmental Environmental Operating Temperature 0 to 50 °C
- Humidity 10 to 90 % Physical Form Factor Barebone PC Colour Black

Dimensions 14.1 cm (W) x 14.1 cm (D) x 2.9 cm (H)
- Weight 0.36kg Security Locking Mechanics Kensington Lock



...

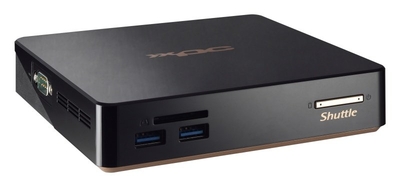

Shuttle XPC Nano NC01U7 Intel i 7-5500U 2.4 GHz Mini Barebone (No Operating System) With the NC01 Series, Shuttle introduces its first Mini-PC with less than 600 ml in volume. These small computers are powered by Intel's highly efficient Broadwell ULV processors ranging from Celeron up to Core i 7. This barebone can be equipped with up to 16 GB of DDR3L memory, one M.2 (2242) SSD card & one 2.5 inch storage drive (HDD or SSD). It also comes with a vast array of connectivity options such as HDMI, Mini-Display Port, USBs, LAN, WLAN-AC, COM port, Audio & an SD card reader. This makes it the ideal platform for applications such as digital signage, POS, Kiosk, Thin Client, Cloud Computing, Office PC & Multimedia. Product Features High-resolution Display Port HDMI interface Multiformat card reader Intel chipset inside Anti-theft protection Just 2.5 inch HDDs Fan-less external power supply Low energy consumption Product Specifications CPU Processor Intel Core i 7 () 2.4 GHz 0.128 MB (L1 Cache) 0.512 MB (L2 Cache) 4 MB (L3 Cache) Motherboard Integrated Network Yes Integrated WLAN Yes Integrated Graphics Yes, Intel HD Graphics 5500, Integrated Bluetooth Yes Integrated Sound Yes Memory Memory (Maximum) 0 MB (16384 MB ) PC3-10600/PC3-12800 1333/1600 MHz DDR3L Memory Slot 2 x 204-pin SO-DIMM Storage Hard Disk 0 GB (0 x 0 GB ) Serial ATA (SATA) Hard Drive Sound Sound Card Audio Realtek ALC 269Q-VC3 High-Definition Audio Codec Interfaces/ Ports HDMI Port 1 x HDMI (1.4a) Display Port 1 x Mini Display Port 1.2 USB (Universal Serial Bus) Ports 2 x USB (Universal Serial Bus) 3.0 • 2 x USB (Universal Serial Bus) 2.0 RJ-45 Ports 1 x RJ-45 Serial Ports 1 x Serial Port DC Power 1 x DC in Media Adaptor Secure Digital Supported: SD • SDHC • SDXC Network Wired Network Yes Network Interface 10/100/1000 Mbps Wireless Network Yes Wireless LAN: IEEE 802.11 ac/n/b/g Bluetooth: Yes Bluetooth Type Bluetooth 4.0 Compliance EMI: CE, FCC, BSMI, C-Tick Safety: CB, BSMI, ETL Certifications This device is classed as a technical information equipment (ITE) in class B & is intended for use in living room & office. The CE-mark approves the conformity by the EU-guidelines: EMV-guideline 89/336/EWG electromagnetic tolerance • LVD-guideline 73/23/EWG use of electric devices within certain voltage-limits Electrical Electrical Power Available 65 W Voltage/ Power/ Frequency 100 to 240 VAC / / 50 to 60 Hz Environmental Environmental Operating Temperature 0 to 50 °C
- Humidity 10 to 90 % Physical Form Factor Barebone PC Colour Black

Dimensions 14.1 cm (W) x 14.1 cm (D) x 2.9 cm (H)
- Weight 0.36kg Security Locking Mechanics Kensington Lock



...

Features Support Intel Skylake-U platform technology Support 4K Ultra HD Support dual-screen display outputs Support up to 15mm 2.5” HDD A variety of I/O for great connectivity Exclusive cooling technology High-speed storage interfaces VESA mount ready Wire & Wireless High-speed Networks Supports Power on by RTC Support Wake On LAN Product Overview A palm-sized 4K portable PC-NC02U series The XPC nano is Shuttle’s smallest product lines with only palm size. Shuttle’s new NC02U series is next generation of NC01U series with support Intel Skylake-U platform technology. This series comes with a selection of processors ranging from Celeron, to the Core i 7 & supports up to 32 GB of DDR3L 1600 low-voltage memory. With integrated HD graphics, the series is capable of playing 4K/ Ultra HD content. Compared to NC01U series, NC02U series uses new mechanism design for easy installation of memory module & storage. This case can accommodate one 2.5” HDD (up to 15mm) to provide its more flexible storage capacity without volume limited. This series offers plenty of I/O ports in spite of its small

Size: HDMI, Display Port, USB3.0 (Type A*1, Type C*1), USB2.0, RS232, M.2 slot & Intel Gigabit Ethernet as well as built-in 802.11 b/g/n wireless network. The NC02U series is VESA mount ready to make it easy to blend in anywhere: home, office, storefront, & more. Support Intel Skylake-U platform technology The NC02U series supports the new Intel Skylake-U platform technology & provides a variety of CPU options of NC02U series, including Celeron 3855U & Core™ i 3/i 5/i 7 processors. The series features support for up to DDR3L-1600 32GB memory & built-in Intel HD Graphics, able to deliver 4K video playback. Support dual-screen display outputs The NC02U series provides HDMI & Display Port video outputs to support dual-screen displays. Use an adaptor to covert HDMI to DVI interface & Display Port into HDMI or DVI interface for diversified signal selection. Support up to 15mm 2.5” HDD The NC02U series uses new mechanism design. This series case can install up to 15mm (7/9.5/12.5/15mm) 2.5” HDD to provide its more flexible storage capacity without volume restriction. Exclusive cooling technology Made with Shuttle’s exclusive cooling technology & smart fan design, waste heat is quickly removed from the machine for stable & long-term operation. High-speed storage interfaces The NC02U series supports SATA 6G storage interface for 2.5” HDD (up to 15mm slim) & built-in one M.2 slot for high-speed M.2 SSD, proving the best data transfer efficiency. VESA mount ready Designed to fit seamlessly into your lifestyle, the NC02U series is capable of mounting to the rear of LCD monitor or a TV. This space saving capability makes it easy to blends into anywhere, including home, any offices, & commercial environments. Supports Power on by RTC Enter BIOS to set up the Power on by RTC function that means that you can set a time to boot up the computer, which can also be turned on & off with the Windows task scheduler. This feature means saving electricity & energy as well as eliminating the cost of on-site service. Support 4K Ultra HD The NC02U series is built-in HDMI & Display Port video outputs to support 4K high resolution (3840x 2160). Now with four times the resolution of Full HD, viewers can enjoy the super detailed & crystal clear imaging of 4K. * Recommended dual-channel memory for 4K playback. Easy installation The NC02U series is designed for easy configuration. Users can simply open both upper & lower covers to easily install memory module, HDD, & other hardware components. A variety of I/O for great connectivity The NC02U series has all the functions you need from ultra SFF (small form factor). Connect with multiple peripherals via HDMI, Display Port, RS232, USB2.0 & USB3.0 as well as SD card reader. This series is the first Shuttle’s model with built-in USB (Universal Serial Bus) 3.0 Type-C. Unlike older USB (Universal Serial Bus) plugs, there’s no up or down orientation required so users can insert it either way for more convenience. Support wide temperature operation- High Stability The NC02U series uses high quality materials to meet the environmental operation demands of commercial applications. Its rugged design allows for stable operation over long periods of time – even in 40&8304;C environments*. * With use of SSD & Wide Range Temp. SODIMM Wire & Wireless High-speed Networks The NC02U series has built-in Intel 10/100/1000 Mbps LAN interface to provide a better compatibility for business network environment. With a built-in IEEE 802.11 b/g/n wireless network module, provide high-speed wireless data transmission. Support Wake On LAN Use BIOS to set up the Wake ON LAN function so that users can turn on the NC02U series – from the sleep mode, rest mode, or when powered off – via the internet. Multiple Operating System Support
- Windows 7
- Windows 8.1
- Windows 10
- Linux Specifications FORM FACTOR Shuttle 0.85L Form Factor PROCESSOR Intel Celeron 3855U Processor, Optional support i 3-6100U, i 5-6200U, i 7-6500U MEMORY 2 x 204 pin DDR3L SODIMM slots, 16GB per DIMM (Max 32GB) Dual Channel DDR3L 1333/1600 Mhz VIDEO OUTPUT Intel HD Graphics AUDIO Realtek ALC662 HD Audio ETHERNET Built in Intel I211 support 10/100/1000 Mbs Built in Realtek RTL8188EE 802.11 b/g/n Wireless LAN STORAGE INTERFACE Support SATA 6.0 Gb/s bandwidth FRONT PANEL (1) Power button (1) Power LED (1)HDD LED (1)USB 3.0 Type A (1)USB 3.0 Type C (1)SD cardreader BACK PANEL (1)HDMI (1) Display Port (2)USB 2.0 (1)RJ45 (1)DC-in Jack (1) Headphone+ Mic in combo jack (1)RS232 (1) Kensington Lock DRIVE BAYS (1)2.5" 15mm HDD / SSD DIMENSIONS 142 (L) x 142 (W) x 42 (H) mm POWER Automatics Voltage adjustment between 100 & 240VAC 50/60 Hz 65 Watts (19V/3.42A), 2 pin ACCESSORIES Quickguide DVD driver VESA mount Stand Power adapter & cord EXPANSION SLOT M.2 2230 A, E key (Built in WIFI) M.2 2280 M key 2.5" 15mm SATA OS SUPPORT Windows 7 Windows 8.1 Windows 10 Linux





...

Features Equipped with Rockchip RK processor Pre-loaded Android 5.1.1 Support Power over Ethernet (Po E, NS02E only) Free digital signage software- DS Creator 2.0 Support 4K Ultra HD Multiple storage choices VESA mount ready Kensington security Lock Product Overview The ARM-based Digital Signage solution The new line of XPC nano NS02 series is an ARM-based digital signage solution, with a case that measures only 0.5 Liters in volume. Support Android operating system with remarkably low price & excellent stability for digital applications like menu board & digital signage. The NS02 series is equipped with Rockchip Octa-Core 1.5 GHz processor, built-in DDR3L 2GB low-voltage memory. It not only supports Full HD playback capability but also built-in HDMI 2.0 video output is able to support 4K Ultra HD at 60 Hz. In addition to built-in 16GB e MMC, this series also provides SATA storage interface & SD card reader to offer users flexible storage expansion. The new NS02E can support Po E (Power over Ethernet), allowing users easily to do on-site installation without any wire & AC adapter. The NS02 series will be pre-install Shuttle house design digital signage software. Users can use their mobile devices to easily operate this digital signage software. With 24/7 certified & fanless design, this series provides a high stability & cost-effective solution for industry applications. Application field: Digital Signage, Office, Thin client, HTPC Equipped with Rockchip RK processor The NS02 series is equipped with Rockchip RK3368 Octa-core processor. Its compact design built-in DDR3L 2GB low-voltage memory effectively reduces the power consumption of the system. Support Power over Ethernet (Po E, NS02E only) The NS02E is designed for support Po E. With Po E, the power is from Po E injector or the Po E switch hub. Users can easily do on-site installation without having to connect to AC power resulting in lower installation costs & shorter installation time. Support 4K Ultra HD Equipped with one HDMI 2.0 video output, the NS02 series supports UHD resolutions of up to 4K @ 60 Hz for a crystal clear imaging. This series can also support HEVC / H. 265 video decoding. Support wide temperature operation- High Stability The NS02 series uses high quality materials to meet the environmental operation demands of commercial applications. Its rugged design allows for stable operation over long periods of time – even in 40&8304;C environments*. Multiple storage choices The NS02 series has onboard 16G e MMC & is built-in SATA storage interface & SD card reader to support one 2.5” SATA HDD/SSD (7mm ultra slim) or an SD memory card for more storage space. Kensington security Lock With Kensington lock design, the NS02 series can be placed at home, office or public areas with more security & prevent theft of the machine as well as data. Pre-loaded Android 5.1.1 With pre-install Android 5.1.1, the NS02 series does not require any installation. Simply plug & play, users can easily enjoy multimedia or document files. Free digital signage software- DS Creator 2.0 The NS02 series is pre-install Shuttle house design signage software DS Creator 2.0*. Now, DS Creator 2.0 supports both window & mobile phone version. Users can download the mobile phone version from Google Play & App Store. Then, easily schedule & dispatch contents to NS02 series through their mobile devices. * Detail of software support, please refer to NS02 series download page. Fanless design The NS02 series features fanless design to reduce power consumption required by a fan as well as the cost of replacing fans on-site, ideal for noise sensitive environments. VESA mount ready Designed to fit seamlessly into your lifestyle, the XPC nano is capable of mounting to the rear of LCD monitor or a TV. This space saving capability makes it easy to blends into anywhere, including home, any offices, & commercial environments. Auto power on The NS02 series can be set to automatically power on, suitable for use in automatic boot environment such as exhibition, shopping mall, museum, & more. When the power is turned on, the NS02 series will be able to automatically boot up. Specifications Chassis PC system with a black plastic chassis Dimensions: 141 x 141 x 29 mm (LWH) = 577 ml Weight: 0.27kg net, 0, 65kg gross Hole for Kensington Lock 24/7 nonstop operation Approved for 24/7 permanent operation Operation System Android 5.1.1 (Lollipop) pre-installed [1] Installed Software: Shuttle DS Player This player software plays digital signage content which was previously created & uploaded with the Shuttle DS Creator software. Free app: Shuttle DS Creator 2.0 Use this free app on your phone or tablet to upload digital signage content such as scrolling text, pictures, videos & website links to your Shuttle XPC nano NS02A. Connection happens using WLAN within the local network. For Android: download from Google Play (requires Android 4.2.X or later) For Apple: download from the App Store (requires i OS 8.0 or later) Special Features + Supports hardware solution for auto power on (power-on-after-power-fail) + Supports wake-up & shut-down by time setting + Supports screen rotation + Supports video output scaler function (zoom in/out) Processor Rockchip RK3368 Octa Core Cortex-A53 64-bit SoC with NEON coprocessor 28 nm HKMG process Clock speed: 1.5 GHz max. Integrated Graphics Power VR SGX6110 GPU Clock speed: up to 600 MHz Supports Open GL ES3.1 & Open CLES3 Video Hardware Decoder supports:
- 4 Kx 2K@30fps with H.264 coding
- 4 Kx 2K@60fps with H.265 coding
- 1080p@30fps with H.264/MVC/VP8 coding Note: 4K UHD video playback 60 Hz refresh rate (2160p/60 Hz) is only supported with an H.265 decoder Power Adapter External 24 W power adapter (fanless) Input: 100~240 V AC, 50/60 Hz, max. 0.7 A Output: 12 V DC, max. 2.0 A, max. 24 W DC Connector: 5.5/2.5mm (outer/inner diameter) Memory 2 GB DDR3L onboard Flash Memory 16 GB e MMC Flash Memory onboard 2.5" Drive Bay (optional) Supports one Serial ATA hard disk or one SATA SSD drive in 6.35 cm / 2.5" format Device

Height: 7 mm (max.) Note: for the drive installation the PHD5 accessory kit is required Audio Audio chip: Realtek ALC5640-VB Analog 3.5 mm audio line output for head-phones Digital audio output via the HDMI connector Gigabit LAN LAN chip: Realtek RTL8211F-CG Supports 10 / 100 / 1.000 MBit/s operation (Gigabit) Supports Wake On Lan (WOL) Wireless Network (WLAN+BT) Chipset: Realtek RTL8723BS One internal antenna (1T1R) Supports Wireless LAN IEEE 802.11b/g/n at 2, 4 GHz Max. PHY data rate: 150 Mbps in 802.11n mode Supports Miracast Supports Bluetooth 4.0 Card Reader Integrated SD card reader Supports SD, SDHC & SDXC memory flash cards Supports booting from SD card for image update Front Panel connectors 2x USB (Universal Serial Bus) 2.0 SD card reader (supports SD, SDHC, SDXC) Power button Power LED (blue) HDD LED (orange) Back Panel connectors HDMI 2.0 supports 2160p/60 Hz USB (Universal Serial Bus) 2.0 Gigabit LAN (RJ45) Audio Line Out / headphones connector, 3.5 mm jack DC-input connector for external power adapter VESA mout VESA mount set (made of steel,

Includes:: screws) Supports 75x 75 & 100x 100 mm Supplied accessories Quick Installation Guide VESA mount includin screws AC Power Adapter Rubber feet Environmental Spec Operating temperature range: 0~40 °C Relative humidity range: 10~90% (non-condensing) Conformity/ Certifications EMI: CE, FCC, BSMI, RCM, CCC, R&TTE, VCCI Safety: ETL, CB, BSMI Other: Ro HS, Energy Star, Er P This device is classed as a technical information equipment (ITE) in class B & is intended for use in living room & office. The CE-mark approves the conformity by the EU directives: (1) 2004/108/EC relating to electromagnetic compatibility (EMC), (2) 2006/95/EC relating to Electrical Equipment designed for use within certain voltage limits (LVD), (3) 2009/125/EC relating to ecodesign requirements for energy-related products (Er P), (4) 1999/5/EC related to Radio & Telecommunications Terminal Equipment (R&TTE)






...

Shuttle XPC SD32G2 Barebone
- SKT775 for Core 2 Duo This mini- computer offers the best deal in terms of compatibility, reliability,
...

Features Support Intel 6th Generation Core™ processor Equipped with Intel 100 series Chipset Support 4K Ultra HD Support two M.2 expansion slots Support dual independent displays Support Intel Dual Gigabit LAN Support Power on by RTC Product Overview Drive 4K & Rich Interactive Content with Intel skylake platform Focused on 4K vertical markets, Shuttle launches a new generation slim PC DH110, equipped with Intel H110 chipsets support the latest Intel 6th generation Skylake LGA1151 65W processors. With Intel built-in HD graphics engine, DH110 can support 4K/ Ultra HD video playback. With a body thickness of only 43mm & VESA mountable design, the DH110 make it easy to fit commercial applications with limited space. Thanks to its robust metal chassis & a wide ambient temperature range from 0 to 50 degree, the DH110 runs reliably cool & stable for a long time operation. With built-in USB (Universal Serial Bus) 2.0, RS232/422/485, & PS/2 I/O ports, the DH110 has strong connectivity for peripherals to meet the demands of vertical applications. Support Intel 6th Generation Core™ processor Equipped with new LGA1151 socket, the DH110 supports for Intel sixth-generation (Skylake) Core™ i 3/i 5/i 7, Pentium, & Celeron 65W processors. The integrated new generation Intel HD Graphics is significantly increased CPU or GPU performance. Compared to the previous Haswell/ Haswell Refresh processor, the new processor is saved more power. Slim design & Easy assembly The DH110 features a 1.3-liter slim design & body thickness of only 43mm with significantly less cables & no daughter board. This makes for easy assembly, enhanced thermal efficiency, & system stability due to increased airflow. Industrial Solid Capacitors = High Stability The DH110 uses industrial capacitors in order to meet the environmental operation demands of commercial applications. Its rugged design allows for 24/7 stable operation over long periods of time – even in 50&8304;C environments*. * With use of SSD & Wide Range Temp. SODIMM Support dual independent displays The DH110 provides one Display Port & one HDMI video outputs to support dual independent screens. Use an adaptor to convert HDMI into DVI interface & Display Port into HDMI or DVI interface for diversified signal selection. Great connectivity With multiple USB2.0 ports, USB3.0, PS/2 ports, as well as two RS232 (one RS232 & one RS232/422/485, both support 0V/5V/12V), the DH110 can easily connect to peripherals such as thermal printers, label printers, & bar code scanners. An adaptor can be used to convert RS232 to USB (Universal Serial Bus) port for supporting more devices. 24/7 Nonstop Operation Officially approved for 24/7 permanent operation. Thanks to Shuttle’s low power consumption design & stable operation, the PC runs highly reliable & meets the long-term demands of digital signage or other vertical applications. External Power button The external power button is key for vertical applications where the power on button is often out of reach. The DH110 has a power-on from remote line feature, enabling users to power on from a separate location. Users can find four-pin-connector at the back panel of DH110. In addition, this connector also provides the Clear CMOS function. Without opening the chassis, users can reset the BIOS settings. VESA Mount Capability The compact 43 mm thick DH110 has multiple screw holes specially designed on the side of the machine. The design is VESA mount compliant & allows for versatile integration into hardware systems. This space saving capability is well-suited for application of digital signage with limited space. Specifications FORM FACTOR 1.3L chassis PROCESSOR Support Intel Skylake Core i 3/i 5/i 7, Pentium, Celeron CPU max. TDP 65W CHIPSET Intel H110 Express chipset MEMORY 2 x 204 pin DDR3L SODIMM slots, 16GB per DIMM (Max 32GB) Dual Channel DDR3L 1600 Mhz VIDEO OUTPUT HDMI x 1 + Display Port x 1 Support dual display 4K playback (Dual channel memory recommanded) AUDIO Realtek ALC662 channel High Definition Audio ETHERNET Intel i 211+i 219LM Dual Lan 100 Mb/s & 1 Gb/s operation Support Wake-On-LAN function Support Teaming function STORAGE INTERFACE SATA 6.0 Gb/s interface ONBOARD CONNECTORS (1) SATA 6 connectors (1) SATA power connector (1) 4pin fan connector (1) Front audio header (1) 1x 4 pin USB (Universal Serial Bus) header (1) D-sub connector (1) Auto power on header (1) External Power on (1)RS232 voltage switch FRONT PANEL (1) Power-On button (1) Power LED (1) HDD LED (2) USB (Universal Serial Bus) 2.0 port (2) USB (Universal Serial Bus) 3.0 port (1) Earphone-Out (1) Microphone-In (1) SD Card reader BACK PANEL (1) External power on/ Clear CMOS header (2) USB (Universal Serial Bus) 3.0 port (1) HDMI port (1) Display Port (1) e SATA+USB2.0 COM port (2) RJ45 Gigabit LAN port (1) RS232 (1) RS232/RS422/RS485 (1) PS/2 port (1) DC in (1) Kensington lock (2) Wireless Antenna fixture DRIVE BAYS (1) 2.5" HDD / SSD bay DIMENSIONS 190 (L) x 165 (W) x 43 (H) mm POWER Input:100- 240V AC Output: 19V/4.47A or 12V/7.5A DC 90W 19V Adapter bundled ACCESSORIES XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA mount quick installation guide 1* Power cord 1* SATA cable Screws Optional 802.11b/g/n WLAN module EXPANSION SLOT (1) M.2 2260 Type M key socket (1) M.2 2230 Type A, E Key socket OS SUPPORT Windows 7 Windows 8.1 Windows 10 Linux REMARK *RS232 ports support totally 500m A, 0/5/12V output. Voltage setting please refer to Quick Guide. ...
