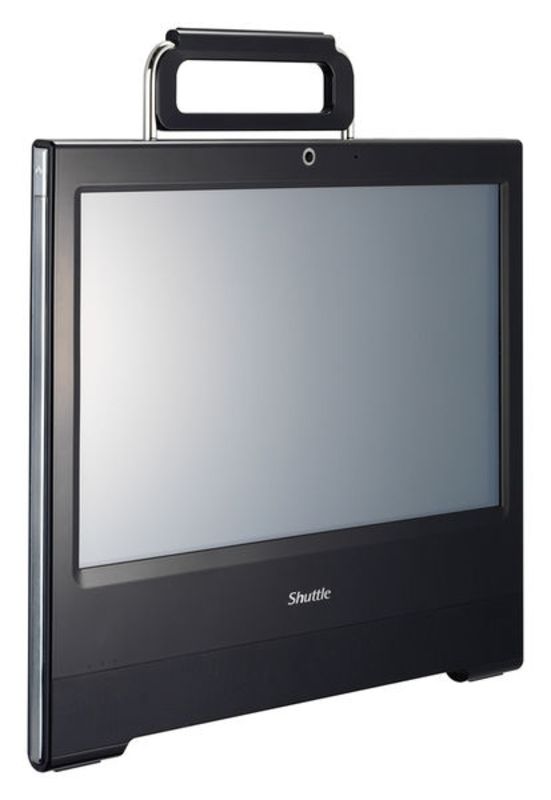

Shuttle X50V2 Black Touchscreen Barebone - 2Gb RAM, 250Gb HDD, No
Operating System
All-in-One PC 2.0 In addition to the latest Intel Atom platform, the second generation of the X50 All-in-One PC features a 39.62 cm (15.6") touchscreen and a host of other enhancements. The new X50V2 edition is for the first time completely passively cooled, thus ensuring extremely quiet operation. Thanks to the use of the Intel Atom platform with a D510 dual-core processor, the power consumption of the just 3.6 cm-thin PC has been reduced by almost 50 %. A further contribution to resource conservation is the reduction in energy consumption of the power supply. two serial interfaces are now fitted at the rear of the X50V2. This model also offers a useful webcam, integrated stereo speakers, WLAN (N), card reader and pedestal, which can also be used as a carrying handle. The
X50V2 is also of course compatible with both Windows 7 and Linux. Multiformat card reader At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately. Anti-theft protection The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product. Inbuilt stereo speakers Two powerful speakers are elegantly integrated into the design and deliver astonishingly good sound quality. And when more power is needed, you can attach external speakers via audio jacks. Suitable for Linux operating systems This model was successfully tested with openSUSE Linux by Novell. All machine functions
worked without problem immediately after installation (Version 11.1 was tested). Connections without all those annoying cables Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now childs play when within range of an access point/hotspot. Solid base Folded 180° vertically, the chrome anti-slip pedestal can be used as a carrying handle. A particularly clever solution from Shuttles engineers. Keeping in touch The revolutionary touchscreen allows this Mini-PC to be controlled without the use of mouse or keyboard. Touching the screen with a finger or stylus takes the place of the mouse. And with a virtual keyboard, entries can be made directly on the screen. Securely attached The practical VESA mounting surface on
the back of the device enables it to be attached to monitor arms or wall mounts. The VESA format is standardised, making it suitable for most mounts. Integrated Webcam The inbuilt Webcam enables problem-free video telephony and video conferencing in high-quality megapixel format. Fan-less external power supply A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free. Specifications: Chassis Color: white or black Dimensions: 391.3 x 327 x 36 mm (WxHxL) 100mm VESA mount capable Mounting hole for Kensington lock Light bar at the bottom Weight: 3.6kg net Operating system This system comes without operating system. It is compatible with Windows XP, Windows Vista and Windows 7 Touchscreen Touchscreen
function support fingertip input Resistance and single touch technology Including stylus pen for the touchscreen 39.6cm display (15.6") 39.6cm/15.6" LCD display, ratio: 16:9 wide screen panel Resolution: 1366x768 = 1.05 Megapixels Adjustable backlight unit: High power LED Processor Intel Dual Core Atom processor D510 (Codename: Pineview-D) 45nm manufacturing process, FCBGA559 Intel Hyper-Threading technology: 2-threads per core Intel 64 architecture, Core clock: 1.66GHz L2 Cache: 1024kB, TDP: max. 15W Integrated North Bridge with controller for memory and graphics Cooling Passive cooling without any fan Chipset / South bridge Intel NM10 Express Chipset Platform Controller Hub (PCH) Code name: Tiger Point BIOS AMI BIOS in a 8Mb Flash ROM supports PnP, ACPI 3.0 Supports
external USB flash memory card boot up Memory - 2Gb Memory Included Supports up to 2 modules DDR2-667/800 SO-DIMMs with 200 pins Max. 2GB per module, total size max. 4 GB *) Single channel architecture Hard disk drive - 250Gb Hard Drive Included Supports one Serial ATA hard disk or SATA SSD drive in 6.35cm/2.5" format Card Reader Integrated multi-format 4-in-1 card reader (USB 2.0) Supports the memory card types: SD, MMC, MS and MS pro Webcam Integrated Webcam module with 1.3 Megapixel resolution Integrated Graphics The Graphics Processing Unit (GPU) is integrated into the processor Intel GMA 3150, 400MHz render clock frequency Intel Dynamic Vidieo Memory Technology 4.0 (DVMT 4.0) Share system memory max. 256MB Supports DirectX 9 and 2D/3D instruction set, Pixel Shader 2.0 MPEG2
hardware acceleration Intel Clear Video / ProcAmp technology allows user adjustment of hue, saturation, brightness and contrast Two display ports: - Digital LVDS channel supports up to 1366*768, 18bpp resolution - Analog RGB supports up to 2048*1536, 60Hz resolution - Supports Extended Desktop Mode and Clone Mode Integrated audio, microphone, speakers IDT92HD81 Audio Codec with Azalia support Two analog audio connectors (3.5mm): 1) Line out (head phone) 2) microphone input Front panel with integrated Electret Condenser Microphone and 2x 2W speakers LAN Controller JMicron JMC261 single-chip PCIe Fast Ethernet combo Card Reader Host controller IEEE 802.3u 100Base-T specification compliant Supports 10/100 MBit/s operation Supports S3 Wake-on-LAN (WOL) feature Wireless LAN (Wifi)
Supports 802.11 b/g and draft-n Mini PCIe x1 card Connectors VGA connector (D-Sub 15 pol., analog) 4x USB 2.0 (2x left side, 2x right side) Network (LAN, RJ45) Audio Line-out (head phone) Microphone input DC input for power supply LEDs and buttons Power button Power LED (blue) Hard disk LED (orange) Wireless-LAN / Wifi LED (green) Power supply External 40W AC/DC power adapter (fanless) Energy Star 5 compliant AC Input: 100~240V AC, 50~60Hz DC Output: 19V DC, max. 2.1A Dimensions: 27 x 37 x 90 mm Safety certifications TuV, CB, BSMI EMI certifications CE, FCC, BSMI, R&TT Other certifications RoHS, Energy Star 5 Environmental criteria Operating temperature: 0~35°C Humidity: 0~60% Accessories: Quick Guide Driver DVD with Shuttle Control AP Software 40W Power Adapter Power
cord
X50V2 is also of course compatible with both Windows 7 and Linux. Multiformat card reader At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately. Anti-theft protection The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product. Inbuilt stereo speakers Two powerful speakers are elegantly integrated into the design and deliver astonishingly good sound quality. And when more power is needed, you can attach external speakers via audio jacks. Suitable for Linux operating systems This model was successfully tested with openSUSE Linux by Novell. All machine functions
worked without problem immediately after installation (Version 11.1 was tested). Connections without all those annoying cables Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now childs play when within range of an access point/hotspot. Solid base Folded 180° vertically, the chrome anti-slip pedestal can be used as a carrying handle. A particularly clever solution from Shuttles engineers. Keeping in touch The revolutionary touchscreen allows this Mini-PC to be controlled without the use of mouse or keyboard. Touching the screen with a finger or stylus takes the place of the mouse. And with a virtual keyboard, entries can be made directly on the screen. Securely attached The practical VESA mounting surface on
the back of the device enables it to be attached to monitor arms or wall mounts. The VESA format is standardised, making it suitable for most mounts. Integrated Webcam The inbuilt Webcam enables problem-free video telephony and video conferencing in high-quality megapixel format. Fan-less external power supply A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free. Specifications: Chassis Color: white or black Dimensions: 391.3 x 327 x 36 mm (WxHxL) 100mm VESA mount capable Mounting hole for Kensington lock Light bar at the bottom Weight: 3.6kg net Operating system This system comes without operating system. It is compatible with Windows XP, Windows Vista and Windows 7 Touchscreen Touchscreen
function support fingertip input Resistance and single touch technology Including stylus pen for the touchscreen 39.6cm display (15.6") 39.6cm/15.6" LCD display, ratio: 16:9 wide screen panel Resolution: 1366x768 = 1.05 Megapixels Adjustable backlight unit: High power LED Processor Intel Dual Core Atom processor D510 (Codename: Pineview-D) 45nm manufacturing process, FCBGA559 Intel Hyper-Threading technology: 2-threads per core Intel 64 architecture, Core clock: 1.66GHz L2 Cache: 1024kB, TDP: max. 15W Integrated North Bridge with controller for memory and graphics Cooling Passive cooling without any fan Chipset / South bridge Intel NM10 Express Chipset Platform Controller Hub (PCH) Code name: Tiger Point BIOS AMI BIOS in a 8Mb Flash ROM supports PnP, ACPI 3.0 Supports
external USB flash memory card boot up Memory - 2Gb Memory Included Supports up to 2 modules DDR2-667/800 SO-DIMMs with 200 pins Max. 2GB per module, total size max. 4 GB *) Single channel architecture Hard disk drive - 250Gb Hard Drive Included Supports one Serial ATA hard disk or SATA SSD drive in 6.35cm/2.5" format Card Reader Integrated multi-format 4-in-1 card reader (USB 2.0) Supports the memory card types: SD, MMC, MS and MS pro Webcam Integrated Webcam module with 1.3 Megapixel resolution Integrated Graphics The Graphics Processing Unit (GPU) is integrated into the processor Intel GMA 3150, 400MHz render clock frequency Intel Dynamic Vidieo Memory Technology 4.0 (DVMT 4.0) Share system memory max. 256MB Supports DirectX 9 and 2D/3D instruction set, Pixel Shader 2.0 MPEG2
hardware acceleration Intel Clear Video / ProcAmp technology allows user adjustment of hue, saturation, brightness and contrast Two display ports: - Digital LVDS channel supports up to 1366*768, 18bpp resolution - Analog RGB supports up to 2048*1536, 60Hz resolution - Supports Extended Desktop Mode and Clone Mode Integrated audio, microphone, speakers IDT92HD81 Audio Codec with Azalia support Two analog audio connectors (3.5mm): 1) Line out (head phone) 2) microphone input Front panel with integrated Electret Condenser Microphone and 2x 2W speakers LAN Controller JMicron JMC261 single-chip PCIe Fast Ethernet combo Card Reader Host controller IEEE 802.3u 100Base-T specification compliant Supports 10/100 MBit/s operation Supports S3 Wake-on-LAN (WOL) feature Wireless LAN (Wifi)
Supports 802.11 b/g and draft-n Mini PCIe x1 card Connectors VGA connector (D-Sub 15 pol., analog) 4x USB 2.0 (2x left side, 2x right side) Network (LAN, RJ45) Audio Line-out (head phone) Microphone input DC input for power supply LEDs and buttons Power button Power LED (blue) Hard disk LED (orange) Wireless-LAN / Wifi LED (green) Power supply External 40W AC/DC power adapter (fanless) Energy Star 5 compliant AC Input: 100~240V AC, 50~60Hz DC Output: 19V DC, max. 2.1A Dimensions: 27 x 37 x 90 mm Safety certifications TuV, CB, BSMI EMI certifications CE, FCC, BSMI, R&TT Other certifications RoHS, Energy Star 5 Environmental criteria Operating temperature: 0~35°C Humidity: 0~60% Accessories: Quick Guide Driver DVD with Shuttle Control AP Software 40W Power Adapter Power
cord
