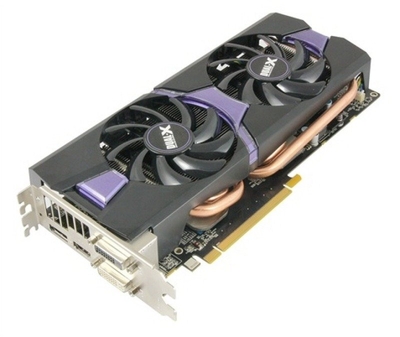

Sapphire VAPOR-X R9 280X 3GB GDDR5 OC Dual DVI HDMI Display Port PCI-E Graphics card User looking for a slightly less extreme solution can choose the SAPPHIRE R9 280X Vapor-X model. SAPPHIRE was the first company to use vapor-chamber cooling in its graphics cards & has now implemented its award winning Vapor-X cooler on the R9 280X, delivering highly efficient & quiet cooling. Factory overclocked to deliver increased performance over the standard model, the SAPPHIRE R9 280X Vapor-X model is a great choice for professional users as well as gamers. Display Support 3 x Maximum Display Monitor (s) support Output: 1 x HDMI (with 3D) 1 x Display Port 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU: 950/ Boost:1070 MHz Core Clock 28 nm Chip 2048 x Stream Processors Video Memory: 3072 MB Size 384 -bit GDDR5 6200 MHz Effective Dimension 276 (L)X121 (W)X45 (H) mm Size. 2.5 x slot Software: Driver CD SAPPHIRE Tri XX Utility Accessory Cross Fire Bridge Interconnect Cable 8-PIN to 4 PIN x 2 Power Cable HDMI 1.4a high speed 1.8 meter cable (Full Retail SKU only) ...

SAPPHIRE R9 280X Vapor-X model uses vapor-chamber cooling in the graphics cards, delivering highly efficient & quiet cooling. Factory overclocked to deliver increased performance over the standard model, the SAPPHIRE R9 280X Vapor-X model is a great choice for professional users as well as gamers.

Specification Display Support supports up to 3 display monitor (s) without Display Port 4 x Maximum Display Monitor (s) support To support 3rd monitor without Display Port cable connected, 2 of the 3 monitors should be the same model with DVI ports connected. The driver version should be v 13.12 or above. Output 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU 1000/ Boost:1100 MHz Core Clock 28 nm Chip 2048 x Stream Processors Video Memory 3072 MB Size 384 -bit GDDR5 6000 MHz Effective Dimension 308 (L)X108 (W)X35 (H) mm Size. 2 x slot Software Driver CD SAPPHIRE Tri XX Utility System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 4096MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. 750 Watt Power Supply is required. 1000 Watt Power Supply is recommended for Cross Fire X System. 2X150 Watt 8-pin PCI Express power connector is required. 4X150 Watt 8-pin PCI Express power connector is required for Cross Fire X system.

...

SAPPHIRE R9 280X Vapor-X model uses vapor-chamber cooling in the graphics cards, delivering highly efficient & quiet cooling. Factory overclocked to deliver increased performance over the standard model, the SAPPHIRE R9 280X Vapor-X model is a great choice for professional users as well as gamers. Specifications GPU 950 (Boost:1000) MHz Core Clock 28 nm Chip 2048 x Stream Processors Video Memory 3072 MB Size 384 -bit GDDR5 6000 MHz Effective Output 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I Display Support supports up to 2 display monitor (s) without Display Port 4 x Maximum Display Monitor (s) support To support 3rd monitor without Display Port cable connected, 2 of the 3 monitors should be the same model with DVI ports connected. The driver version should be v 13.12 or above.

Dimensions 308 (L)X108 (W)X35 (H) mm Size. 2 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 4096MB Minimum of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive 750 Watt Power Supply is required 1000 Watt Power Supply is recommended for Cross Fire X System 2X150 Watt 8-pin PCI Express power connector is required 4X150 Watt 8-pin PCI Express power connector is required for Cross Fire X system

...

Developed specially for small form factor PC systems, this model features a shorter PCB, measuring only 171mm long, & an efficient heatpipe cooler with a single fan. Sharing the same GCN core as the Dual-X models, the ITX Compact is no slouch with core clocks of 928 M Hz & memory clocks of 1375 M Hz (5.5GB/s effective). Specifications GPU 928 MHz Core Clock 28 nm Chip 1792 x Stream Processors Video Memory 2048 MB Size 256 -bit GDDR5 5500 MHz Effective Display Support 4 x Maximum Display Monitor (s) support Outputs 1 x HDMI (with 3D) 2 x Mini-Display Port 1 x Dual-Link DVI-I Dimension 171 (L)X110 (W)X35 (H) mm Size. 2 x slot Software Driver CD SAPPHIRE Tri XX Utility System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 4096MBMinimum of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray™ / HD DVD playback requires Blu-ray / HD DVD drive 500 Watt Power Supply is required 850 Watt Power Supply is recommended for Cross Fire X™ System 1X150 Watt 8-pin PCI Express power connector is required 2X150 Watt 8-pin PCI Express power connector is required for Cross Fire X™ system ...

The SAPPHIRE R9 285 Dual-X is a new model from SAPPHIRE that features a new GCN core & the company’s Dual-X cooler. Dual-X, with its two aerofoil fans, & set of graduated sizes of heatpipes, is an efficient & quiet cooler design which received industry acclaim in previous generations of products. The standard R9 285 model has 2GB of the latest GDDR5 memory clocked at 1375 M Hz (5.5GB/s effective) & a GCN core with 1792 stream processors clocked at 918 M Hz. Specifications GPU 918 MHz Core Clock 28 nm Chip 1792 x Stream Processors Video Memory 2048 MB Size 256 -bit GDDR5 5500 MHz Effective Display Support 4 x Maximum Display Monitor (s) support Outputs 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I

Dimensions 264 (L)X113 (W)X34 (H) mm Size 2 x slot Software Driver CD SAPPHIRE Tri XX Utility System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 4X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system 2X75 Watt 6-pin PCI Express power connector is required 4096MBMinimum of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive 500 Watt Power Supply is required 850 Watt Power Supply is recommended for Cross Fire X System

...

PRODUCT FEATURES 2nd Generation GCN Architecture AMD True Audio Technology Direct X 11.2 graphics Open GL 4.3 support AMD App Acceleration AMD Image quality enhancement technology AMD Cutting-edge integrated display support AMD Powerplay Power management technology AMD Power Tune technology AMD Zero Core Power technology AMD HD Media Accelerator Advanced audio capabilities Dolby True HD & DTS-HD Master Audio support HDMI 1.4a: quad HD/4K video support Mantle API

Specification GPU: AMD Radeon R9 290 Graphics Compute Units: 40 Stream Processors: 2560 unit 3D Clock: Up to 947 MHz Eclk Memory Clock: Up to 1250 MHz, Effective 5000 Mbps Memory Type: 4096 MB/ 512-Bit GDDR5 Bus Interface: PCI-E 3.0x 16 HDCP support: Yes External Power: PCIe Graphic External 1x 8; 1x 6 pin Cooling System: 2 slot blower fan Fan Speed Range: 20% to 40 % Target Operating Temperature: 95C Maximum Package Power: 208W Bracket: full height Software: Driver CD Crossfire Support: Native Crossfire up to 4 GPUs (Crossfire cable not required) OPERATING SYSTEM SUPPORT Windows XP (32 Bit/64 Bit) Windows Vista (32 Bit/64 Bit) Windows Media Center Edition 2005 Windows 7 (32bit/64bit) Windows 8 or 8.1 (32bit/64bit) SYSTEM REQUIREMENTS PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 500W (or greater) power supply with one 150W 8-pin & one 75W 6-pin PCI Express power connector recommended Minimum 4GB of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive & a DVD A display with digital input (HDMI, Display Port or DVI) is required Blu-ray playback requires Blu-ray drive & a Blu-ray disc 64-bit operating system highly recommended

...

SAPPHIRE R9 290 Tri-X has 2560 stream processing units & an engine clock of up to 957 Mhz. Also equipped with 4GB of the latest high performance GDDR5 memory on a 512-bit interface & clocked at 1250 MHz (5.0 G Hz effective). Specifications Display Support Supports up to 3 display monitor (s) without Display Port 4 x Maximum Display Monitor (s) support Output 1 x HDMI (with 3D) 1 x Display Port 1.2 2 x Dual-Link DVI-D GPU 28 nm Chip 957 MHz Core Clock 2560 x Stream Processors Video Memory 4096 MB Size 512 -bit GDDR5 5.0 MHz Effective

Dimensions 305 (L)X113 (W)X38 (H) mm Size. 2.2 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 1X75 Watt 6-pin PCI Express power connector is required 406MBMinimum of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive 750 Watt Power Supply is required 1X150 Watt 8-pin PCI Express power connector is required 64-bit operating system highly recommended A display with digital input (HDMI, Display Port or DVI) is required

...

The new SAPPHIRE R9 290 Tri-X 4GB OC features the latest GCN (graphics core next) architecture from AMD with 2560 stream processing units & an enhanced engine clock of up to 1000 Mhz. It is equipped with 4GB of the latest high performance GDDR5 memory on a 512-bit interface & now clocked at 1300 MHz (5.2 G Hz effective) delivering higher bandwidth than earlier models. The new SAPPHIRE R9 290 Tri-X 4GB OC is built on a SAPPHIRE original pcb design with the power design upgraded to a 6-phase VDDC power design. Two 8-pin power connectors ensure adequate system power is available (up to 375 Watts total including PCI-Express power). Specifications GPU 1000 MHz Core Clock 28 nm Chip 2560 x Stream Processors Video Memory 4096 MB Size 512 -bit GDDR5 5200 MHz Effective Output 1 x HDMI (with 3D) 1 x Display Port 1.2 2 x Dual-Link DVI-D Display Support 4 x Maximum Display Monitor (s) support with 1 Display Port connected 4 x Maximum Display Monitor (s) support

Dimensions 305 (L)X113 (W)X38 (H mm Size 2.2 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 4096MB Minimum of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive 750 Watt Power Supply is required 2X150 Watt 8-pin PCI Express power connector is required 4X150 Watt 8-pin PCI Express power connector is required for Cross Fire X system 64-bit operating system highly recommended A display with digital input (HDMI, Display Port or DVI) is required

...

Sapphire VAPOR-X R9 290 4G GDDR5 DUAL DVI HDMI Display Port PCI-E Graphics Card The SAPPHIRE R9 290 Vapor-X Edition features several of the company’s industry-leading technologies. Based on the award-winning Graphics Core Next (GCN) architecture from AMD with 2560 Stream Processors, the SAPPHIRE R9 290 Vapor-X Edition boasts 4GB of the latest GDDR5 memory running at 1400 M Hz (5.6GB/s effective) & high speed engine clocks of 1030 M Hz.

Specification Display Support supports up to 3 display monitor (s) without Display Port 4 x Maximum Display Monitor (s) support Output 1 x HDMI (with 3D) 1 x Display Port 1.2 2 x Dual-Link DVI-D GPU 1030 MHz Core Clock 28 nm Chip 2560 x Stream Processors Video Memory 4096 MB Size 512 -bit GDDR5 5600 MHz Effective Dimension 305 (L)X 114 (W)X 47 (H) mm Size. 2.5 x slot Software Driver CD SAPPHIRE Tri XX Utility System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. Certified power supplies are recommended. Please refer to: http://support.amd.com/us/certified/power-supplies/ Pages/listing.aspx 4096MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray™ / HD DVD playback requires Blu-ray / HD DVD drive. 750 Watt Power Supply is required. 2X150 Watt 8-pin PCI Express power connector is required. 64-bit operating system highly recommended

...

SAPPHIRE Technology launches a new top of the range graphics card, the SAPPHIRE R9 290X. Based on the latest Graphics Core Next (GCN) architecture from AMD, the card is being heralded as the ultimate GPU for a new era in PC gaming. The new SAPPHIRE R9 290X delivers breathtaking performance while pushing the boundaries of audio & visual realism for gamers who demand the best. For gamers who demand the very best, AMD Radeon R9 290X graphics shatter ordinary GPU performance. Groundbreaking GCN Architecture pushes your performance to insane levels while AMD True Audio technology & ultra-resolution gaming take you even deeper into the action. Radeon is faster. Radeon is immersive. Radeon is gaming. With Ultra Resolution Gaming you can leave HD in the dust by gaming on displays much, much larger. Whether using a 4k monitor or combining multiple HD monitors, you’ll get an expansive experience that’s truly out of sight. With AMD True Audio technology, you get the most revolutionary, realistic & breathtaking sound we’ve ever put in a GPU10 Mantle gives game developers the power to speak directly to the GPU core. With such a direct connection to your hardware, game developers are discovering a whole new world of immersion & performance made possible by AMD graphics leadership. Specifications Display Support
- Supports up to 3 display monitor (s) without Display Port. 4 x Maximum Display Monitor (s) support Output
- 1 x HDMI (with 3D), 1 x Display Port 1.2, 2 x Dual-Link DVI-D GPU
- Up to 1000 MHz Core Clock, 28 nm Chip, 2816 x Stream Processors Video Memory
- 4096 MB Size, 512bit GDDR5, 5000 MHz Effective

Dimensions
- 277 (L)X104 (W)X35 (H) mm Size, 2 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 1X75 Watt 6-pin PCI Express power connector is required. Certified power supplies are recommended. 4096MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. 750 Watt Power Supply is required. 1X150 Watt 8-pin PCI Express power connector is required. 64-bit operating system highly recommended Windows Vista, Windows 7 or Windows 8 operating system. 64-bit operating system highly recommended.






...
