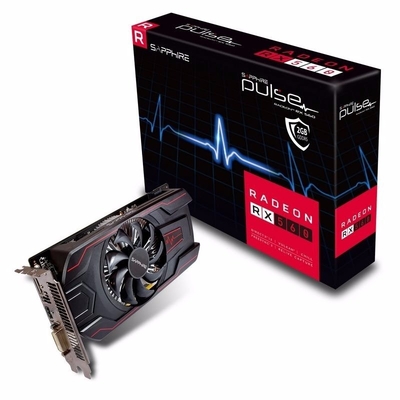

SAPPHIRE PULSE Radeon RX 560 2GD5 2GB GDDR5 Graphics Card

Product Description

Features The SAPPHIRE Pulse Radeon RX560 plays your favorites at a smooth 1080p, from the latest e Sports games & MOBAs to the most popular, graphically-intensive AAA titles. Built on the future-ready Polaris architecture. The card is ready for the latest technologies like Display Port 1.4 HBR3/HDR, HDMI 4K60, & Freesync 2 technology delivering a high level of graphical fidelity in your faorite games & multimedia experience. Overview Intelligent Fan Control For high-end graphic card users, we always like to get the best performance, running GPU cooler, quieter & longer life. Traditional graphic cards cooling solutions mainly focus on keeping GPU at lower operation temperature while balance acoustic for end users to enjoy a quieter gaming experience. At Sapphire our experienced thermal experts always fine tuning the fan control table for each graphic card we designs. With more & more transistors & integration of High bandwidth memory (HBM), we introduce an even more intelligent scheme to monitor & dynamically adjust the fan speeds. This so called IFC (Intelligent Fan Control) not only limited to cooling GPU cores but also inputs from HBM, Power control logics (like MOSFETS). With integrated SMU, there is a smart algorithm to received temperature reading from multiple inputs, i.e., multiple GPUs power cores, external Bridge control logics, voltage regulator MOSFETs. It will also take the current application loading, environment temperature into consideration. The benefit of this new intelligent fan control methodology is, users can always expect the best performance, quieter environment based on whole graphics systems without need to worry about the manual fan table adjustments. Frame Rate Target Control Frame Rate Target Control (FRTC) enables users to set a target maximum frame rate when playing an application in full screen mode; the benefit being that FRTC can reduce GPU power consumption (great for games running at frame rates much higher than the display refresh rate) & therefore reduce heat generation & fan speeds/noise on the graphics card. Frame Rate Target Control caps performance not only in 3D rendered in-game scenes, but also in splash screens, loading screens & menus, where frame rates can often run needlessly into the hundreds of FPS. Users might wish to set a very high cap just to limit wasteful FPS like that seen in menus & such, while still taking advantage of the responsiveness given by FPS well beyond 60.

Specification GPU 896 Stream Processors 14 nm Fin FET 4th Graphics Core Next (GCN) 1226 MHz Boost Engine Clock Memory 128 bit Memory Bus 1500 MHz, 6000 MHz Effective 2 GB Size BIOS Support UEFI BIOS Displays Maximum 3 Outputs Output 1 x DVI-D 1 x HDMI 1 x Display Port 1.4 Resolution 5120x 2880 (60 Hz) Pixel Display Port Resolution 2560x 1600 (60 Hz) Pixel Dual Link DVI Resolution 4096x 2160 (60 Hz) HDMI Resolution API Open GL 4.5 Open CL 2.0 Direct X 12 Shader Model 5.0 Feature AMD Cross Fire Free Sync Technology AMD Eyefinity AMD Xconnect ready Direct X™ 12 Optimized HDR Ready Frame Rate Target Control Precision fan control Radeon Chill Radeon Relive Cooling Single fan Form Factor 2 Part Slot Occupied 210 (L)X 112 (W)X 36 (H) Dimension /mm Power Consumption 75W OS Windows 10&12288; Windows 7&12288; System Requirement 400 Watt Power Supply (Suggestion) 1 x 6-pin AUX Power Connector PCI Express 2.0 or higher version based PC is required with one X16 lane graphics slot available on the motherboard in order for the card to be compatible with.
