Sapphire HD 7730 2GB DDR3 Dvi HDMI Display Port PCI-E Graphics Card The SAPPHIRE HD 7700 series is an extensive family of graphics cards targeting the enthusiast on a budget & mainstream users looking for increased graphics performance. It is based on the latest generation of GPUs from AMD built in its 28nm process & featuring the highly acclaimed GCN graphics processing architecture. The new HD 7730 1GB & 2GB GPUs have an optimised internal structure sharing many of the features of the higher performance models in the HD 7000 series but with fewer Stream Processors. Specifications Display Support: 2 x Maximum Display Monitor (s) support Output: D-Sub (VGA) 1 x HDMI (with 3D) 1 x Single-Link DVI-D GPU: 800 MHz Core Clock 28 nm Chip 384 x Stream Processors Video Memory: 2048 MB Size 128 -bit DDR3 1800 MHz Effective Dimension: 168 (L)x 104 (W)x 33 (H) mm Size. 2 x slot Software: Driver CD System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. Certified power supplies are recommended. Please refer to: http://support.amd.com/us/certified/power-supplies/ Pages/listing.aspx 4096MB Minimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. For an AMD Cross Fire X system, a second same AMD Radeon graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required. 400 Watt Power Supply is required. 500 Watt Power Supply is recommended for Cross Fire X System. Windows Vista, Windows 7 or Windows 8 operating system. 64-bit operating system highly recommended. ...

The new SAPPHIRE HD 7700 series is a new family of graphics cards targeting the enthusiast on a budget & mainstream users looking for increased graphics performance. It is based on the second family of GPU’s from AMD built in its new 28nm process & featuring the highly acclaimed GCN optimised graphics processing architecture. Specifications GPU 800 MHz Core Clock 28 nm Chip 512 x Stream Processors Memory 1024 MB Size 128 bit GDDR5 4500 MHz Effective Outputs 1 x Dual-Link DVI 1 x HDMI (with 3D) 1 x Display Port Display Port 1.2

Dimensions 170 (L)x 105 (W)x 43 (H) mm Size.

...

Sapphire HD 7750 2GB GDDR3 VGA DVI HDMI PCI-E Graphics Card The new SAPPHIRE HD 7700 series is a new family of graphics cards targeting the enthusiast on a budget & mainstream users looking for increased graphics performance. It is based on the second family of GPU’s from AMD built in its new 28nm process & featuring the highly acclaimed GCN graphics processing architecture. The new HD 7770 & HD 7750 GPUs have an optimised internal structure sharing many of the features of the high performance HD 7900 series already released but with fewer Stream processors & a simplified 128-bit high speed memory interface to the latest DDR5 memory types. Specification: Display Support 2 x Maximum Display Monitor (s) support Output: D-Sub (VGA) 1 x HDMI 1 x Single-Link DVI-D GPU: 800 MHz Core Clock 28 nm Chip 512 x Stream Processors Video Memory: 2048 MB Size 128 -bit DDR3 1600 MHz Effective Dimension: 175 (L)x 110 (W)x 33 (H) mm Size. 2 x slot Software
- Driver CD System Requirements: PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. Certified power supplies are recommended. Please refer to: http://support.amd.com/us/certified/power-supplies/ Pages/listing.aspx 4096MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. For an AMD Cross Fire X system, a second same AMD Radeon graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required. 400 Watt Power Supply is required. 500 Watt Power Supply is recommended for Cross Fire X System. Use of 3 or more displays with AMD Eyefinity technology requires a Display Port-capable panel or an AMD Eyefinity-validated dongle. See http://www.amd.com/ Eyefinity Dongles for a list of validated Display Port dongles.
...

Sapphire HD 7750 OC Edition 1GB GDDR5 DVI HDMI Display Port PCI-E Graphics Card The new SAPPHIRE HD 7700 series is a new family of graphics cards targeting the enthusiast on a budget & mainstream users looking for increased graphics performance. It is based on the second family of GPU’s from AMD built in its new 28nm process & featuring the highly acclaimed GCN graphics processing architecture. The new HD 7770 & HD 7750 GPUs have an optimised internal structure sharing many of the features of the high performance HD 7900 series already released but with fewer Stream processors & a simplified 128-bit high speed memory interface to the latest DDR5 memory types Specification: Display Support 3 x Maximum Display Monitor (s) support Output: 1 x Dual-Link DVI 1 x HDMI (with 3D) 1 x Display Port 1.2 GPU: 850 MHz Core Clock 28 nm Chip 512 x Stream Processors Video Memory: 1024 MB Size 128 -bit GDDR5 4800 MHz Effective Dimension
- 170 (L)x 105 (W)x 43 (H) mm Size. System Requirements: PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. Certified power supplies are recommended. Please refer to: http://support.amd.com/us/certified/power-supplies/ Pages/listing.aspx 1024MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. For an AMD Cross Fire X system, a second same AMD Radeon graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required. To support 3 displays, one of the monitors has to support Display Port. 400 Watt Power Supply is required.
...

The new SAPPHIRE HD 7700 series is a new family of graphics cards targeting the enthusiast on a budget & mainstream users looking for increased graphics performance. It is based on the second family of GPU’s from AMD built in its new 28nm process & featuring the highly acclaimed GCN optimised graphics processing architecture. Specifications GPU 1000 MHz Core Clock 28 nm Chip 640 x Stream Processors Memory 1024 MB Size 128 -bit GDDR5 4500 MHz Effective Output 1 x Dual-Link DVI 1 x HDMI (with 3D) 2 x Mini-Display Port Display Port 1.2 Dimension 210 (L)x 110 (W)x 43 (H) mm Size. ...

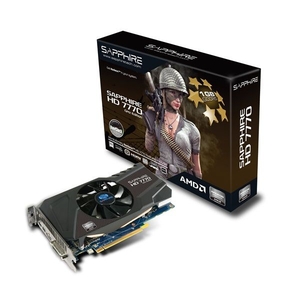

Sapphire HD 7770 GHZ Edition 1GB GDDR5 Flex Dual DVI HDMI Display Port PCI-E Graphics Card The SAPPHIRE HD 7770 Fle X brings this feature to the performance segment with its core clock speeds of 1000 M Hz (4.5 Gb/sec effective) for the 1GB of on board high speed DDR5 memory. The Fle X feature enables users to connect low-cost DVI monitors for the first three screens in landscape or portrait mode providing a cost-effective solution for multiscreen gaming or increased productivity in content creation & editing applications. Using the Display Port output, the SAPPHIRE HD 7770 Fle X supports four screens in Eyefinity, providing additional display options. Specification: Display Support: supports up to 4 display monitor (s) without Display Port 4 x Maximum Display Monitor (s) support Output: 1 x HDMI (with 3D) 1 x Single-Link DVI-D 1 x Display Port 1.2 1 x Dual-Link DVI-I GPU: 1000 MHz Core Clock 28 nm Chip 640 x Stream Processors Video Memory 1024 MB Size 128 -bit GDDR5 4500 MHz Effective Dimension: 220 (L)x 107 (W)x 35 (H) mm Size. 2 x slot Software
- Driver CD System Requirements: PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 1X75 Watt 6-pin PCI Express power connector is required. Certified power supplies are recommended. Please refer to: http://support.amd.com/us/certified/power-supplies/ Pages/listing.aspx 1024MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. For an AMD Cross Fire X system, a second same AMD Radeon™ graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required. 450 Watt Power Supply is required.
...

The SAPPHIRE HD 7770 Vapor-X OC Edition is the first card in this generation to use the SAPPHIRE exclusive implementation of Vapor chamber cooling technology. Previous products with Vapor-X have received world wide acclaim for delivering very efficient cooling that allows the card to run at higher speeds but with very low noise levels. Based on the latest GPU technology from AMD, the SAPPHIRE HD 7770 Vapor-X OC Edition has 1GB of the latest DDR5 memory, & is factory overclocked with core clocks of 1100 M Hz & memory clocks of 1300 M Hz (5.2 GB/s effective) to deliver excellent performance. Specification: Display Support
- 3 x Maximum Display Monitor (s) support Output: 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU: 1100 MHz Core Clock 28 nm Chip 640 x Stream Processors Video Memory: 1024 MB Size 128 -bit GDDR5 5200 MHz Effective Dimension
- 225 (L)x 110 (W)x 43 (H) mm Size. Software
- Driver CD System Requirements: PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 2X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 1X75 Watt 6-pin PCI Express power connector is required. Certified power supplies are recommended. Please refer to: http://support.amd.com/us/certified/power-supplies/ Pages/listing.aspx 1024MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. For an AMD Cross Fire X system, a second same AMD Radeon™ graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required. To support 3 displays, one of the monitors has to support Display Port. 450 Watt Power Supply is required.


...

For a limited time on selected cards only whilst stocks last with purchases from 9th April 2013 receive a free download coupon for Bioshock Infinite. Coupon will be added to the basket on checkout. This offer is only valid whilst stocks last. SAPPHIRE Technology has just introduced the first in a new family of products in its highly successful HD 7000 series of graphics cards. The SAPPHIRE HD 7790 is based on the latest chipset featuring the highly acclaimed graphics GCN (Graphics Core Next) architecture from AMD & sets a new standard for performance in mainstream graphics. The SAPPHIRE HD 7790 is the first product in a new family featuring the latest GPU architecture from AMD. It has 1GB of the latest DDR5 memory with core clocks of 1000 M Hz & memory clocks of 1500 M Hz (6 GB/s effective) to deliver new levels of performance in its price segment. Performance is optimised with the latest version of AMD’s Power Tune technology. Specifications Outputs 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU 1000 MHz Core Clock 28 nm Chip 896 x Stream Processors Video Memory 1024 MB Size 128 -bit GDDR5 6000 MHz Effective

Dimensions 215 (L)x 106 (W)x 35 (H) mm Size 2 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 2X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 1X75 Watt 6-pin PCI Express power connector is required. Certified power supplies are recommended. 4096MB Minimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. For an AMD Cross Fire X system, a second same AMD Radeon graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required. 500 Watt Power Supply is required. 600 Watt Power Supply is recommended for Cross Fire X System. To support 4 displays, one of the monitors has to support Display Port

...

The SAPPHIRE HD 7790 2GB OC Edition has 2GB of the latest DDR5 memory & is factory overclocked, with core clocks of 1050 M Hz & memory clocks of 1600 M Hz (6.4GB/s effective), to deliver new levels of performance in its price segment. Performance is optimised with the latest version of AMD’s Power Tune technology. The 2GB board features a new cooler design, which uses a dual heatpipe system & a single aerofoil section fan assembly with dust repelling bearings for maximum efficiency & reliability. A unique & SAPPHIRE original feature is the integration into the cooling system of the metal backplate which cools the memory chips on the reverse side of the pcb & helps with pcb rigidity. A finned heatsink attached to the backplate passes through the pcb & extends into the airflow from the fan on the front side of the card, enabling the airflow to carry away the heat from the components on the back of the pcb & reducing memory temperatures to as low as 13 C. Specifications GPU 28 nm Chip 1050 MHz Core Clock 896 x Stream Processors Video Memory 2048 MB Size 128 -bit GDDR5 6400 MHz Effective Display Support 4 x Maximum Display Monitor (s) support with 1 Display Port connected supports up to 3 display monitor (s) without Display Port 4 x Maximum Display Monitor (s) support Output 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I Dimension 215 (L)x 106 (W)x 38 (H) mm Size. 2 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 2X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system 1X75 Watt 6-pin PCI Express power connector is required Certified power supplies are recommended. Please refer to: http://support.amd.com/us/certified/power-supplies/ Pages/listing.aspx 4096MB Minimum of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray™ / HD DVD playback requires Blu-ray / HD DVD drive For an AMD Cross Fire X system, a second same AMD Radeon graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required 500 Watt Power Supply is required 600 Watt Power Supply is recommended for Cross Fire X System To support 4 displays, one of the monitors has to support Display Port ...

For a limited time on selected cards only whilst stocks last with purchases from 9th April 2013 receive a free download coupon for Bioshock Infinite. Coupon will be added to the basket on checkout. This offer is only valid whilst stocks last. SAPPHIRE Technology has just introduced the first in a new family of products in its highly successful HD 7000 series of graphics cards. The SAPPHIRE HD 7790 OC is based on the latest chipset featuring the highly acclaimed graphics GCN (Graphics Core Next) architecture from AMD & sets a new standard for performance in mainstream graphics. The SAPPHIRE HD 7790 OC Edition is the first product in a new family featuring the latest GPU architecture from AMD. It has 1GB of the latest DDR5 memory, & is factory overclocked with core clocks of 1075 M Hz & memory clocks of 1600 M Hz (6.4GB/s effective) to deliver new levels of performance in its price segment. Performance is optimised with the latest version of AMD’s Power Tune technology. Quiet & cool operation is assured with SAPPHIRE’s Dual-X cooler design, which combines a multiple heatpipe array with two aerofoil section fans & dust repelling bearings resulting in a highly efficient & reliable cooler. Specifications Output 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU 1075 MHz Core Clock 28 nm Chip 896 x Stream Processors Video Memory 1024 MB Size 128 -bit GDDR5 6400 MHz Effective

Dimensions 215 (L)x 106 (W)x 35 (H) mm Size 2 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 2X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 1X75 Watt 6-pin PCI Express power connector is required Certified power supplies are recommended 4096MB Minimum of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive For an AMD Cross Fire X system, a second same AMD Radeon graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card are required 500 Watt Power Supply is required 600 Watt Power Supply is recommended for Cross Fire X System To support 4 displays, one of the monitors has to support Display Port

...
