Salicrus SLC TWIN RT2 UPS range is a continuity solution for the electrical protection of critical systems. It combines double-conversion technology (AC/DC-DC/AC) & boasts a unity output power factor (VA=W) to enable it to power systems with high energy requirements, while offering high operating efficiency. ...

Salicrus SLC TWIN RT2 UPS range is a highly advanced continuity solution for the electrical protection of critical systems. It combines the most reliable double-conversion technology (AC/DC-DC/AC) on the market & boasts a unity output power factor (VA=W) to enable it to power systems with high energy requirements, while offering high operating efficiency. With a range of power ratings from 700 VA (W) to 10, 000 VA (W), it comes in a 2U (up to 3 k VA) or 4U rack format, convertible to tower format, with a swivel mount LCD display, according to the needs of the facility. Also available are solutions with an extra charger & additional battery modules for applications that require greater backup. In terms of communications, it features an RS-232/USB interface (compatible with HID protocol for devices up to 3 k VA) & a smart slot that can optionally hold an SNMP card, MODBUS or potential free contacts; also available are software packages for local or virtual monitoring & management of protected devices. Other outstanding features include: 50/60 or 60/50 Hz frequency converter, emergency stop (EPO), programmable outputs for critical/non-critical loads (up to 3 k VA) & system operation in parallel (up to 3 units for devices from 4 k VA). Features On-line double-conversion technology. Output power factor PF=1. Convertible tower/rack format. Control panel with swivel mount LCD display & keypad.

Includes:: pedestal (pedestal mount) & lugs (rack mount). Backup extensions available for all power ratings. UPS models with extra charger for backup extensions. RS-232 & USB (Universal Serial Bus)-HID communication interfaces. Downloadable monitoring software for Windows, Linux & Mac. Smart slot for SNMP/potential-free contacts/MODBUS. ADSL/fax/modem line protection. Eco-mode operation. Programmable outputs for critical/non-critical loads. Parallelable up to 3 units. PDU strip for distribution of output loads. Frequency conversion function. SLC Greenergy solution. Applications: Continuous protection for critical systems Salicrus SLC TWIN RT2 series offers, in a compact format, all of the necessary features for the protection of applications that require a high level of security in the event of any type of electrical disturbance, such as IT servers, voice & data networks, CAD/ CAM, document management, unified communications (UC) & video streaming.

...

SALICRU’s SLC TWIN RT series is a double conversion On-line UPS with an output power factor of 0.9, which can be turned into tower or rack format & can be set up in parallel. The powers range is from 700 VA to 10 k VA. The rack format is highly compact (with batteries included) & comprises 2U of up to 3 k VA, 3U of 4 to 6 k VA & just 5U for powers of 8 & 10 k VA. It comes with extensive communications options by graphic display, which can be positioned for the tower or rack formats, & incorporates USB (Universal Serial Bus) & RS-232 ports, as well as smart slot for SNMP/relays communication. For applications with broader back-up requirements, there is the option of additional battery modules. Above 4 k VA they include a rear plug-in module for electrical connections & a maintenance bypass to enable work to be done without having to disconnect the loads. Double conversion Online UPS. Output power factor = 0.9. Input current Total Harmonic Distortion (THDi) <5%. Directable LCD display. Convertible between tower & rack. Up to 2 units in parallel. (1)

Includes:: pedestal (tower) (2) & ears (rack). Selectable & priority loads control. (2) Ecomode operation. Serial communication interfaces (RS232) & USB (Universal Serial Bus). Monitoring software for Windows, Unix, Linux & Mac. Smart slot for SNMP/relays. Data/modem line protection. (3) Extended backup available. Automatic frequency detector. Frequency converter function. EPO – Emergency Power Off. Cold Start function for starting from batteries. Self test on every start up and/or manual. SLC Greenergy solution. (1) From 4 k VA (2) Except 10 k VA (3) Up to 3 k VA (included)

...

- On-line double-conversion technology. - Output power factor PF=0.9. - Control panel with LCD screen & keypad. - Backup extensions available for all power ratings. - USB (Universal Serial Bus) HID interface for all models as standard. Slot for SNMP ...

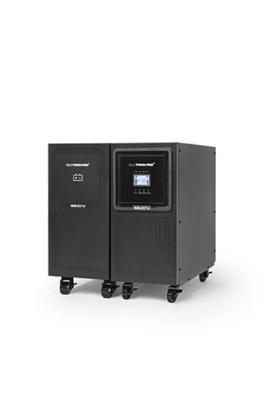

Salicru SLC-4000-TWIN PRO2 – 4000 VA Uninterruptible Power Systems (UPS) On-line double conversion & DSP control. UPS topology: Double-conversion (Online), Output power capacity: 4000 VA, Output power: 4000 W. AC outlet types: C13 coupler, AC outlets quantity: 2 AC outlet (s), Serial interface type: RS-232. Battery technology: Lead-Calcium (Pb-Ca), Battery recharge time: 7 h. Form factor: Tower, Product

Colour: Black, Cooling type: Active.

Width: 250 mm,

Depth: 592 mm,

Height: 576 mm Salicru's SLC TWIN PRO2 series UPS systems feature on-line double conversion technology, currently the most advanced for the protection of critical systems as it provides a fully stabilised & filtered sinusoidal supply voltage. The systems come in a tower format & are available in power ratings of 4, 5, 6, 8, 10, 15 & 20 k VA. The Salicru SLC TWIN PRO2's output voltage is always single-phase, featuring a single-phase input of 4 to 20 k VA & a three-phase input of 8 to 20 k VA. All devices with single-phase input provide a unitary output power factor (1), the most optimum for systems & environments with high energy needs. Adaptability is another important feature thanks to the numerous operating modes available: On-line, Batteries, Eco-mode, Bypass, Frequency converter & Parallel redundant. The possibilities of control & monitoring are varied: on the one h&, an LCD display + keypad for local operation of the device, &, on the other, various communication options (USB HID & RS-232 interfaces, & slot for SNMP, RS-485 & AS-400 cards) that enable the UPS to be integrated into standard or virtualised platforms for management, incident notification & remote maintenance. (1) Except 15 & 20 k VA I / I models







...

Salicru SNMP Card GX5 CS141MINITP2. Product type: Network management card, Product

Colour: Green, Satin steel.

...

This is why installation of an Ethernet Network card in the UPS is necessary, so that it can autonomously manage the different functions required by our computer network. Salicru has a complete range of Ethernet / SNMP network cards with different functions, to meet our clients requirements. ...

Salicru SPS 1000 ADVANCE T – 1000 VA Line-interactive sine-wave Uninterruptible Power Systems (UPS) tower. UPS topology: Line-Interactive, Output power capacity: 1000 VA, Output power: 700 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet (s). Battery technology: Lead-Calcium (Pb-Ca), Battery recharge time (90%): 4 h. Form factor: Tower, Product

Colour: Black, Cooling type: Active.

Width: 140 mm,

Depth: 327 mm,

Height: 191 mm Salicru's SPS ADVANCE T series offers, as a UPS solution, optimum levels of efficiency & reliability for all critical devices that require power supply continuity & dependability. They come in a very compact tower format to save space in server & computer rooms. They also feature line-interactive technology to combat any fluctuations in the mains supply together with an output voltage that is always sine-wave, the highest quality possible to power all sensitive loads. For easier & more convenient use, they feature a display that shows all necessary information on the operation of the device & power supply (input/output voltage, % load, % battery, etc.) & a wide range of communication options through the USB (Universal Serial Bus) interface with HID protocol, monitoring & management software (downloadable) & integrated smart slot (SNMP). Also noteworthy is their compatibility with current APFC (active power factor correction) power supplies. The power range for the SPS ADVANCE T series is: 850, 1, 000, 1, 500, 2, 000 & 3, 000 VA.







...

Salicru SPS 1100 ADVANCE RT2 – 1100 VA Line-interactive Uninterruptible Power Systems (UPS) sine-wave. UPS topology: Line-Interactive, Output power capacity: 1100 VA, Output power: 990 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet (s). Battery technology: Lead-Calcium (Pb-Ca), Battery recharge time (90%): 4 h, Charge type: Constant current/ Constant voltage. Form factor: Rackmount/ Tower, Product

Colour: Black, Rack capacity: 2U.

Width: 438 mm,

Depth: 410 mm,

Height: 88 mm Salicru's SPS ADVANCE RT2 series is a range of UPS featuring line-interactive technology with sine-wave output voltage & convertible tower/rack format, the height being only 2U for all power ratings. In addition, its output power factor of 0.9 & compatibility with APFC (active power factor correction) type loads make it the best option for any type of load that requires protection. In terms of communications, it features an RS-232/USB interface (compatible with HID protocol) & a smart slot that can optionally hold an SNMP card, MODBUS or potential-free contacts; also available are software packages for local or virtual monitoring & management of protected devices. & other outstanding features include: solutions for applications with long backup (by means of equipment with extra chargers & additional battery modules), swivel mount display & adapters (pedestal & lugs) for placing in tower or rack formats & programmable outputs (critical/non-critical loads) to extend the available backup. The power range for the SPS ADVANCE RT2 series is: 800, 1, 100, 1, 500, 2, 000 & 3, 000 VA.







...

Salicru SPS 1100 ADVANCE RT2 B1 – 1100 VA Line-interactive Uninterruptible Power Systems (UPS) sine-wave. UPS topology: Line-Interactive, Output power capacity: 1100 VA, Output power: 990 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet (s). Battery technology: Lead-Calcium (Pb-Ca), Battery recharge time (90%): 4 h, Charge type: Constant current/ Constant voltage. Form factor: Rackmount/ Tower, Product

Colour: Black, Rack capacity: 2U.

Width: 438 mm,

Depth: 410 mm,

Height: 88 mm Salicru's SPS ADVANCE RT2 series is a range of UPS featuring line-interactive technology with sine-wave output voltage & convertible tower/rack format, the height being only 2U for all power ratings. In addition, its output power factor of 0.9 & compatibility with APFC (active power factor correction) type loads make it the best option for any type of load that requires protection. In terms of communications, it features an RS-232/USB interface (compatible with HID protocol) & a smart slot that can optionally hold an SNMP card, MODBUS or potential-free contacts; also available are software packages for local or virtual monitoring & management of protected devices. & other outstanding features include: solutions for applications with long backup (by means of equipment with extra chargers & additional battery modules), swivel mount display & adapters (pedestal & lugs) for placing in tower or rack formats & programmable outputs (critical/non-critical loads) to extend the available backup. The power range for the SPS ADVANCE RT2 series is: 800, 1, 100, 1, 500, 2, 000 & 3, 000 VA.







...
