QNAP offers various cost-effective network expansion cards for businesses & organizations to upgrade the bandwidth of their QNAP NAS to accommodate intensive data transfer & virtualization applications. 25 Gb E network expansion card Using a Mellanox Connect X-4 Lx Smart NIC controller, the 25 Gb E network expansion card provides significant performance improvements for large file sharing, intensive data transfer, & optimizes VMware virtualization applications with i SER support. Controller: Mellanox Connect X-4 Lx Connector: SFP28 PCIe interface: PCIe Gen 3 x 8 Transmission rates: 25 Gbps/10 Gbps Supported operating systems: QTS; Windows (Driver required); Linux (Driver required) Supported QNAP NAS: Models with PCIe slot (s) (1 free slot required) Bracket: Low-profile bracket pre-installed; full-height & specialized (for selected QNAP NAS) brackets are bundled Port & cable: SFP28 DAC cable (3M) or SFP28 OPTIC transceiver ...

Controller: Intel Ethernet Controller I225-LM Connector: RJ45 PCIe interface: PCIe Gen 2 x 1 Transmission rates: 2.5 Gbps/1 Gbps/100 Mbps/10 Mbps Supported operating systems: QTS 4.4.2 or later (recommend an upgrade to the latest version); Windows 10 (1809 or later); Linux Stable Kernel 4.20/5.x; Windows Server 2019 (Driver required) Supported QNAP NAS: Models with PCIe slot (s) (1 free slot required) Port & cable: RJ-45; over CAT-5 class cable Supported functions: PXE, Wake-On-LAN (Wo L), 9k jumbo frame, 802.1AS-rev/1588, 802.1 Qav/802.1 Qbv, Time Sensitive Networking (TSN), RSS+MSI-X, Teaming & VLAN support, Intel AMT** Package Content: 1 x Network card (Low-profile bracket pre-installed); 1 x QIG; 2 x Brackets (full-height & specialized for QNAP NAS) ...

Dual-port USB (Universal Serial Bus) 3.2 Gen 2 Type-A connectivity. Both ports provide up to 10 Gbps data transfer speeds & are backwards compatible with previous-generation USB (Universal Serial Bus) devices. Supports USB (Universal Serial Bus) Attached SCSI Protocol (UASP) to provide convenient fast file sharing & intensive data transfer. Uses advanced low-power processes, following standard PCIe/USB bus Power Management to reduce power consumption. Supports overcurrent detection & short circuit protection. Supports Windows 8.x / 10 (32/64-bit) & Ubuntu desktop 20.04 LTS. No driver is required. The QNAP USB (Universal Serial Bus) 3.2 Gen 2 Expansion Card provides speeds of up to 10 Gbps – double that of USB (Universal Serial Bus) 3.2 Gen 1 – to greatly boost data transfer speeds. With two ports, the QNAP USB (Universal Serial Bus) 3.2 Gen 2 Expansion Card provides compatibility with newer, faster USB (Universal Serial Bus) 3.2 Gen 2 devices to accelerate file transfers & backup. The QNAP USB (Universal Serial Bus) 3.2 Gen 2 Expansion Card can be installed in either a QNAP NAS or Windows/ Ubuntu PC. ...

The QXP-W6-AX200 supports Wi-Fi 6 802.11ax, provides up to 2400 Mbps connection speeds, & is backwards compatible with 802.11ac R2/ abgn. The QXP-W6-AX200 supports MU-MIMO 2 Tx 2R, providing greater connectivity with multiple clients; OFDMA increases network efficiency & decreases packet delay. The QXP-W6-AX200 has dual band 2.4 G Hz/ 5 G Hz antennae, multiple angle tilt, & a magnetic base for the best signal strength direction & location. The QXP-W6-AX200 supports BSS coloring that marks shared frequencies with a number for easy differentiation. Bluetooth 5.0 provides faster speeds & wider range to easily connect to multiple devices. Wi-Fi 6 uses 1024-QAM to provide a signal packed with more data, & enables 25% faster data rates than 256-QAM. The QXP-W6-AX200 is a PCIe Gen 2x 1 Wi-Fi 6 wireless adapter with an Intel Wi-Fi 6 AX200 module that supports the IEEE 802.11ax standard (backwards compatible with 802.11a/b/g/n/ac), MIMO 2 Tx 2R, MU-MIMO TX/RX & Bluetooth 5.0. The QXP-W6-AX200 can be installed in a QNAP NAS, or Windows/ Linux PC to provide fast Wi-Fi 6 connection speeds. The QXP-W6-AX200 can also be used with Wi-Fi 6 router to deploy Wi-Fi 6 network environment. A full-height bracket is pre-installed on the QXP-W6-AX200 & two low-profile brackets are also included. ...

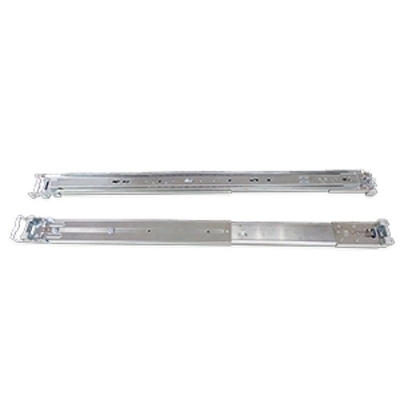

The TS-x 80 rack mount models comply with ANSI/EIA-RS-310-D rack mounting standards. Before purchasing the server racks for these models, please make sure the server racks conform to the following criteria: Rack size Mounting post width: &8805; 450mm Panel width: &8805; 485mm Mounting post depth: 650mm~850mm The optional rack kits for the TS-x 80 rack mount models are only compatible with square-hole server racks ...

QNAP RAM-16GDR4A0-UD-2400 RAM Module
- 16 GB (1 x 16 GB)
- DDR4-2400/PC4-19200 DDR4 SDRAM
- Unbuffered
- 288-pin
-




...

SAS/SATA/SSD RAID Expansion Enclosure for Turbo NAS The QNAP REXP-1000 Pro expansion enclosure is designed for expanding the storage space on the Turbo NAS & can support maximum 250TB raw capacity* by connecting multiple expansion enclosures via high-speed mini SAS cables. This is especially useful for large data applications, such as video surveillance, data archiving, & TV broadcast storage. Contains the WD RE (RAID Edition) Enterprise class drives with multi Axis shock sensors, vibration protection & dual actuators. Designed for high duty cycle 24/7 environments, typically virtual machine (VM) environments with 5 years warranty Plug & use, seamless capacity expansion Missing mode protection High density, high efficiency & high scalability Flexible management with the QTS Storage Manager Backup storage for the Turbo NAS Supports SAS/SATA 6 Gbps HDD & SSD * Supported Turbo NAS models & maximum number of applicable expansion enclosures Plug & use, seamless capacity expansion Plug & use, seamless capacity expansion Simply connect a REXP-1000 Pro to a Turbo NAS* & power it on. The Turbo NAS will detect the hard drives in the REXP-1000 Pro as newly installed local drives. The Turbo NAS capacity can be expanded seamlessly by using the powerful QTS Storage Manager. * Optional purchase of SAS expansion card & QTS 4.1.0 (or newer) are required for the Turbo NAS. Missing mode protection When disconnection of the expansion enclosures occurs, the Turbo NAS enters missing mode automatically & blocks I/O access to protect the stored data. The system can then recover from the missing mode to the normal state with data staying intact when the disconnection is resolved. High density, high efficiency & highly scalable The REXP-1000 Pro supports 10 hard drives & 50TB raw capacity, & has two SAS wide ports (IN port & OUT port) for host connectivity & daisy-chain respectively. Each SAS wide port combines four SAS channels (maximum 8 SAS channels supported per expansion enclosure). The solution delivers unprecedented performance of up to 24 Gbps per host connection. Powerful QTS Storage Manager The QTS Storage Manager neatly presents tools & options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion & REXP-1000 Pro management. IT administrators can easily monitor the health status of REXP-1000 Pro & the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk & Locate Enclosure functions assist IT administrators for quick maintenance. An excellent backup solution for the Turbo NAS In addition to expanding an existing volume, IT administrators can use the REXP-1000 Pro as a budget-friendly external storage to perform speedy & secure backup tasks for the Turbo NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up the Turbo NAS data to the REXP-1000 Pro on a real time or scheduled basis. Flexible drive selection The REXP-1000 Pro offers high flexibility in hard drive selection. IT administrators can choose enterprise-level SAS HDDs with high performance & high reliability for mission critical applications, low-cost but high-capacity SATA HDDs for large data archiving, or high-speed & high stability SSDs for I/O intensive operations. ...

The QNAP REXP-1000 Pro expansion enclosure is designed for expanding the storage space on the Turbo NAS & can support maximum 250TB raw capacity* by connecting multiple expansion enclosures via high-speed mini SAS cables. This is especially useful for large data applications, such as video surveillance, data archiving, & TV broadcast storage. Plug & use, seamless capacity expansion Simply connect a REXP-1000 Pro to a Turbo NAS* & power it on. The Turbo NAS will detect the hard drives in the REXP-1000 Pro as newly installed local drives. The Turbo NAS capacity can be expanded seamlessly by using the powerful QTS Storage Manager. Missing mode protection When disconnection of the expansion enclosures occurs, the Turbo NAS enters missing mode automatically & blocks I/O access to protect the stored data. The system can then recover from the missing mode to the normal state with data staying intact when the disconnection is resolved. High density, high efficiency & highly scalable The REXP-1000 Pro supports 10 hard drives & 50TB raw capacity, & has two SAS wide ports (IN port & OUT port) for host connectivity & daisy-chain respectively. Each SAS wide port combines four SAS channels (maximum 8 SAS channels supported per expansion enclosure). The solution delivers unprecedented performance of up to 24 Gbps per host connection. ...

SAS/SATA/SSD RAID Expansion Enclosure for Turbo NAS The QNAP REXP-1000 Pro expansion enclosure is designed for expanding the storage space on the Turbo NAS & can support maximum 250TB raw capacity* by connecting multiple expansion enclosures via high-speed mini SAS cables. This is especially useful for large data applications, such as video surveillance, data archiving, & TV broadcast storage. Contains WD SE (Scalable Edition) Enterprise class drives designed for 24/7 environments with 5 years warranty. Plug & use, seamless capacity expansion Missing mode protection High density, high efficiency & high scalability Flexible management with the QTS Storage Manager Backup storage for the Turbo NAS Supports SAS/SATA 6 Gbps HDD & SSD * Supported Turbo NAS models & maximum number of applicable expansion enclosures Plug & use, seamless capacity expansion Plug & use, seamless capacity expansion Simply connect a REXP-1000 Pro to a Turbo NAS* & power it on. The Turbo NAS will detect the hard drives in the REXP-1000 Pro as newly installed local drives. The Turbo NAS capacity can be expanded seamlessly by using the powerful QTS Storage Manager. * Optional purchase of SAS expansion card & QTS 4.1.0 (or newer) are required for the Turbo NAS. Missing mode protection When disconnection of the expansion enclosures occurs, the Turbo NAS enters missing mode automatically & blocks I/O access to protect the stored data. The system can then recover from the missing mode to the normal state with data staying intact when the disconnection is resolved. High density, high efficiency & highly scalable The REXP-1000 Pro supports 10 hard drives & 50TB raw capacity, & has two SAS wide ports (IN port & OUT port) for host connectivity & daisy-chain respectively. Each SAS wide port combines four SAS channels (maximum 8 SAS channels supported per expansion enclosure). The solution delivers unprecedented performance of up to 24 Gbps per host connection. Powerful QTS Storage Manager The QTS Storage Manager neatly presents tools & options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion & REXP-1000 Pro management. IT administrators can easily monitor the health status of REXP-1000 Pro & the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk & Locate Enclosure functions assist IT administrators for quick maintenance. An excellent backup solution for the Turbo NAS In addition to expanding an existing volume, IT administrators can use the REXP-1000 Pro as a budget-friendly external storage to perform speedy & secure backup tasks for the Turbo NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up the Turbo NAS data to the REXP-1000 Pro on a real time or scheduled basis. Flexible drive selection The REXP-1000 Pro offers high flexibility in hard drive selection. IT administrators can choose enterprise-level SAS HDDs with high performance & high reliability for mission critical applications, low-cost but high-capacity SATA HDDs for large data archiving, or high-speed & high stability SSDs for I/O intensive operations. ...

SAS/SATA/SSD RAID Expansion Enclosure for Turbo NAS The QNAP REXP-1000 Pro expansion enclosure is designed for expanding the storage space on the Turbo NAS & can support maximum 250TB raw capacity* by connecting multiple expansion enclosures via high-speed mini SAS cables. This is especially useful for large data applications, such as video surveillance, data archiving, & TV broadcast storage. Contains WD SE (Scalable Edition) Enterprise class drives designed for 24/7 environments with 5 years warranty. Plug & use, seamless capacity expansion Missing mode protection High density, high efficiency & high scalability Flexible management with the QTS Storage Manager Backup storage for the Turbo NAS Supports SAS/SATA 6 Gbps HDD & SSD * Supported Turbo NAS models & maximum number of applicable expansion enclosures Plug & use, seamless capacity expansion Plug & use, seamless capacity expansion Simply connect a REXP-1000 Pro to a Turbo NAS* & power it on. The Turbo NAS will detect the hard drives in the REXP-1000 Pro as newly installed local drives. The Turbo NAS capacity can be expanded seamlessly by using the powerful QTS Storage Manager. * Optional purchase of SAS expansion card & QTS 4.1.0 (or newer) are required for the Turbo NAS. Missing mode protection When disconnection of the expansion enclosures occurs, the Turbo NAS enters missing mode automatically & blocks I/O access to protect the stored data. The system can then recover from the missing mode to the normal state with data staying intact when the disconnection is resolved. High density, high efficiency & highly scalable The REXP-1000 Pro supports 10 hard drives & 50TB raw capacity, & has two SAS wide ports (IN port & OUT port) for host connectivity & daisy-chain respectively. Each SAS wide port combines four SAS channels (maximum 8 SAS channels supported per expansion enclosure). The solution delivers unprecedented performance of up to 24 Gbps per host connection. Powerful QTS Storage Manager The QTS Storage Manager neatly presents tools & options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion & REXP-1000 Pro management. IT administrators can easily monitor the health status of REXP-1000 Pro & the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk & Locate Enclosure functions assist IT administrators for quick maintenance. An excellent backup solution for the Turbo NAS In addition to expanding an existing volume, IT administrators can use the REXP-1000 Pro as a budget-friendly external storage to perform speedy & secure backup tasks for the Turbo NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up the Turbo NAS data to the REXP-1000 Pro on a real time or scheduled basis. Flexible drive selection The REXP-1000 Pro offers high flexibility in hard drive selection. IT administrators can choose enterprise-level SAS HDDs with high performance & high reliability for mission critical applications, low-cost but high-capacity SATA HDDs for large data archiving, or high-speed & high stability SSDs for I/O intensive operations. ...
