Value RAM is Kingstons value-priced line of industry-standard, generic memory intended for customers who have white box or ...

Hyper X Red limited edition has a sleek & aggressive look that provides a stylish accent to any motherboard or desktop computer ...

Kingston 4GB DDR3 1600 M Hz Memory Module Standard 512M X 64 Non-ECC 1600 M Hz 240-pin Unbuffered DIMM DDR3 1.5V CL11 Kingston Value RAM is industry standard memory designed for customers who purchase memory by

Specification. From component qualification & manufacturing to quality assurance monitoring, Kingston Value RAM solutions inherit Kingston’s widely recognised expertise in creating high-quality memory modules. Every module undergoes Kingston’s rigorous quality assurance process & every cell on every chip on every module is fully tested & verified to be defect-free.

...

Value RAM is Kingstons value-priced line of industry-standard, generic memory intended for customers who have white box or ...

Kingston
- Memory
- 4 GB
- SO DIMM 204-pin
- DDR3
- 1600 MHz / PC3-12800
- 1.35 V
- unbuffered
- non-ECC
-








...

Kingston 4GB DDR4 2133 M Hz Memory Module Kingston memory is designed, manufactured & rigorously tested to meet the exact specifications of each brand name system. It’s guaranteed to be compatible & backed by a lifetime warranty & legendary Kingston reliability. Specifications Memory CAS latency 15 Component for PC/server ECC No Internal memory 4 GB Internal memory type DDR4 Memory clock speed 2133 MHz Memory form factor 288-pin DIMM Memory layout (modules x size) 1 x 4 GB Memory voltage 1.2 V Weight &

Dimensions Width 13.3 cm

...

Kingston 4GB DDR4 2133 M Hz Non-ECC Memory Module DESCRIPTION This document describes Value RAM's 512M x 64-bit (4GB) DDR4-2133 CL15 SDRAM (Synchronous DRAM), 1 Rx 8, memory module, based on eight 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standar latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical & mechanical specifications are as follows: FEATURES Power Supply: VDD=1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD=2.2V to 3.6V Nominal & dynamic on-die termination (ODT) for data, strobe, & mask signals Low-power auto self refresh (LPASR) Data bus inversion (DBI) for data bus On-die VREFDQ generation & calibration Single-rank On-board I2 serial presence-detect (SPD) EEPROM 16 internal banks; 4 groups of 4 banks each Fixed burst chop (BC) of 4 & burst length (BL) of 8 via the mode register set (MRS) Selectable BC4 or BL8 on-the-fly (OTF) Fly-by topology Terminated control command & address bus PCB: Height 1.23” (31.25mm) SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature 55oC to +100oC * Power will vary depending on the SDRAM used.

...

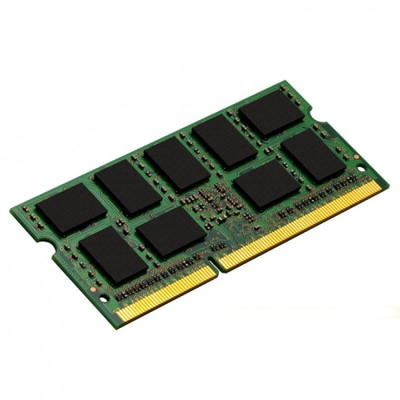

Kingston 4GB DDR4 2133 M Hz Non ECC CL15 SODIMM Memory Kingston Technology 4GB DDR4-2133MHZ, Value RAM. Internal memory: 4 GB, Internal memory type: DDR4, Memory clock speed: 2133 MHz. Colour of product: Green.

Width: 6.96 cm,

Depth: 3.7 mm,

Height: 3 cm Product description Value RAM, Kingston’s industry standard memory, delivers award-winning performance & legendary Kingston reliability. When you know what you want, you want Value RAM. Speicifications Design Colour of product Green Memory Component for PC/server ECC No Internal memory 4 GB Internal memory type DDR4 Lead plating Gold Memory bus 64 bit Memory clock speed 2133 MHz Memory form factor 260-pin SO-DIMM Memory layout (modules x size) 1 x 4 GB Memory voltage 1.2 V Module configuration 512M x 64 Refresh row cycle time 260 ns Row active time 33 ns Row cycle time 46.5 ns Operational conditions Operating temperature (T-T) 0
- 85 °C Storage temperature (T-T) -55
- 100 °C System requirements Windows operating systems supported Yes Weight &

Dimensions Depth 3.7 mm Height 3 cm Width 6.96 cm









...

Kingston memory is designed, manufactured & rigorously tested to meet the exact specifications of each brand name system. Its guaranteed to be compatible & backed by a lifetime warranty & legendary Kingston reliability. Kingston 4GB DDR4 2400 M Hz Memory Module Memory Capacity 4GB Brand Kingston CASLatency CL17 Chip Organization x 16 Form Factor DDR4 Memory Depth 512M Memory Voltage 1.2v Module Type DIMM Operating Temperature 0°C to 85°C Pins 288 Pin Product Type/ Family DRAM RAM Memory Type Non-ECC Rank 1R (Single Rank) Speed 2400 M Hz (PC4-19200) Warranty Lifetime Weight 9g ...

Memory Capacity 4GB Model/ Series/ Type Value RAM Brand Kingston CASLatency CL17 Chip Organization x 16 Data Width X64 Form Factor DDR4 Memory Depth 512M Memory Voltage 1.2v Module Type DIMM Operating Temperature 0°C to 85°C Pins 288 Pin Product Type/ Family DRAM RAM Memory Type Non-ECC Rank 1R (Single Rank) Speed 2400 M Hz (PC4-19200) Warranty Lifetime ...
