GZ-X series took a stab at “notching up” mainstream tier one chassis standards & was designed for that purpose. It will continue to do so for its entire dynasty. The series takes the complexity & ingenuity common on high-end chassis, & re-engineers them into the mainstream space. Mainstream trends, like dual-tone shades & colors, simplicity with style & corporate consistency come into play to make up the exterior, with efficiency & convenience coming in to accommodate the interior. Model no. GZ-X7

Dimensions (W x H x D ) 185 x 410 x 486.5 mm Material ABS / 0.6 mm SECC Color (s) Black Side panel (s) CAG1.1 Air Duct Drive bays 5.25" x 4, 3.5" x 1+6 (internal) Expansion slots 7 Form factor ATX / Micro ATX I / O ports 2 x USB (Universal Serial Bus) 2.0 / 1 x IEEE 1394 (Optional) / 1 x HD Audio / 2 x USB (Universal Serial Bus) 3.0 (Optional) Fans Front: 120mm silent fan x 1 (Optional) Rear: 120mm silent fan x 1 (Optional) Weight 5.12 kg

...

- Chamber Absorbers for Pro Bass Performance
- Aluminum Headsets for Amazing Mids & Highs
- Modern Outlook
- User Friendly


...

Features Supports 7th / 6th Generation Intel Core™ Processors Dual Channel DDR4, 2 DIMMs 8-channel HD Audio with High Quality Audio Capacitors Audio Noise Guard with LED Trace Path Lighting Realtek Gb E LAN with c Fos Speed Internet Accelerator Software All new GIGABYTE™ APP Center, simple & easy use GIGABYTE UEFI Dual BIOS™ Technology Support Intel Small Business Basics Product Overview GIGABYTE Ultra Durable ™ Motherboards GIGABYTE 100 series motherboards support the latest 6th Generation Intel Core™ processors, a 14nm desktop CPU which features enhanced performance, power efficiency & support for DDR4 memory, bringing cutting edge features & ultimate performance to your next PC build. High Quality Onboard Audio Design Delivers high quality sound resolution & sound expansion to create the most realistic sound effects for professional users. Humidity Protection with Glass Fabric PCB There is nothing more harmful to the longevity of your PC than moisture, & most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid & damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit & system malfunction caused by humid & damp conditions. High ESD Ethernet & USB (Universal Serial Bus) Port Protection GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN & USB (Universal Serial Bus) ports, both common sources of ESD-related failures. With pairing the dedicated protection filters, the Ethernet LAN & USB (Universal Serial Bus) ports can withstand high electrostatic discharges, protecting your system from common electrical surges & even direct lighting strikes. High Temperature Protection of Lower RDS (on) MOSFETs Design GIGABYTE motherboards use Low RDS (on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users & the environment without impacting system performance. Realtek Gb E LAN with c Fos Speed Internet Accelerator Software Realtek Gb E LAN features c Fos Speed, a network traffic management application which helps to improve network latency & maintain low ping times to delivery better responsiveness in a crowded LAN environments. Realtek Gb E consumes significant less power when it’s in idle state in comparison with others. APP Center GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center means that you can launch all GIGABYTE APPs installed on your system. Cloud Station™ GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, & control your desktop PC via a wireless connection. USB (Universal Serial Bus) 3.0 Ports Onboard With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB (Universal Serial Bus) 2.0. in addition, backwards compatibility with USB (Universal Serial Bus) 2.0 assures users legacy USB (Universal Serial Bus) 2.0 devices will still work. GIGABYTE Patented Dual BIOS™ (UEFI) Design GIGABYTE Ultra Durable™ motherboards feature GIGABYTE Dual BIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PCs most crucial components, the BIOS. GIGABYTE Dual BIOS™ means that your motherboard has both a Main BIOS & a Backup BIOS, making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process. INTEL SMALL BUSINESS BASICS With 6th Generation Intel Core™ Processor Security & Productivity Solution with built in IT New compelling usages in one intuitive Customizable UI Specifications CPU Support for Intel Core i 7 processors/ Intel Core i 5 processors/ Intel Core i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset: Intel H110 Express Chipset Memory: 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2133 MHz memory modules Support for ECC UDIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor
- Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz Maximum shared memory of 512 MB Audio: Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN: Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots: 1 x PCI Express x 16 slot, running at x 16 (The PCI Express x 16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x 1 slots (The PCI Express x 1 slots conform to PCI Express 2.0 standard.) Storage Interface: Chipset: 4 x SATA 6 Gb/s connectors USB: Chipset: 4 x USB (Universal Serial Bus) 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.0/2.0 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x parallel port 1 x serial port 1 x D-Sub port 2 x USB (Universal Serial Bus) 3.0/2.0 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller: i TE I/O Controller Chip H/W Monitoring System voltage detection CPU/ System temperature detection CPU/ System fan speed detection CPU/ System overheating warning CPU/ System fan fail warning CPU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Easy RAID Fast Boot Smart Time Lock Smart Keyboard Smart Backup System Information Viewer USB (Universal Serial Bus) Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Support for Windows 10/8.1 64-bit Support for Windows 7 32-bit/64-bit * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTEs website & install it before installing Windows 7. Form Factor: Micro ATX Form Factor; 22.6cm x 17.4cm
...

Gigabyte GA-H110M-H Socket 1151 VGA HDMI Micro ATX Motherboard CPU Support for Intel Core i 7 processors/ Intel Core i 5 processors/ Intel Core i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset: Intel H110 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2133 MHz memory modules Support for ECC UDIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor
- Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x 2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 512 MB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN: Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (The PCI Express x 16 slot conform to PCI Express 3.0 standard.) 2 x PCI Express x 1 slots (All of the PCI Express x 1 slots conform to PCI Express 2.0 standard.) Storage Interface Chipset: 4 x SATA 6 Gb/s connectors USB (Universal Serial Bus) Chipset: 4 x USB (Universal Serial Bus) 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.0/2.0 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x HDMI port 2 x USB (Universal Serial Bus) 3.0/2.0 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller: i TE I/O Controller Chip H/W Monitoring System voltage detection CPU/ System temperature detection CPU/ System fan speed detection CPU/ System overheating warning CPU/ System fan fail warning CPU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Smart Time Lock Smart Keyboard Smart Backup System Information Viewer USB (Universal Serial Bus) Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Support for Windows 10/8.1 64-bit Support for Windows 7 32-bit/64-bit * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTE's website & install it before installing Windows 7. Form Factor: Micro ATX Form Factor; 22.6cm x 17.4cm
...

Features Supports 7th / 6th Generation Intel Core™ Processors Dual Channel DDR4, 2 DIMMs 8-channel HD Audio with High Quality Audio Capacitors Audio Noise Guard with LED Trace Path Lighting HDMI 1.4, DVI-D, D-sub ports for multiple display Realtek Gb E LAN with c Fos Speed Internet Accelerator Software All new GIGABYTE™ APP Center, simple & easy use Support Intel Small Business Basics Overview GIGABYTE Ultra Durable ™ Motherboards GIGABYTE 100 series motherboards support the latest 6th Generation Intel Core™ processors, a 14nm desktop CPU which features enhanced performance, power efficiency & support for DDR4 memory, bringing cutting edge features & ultimate performance to your next PC build. High Definition Digital Outputs Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays & TVs. High ESD Ethernet & USB (Universal Serial Bus) Port Protection GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN & USB (Universal Serial Bus) ports, both common sources of ESD-related failures. With pairing the dedicated protection filters, the Ethernet LAN & USB (Universal Serial Bus) ports can withstand high electrostatic discharges, protecting your system from common electrical surges & even direct lighting strikes. 4K Ultra HD Support 4K resolution is the next technological milestone in high-definition content delivery, utilizing Approx. 4, 000 pixels on the horizontal axis, more than four times todays standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel HD Graphics via HDMI. HDMI - The Next Generation Multimedia Interface HDMI™ is a High-Definition Multimedia Interface which provides up to 5 Gb/s video transmitting bandwidth & 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video & audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces & their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD & other protected media content.

Specification CPU Support for 7th/6th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package * For 7th Generation Intel Core™ processors support need to update the latest BIOS. L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel H110 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor
- Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@24 Hz * Support for HDMI 1.4 version. Support for up to 2 displays at the same time Maximum shared memory of 1024 MB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) (The PCI Express x 16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x 1 slots (All of the PCI Express x 1 slots conform to PCI Express 2.0 standard.) Storage Interface Chipset: 4 x SATA 6 Gb/s connectors USB (Universal Serial Bus) Chipset: 4 x USB (Universal Serial Bus) 3.0 (USB 3.1 Gen 1)/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 8 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.0 (USB 3.1 Gen 1)/2.0 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB (Universal Serial Bus) 3.0 (USB 3.1 Gen 1)/2.0 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring System voltage detection CPU/ System temperature detection CPU/ System fan speed detection CPU/ System overheating warning CPU/ System fan fail warning CPU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Smart Time Lock Smart Keyboard Smart Backup System Information Viewer USB (Universal Serial Bus) Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Windows 10 64-bit (for 7th Generation Intel Processors) Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors) * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTEs website & install it before installing Windows 7. Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.


...

Features Supports 8th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4 8-Channel HD Audio with High Quality Audio Capacitors Ultra-Fast M.2 with PCIe Gen 2 X4 & SATA interface RGB FUSION supports RGB LED strips in 7 colors Intel Gb E LAN with c Fos Speed Internet Accelerator Software CEC 2019 Ready, Save Power With a Simple Click Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP All new GIGABYTE™ APP Center, simple & easy use Anti-Sulfur Resistors Design Overview Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Hybrid Fan Pin Headers Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. Supports RGB Light Strips in 7 Colors Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique! GIGABYTE RGB Fusion APP Dont just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try & adjust colors & speeds for different modes, all this can be achieved away from the keyboard & monitor of their PC.

Specification CPU Support for 8th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel H310 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i 7/i 5 processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x Display Port, supporting a maximum resolution of 4096x 2304@60 Hz * Support for Display Port 1.2 version, HDCP 2.2, & HDR. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@30 Hz * Support for HDMI 1.4 version & HDCP 2.2. Maximum shared memory of 1 GB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Intel Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (The PCI Express x 16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x 1 slots (The PCI Express x 1 slots conform to PCI Express 2.0 standard.) Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x 4/x 2 SSD support) 4 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 & SATA connectors. USB Chipset: 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6 Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 1 x USB (Universal Serial Bus) 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x 6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x Display Port 1 x HDMI port 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Time Lock Smart HUD System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...

Features Supports 8th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4 8-Channel HD Audio with High Quality Audio Capacitors GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management CEC 2019 Ready, Save Power With a Simple Click Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP All new GIGABYTE™ APP Center, simple & easy use Anti-Sulfur Resistors Design Overview Exclusive Realtek 8118 Gaming LAN High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance & friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features & the fastest & smoothest Internet experience. Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution & high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Specification CPU Support for 8th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel H310 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i 7/i 5 processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz Maximum shared memory of 1 GB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN Intel Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x 1 slots (The PCI Express x 1 slots conform to PCI Express 2.0 standard.) Storage Interface Chipset: 4 x SATA 6 Gb/s connectors USB Chipset: 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 1 x USB (Universal Serial Bus) 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x 6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart Time Lock Smart HUD System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...

Features Supports 8th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4 8-Channel HD Audio with High Quality Audio Capacitors GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management CEC 2019 Ready, Save Power With a Simple Click Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP All new GIGABYTE™ APP Center, simple & easy use Anti-Sulfur Resistors Design Overview Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Hybrid Fan Pin Headers Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. Supports RGB Light Strips in 7 Colors Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique! GIGABYTE RGB Fusion APP Dont just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try & adjust colors & speeds for different modes, all this can be achieved away from the keyboard & monitor of their PC.

Specification CPU Support for 8th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel H310 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i 7/i 5 processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x 2160@30 Hz * Support for HDMI 1.4 version & HDCP 2.2. Maximum shared memory of 1 GB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x 1 slots (The PCI Express x 1 slots conform to PCI Express 2.0 standard.) Storage Interface Chipset: 4 x SATA 6 Gb/s connectors USB Chipset: 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 1 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x 6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart Time Lock Smart HUD System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...

Features Supports 8th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4 8-Channel HD Audio with High Quality Audio Capacitors Ultra-Fast M.2 with PCIe Gen 2 X2 & SATA interface GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management HDMI 1.4, DVI-D, D-Sub Ports for Multiple Display CEC 2019 Ready, Save Power With a Simple Click Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP All new GIGABYTE™ APP Center, simple & easy use Anti-Sulfur Resistors Design Overview Exclusive Realtek 8118 Gaming LAN High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance & friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features & the fastest & smoothest Internet experience. Hybrid Fan Pin Headers Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Specification CPU Support for 9th & 8th Generation Intel Core™ i 9 processors/ Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel H310 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i 7/i 5 processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@30 Hz * Support for HDMI 1.4 version & HDCP 2.2. Maximum shared memory of 1 GB Maximum support of 2 independent display at one time. Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x 1 slots (The PCI Express x 1 slots conform to PCI Express 2.0 standard.) Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x 2 SSD support) 4 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 & SATA connectors. USB (Universal Serial Bus) Chipset: 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6 Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 1 x USB (Universal Serial Bus) 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x 6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart Time Lock Smart HUD System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundled Software Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...

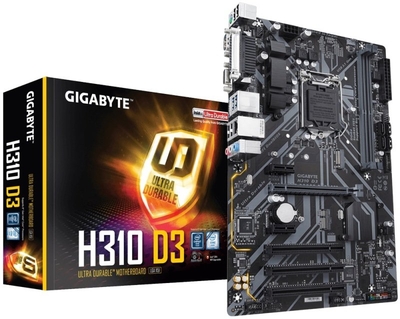

Features Supports 8th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4 8-Channel HD Audio with High Quality Audio Capacitors Ultra-Fast M.2 with PCIe Gen 2 X2 & SATA interface GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management HDMI 1.4, DVI-D, D-Sub Ports for Multiple Display CEC 2019 Ready, Save Power With a Simple Click Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP All new GIGABYTE™ APP Center, simple & easy use Anti-Sulfur Resistors Design GIGABYTE UEFI Dual BIOS™ Overview Exclusive Realtek 8118 Gaming LAN High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance & friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features & the fastest & smoothest Internet experience. Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Hybrid Fan Pin Headers Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Specification CPU Support for 8th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package (Go to GIGABYTEs website for the latest CPU support L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel H310 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i 7/i 5 processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@30 Hz * Support for HDMI 1.4 version & HDCP 2.2. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x 1 slot (The PCI Express x 1 slot conforms to PCI Express 2.0 standard.) 2 x PCI slots Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x 2 SSD support) 4 x SATA 6 Gb/s connectors USB Chipset: 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6 Gb/s connectors 1 x M.2 Socket 3 connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 1 x USB (Universal Serial Bus) 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x 6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x serial port 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green BIOS Setup Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart Time Lock Smart HUD System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 18.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...
