Using high quality components on graphics cards is the key factor for having a long lasting, stable & reliable product. GIGABYTE is again setting a new standard by using Ferrite Core Chokes, Low RDS (on) MOSFET & Lower ESR Solid Capacitors, providing the stability & reliability from their high-end graphics solution. In addition, GIGABYTE Ultra Durable 2 Edition graphics cards now feature a sophisticated layout topology. This state-of-the-art power design from GIGABYTE delivers the ideal integration of thermal, electric characteristics, digital signals, power circuitry & optimum placement of components for enhanced graphics performance. Memory Size
- 2048 MB Memory Bus
- 64 bit Core Clock
- 902 MHz Card Bus
- PCI-E 2.0 Memory Type
- GDDR5 Direct X
- 11.2 Open GL
- 4.4 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (Through HDMI connector) Analog max resolution
- 2048 x 1536 Multi-view
- 3 I/O
- Dual-link DVI-D*1 / HDMI*1 / D-Sub*1 Card size
- H=29 L=177 W=126 mm Power requirement
- 300W













...

Your whole PC experience
- a whole lot faster Accelerate your entire PC experience with a new NVIDIA Ge Force GT 740 graphics card.
...

Features Powered by Ge Force GTX 1050 Integrated with 2GB GDDR5 128bit memory 90mm Fan Design Support up to 8K display @60 Hz Core Boost: 1493 MHz/ Base: 1379 MHz in OC Mode Boost: 1455 MHz/ Base: 1354 MHz in Gaming GIGABYTE custom-designed 90 mm fan cooler, with air flow optimized cover & aluminum base. The cooler can dissipate heat effectively from the GPU while keeping the fan at lower speed & noise. Unique Blade Fan Design The airflow is spilt by the triangle fan edge, & guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans. 3D Active Fan The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. One-click Super overclocking With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment. Specifications Graphics Processing Ge Force GTX 1050 Core Clock Boost: 1493 MHz/ Base: 1379 MHz in OC Mode Boost: 1455 MHz/ Base: 1354 MHz in Gaming Mode Memory Clock 7008 MHz Memory Size 2 GB Memory Type GDDR5 Memory Bus 128 bit Card Bus PCI-E 3.0 x 16 Output Dual-link DVI-D *1 HDMI-2.0b*1 (Max Resolution: 4096x 2160 @60 Hz) Display Port-1.4 *1 (Max Resolution: 7680x 4320 @60 Hz) Digital max resolution 7680x 4320 Multi-view 3 Card size H=30 L=172 W=113 mm PCB Form ATX Direct X 12 Open GL 4.5 Recommended PSU 300W Power Connectors N/A ...

Features Powered by Ge Force GTX 1050 Integrated with 2GB GDDR5 128bit memory WINDFORCE 2X with Blade Fan Design Protection Back Plate Core Boost: 1518 MHz/ Base: 1404 MHz in OC Mode Boost: 1493 MHz/ Base: 1379 MHz in Gaming GIGABYTE custom-designed 90 mm fan cooler, with air flow optimized cover & aluminum base. The cooler can dissipate heat effectively from the GPU while keeping the fan at lower speed & noise. Unique Blade Fan Design The airflow is spilt by the triangle fan edge, & guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans. Alternate Spinning Fan Design Optimize air flow by the alternate spinning fans that reduce air turbulence & effectively dissipate the heat. 3D Active Fan The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. One-click Super overclocking With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment. Specifications Graphics Processing- Ge Force GTX 1050 Ti Boost: 1518 MHz/ Base: 1404 MHz in OC Mode Boost: 1493 MHz/ Base: 1379 MHz in Gaming Process Technology- 16 nm Memory Clock- 7008 MHz Memory Size- 2 GB Memory Type- GDDR5 Memory Bus- 128 bit Card Bus- PCI-E 3.0 x 16 Output- Dual-link DVI-D *1 HDMI-2.0b*3 (Max Resolution: 4096x 2160 @60 Hz) Display Port-1.4 *1 (Max Resolution: 7680x 4320 @60 Hz) Digital max resolution- 7680x 4320 Multi-view- 3 Card size- H=36 L=191 W=111 mm PCB Form- ATX Direct X- 12 Open GL- 4.5 Recommended PSU- 300W Power Connectors- NA ...

Features Powered by Ge Force GTX 1050 Integrated with 2GB GDDR5 128bit memory Low profile design with 167mm card length Supports up to 4 displays Core Clock Boost: 1506 MHz/ Base: 1392 MHz in OC Mode Boost: 1468 MHz/ Base: 1366 MHz in Gaming Mode Overview Low Profile Design Low profile design with 167mm card length saves more spaces & fits slim or smaller system. One-click Super overclocking With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment. Flexible Connectivity Equip with one Dual-link DVI-D, one DP, & two HDMI ports & support up to 4 displays. Ultra Cooling Lower RDS (on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging & discharging at extremely low temperature. Low Power Loss Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss & EMI interference. Longer Life Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance & longer lifespan.

Specification Graphics Processing Ge Force GTX 1050 Core Clock Boost: 1506 MHz/ Base: 1392 MHz in OC Mode Boost: 1468 MHz/ Base: 1366 MHz in Gaming Mode CUDA Cores 640 Memory Clock 7008 MHz Memory Size 2 GB Memory Type GDDR5 Memory Bus 128 bit Card Bus PCI-E 3.0 x 16 Output Dual-link DVI-D *1 HDMI-2.0b*2 (Max Resolution: 4096x 2160 @60 Hz) Display Port-1.4 *1 (Max Resolution: 7680x 4320 @60 Hz) Digital max resolution 7680x 4320 Multi-view 4 Card size H=37 L=167 W=68.9 mm PCB Form Low Profile Direct X 12 Open GL 4.5 Recommended PSU 300W Power Connectors N/A Accessories HDMI+DVI+DP low profile bracket x 1

...

. rm-cont h 2, . rm-row h 2{margin:0 0 10px}.u 1, . u 1-2{float:left}.rm-row{
Width:725px;overflow:hidden;padding:30px 0;border-bottom:1px
...

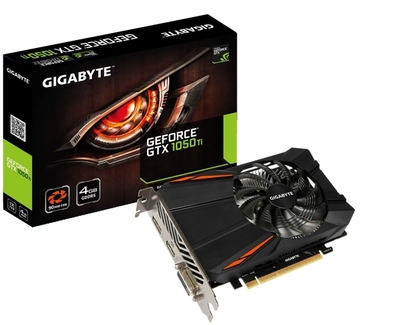

Features Features Powered by Ge Force GTX 1050 Ti Integrated with 4GB GDDR5 128bit memory WINDFORCE 2X with Blade Fan Design Support up to 8K display @60 Hz Core Clock Boost: 1455 M Hz/ Base: 1341 M Hz in OC Mode Boost: 1430 M Hz/ Base: 1316 M Hz in Gaming Overview Game Ready Extraordinary performance. Game-changing experiences. Perfectly tuned. Game Ready with Ge Force GTX 10-Series graphics cards. WINDFORCE 2X Cooling System The WINDFORCE 2X cooling system features two 80mm unique blade fans & semi-passive 3D active fan together delivering an effective heat dissipation capacity for higher performance at lower temperatures. 80mm Unique Blade Fan Design The airflow is spilt by the triangle fan edge, & guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans. 3D Active Fan The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle. Intuitive AORUS Graphics Engine Clock speeds, voltage, fan performance, power target can be monitored & tuned in real-time according to your own preference through this intuitive interface. Download (*rev 1.0 please install Xtreme Engine. * The interface & functionality of the software is subject to each model.)

Specification Graphics Processing Ge Force GTX 1050 Ti Core Clock Boost: 1455 M Hz/ Base: 1341 M Hz in OC Mode Boost: 1430 M Hz/ Base: 1316 M Hz in Gaming CUDA Cores 768 Memory Clock 7008 MHz Memory Size 4 GB Memory Type GDDR5 Memory Bus 128 bit Card Bus PCI-E 3.0 x 16 Output Dual-link DVI-D *1 HDMI-2.0b*1 (Max Resolution: 4096x 2160 @60 Hz) Display Port-1.4 *1 (Max Resolution: 7680x 4320 @60 Hz) Digital max resolution 7680x 4320 Multi-view 3 Card size H=36 L=191 W=111 mm PCB Form ATX Direct X 12 Open GL 4.5 Recommended PSU 300W Power Connectors None

...

Low Profile Design Low profile design with 167mm card length saves more spaces & fits slim or smaller system. One-click Super overclocking With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment. Flexible Connectivity Equip with one Dual-link DVI-D, one DP, & two HDMI ports & support up to 4 displays. Ultra Cooling Lower RDS (on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging & discharging at extremely low temperature. Low Power Loss Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss & EMI interference. Longer Life Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance & longer lifespan. Intuitive XTREME Engine Utility Clock speeds, voltage, fan performance, & power target can be monitored & tuned in real-time according to your own preference through this intuitive interface.

Specification Graphics Processing Ge Force GTX 1050 Ti Core Clock Boost: 1442 MHz/ Base: 1328 MHz in OC Mode Boost: 1417 MHz/ Base: 1303 MHz in Gaming Mode Memory Clock 7008 MHz Memory Size 4 GB Memory Type GDDR5 Memory Bus 128 bit Card Bus PCI-E 3.0 x 16 Output Dual-link DVI-D *1 HDMI-2.0b*2 (Max Resolution: 4096x 2160 @60 Hz) Display Port-1.4 *1 (Max Resolution: 7680x 4320 @60 Hz) Digital max resolution 7680x 4320 Multi-view 4 Card size H=37 L=167 W=68.9 mm PCB Form Low Profile Direct X 12 Open GL 4.5 Recommended PSU 300W Power Connectors N/A

...

Features Powered by Ge Force GTX 1050 Ti Integrated with 4GB GDDR5 128bit memory WINDFORCE 2X with Blade Fan Design Protection Back Plate Core Boost: 1468 MHz/ Base: 1354 MHz in OC Mode Boost: 1442 MHz/ Base: 1328 MHz in Gaming Overview WINDFORCE 2X Cooling System The WINDFORCE 2X cooling system features two 90mm unique blade fans, one pure copper composite heat-pipes, alternate spinning fan design, & heat pipe direct touch technology, together delivering an effective heat dissipation capacity for higher performance at lower temperatures. One-click Super overclocking With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment. Intuitive XTREME Engine Utility Clock speeds, voltage, fan performance, & power target can be monitored & tuned in real-time according to your own preference through this intuitive interface. Download (* The interface & functionality of the software is subject to each model.) Ultra Durable Components Engineered with the highest-grade chokes & capacitors, this graphic card delivers outstanding performance & durable system lifespan. Built for Over Clocking with 4+1 power phases Compared to reference design, the 4+1 power phases on the card make the MOSFET working at a lower temperature & provide more stable voltage output. (*reference design 3+1) Display connections 4 independent screen support across DVI-D, Display Port (1.4) & 3 HDMI (2.0) ports.

Specification Graphics Processing- Ge Force GTX 1050 Ti Core Clock- Boost: 1468 MHz/ Base: 1354 MHz in OC Mode Boost: 1442 MHz/ Base: 1328 MHz in Gaming Process Technology- 16 nm Memory Clock- 7008 MHz Memory Size- 4 GB Memory Type- GDDR5 Memory Bus- 128 bit Card Bus- PCI-E 3.0 x 16 Output- Dual-link DVI-D *1 HDMI-2.0b*3 (Max Resolution: 4096x 2160 @60 Hz) Display Port-1.4 *1 (Max Resolution: 7680x 4320 @60 Hz) Digital max resolution- 7680x 4320 Multi-view- 4 Card size- H=40 L=219 W=118 mm PCB Form- ATX Direct X- 12 Open GL- 4.5 Recommended PSU- 300W Power Connectors- 6 pin*1

...

Promotional keys for Fortnite gear will be sent out via email. These will be sent up to 5 working days after the invoice date. Gigabyte GTX 1060 3GB GDDR5 Dual-link DVI-D HDMI Display Port PCI-E Graphics Card Specifications Core Clock (MHz) OC mode: 1771/1556 MHz (Boost/ Base) Gaming Mode:1746/1531 MHz (Boost/ Base) Shader Clock (MHz) N/A Cuda Core 1152 Mem Clock (MHz) 8008 MHz Mem Size 3072 Mem Bus (bit) 192 bit Mem Type 128 M x 32 GDDR5 Memory (pcs) 6 I/O HDMI (Gold Plated) x 1 Dual-Link DVI-D+DVI-D (iron case) x 1 DP (Gold Plated) x 1 Direct X Open GL Direct X 12 Open GL 4.5 Card Interface PCI Express 3.0 x 16 Board Form ATX 2 slot Fan/ Heat Sink mini-ITX Tools XTREME ENGINE System PSU Limitation 400 GPU (TDP) 120 (Real) Total Graphics Power (TGP) 140.00 (Real) PCB Size 169.99x 121.11 mm Card Size H=38 L=169 W=131 mm ...
