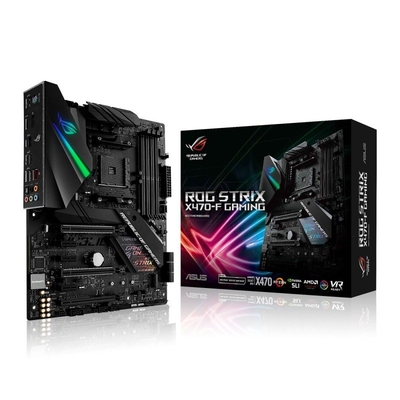

Asus ROG STRIX X470-F GAMING AM4 DDR4 ATX Motherboard

Product Description

Features AM4 Socket for AMD Ryzen™ processors Synchronized RGB lighting technology works with a vast portfolio of Aura Sync-capable PC gear &

Includes:: support for addressable light strips & Phillip Hue Onboard M.2 Heatsink provides cooling for the M.2 drive, delivering consistent storage performance & enhanced reliability Gaming connectivity: Intel Gigabit Ethernet, LANGaurd, dual M.2, USB (Universal Serial Bus) 3.1 Gen 2 5-Way Optimization: Automated system-wide tuning, providing overclocking & cooling profiles that are tailor made for your rig Gaming audio: Supreme FX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action. Gamer’s Guardian: Pre-Mounted I/O Shield, ASUS Safe Slot & premium components for maximum endurance. Overview CYBER OUTLOOK The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But its not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a satisfying premium touch. PRE-MOUNTED I/O SHIELD The patent-pending ROG pre-mounted I/O shield offers increased protection against electrostatic discharge of up to 12k V & is pre-fitted to make it even easier to install the motherboard. Its sleek new design makes it look as good as it performs. PERFORMANCE Experience great performance through comprehensive cooling controls, fast storage, & exclusive technologies that enhance memory reliability & speed. AUDIO Built-in gaming audio means youre ready to play, chat, stream or kick back with videos — right out of the gate. & included smart routing technology means that you can direct various audio streams to different devices.

Specification CPU AMD AM4 Socket AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-series/ Athlon X4 Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list Chipset AMD X470 Memory AMD Ryzen™ 2nd Generation Processors 4 x DIMM, Max. 64GB, DDR4 3466 (O.C.)/3200 (O.C.)/3000 (O.C.)/2933 (O.C.)/2800 (O.C.)/2666/2400/2133 MHz Un-buffered Memory * AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 4 x DIMM, Max. 64GB, DDR4 3200 (O.C.)/3000 (O.C.)/2933 (O.C.)/2800 (O.C.)/2666/2400/2133 MHz Un-buffered Memory * AMD 7th Generation A-Series/ Athlon X4 Processors 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Multi-GPU Support Supports NVIDIA 2-Way SLI™ Technology Supports AMD 3-Way Cross Fire X™ Technology Expansion Slots AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 2 x PCIe 3.0 x 16 (x 16 or dual x 8) AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/ Athlon X4 Processors 1 x PCIe 3.0 x 16 (x 8 mode) AMD X470 chipset 1 x PCIe 2.0 x 16 (max at x 4 mode) * 3 x PCIe 2.0 x 1 Storage AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/ Athlon™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) AMD X470 chipset: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) 6 x SATA 6 Gb/s port (s), LAN Intel I211-AT, 1 x Gigabit LAN Controller (s) Anti-surge LANGuard ROG Game First Technology Audio Supreme FX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front & rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 d B SNR stereo playback output & 113 d B SNR recording input
- Supreme FX Shielding Technology
- Supports up to 32-Bit/192k Hz playback * Audio Feature :
- Optical S/PDIF out port (s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link USB (Universal Serial Bus) Ports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/ Athlon X4 Processors: 4 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) (4 at back panel, blue) AMD X470 chipset: 1 x USB (Universal Serial Bus) 3.1 Gen 2 front panel connector port (s) AMD X470 chipset: 4 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) (2 at back panel, , 2 at mid-board) AMD X470 chipset: 4 x USB (Universal Serial Bus) 2.0 port (s) (4 at mid-board) ASMedia USB (Universal Serial Bus) 3.1 Gen 2 controller: 2 x USB (Universal Serial Bus) 3.1 Gen 2 port (s) (2 at back panel, red, Type-A) ROG Exclusive Features ROG RAMCache II ROG CPU-Z Overwolf Game First IV Special Features 5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, & Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling & even tailor your own app usages. TPU
- Auto Tuning, Turbo V, GPU Boost Gamers Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- Safe Slot
- ESD Guards on LAN, Audio, and USB (Universal Serial Bus) ports ASUS EPU :
- EPU AURA :
- Aura Lighting Control ASUS Exclusive Features :
- AI Suite 3
- Ai Charger ASUS EZ DIY :
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3 ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM Gaming Aesthetics :
- AURA-RGB Lighting Back I/O Ports 1 x PS/2 keyboard/mouse combo port (s) 1 x Display Port 1 x HDMI 2 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A, 6 x USB (Universal Serial Bus) 3.1 Gen 1 1 x Optical S/PDIF out 5 x Audio jack (s) Anti-surge LAN (RJ45) port Internal I/O Ports 1 x Aura Addressable Strip Header (s) 2 x RGB Header (s) 2 x USB (Universal Serial Bus) 2.0 connector (s) support (s) additional 4 USB (Universal Serial Bus) 2.0 port (s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x TPM connector (s) 6 x SATA 6 Gb/s connector (s) 1 x CPU Fan connector (s) 1 x CPU OPT Fan connector (s) 3 x Chassis Fan connector (s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector (s) 1 x 8-pin ATX 12V Power connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x Thermal sensor connector (s) 1 x Clear CMOS jumper (s) 1 x System panel connector 1 x COM port header 1 x USB (Universal Serial Bus) 3.1 Gen 2 front panel connector 1 x USB (Universal Serial Bus) 3.1 Gen 1 connector (s) support (s) additional 2 USB (Universal Serial Bus) 3.1 Gen 1 port (s) Accessories Users manual 4 x SATA 6 Gb/s cable (s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Strix door hanger 1 x SLI HB BRIDGE (2-WAY-M) 1 x ROG Strix stickers 1 x Cable ties pack (s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED BIOS 256 Mb Flash ROM, UEFI AMI BIOS, Pn P, Wf M2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, Crash Free BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 Print Screen, Secure Erase, User Profile, F4 AURA ON/OFF, F9 Search, & ASUS DRAM SPD (Serial Presence Detect) memory information. Manageability WOL, WOR, PXE Support Disc Drivers ASUS Utilities Anti-virus software (OEM version) Operating System Windows 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm ) Note *1 PCIe X16_3 slot shares bandwidth with PCIe X1_1 & PCIe X1_3. *2 M.2_2 socket shares PCIe clock with PCIe X1_1, when PCIe X1_1 or PCIe X1_3 are occupied, M.2_2 only can support SATA mode. *3 Due to limitations in HDA bandwidth, 32-Bit/192k Hz is not supported for 8-Channel audio.
