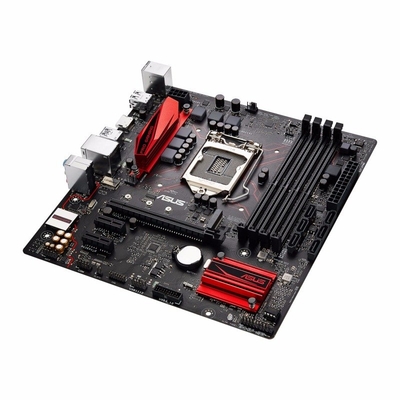

Features • LGA1151 socket for 6th-generation Intel Core™ i 7 / Core i 5 / Core i 3, Pentium & Celeron processors. • Dual-channel DDR4 2133 support. • Supreme FX: Flawless audio that makes you part of the game. • Intel Gigabit Ethernet & LANGuard: Top-speed protected networking. • M.2: Ultra-speedy transfers for faster gaming. • Gamers Guardian: Highly-durable components & smart DIY features. Specifications CPU Intel for 6th Generation Core™ i 7/ Core™ i 5/ Core™ i 3/ Pentium/ Celeron Processors Chipset Intel B150 Memory 4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory Graphic Integrated Graphics Processor- Intel HD Graphics support VGA output support: HDMI port
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz Maximum shared memory of 1024 MB Supports Intel In Tru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Expansion Slots 1 x PCIe 3.0/2.0 x 16 (x 16 mode) 2 x PCIe 3.0/2.0 x 1 Storage Intel B150 chipset: 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*1 LAN Intel I219V Anti-surge LANGuard Audio Supreme FX 8-Channel High Definition Audio CODEC *2
- Supports: Jack-detection, Front Panel MIC Jack-retasking
- High quality 115 d B SNR stereo playback output Audio Feature :
- Supreme FX Shielding™ Technology USB (Universal Serial Bus) Ports Intel B150 chipset: 6 x USB (Universal Serial Bus) 3.0/2.0 port (s) Intel B150 chipset: 6 x USB (Universal Serial Bus) 2.0/1.1 port (s) Special Features Gamers Guardian:
- ESD Guards on LAN, Audio, KBMS & USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB (Universal Serial Bus) 3.0 Boost
- Disk Unlocker ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert ASUS EZ DIY :
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3
- Push Notice ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM Media Streamer Operating System Support Windows 10, 64bit Windows 8.1, 64bit Windows 7, 32bit/64bit Back I/O Ports 1 x PS/2 keyboard/mouse combo port (s) 1 x HDMI 1 x LAN (RJ45) port (s) 4 x USB (Universal Serial Bus) 3.0 4 x USB (Universal Serial Bus) 2.0 3 x Audio jack (s) Internal I/O 1 x USB (Universal Serial Bus) 3.0 connector (s) support (s) additional 2 USB (Universal Serial Bus) 3.0 port (s) 1 x USB (Universal Serial Bus) 2.0 connector (s) support (s) additional 2 USB (Universal Serial Bus) 2.0 port (s) 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 1 x COM port (s) connector (s) 6 x SATA 6 Gb/s connector (s) 1 x CPU Fan connector (s) 1 x Chassis Fan connector (s) 1 x 24-pin EATX Power connector (s) 1 x 8-pin ATX 12V Power connector (s) 1 x Front panel connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x Clear CMOS jumper (s) 1 x 14-1 pin TPM connector Accessories Users manual ASUS Q-Shield 2 x SATA 6 Gb/s cable (s) 1 x M.2 Screw Package 1 x pack of cable tie 1 x Supporting DVD 1 x 12 in 1 Cable Label (s) BIOS 128 Mb Flash ROM, UEFI AMI BIOS, Pn P, DMI 3.0, Wf M 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, Crash Free BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 Print Screen function, & ASUS DRAM SPD (Serial Presence Detect) memory information Manageability Wf M 2.0, DMI 3.0, WOL by PME, PXE Support Disc Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) Form Factor m ATX Form Factor 9.2 inch x 8.6 inch (23.4 cm x 21.8 cm ) Note *1: When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled. *2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
