Premium Gold Caps (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors Digi Power, Advanced V16 + 2 Power Phase Design Supports Intel K-Series unlocked CPU Supports Dual Channel DDR3 2133 (OC) Integrated PLX PEX8608 chip onboard to offer sufficient PCI-E lanes Supports ATI Quad Cross Fire X, 3-Way Cross Fire X & Cross Fire X Supports NVIDIA Quad SLI & SLI Dual PCIE GLAN with Teaming function 1 x Fatal 1ty Mouse Port, 2 x Front USB (Universal Serial Bus) 3.0 ports, 4 x Rear USB (Universal Serial Bus) 3.0 ports, 6 x SATA3 connectors, 1 x e SATA3 connector, 2 x IEEE 1394 ports Dr. Debug, Smart Switch Design: Power/ Reset/ Clear CMOS Switch with LED Supports Fatal 1ty XFast RAM, XFast LAN, XFast USB (Universal Serial Bus) Technologies Supports Fatal 1ty F-Stream, Graphical UEFI, Instant Boot, Instant Flash, Good Night LED, APP Charger Combo Cooler Option (C.C.O.) 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), THX Tru Studio PRO & Premium Blu-ray audio support Free Bundle: 1 x SLI_ Bridge_2S Card, 1 x Front USB (Universal Serial Bus) 3.0 Panel, 1 x Rear USB (Universal Serial Bus) 3.0 Bracket Product Specifications CPU Supports 2nd Generation Intel Core™ i 7 / i 5 / i 3 in LGA1155 Package Advanced V16 + 2 Power Phase Design Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPU Supports Hyper-Threading Technology Chipset Intel P67 Memory Dual Channel DDR3 memory technology 4 x DDR3 DIMM slots Supports DDR3 2133 (OC)/1866 (OC)/1600/1333/1066 non-ECC, un-buffered memory Max. capacity of system memory: 32GB* Supports Intel Extreme Memory Profile (XMP) * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS 64 Mb AMI UEFI Legal BIOS with GUI support Supports " Plug & Play" ACPI 1.1 Compliance Wake Up Events Supports jumperfree SMBIOS 2.3.1 Support DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment Audio 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) Premium Blu-ray audio support Supports THX Tru Studio PRO LAN PCIE x 1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111E Supports Wake-On-LAN Supports LAN Cable Detection Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE Slots 3 x PCI Express 2.0 x 16 slots (PCIE2/PCIE4: Single at x 16 (PCIE2) / x 8 (PCIE4), or dual at x 8 (PCIE2) / x 8 (PCIE4); PCIE5: x 4 mode) 2 x PCI Express 2.0 x 1 slots 2 x PCI slots Supports ATI Quad Cross Fire X, 3-Way Cross Fire X & Cross Fire X Supports NVIDIA Quad SLI & SLI SATA3 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 & Intel Rapid Storage), NCQ, AHCI & " Hot Plug" functions 4 x SATA3 6.0 Gb/s connectors by Marvell SE9120, support NCQ, AHCI & " Hot Plug" functions (SATA3_M4 connector is shared with e SATA3 port) USB (Universal Serial Bus) 3.0 4 x Rear USB (Universal Serial Bus) 3.0 ports by Etron EJ168A, support USB (Universal Serial Bus) 1.0/2.0/3.0 up to 5 Gb/s 1 x Front USB (Universal Serial Bus) 3.0 header (supports 2 USB (Universal Serial Bus) 3.0 ports) by Etron EJ168A, supports USB (Universal Serial Bus) 1.0/2.0/3.0 up to 5 Gb/s Connector 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 & Intel Rapid Storage), NCQ, AHCI & Hot Plug functions 6 x SATA3 6.0 Gb/s connectors 1 x ATA133 IDE connector (supports 2 x IDE devices) 1 x Floppy connector 1 x IR header 1 x COM port header 1 x HDMI_SPDIF header 1 x IEEE 1394 header 1 x Power LED header CPU/ Chassis/ Power FAN connector 24 pin ATX power connector 8 pin 12V power connector CD in header Front panel audio connector 4 x USB (Universal Serial Bus) 2.0 headers (support 8 USB (Universal Serial Bus) 2.0 ports) 1 x USB (Universal Serial Bus) 3.0 header (supports 2 USB (Universal Serial Bus) 3.0 ports) 1 x Dr. Debug with LED I/O Panel 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x Coaxial SPDIF Out Port 1 x Optical SPDIF Out Port 3 x Ready-to-Use USB (Universal Serial Bus) 2.0 Ports 1 x Fatal 1ty Mouse Port (USB 2.0) 1 x e SATA3 Connector 4 x Ready-to-Use USB (Universal Serial Bus) 3.0 Ports 2 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED) 1 x IEEE 1394 Port 1 x Clear CMOS Switch with LED HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Unique Feature F-Stream Instant Boot Instant Flash AIWI APP Charger Hybrid Booster: CPU Frequency Stepless Control ASRock U-COP Boot Failure Guard (B.F.G.) Combo Cooler Option (C.C.O.) Good Night LED Smart Switch 1 x Power Switch with LED 1 x Reset Switch with LED 1 x Clear CMOS Switch with LED Support CD Drivers, Utilities, Anti Virus Software (Trial Version), Software Suite (Cyber Link DVD Suite
- OEM & Trial) Accessories 1 x SLI_ Bridge_2S Card Quick Installation Guide, Support CD, I/O Shield Floppy/ATA 133 Cables 6 x SATA Data Cables 2 x SATA 1 to 1 Power Cables 1 x Front USB (Universal Serial Bus) 3.0 Panel 4 x HDD Screws 6 x Chassis Screws 1 x Rear USB (Universal Serial Bus) 3.0 Bracket Hardware Monitor CPU Temperature Sensing Chassis Temperature Sensing CPU/ Chassis/ Power Fan Tachometer CPU/ Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU or MB Temperature) CPU/ Chassis Fan Multi-Speed Control Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors) OS Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant Certifications FCC, CE, WHQL Er P/ Eu P Ready (Er P/ Eu P ready power supply is required)
...

Available

Features ASRock Super Alloy Gaming Armor: Power / Memory / VGA / Internet / Cooling / Audio Supports Intel Core™ X-Series Processor Family for the LGA 2066 Socket 11 Power Phase design, Digi Power Supports DDR4 4400+ (OC) 4 PCIe 3.0 x 16, 1 PCIe 3.0 x 1 NVIDIA 3-Way SLI™, AMD 3-Way Cross Fire X™ 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 3 8 SATA3, 3 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 2 USB (Universal Serial Bus) 3.1 Gen 2 10 Gb/s (1 Type-A + 1 Type-C), 8 USB (Universal Serial Bus) 3.1 Gen 1 (4 Front, 4 Rear) Dual Intel Gigabit LAN ASRock RGB LED Hyper BCLK Engine III Overview PCI-E STEEL SLOTS The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely. RGB LED Build your own colorful lighting system! RGB LED & header allows users to connect LED strip & create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop! Triple Ultra M.2 Triple of the world’s fastest PCIe Gen 3 x 4 Ultra M.2 slots that deliver up to 32 Gb/s transfer speed, it also supports SATA3 6 Gb/s M.2 modules. * Performance result may vary with a different configuration. 13 Power Phase Design Designed with a 13 Power Phase design, this motherboard features sturdy components & completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities & enhanced performance with the lowest temperature for advanced gamers as well. Dr. MOS Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current & temperature of each phase, thus delivering smoother & neater power to the CPU with enhanced performance & OC capability.

Specification Gaming Armor Power
- Hi-Density Power Connectors (24 pin & 8 pin)
- Dr. MOS Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 & PCIE3) Internet
- Intel LAN Cooling
- XXL Aluminum Alloy Heatsink
- 8 Layer PCB Audio
- Creative Sound Blaster™ Cinema 3 Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s)
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Dr. MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Supports Intel Core™ X-Series Processor Family for the LGA 2066 Socket
- Digi Power design
- 11 Power Phase design
- Supports Intel Turbo Boost Max Technology 3.0*
- Supports ASRock Hyper BCLK Engine III * Please note that the 4-Core processors only support Intel Turbo Boost Technology 2.0. Chipset
- Intel X299 Memory
- Quad Channel DDR4 Memory Technology
- 8 x DDR4 DIMM Slots
- Supports DDR4 4400+ (OC)* / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3200 (OC) / 2933 (OC) / 2800 (OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports non-ECC RDIMM (Registered DIMM)
- Max. capacity of system memory: 128GB*
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots * The maximum memory frequency supported may vary by processor type. ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. Please refer to Memory Support List on ASRocks website for more information. BIOS
- 2 x 128 Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 6.1 Compliant wake up events
- SMBIOS 3.0 Support
- CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD, PEGRCOMP Voltage Multi-adjustment Graphics
- n/a Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120d B SNR DAC with Differential Amplifier
- TI NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Front Out port
- Individual PCB Layers for R/L Audio Channel
- 15μ Gold Audio Connector
- Supports Creative Sound Blaster™ Cinema 3 LAN
- Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel I219V, 1 x Giga LAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Slots
- 4 x PCI Express 3.0 x 16 Slots*
- 1 x PCI Express 3.0 x 1 Slot**
- Supports AMD Quad Cross Fire X™, 3-Way Cross Fire X™ & Cross Fire X™***
- Supports NVIDIA Quad SLI™, 3-Way SLI™ & SLI™***
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 & PCIE3) ** If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x 16/x 4/x 16/x 8. If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x 16/x 4/x 8/x 0. If you install CPU with 16 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x 16/x 4/x 0/x 0 or x 8/x 4/x 8/x 0. Supports NVMe SSD as boot disks ** If PCIE4 slot is occupied, M2_2 slot will support M.2 PCI Express module up to Gen 3 x 2 (16 Gb/s). ***3-Way Cross Fire X™ & 3-Way SLI™ are only supported with CPU with 44 lanes. Storage
- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15 & Intel Smart Response Technology), NCQ, AHCI & Hot Plug*
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)**
- 2 x Ultra M.2 Sockets (M2_1 & M2_3), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** * If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. If M2_3 is occupied by a SATA-type M.2 device, SATA3_4 & SATA3_5 will be disabled. If M2_3 is occupied by a PCIe-type M.2 device, SATA3_4, SATA3_5, SATA3_6 & SATA3_7 will be disabled. ** If PCIE4 slot is occupied, M2_2 slot will support M.2 PCI Express module up to Gen 3 x 2 (16 Gb/s). Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector
- 1 x Virtual RAID On CPU Header
- 1 x TPM Header
- 1 x Power LED & Speaker Header
- 2 x RGB LED Headers*
- 1 x CPU Fan Connector (4-pin)**
- 1 x CPU Optional/ Water Pump Fan Connector (4-pin)***
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x Chassis Optional/ Water Pump Fan Connector (4-pin)****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin)
- 3 x USB (Universal Serial Bus) 2.0 Headers (Support 6 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Headers (Support 4 USB (Universal Serial Bus) 3.1 Gen 1 ports) (ASMedia ASM1074 Hub) (Supports ESD Protection)
- 1 x Dr. Debug with LED * Support up to 12V/3A, 36W LED Strip ** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *** The CPU Optional/ Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. **** The Chassis Optional/ Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. CHA_FAN1 & CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 1 x PS/2 Mouse/ Keyboard Port
- 1 x Optical SPDIF Out Port
- 4 x USB (Universal Serial Bus) 2.0 Ports (Supports ESD Protection)*
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
- 4 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED)
- 1 x Clear CMOS Switch
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone * 1 x Fatal 1ty Mouse Port (USB 2.0) is included Software & UEFI Software
- ASRock F-Stream
- ASRock RGB LED
- ASRock Key Master
- ASRock APP Charger
- ASRock XFast LAN* UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x ASRock SLI_HB_ Bridge_2S Card
- 1 x ASRock 3-Way SLI-2S1S Bridge Card
- 3 x Screws for Ultra M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Fan Tachometer: CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCSFR Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required) The

Specification is subject to change without notice in advance. The brand & product names are trademarks of their respective companies. Any configuration other than original product

Specification is not guaranteed. The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.

...

Available

Features ASRock Super Alloy Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) & Ryzen CPUs (Summit Ridge) Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU) 2 PCIe 3.0 x 16, 4 PCIe 2.0 x 1, 1 M.2 (Key E) NVIDIA Quad SLI™, AMD Quad Cross Fire X™ Graphics Output:HDMI 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 3 6 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4 & SATA3), 1 M.2 (PCIe Gen 2 x 2 & SATA3) 12 USB (Universal Serial Bus) 3.1 Gen 1 (1 Type-C, 4 Front, 1 Fatal 1ty Mouse Port, 6 Rear) Intel Gigabit LAN Overview FOR GAMERS Motherboards with enhanced audio & graphics design, plus enhanced stability, specifically tailored for gamers. RGB LED Build your own colorful lighting system! RGB LED & header allows users to connect LED strip & create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop! Creative Sound Blaster™ Cinema 3 Sound Blaster™ Cinema 3 is the latest software that is designed with SBX Pro Studio to deliver a holistic audio experience. Whether youre gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers. Intel LAN Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability & is able to deliver ultimate network experience to users! PCI-E STEEL SLOTS The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

Specification Gaming Armor Power
- Hi-Density Power Connectors (24 pin & 8 pin) Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE2) Internet
- Intel LAN Cooling
- XXL Aluminum Alloy Heatsink Audio
- Creative Sound Blaster™ Cinema 3 Unique Feature ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 45A Power Choke
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) & Ryzen Series CPUs (Summit Ridge)
- Digi Power design
- 12 Power Phase design
- Supports 95W Water Cooling Chipset
- AMD Promontory X370 Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs support DDR4 3200+ (OC)/2933 (OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- 15μ Gold Contact in DIMM Slots * Please refer to Memory Support List on ASRocks website for more information. Please refer to below table for DDR4 UDIMM maximum frequency support. A-Series APUs: UDIMM Memory Slot Frequency (MHZ) A1 A2 B1 B2 - SR - - 2400 - DR - - 2400 - SR - SR 2400 - DR - DR 2133 SR SR SR SR 1866 SR/DR DR SR/DR DR 1866 Ryzen Series CPUs: UDIMM Memory Slot Frequency (MHZ) A1 A2 B1 B2 - SR - - 2667 - DR - - 2667 - SR - SR 2667 - DR - DR 2400-2667 SR SR SR SR 2133-2400 SR/DR DR SR/DR DR 1866-2133 SR: Single rank DIMM, 1 Rx 4 or 1 Rx 8 on DIMM module label DR: Dual rank DIMM, 2 Rx 4 or 2 Rx 8 on DIMM module label ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 128 Mb AMI UEFI Legal BIOS with GUI support
- Supports " Plug & Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment Graphics
- Integrated AMD Radeon™ R-Series Graphics in A-series APU*
- Direct X 12, Pixel Shader 5.0
- Max. shared memory 2GB
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 24 Hz / (3840x 2160) @ 30 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port * Actual support may vary by CPU Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120d B SNR DAC with Differential Amplifier
- TI NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Line Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Supports Creative Sound Blaster™ Cinema 3 LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga LAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Slots AMD Ryzen series CPUs
- 2 x PCI Express 3.0 x 16 Slots (single at x 16 (PCIE2); dual at x 8 (PCIE2) / x 8 (PCIE4))* AMD 7th A-Series APUs
- 1 x PCI Express 3.0 x 16 Slot (single at x 8 (PCIE2))*
- 4 x PCI Express 2.0 x 1 Slots
- Supports AMD Quad Cross Fire X™ & Cross Fire X™**
- Supports NVIDIA Quad SLI™ & SLI™**
- 1 x M.2 Socket (Key E), supports type 2230 Wi Fi/BT module
- 15μ Gold Contact in VGA PCIe Slot (PCIE2) * Supports NVMe SSD as boot disks ** This feature is only supported with Ryzen Series CPUs (Summit Ridge). Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 & RAID 10), NCQ, AHCI & Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s) (with Ryzen Series CPU) or Gen 3 x 2 (16 Gb/s) (with A-Series APU)*
- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 2 x 2 (10 Gb/s)* * Supports ASRock U.2 Kit Supports NVMe SSD as boot disks Connector
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED & Speaker Header
- 1 x AMD Fan LED Header*
- 2 x RGB LED Headers*
- 1 x CPU Fan Connector (4-pin)**
- 1 x CPU Optional/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x Chassis Optional/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x AMD LED Fan USB (Universal Serial Bus) Header
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Headers (Support 4 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection)
- 1 x Dr. Debug with LED * Supports in total up to 12V/3A, 36W LED Strip The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) & length up to 2.5M. ** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *** The CPU Optional/ Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. **** The Chassis Optional/ Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Type-A Port (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Type-C Port (Supports ESD Protection)
- 6 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)*
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *1 x Fatal 1ty Mouse Port (USB 3.1 Gen 1) is included Software & UEFI Software
- ASRock F-Stream
- ASRock RGB LED
- ASRock Key Master
- ASRock APP Charger
- ASRock XFast LAN* UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x ASRock SLI_HB_ Bridge_2S Card
- 3 x Screws for M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Fan Tachometer: CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE, WHQL
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

...

Available

Features ASRock Super Alloy Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) & Ryzen Series CPUs (Summit Ridge) Supports DDR4 3466+ (OC) (Ryzen CPU) / 2400 (A-series APU) 1 PCIe 3.0 x 16 Graphics Output: 2 HDMI 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 3 4 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4) 6 USB (Universal Serial Bus) 3.1 Gen 1 (1 Type-C, 2 Front, 3 Rear) Intel Gigabit LAN Intel 802.11ac+ BT 4.2 Overview RGB LED Build your own colorful lighting system! RGB LED & header allows users to connect LED strip & create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop! 2T2R 802.11ac Wi Fi Dual Band (2.4/5 GHz) No one has time for weak Wi Fi signals & sluggish internet! Thats why this motherboard comes with an exclusive 2T2R 802.11ac Wi Fi (2.4G / 5G Wi Fi) module that supports up to 867 Mbps wireless networks & Bluetooth v 4.2. Experience up to 289% speed boost compared to your old Wi Fi! Creative Sound Blaster™ Cinema 3 Sound Blaster™ Cinema 3 is the latest software that is designed with SBX Pro Studio to deliver a holistic audio experience. Whether youre gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers. Intel LAN Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability & is able to deliver ultimate network experience to users!

Specification Gaming Armor Power
- Hi-Density Power Connector (8 pin) Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1) Internet
- Intel LAN Cooling
- 2oz Copper PCB Audio
- Creative Sound Blaster™ Cinema 3 Unique Feature ASRock Super Alloy
- Premium Power Choke
- Dual-N MOSFET
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB Intel 802.11ac Wi Fi ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) & Ryzen Series CPUs (Summit Ridge)
- Digi Power design
- 8 Power Phase design
- Supports 95W Water Cooling Chipset
- AMD Promontory X370 Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs support DDR4 3466+ (OC) / 3200 (OC) / 2933 (OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered memory**
- Max. capacity of system memory: 32GB**
- 15μ Gold Contact in DIMM Slots * Please refer to below table for DDR4 UDIMM maximum frequency support. A-Series APUs: UDIMM Memory Slot Frequency (MHZ) A1 B1 - SR 2400 SR - 2400 - DR 2400 DR - 2400 SR SR 2400 DR DR 2400 Ryzen Series CPUs: UDIMM Memory Slot Frequency (MHZ) A1 B1 - SR 2667 SR - 2667 - DR 2667 DR - 2667 SR SR 2667 DR DR 2667 SR: Single rank DIMM, 1 Rx 4 or 1 Rx 8 on DIMM module label DR: Dual rank DIMM, 2 Rx 4 or 2 Rx 8 on DIMM module label ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. Please refer to Memory Support List on ASRocks website for more information. BIOS
- 128 Mb AMI UEFI Legal BIOS with GUI support
- Supports " Plug & Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment Graphics
- Integrated AMD Radeon™ R-Series Graphics in A-series APU*
- Direct X 12, Pixel Shader 5.0
- Max. shared memory 2GB
- Supports 2 x HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 24 Hz / (3840x 2160) @ 30 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Ports (Compliant HDMI monitor is required)
- Supports HDCP with HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Ports * Actual support may vary by CPU Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120d B SNR DAC with Differential Amplifier
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Line Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Supports Creative Sound Blaster™ Cinema 3 LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga LAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Wireless LAN
- Intel 802.11ac Wi Fi Module (Free Bundle)
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 867 Mbps
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 4.2 / 3.0 + High speed class II Slots AMD Ryzen series CPUs
- 1 x PCI Express 3.0 x 16 Slot (PCIE1: x 16 mode)* AMD 7th A-Series APUs
- 1 x PCI Express 3.0 x 16 Slot (PCIE1: x 8 mode)*
- 1 x Vertical M.2 Socket (Key E) with the bundled Wi Fi-802.11ac module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1) * Supports PCIe riser cards to extend one x 16 slot to two x 8 slots if you install AMD Ryzen series CPUs Supports NVMe SSD as boot disks Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 & RAID 10), NCQ, AHCI & Hot Plug
- 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s) (with Ryzen Series CPU) or Gen 3 x 2 (16 Gb/s) (with A-Series APU)* * Supports NVMe SSD as boot disks Connector
- 1 x LPC Header
- 1 x AMD Fan LED Header*
- 1 x CPU Fan Connector (4-pin)**
- 1 x Chassis Fan Connector (4-pin)
- 1 x Chassis Optional/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x AMD LED Fan USB (Universal Serial Bus) Header
- 1 x USB (Universal Serial Bus) 2.0 Header (Supports 2 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Header (Supports 2 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection) * The AMD Fan LED Connector supports LED strip of maximum 3A (36W) & LED strip length up to 2.5M. ** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *** The Chassis Optional/ Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. CHA_FAN1/W_PUMP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/ Keyboard Port
- 2 x HDMI Ports
- 1 x Optical SPDIF Out Port
- 2 x USB (Universal Serial Bus) 2.0 Ports (Supports ESD Protection)*
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Type-A Port (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Type-C Port (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *1 x Fatal 1ty Mouse Port (USB 2.0) is included Software & UEFI Software
- ASRock F-Stream
- ASRock RGB LED
- ASRock Key Master
- ASRock APP Charger
- ASRock XFast LAN* UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x ASRock Wi Fi 2.4/5 GHz Antenna
- 1 x Screw for M.2 Socket Hardware Monitor
- Temperature Sensing: CPU, Chassis, Chassis Optional/ Water Pump Fans
- Fan Tachometer: CPU, Chassis, Chassis Optional/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis Optional/ Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/ Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- 2oz Copper PCB OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

...

Available

Features ASRock Super Alloy Gaming Armor: Power / Memory / VGA / Internet / Cooling / Audio Supports AMD TR4 Socket Ryzen Threadripper Series CPUs IR Digital PWM, 11 Power Phase & Dr. MOS Supports Quad Channel DDR4 3600+ (OC) & ECC UDIMM Memory 4 PCIe 3.0 x 16, 1 PCIe 2.0 x 1 NVIDIA 4-Way SLI™, AMD 4-Way Cross Fire X™ 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 3 8 SATA3, 3 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 2 USB (Universal Serial Bus) 3.1 Gen 2 10 Gb/s (1 Type-A + 1 Type-C), 12 USB (Universal Serial Bus) 3.1 Gen 1 (4 Front, 8 Rear) 1 U.2 Connector AQUANTIA 10 Gigabit LAN, Dual Intel Gigabit LAN Intel 802.11ac Wi Fi ASRock RGB LED BIOS Flashback Hyper BCLK Engine III Overview AQUANTIA 10 Gb/s BASE-T Ethernet The new 10 Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIAs AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat 6 cable. The 10 Gb/s Ethernet not only fully compatible with 5 Gb/s, 2.5 Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation & gaming PC. 11 Power Phase Design Designed with an 11-Power-Phase Design, this motherboard features sturdy components & completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities & enhanced performance with the lowest temperature for advanced gamers as well. Dr. MOS Dr. MOS is optimized for monitoring current & temperature of each phase, thus delivering smoother & neater power to the CPU with enhanced performance & OC capability. Separated CPU Power Connector Design Unlike traditional dual CPU power connectors which are located closely together at the same side, ASRock separates them to either side of motherboard in order to create wider trace for CPU VRM. This design brings better power delivery efficiency & lower temperature, thus improving system stability & increasing overclocking potential.

Specification Gaming Armor Power
- Hi-Density Power Connectors (24 pin for Motherboard, 8+4 pin for Motherboard, 6 pin for PCIe Slot)
- IR Dr. MOS Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 & PCIE4) Internet
- AQUANTIA 10G LAN
- Intel LAN Cooling
- XXL Aluminum Alloy Heatsink
- 8 Layer PCB
- 2oz Copper PCB
- Heat Pipe Design Audio
- Creative Sound Blaster™ Cinema 3 Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s)
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- IR3555M Dr. MOS 60A
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB AQUANTIA 10G LAN Intel 802.11ac Wi Fi ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Ultra USB (Universal Serial Bus) Power ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Supports AMD TR4 Socket Ryzen Threadripper Series CPUs
- IR Digital PWM
- 11 Power Phase design
- Supports ASRock Hyper BCLK Engine III Chipset
- AMD X399 Memory
- Quad Channel DDR4 Memory Technology
- 8 x DDR4 DIMM Slots
- Supports DDR4 3600+ (OC)/3200 (OC)/2933 (OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory (U-DIMM)
- Max. capacity of system memory: 128GB*
- 15μ Gold Contact in DIMM Slots * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 128 Mb AMI UEFI Legal BIOS with GUI support
- Supports " Plug & Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment Graphics
- n/a Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120d B SNR DAC with Differential Amplifier
- TI NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Line Out port
- Individual PCB Layers for R/L Audio Channel
- RGB LED
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Supports Creative Sound Blaster™ Cinema 3 LAN 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (AQUANTIA AQC107):
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports PXE 2 x Intel Gigabit LAN 10/100/1000 Mb/s (2 x Intel I211AT):
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Wireless LAN
- Intel 802.11ac Wi Fi Module (Free Bundle)
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433 Mbps
- Supports Bluetooth 4.2 / 3.0 + High speed class II Slots
- 4 x PCI Express 3.0 x 16 Slots (PCIE1/PCIE2/PCIE4/PCIE5: single at x 16 (PCIE1); dual at x 16 (PCIE1) / x 16 (PCIE4); triple at x 16 (PCIE1) / x 8 (PCIE2) / x 16 (PCIE4); quad at x 16 (PCIE1) / x 8 (PCIE2) / x 16 (PCIE4) / x 8 (PCIE5))*
- 1 x PCI Express 2.0 x 1 Slot
- Supports AMD Quad Cross Fire X™, 4-Way Cross Fire X™, 3-Way Cross Fire X™ & Cross Fire X™
- Supports NVIDIA Quad SLI™, 4-Way SLI™, 3-Way SLI™ & SLI™
- 1 x Vertical M.2 Socket (Key E) with the bundled Wi Fi-802.11ac module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 & PCIE4) * Supports NVMe SSD as boot disks Storage
- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 & RAID 10), NCQ, AHCI & Hot Plug
- 2 x Ultra M.2 Sockets (M2_1 & M2_2), support M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)*
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)*
- 1 x U.2 Connector** * Supports NVMe SSD as boot disks Supports ASRock U.2 Kit ** If U.2 Connector is plugged, M2_1 will be disabled Connector
- 1 x COM Port Header
- 1 x Power LED & Speaker Header
- 2 x RGB LED Headers*
- 1 x CPU Fan Connector (4-pin)**
- 1 x CPU Optional/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x Chassis Optional/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) (for Motherboard)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
- 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for PCIe graphics card)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)*****
- 1 x Right Angle Front Panel Audio Connector*****
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Headers (Support 4 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection)
- 1 x Clear CMOS Switch
- 1 x Dr. Debug with LED
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x CPU Xtreme OC Switch * Each header supports up to 12V/3A, 36W LED Strip ** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *** The CPU Optional/ Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. **** The Chassis Optional/ Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. CPU_FAN1, CHA_FAN1, CHA_FAN2, CPU_OPT/W_PUMP & CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use. ****** Connect the audio device to either one of the audio connectors. Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/ Keyboard Port
- 1 x Optical SPDIF Out Port
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 8 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)
- 3 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED)
- 1 x BIOS Flashback Switch
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Ultra USB (Universal Serial Bus) Power is supported on USB3_6 port. ACPI wake-up function is not supported on USB3_6 port. 1 x Fatal 1ty Mouse Port (USB 3.1 Gen 1) is included Software & UEFI Software
- ASRock F-Stream
- ASRock RGB LED
- ASRock Key Master
- ASRock APP Charger
- ASRock XFast LAN* UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x ASRock 3-Way SLI™ Bridge Card
- 1 x ASRock 4-Way SLI-S111 Bridge Card
- 1 x ASRock SLI_HB_ Bridge_3S Card
- 2 x ASRock Wi Fi 2.4/5 GHz Antennas
- 3 x Screws for M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Fan Tachometer: CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB
- 2oz Copper PCB OS
- Microsoft Windows 10 64-bit* * Windows 10 RS2 is supported Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

...

Available

Product Specifications: CPU Supports Intel Core i 7 processor family for the LGA 2011 Socket Digi Power Design 12 + 2 Power Phase Design Dual-Stack MOSFET (DSM) Supports Intel Turbo Boost 2.0 Technology Supports Hyper-Threading Technology Supports Untied Overclocking Technology Chipset
- Intel X79 Memory: Quad Channel DDR3 memory technology 8 x DDR3 DIMM slots Supports DDR3 2500+ (OC)/2133 (OC)/1866 (OC)/1600/1333/1066 non-ECC, un-buffered memory Supports DDR3 ECC, un-buffered memory with Intel Workstation 1S Xeon processors E5 16xx/26xx/46xx series in socket LGA 2011 Max. capacity of system memory: 64GB* Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2 * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS: 64 Mb AMI UEFI Legal BIOS with GUI support Supports " Plug & Play" ACPI 1.1 Compliance Wake Up Events Supports jumperfree SMBIOS 2.3.1 Support CPU, VCCSA, DRAM, VTT, CPU PLL, PCH1.1V, PCH1.5V Voltage Multi-adjustment Audio, Video & Networking Graphics- n/a Audio 7.1 CH HD Audio Creative Sound Core 3D quad-core sound & voice processor Supports Crystal Voice Supports Scout Mode Supports EAX1.0 to EAX5.0 Premium Headset Amplifier (PHA) LAN PCIE x 1 Gigabit LAN 10/100/1000 Mb/s Broadcom BCM57781 Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE Expansion / Connectivity Slots 5 x PCI Express 3.0 x 16 slots (PCIE1/PCIE5: x 16/16 mode; PCIE1/PCIE3/PCIE5: x 16/8/8 mode; PCIE1/PCIE4/PCIE7: x 16/8/8 mode; PCIE1/PCIE3/PCIE5/PCIE7: x 16/8/8/8 mode) 2 x PCI Express 2.0 x 1 slots Supports AMD Quad Cross Fire X, 4-Way Cross Fire X, 3-Way Cross Fire X & Cross Fire X Supports NVIDIA Quad SLI, 4-Way SLI, 3-Way SLI & SLI SATA3 2 x SATA3 6.0 Gb/s connectors by Intel X79, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 & Intel Rapid Storage 3.0), NCQ, AHCI & Hot Plug functions 4 x SATA3 6.0 Gb/s connectors by Marvell SE9230, support RAID (RAID 0, RAID 1 & RAID 10), NCQ, AHCI & Hot Plug functions USB (Universal Serial Bus) 3.0: 8 x Rear USB (Universal Serial Bus) 3.0 ports by TI, support USB (Universal Serial Bus) 1.0/2.0/3.0 up to 5 Gb/s 2 x Front USB (Universal Serial Bus) 3.0 headers (support 4 USB (Universal Serial Bus) 3.0 ports) by TI, support USB (Universal Serial Bus) 1.0/2.0/3.0 up to 5 Gb/s Connector: 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 & Intel Rapid Storage 3.0), NCQ, AHCI & Hot Plug functions 6 x SATA3 6.0 Gb/s connectors 1 x IR header 1 x CIR header 1 x COM port header 1 x HDMI_SPDIF header 1 x IEEE 1394 header 1 x Power LED header 1 x V-Probe™: 7-set of onboard voltage measurement points laid CPU/ Chassis/ Power Fan connectors 24 pin ATX power connector 8 pin 12V power connector SLI/XFire power connector Front panel audio connector 3 x USB (Universal Serial Bus) 2.0 headers (support 6 USB (Universal Serial Bus) 2.0 ports) 2 x USB (Universal Serial Bus) 3.0 headers (support 4 USB (Universal Serial Bus) 3.0 ports) 1 x Dr. Debug with LED* 1 x Post Status Checker (PSC) Rear Panel I/O I/O Panel: 1 x PS/2 Keyboard Port 1 x Optical SPDIF Out Port 1 x Ready-to-Use USB (Universal Serial Bus) 2.0 Port 1 x Fatal 1ty Mouse Port (USB 2.0) 2 x e SATA3 Connectors 8 x Ready-to-Use USB (Universal Serial Bus) 3.0 Ports 2 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED) 1 x IEEE 1394 Port 1 x Clear CMOS Switch with LED HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Unique Feature: F-Stream ASRock Instant Boot ASRock Instant Flash ASRock APP Charger ASRock XFast USB (Universal Serial Bus) ASRock XFast LAN ASRock XFast RAM ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock Internet Flash ASRock Hyper Duo Plus Technology Hybrid Booster: CPU Frequency Stepless Control ASRock U-COP Boot Failure Guard (B.F.G.) Good Night LED Smart Switch 1 x Power Switch with LED 1 x Reset Switch with LED 1 x Clear CMOS Switch with LED Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Cyber Link Media Espresso 6.5 Trial, ASRock MAGIX Multimedia Suite
- OEM Hardware Monitor CPU Temperature Sensing Chassis Temperature Sensing CPU/ Chassis/ Power Fan Tachometer CPU/ Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/ Chassis Fan Multi-Speed Control Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors) OS
- Microsoft Windows 8 / 8 64-bit / 7 / 7 64-bit / Vista / Vista 64-bit compliant Certifications: FCC, CE, WHQL Er P/ Eu P Ready (Er P/ Eu P ready power supply is required)

...

Available

ASRock Fatal 1ty X99M Killer 7.1 CH HD Audio Micro ATX Motherboard Product Specifications General Gaming Armor CPU Power Hi-Density Power Connector Ultra Dual-N MOSFET (UDM) Memory Nex FET MOSFET 15& Icirc;14; Gold Contact in DIMM Slots VGA Card 15& Icirc;14; Gold Contact in VGA PCIe Slot (PCIE1 & PCIE2) PCIe Power Connector Internet Intel LAN Qualcomm Atheros Killer LAN Cooling
- XXL Aluminum Alloy Heatsink Audio
- Purity Sound 2 Unique Feature ASRock Super Alloy XXL Aluminum Alloy Heatsink Premium 60A Power Choke Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) Ultra Dual-N MOSFET (UDM) Nex FET MOSFET Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock HDD Saver Technology ASRock Full Spike Protection ASRock Cloud ASRock APP Shop CPU Supports Intel Core i 7 & Xeon 18-Core Processors Family for the LGA 2011-3 Socket Digi Power design 12 Power Phase design Supports Intel Turbo Boost 2.0 Technology Supports Untied Overclocking Technology Chipset
- Intel X99 Memory Quad Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Supports DDR4 3000+ (OC)*/2933+ (OC)/2800 (OC)/2400 (OC)/2133/1866/1600/1333/1066 non-ECC, un-buffered memory Supports non-ECC RDIMM (Registered DIMM) Supports DDR4 ECC, un-buffered memory/RDIMM with Intel Xeon processors E5 series in the LGA 2011-3 Socket Max. capacity of system memory: 64GB* Supports Intel Extreme Memory Profile (XMP) 2.0 * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. ** Please refer to Memory Support List on ASRock's website for more information. BIOS 2 x 128 Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS) Supports Secure Backup UEFI Technology ACPI 1.1 Compliant wake up events SMBIOS 2.3.1 Support CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment Audio, Video & Networking Graphics
- n/a Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) Supports Purity Sound„¢ 2 Nichicon Fine Gold Series Audio Caps 115d B SNR DAC with differential amplifier TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) Direct Drive Technology EMI shielding cover PCB isolate shielding Supports DTS Connect LAN 1 x Intel I218V (Gigabit LAN PHY 10/100/1000 Mb/s) 1 x Qualcomm Atheros Killer E2200 Series (PCIE x 1 Gigabit LAN 10/100/1000 Mb/s) Supports Qualcomm Atheros Security Wake On Internet Technology (on Qualcomm Atheros Killer E2200 Series) Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports Energy Efficient Ethernet 802.3az Supports PXE Expansion / Connectivity Slots 2 x PCI Express 3.0 x 16 Slots (PCIE1 @ x 16 mode; PCIE2 @ x 16 mode) 1 x PCI Express 2.0 x 16 Slot (PCIE3 @ x 4 mode) Supports AMD Quad Cross Fire X & Cross Fire X„¢ Supports NVIDIA Quad SLI & SLI * If you install CPU with 28 lanes, PCIE1/PCIE2 will run at x 16/x 8. Storage
- 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 & Intel Rapid Storage 13), NCQ, AHCI, Hot Plug & ASRock HDD Saver Technology 1 x e SATA Connector, supports NCQ, AHCI & Hot Plug 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s) *S_SATA3_3 connector is shared with the e SATA port, S_SATA3_2 connector is shared with Ultra M.2 Socket **RAID is supported on SATA3_0 ~ SATA3_5 ports only. Connector 1 x COM Port Header 1 x TPM Header 1 x Power LED Header 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control) 1 x Power Fan Connector (3-pin) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x HDD Saver Connector 1 x PCIe Power Connector 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector 2 x USB (Universal Serial Bus) 2.0 Headers (support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB (Universal Serial Bus) 3.0 Header (Supports 2 USB (Universal Serial Bus) 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED 1 x BIOS Selection Switch Rear Panel I/O 1 x PS/2 Mouse/ Keyboard Port 1 x Optical SPDIF Out Port 1 x e SATA Connector 3 x USB (Universal Serial Bus) 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Fatal 1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) 4 x USB (Universal Serial Bus) 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 2 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED) 1 x Clear CMOS Switch HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Software & UEFI Software ASRock F-Stream ASRock Disk Health Report ASRock USB (Universal Serial Bus) Key ASRock Key Master ASRock APP Charger ASRock XFast RAM ASRock Restart to UEFI UEFI ASRock Full HD UEFI ASRock Instant Flash ASRock Internet Flash ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock UEFI System Browser ASRock UEFI Tech Service ASRock Dehumidifier ASRock Easy RAID Installer ASRock Easy Driver Installer Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar, Start 8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7), XSplit, Killer Network Manager Form Factor Micro ATX Form Factor High Density Glass Fabric PCB OS
- Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit Certifications FCC, CE, WHQL Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

...

Available

As Rock Fatal 1ty X99X Killer Socket LGA 2011-3 7.1 CH HD Audio ATX Motherboard General Gaming Armor CPU Power Hi-Density Power Connector Ultra Dual-N MOSFET (UDM) Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP & MLCC) Memory 15& Icirc;14; Gold Contact in DIMM Slots VGA Card 15& Icirc;14; Gold Contact in VGA PCIe Slot (PCIE1 & PCIE3) PCIe Power Connector Internet Intel LAN Qualcomm Atheros Killer LAN Cooling XXL Aluminum Alloy Heatsink 2oz Copper PCB Heat Pipe Design Audio Purity Sound 2 Unique Feature ASRock Super Alloy XXL Aluminum Alloy Heatsink Premium 60A Power Choke Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) Ultra Dual-N MOSFET (UDM) Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock HDD Saver Technology ASRock Full Spike Protection ASRock Cloud ASRock APP Shop CPU Supports Intel Core i 7 & Xeon 18-Core Processors Family for the LGA 2011-3 Socket Digi Power design 12 Power Phase design Supports Intel Turbo Boost 2.0 Technology Supports Untied Overclocking Technology Chipset
- Intel X99 Memory Quad Channel DDR4 Memory Technology 8 x DDR4 DIMM Slots Supports DDR4 3000+ (OC)*/2933+ (OC)/2800 (OC)/2400 (OC)/2133/1866/1600/1333/1066 non-ECC, un-buffered memory Supports non-ECC RDIMM (Registered DIMM) Supports DDR4 ECC, un-buffered memory/RDIMM with Intel Xeon processors E5 series in the LGA 2011-3 Socket Max. capacity of system memory: 128GB Supports Intel Extreme Memory Profile (XMP) 2.0 * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. ** Please refer to Memory Support List on ASRock's website for more information. BIOS 2 x 128 Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS) Supports Secure Backup UEFI Technology ACPI 1.1 Compliant wake up events SMBIOS 2.3.1 Support CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment Audio, Video & Networking Graphics - n/a Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) Supports Purity Sound„¢ 2 Nichicon Fine Gold Series Audio Caps 115d B SNR DAC with differential amplifier TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) Direct Drive Technology EMI shielding cover PCB isolate shielding Supports DTS Connect LAN 1 x Intel I218V (Gigabit LAN PHY 10/100/1000 Mb/s) 1 x Qualcomm Atheros Killer„¢ E2200 Series (PCIE x 1 Gigabit LAN 10/100/1000 Mb/s) Supports Qualcomm Atheros Security Wake On Internet Technology (on Qualcomm Atheros Killer„¢ E2200 Series) Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports Energy Efficient Ethernet 802.3az Supports PXE Expansion / Connectivity Slots 3 x PCI Express 3.0 x 16 Slots (PCIE1 @ x 16 mode; PCIE3 @ x 16 mode; PCIE5 @ x 8 mode)* 2 x PCI Express 2.0 x 1 Slots 1 x mini-PCI Express Slot Supports AMD Quad Cross Fire X, 3-Way Cross Fire X & Cross Fire X Supports NVIDIA Quad SLI„¢, 3-Way SLI„¢ & SLI„¢*** * If you install CPU with 28 lanes, PCIE1/PCIE3/PCIE5 will run at x 16/x 8/x 4. ** If M.2 PCI Express module is installed, PCIE5 slot will be disabled. *** If you install CPU with 28 lanes, 3-Way SLI is not supported. Storage
- 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 & Intel Rapid Storage 13), NCQ, AHCI, Hot Plug & ASRock HDD Saver Technology 1 x e SATA Connector, supports NCQ, AHCI & Hot Plug 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s) *SSATA3_3 connector is shared with the e SATA port, SSATA3_2 connector is shared with Ultra M.2 Socket **RAID is supported on SATA3_0 ~ SATA3_5 ports only. Connector 1 x COM Port Header 1 x TPM Header 1 x Power LED Header 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control) 1 x Power Fan Connector (3-pin) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x HDD Saver Connector 1 x PCIe Power Connector 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector 2 x USB (Universal Serial Bus) 2.0 Headers (support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Vertical Type A USB (Universal Serial Bus) 2.0 2 x USB (Universal Serial Bus) 3.0 Headers (Support 4 USB (Universal Serial Bus) 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED 1 x BIOS Selection Switch Rear Panel I/O 1 x PS/2 Mouse/ Keyboard Port 1 x Optical SPDIF Out Port 1 x e SATA Connector 1 x USB (Universal Serial Bus) 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Fatal 1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) 4 x USB (Universal Serial Bus) 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection)) 2 x USB (Universal Serial Bus) 3.0 Ports (ASMedia ASM1042) (Supports ESD Protection (ASRock Full Spike Protection)) 2 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED) 1 x Clear CMOS Switch HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Software & UEFI Software ASRock F-Stream ASRock Disk Health Report ASRock USB (Universal Serial Bus) Key ASRock Key Master ASRock APP Charger ASRock XFast RAM ASRock Restart to UEFI UEFI ASRock Full HD UEFI ASRock Instant Flash ASRock Internet Flash ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock UEFI System Browser ASRock UEFI Tech Service ASRock Dehumidifier ASRock Easy RAID Installer ASRock Easy Driver Installer Support CD Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar, Start 8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7), XSplit, Killer Network Manager Hardware Monitor CPU/ Chassis temperature sensing CPU/ Chassis/ Power Fan Tachometer CPU/ Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) CPU/ Chassis Fan multi-speed control Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages Form Factor ATX Form Factor 2oz Copper PCB High Density Glass Fabric PCB Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP & MLCC) OS Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit Certifications FCC, CE, WHQL Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

...

Available

ASRock Fatal 1ty Z170 Gaming K4/D3 Socket 1151 DVI-D HDMI 7.1 CH HD Audio ATX Motherboard Product Specifications: General Gaming Armor Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE2) Internet
- Killer E2400 LAN Cooling
- XXL Aluminum Alloy Heatsink Audio
- Purity Sound 3 Unique Feature: ASRock Super Alloy XXL Aluminum Alloy Heatsink Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) I/O Armor High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection ASRock Live Update & APP Shop CPU Supports 6th Generation Intel Core i 7/i 5/i 3/ Pentium/ Celeron Processors (Socket 1151) Digi Power design 10 Power Phase design Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPUs Supports ASRock BCLK Full-range Overclocking Chipset
- Intel Z170 Memory Dual Channel DDR3/DDR3L Memory Technology 4 x DDR3/DDR3L DIMM Slots Supports DDR3/DDR3L 2133+ (OC)/1866 (OC)/1600/1333/1066 non-ECC, un-buffered memory Max. capacity of system memory: 64GB* Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2 15μ Gold Contact in DIMM Slots * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS 2 x 128 Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS) Supports Secure Backup UEFI Technology ACPI 5.0 Compliant wake up events SMBIOS 2.7 Support CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment Audio, Video & Networking Graphics: Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530 Pixel Shader 5.0, Direct X 12 Max. shared memory 1792MB Dual graphics output: Support DVI-D & HDMI ports by independent display controllers Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 24 Hz / (3840x 2160) @ 30 Hz Supports DVI-D with max. resolution up to 1920x 1200 @ 60 Hz Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports Accelerated Media Codecs: HEVC, VP8, VP9 Supports HDCP with DVI-D & HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D & HDMI Ports * Intel HD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. ** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. *** Intel In Tru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) Supports Purity Sound 3 Nichicon Fine Gold Series Audio Caps 115d B SNR DAC with differential amplifier TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) Pure Power-In Direct Drive Technology PCB isolate shielding Supports DTS Connect LAN: PCIE x 1 Gigabit LAN 10/100/1000 Mb/s Killer E2400 Series Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports Energy Efficient Ethernet 802.3az Supports PXE Expansion / Connectivity Slots 2 x PCI Express 3.0 x 16 Slots (PCIE2: x 16 mode; PCIE4: x 4 mode)* 3 x PCI Express 3.0 x 1 Slots (Flexible PCIe) Supports AMD Quad Cross Fire X & Cross Fire X 15μ Gold Contact in VGA PCIe Slot (PCIE2) * Supports NVMe SSD as boot disks Storage 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 & Intel Smart Response Technology), NCQ, AHCI & Hot Plug 2 x SATA Express 10 Gb/s Connectors* 1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** * Support to be announced If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 & the SATA function of SATA3_2_3 & SATA3_4_5 will be disabled. ** Supports ASRock U.2 Kit Supports NVMe SSD as boot disks Connector: 1 x COM Port Header 1 x TPM Header 1 x Power LED & Speaker Header 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB (Universal Serial Bus) 3.0 Header (Supports 2 USB (Universal Serial Bus) 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) Rear Panel I/O 1 x PS/2 Mouse/ Keyboard Port 1 x DVI-D Port 1 x HDMI Port 1 x Optical SPDIF Out Port 1 x USB (Universal Serial Bus) 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Fatal 1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) 5 x USB (Universal Serial Bus) 3.0 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB (Universal Serial Bus) 3.0 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Software & BIOS Software ASRock F-Stream ASRock Disk Health Report ASRock USB (Universal Serial Bus) Key ASRock Key Master ASRock APP Charger ASRock XFast RAM ASRock Fast Boot (Fast Boot, Restart to UEFI)* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock UEFI System Browser ASRock UEFI Tech Service ASRock Easy RAID Installer ASRock Easy Driver Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar, XSplit, Killer Network Manager Hardware Monitor CPU/ Chassis temperature sensing CPU/ Chassis Fan Tachometer CPU/ Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) CPU/ Chassis Fan multi-speed control Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Form Factor
- ATX Form Factor OS
- Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* * To install Windows 7 OS, a modified installation disk with x HCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details. Certifications FCC, CE, WHQL Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

...

Available

ASRock Fatal 1ty Z170 Gaming K6 Socket 1151 DVI-D HDMI Display Port 7.1 CH HD Audio ATX Motherboard Product Specifications: General: Gaming Armor CPU Power
- Hi-Density Power Connector Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE2) Internet
- Killer™ E2400 LAN Cooling
- XXL Aluminum Alloy Heatsink
- Heat Pipe Design Audio
- Purity Sound 3 Unique Feature: ASRock USB (Universal Serial Bus) 3.1 ASRock USB (Universal Serial Bus) 3.1 Type-A Port (10 Gb/s) ASRock USB (Universal Serial Bus) 3.1 Type-C Port (10 Gb/s) ASRock Super Alloy XXL Aluminum Alloy Heatsink Premium 60A Power Choke Combo Caps (Nichicon 12K Platinum Caps) Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) I/O Armor Matte Black PCB High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection ASRock Live Update & APP Shop CPU Supports 6th Generation Intel Core i 7/i 5/i 3/ Pentium/ Celeron Processors (Socket 1151) Digi Power design 12 Power Phase design Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPUs Supports ASRock BCLK Full-range Overclocking Supports ASRock Hyper BCLK Engine Chipset
- Intel Z170 Memory Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Supports DDR4 3866+ (OC)*/3600 (OC)/3200 (OC)/2933 (OC)/2800 (OC)/2400 (OC)/2133 non-ECC, un-buffered memory Max. capacity of system memory: 64GB** Supports Intel Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots *3866+ (OC) memory frequency can only be achieved when a single memory module is installed (Single channel memory). Please refer to Memory Support List on ASRock's website for more information. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS: 2 x 128 Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS) Supports Secure Backup UEFI Technology ACPI 5.0 Compliant wake up events SMBIOS 2.7 Support CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment Audio, Video & Networking Graphics Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530 Pixel Shader 5.0, Direct X 12 Max. shared memory 1792MB Three graphics output options: DVI-D, HDMI & Display Port 1.2 Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 24 Hz / (3840x 2160) @ 30 Hz Supports DVI-D with max. resolution up to 1920x 1200 @ 60 Hz Supports Display Port 1.2 with max. resolution up to 4K x 2K (4096x 2304) @ 60 Hz Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports Accelerated Media Codecs: HEVC, VP8, VP9 Supports HDCP with DVI-D, HDMI & Display Port 1.2 Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI & Display Port 1.2 Ports * Intel HD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. ** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. *** Intel In Tru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) Supports Purity Sound 3 Nichicon Fine Gold Series Audio Caps 115d B SNR DAC with differential amplifier TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) Pure Power-In Direct Drive Technology PCB isolate shielding Supports DTS Connect LAN PCIE x 1 Gigabit LAN 10/100/1000 Mb/s Killer E2400 Series Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports Energy Efficient Ethernet 802.3az Supports PXE Expansion / Connectivity Slots 3 x PCI Express 3.0 x 16 Slots (PCIE2/PCIE4/PCIE6: single at x 16 (PCIE2); dual at x 8 (PCIE2) / x 8 (PCIE4); triple at x 8 (PCIE2) / x 8 (PCIE4) / x 4 (PCIE6))* 3 x PCI Express 3.0 x 1 Slots (Flexible PCIe) Supports AMD Quad Cross Fire X™, 3-Way Cross Fire X™ & Cross Fire X™ Supports NVIDIA Quad SLI™ & SLI™ 15μ Gold Contact in VGA PCIe Slot (PCIE2) * Supports NVMe SSD as boot disks Storage
- 6 x SATA3 6.0 Gb/s Connectors by Intel Z170, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 & Intel Smart Response Technology), NCQ, AHCI & Hot Plug 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI & Hot Plug 2 x SATA Express 10 Gb/s Connectors* 1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** * Support to be announced M2_1, SATA3_0, SATA3_1 & SATA_EXP0 share lanes. If either one of them is in use, the others will be disabled. ** Supports ASRock U.2 Kit Supports NVMe SSD as boot disks Connector 1 x COM Port Header 1 x TPM Header 1 x Power LED & Speaker Header 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB (Universal Serial Bus) 3.0 Header (Supports 2 USB (Universal Serial Bus) 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED Rear Panel I/O 1 x PS/2 Mouse/ Keyboard Port 1 x DVI-D Port 1 x HDMI Port 1 x Display Port 1.2 1 x Optical SPDIF Out Port 1 x USB (Universal Serial Bus) 3.1 Type-A Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB (Universal Serial Bus) 3.1 Type-C Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) 5 x USB (Universal Serial Bus) 3.0 Ports (Intel Z170) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Fatal 1ty Mouse Port (USB 3.0) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED) 1 x Clear CMOS Switch HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Software & BIOS Software ASRock F-Stream ASRock Disk Health Report ASRock USB (Universal Serial Bus) Key ASRock Key Master ASRock APP Charger ASRock XFast RAM ASRock Fast Boot (Fast Boot, Restart to UEFI)* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock UEFI System Browser ASRock UEFI Tech Service ASRock Easy RAID Installer ASRock Easy Driver Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar, XSplit, Killer Network Manager Hardware Monitor CPU/ Chassis temperature sensing CPU/ Chassis Fan Tachometer CPU/ Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) CPU/ Chassis Fan multi-speed control Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Form Factor - ATX Form Factor OS
- Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* * To install Windows 7 OS, a modified installation disk with x HCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details. Certifications FCC, CE, WHQL Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

...

Available

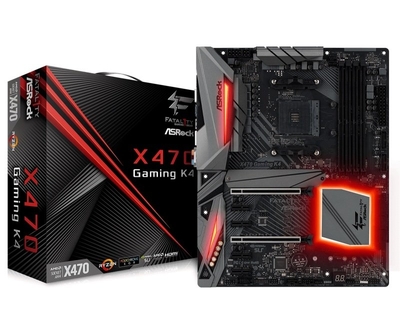

Asrock Fatal1ty X470 Gaming K4 AM4 DDR4 ATX Motherboard

Features Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) Supports DDR4 3466+ (OC) 2 PCIe 3.0 x16, 4 PCIe 2.0 x1 NVIDIA Quad SLI™, AMD Quad CrossFireX™ Graphics Output: HDMI 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x2 & SATA3) 2 USB 3.1 Gen2 (rear Type-A+C), 10 USB 3.1 Gen1 (4 Front, 6 Rear) Intel Gigabit LAN Polychrome RGB Overview RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on.
Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Dual M.2 For SSD Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. Water Pump Header This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise. Gold Audio Jacks Everything will wear off in time, but gold looks better! Gold audio jack provides
stable sound transmission! Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. Specification Gaming Armor Power - Hi-Density Power Connectors (24 pin, 8 pin and 4 pin) Memory - 15μ Gold Contact in DIMM Slots VGA Card - 15μ
Gold Contact in VGA PCIe Slot (PCIE1) Internet - Intel LAN Cooling - XXL Aluminum Alloy Heatsink - 2oz Copper PCB Audio - Creative Sound Blaster™ Cinema 5 Unique Feature ASRock USB 3.1 Gen2 - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 45A Power Choke - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU - Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) - Digi Power design
- 12 Power Phase design - Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge) Chipset - AMD Promontory X470 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** - 15μ Gold Contact in DIMM Slots *For Ryzen Series CPUs (Raven Ridge), ECC is only supported
with PRO CPUs. Please refer to below table for DDR4 UDIMM maximum frequency support. Ryzen Series CPUs (Pinnacle Ridge): UDIMM Memory Slot Frequency(MHZ) A1 A2 B1 B2 - SR - - 2933 - DR - - 2400 - SR - SR 2933 - DR - DR 2400 SR SR SR SR 2133 SR/DR DR SR/DR DR 1866 Ryzen Series CPUs (Summit Ridge): UDIMM Memory Slot Frequency(MHZ) A1 A2 B1 B2 - SR - - 2667 - DR - - 2667 - SR - SR 2667 - DR - DR 2400-2667 SR SR SR SR 2133-2400 SR/DR DR SR/DR DR 1866-2133 Ryzen Series CPUs (Raven Ridge): UDIMM Memory Slot Frequency(MHZ) A1 A2 B1 B2 - SR - - 2933 - DR - - 2667 - SR - SR 2667 - DR - DR 2400 SR SR SR SR 2133 SR/DR DR SR/DR DR 1866 SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label **Due to the operating system limitation, the actual
memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment Graphics - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Max. shared memory 2GB - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with HDMI
Port - Supports 4K Ultra HD (UHD) playback with HDMI Port *Actual support may vary by CPU Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps - 120dB SNR DAC with Differential Amplifier - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Line Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - Supports Creative Sound Blaster™ Cinema 5 LAN - Gigabit LAN 10/100/1000 Mb/s - GigaLAN Intel I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az -
Supports PXE Slots AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))* - 4 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™** - Supports NVIDIA Quad SLI™ and SLI™** - 15μ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks **This feature is only supported with Ryzen Series CPUs (Summit Ridge and Pinnacle Ridge). Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI
Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)* - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)* *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector - 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 1 x AMD Fan LED Header* - 1 x RGB LED Header** - 1 x Addressable LED Header*** - 1 x CPU Fan Connector (4-pin)**** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power
Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x AMD LED Fan USB Header - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) - 1 x Dr. Debug with LED *The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. **Supports in total up to 12V/3A, 36W LED Strip ***Supports in total up to 5V/3A, 15W LED Strip ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can
auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)* - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included Software and UEFI Software - ASRock F-Stream - ASRock Polychrome RGB - ASRock Key Master - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories - Quick Installation Guide, Support CD, I/O Shield - 4 x SATA Data Cables - 1 x ASRock SLI_HB_Bridge_2S Card - 2 x Screws for M.2 Sockets Hardware Monitor - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB OS - Microsoft Windows
10 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Availability: In Stock
Supplier: Ebuyer
SKU: 836967

Description Reviews / Comments Add New

Product Description

Features Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge & Pinnacle Ridge) Supports DDR4 3466+ (OC) 2 PCIe 3.0 x 16, 4 PCIe 2.0 x 1 NVIDIA Quad SLI™, AMD Quad Cross Fire X™ Graphics Output: HDMI 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5 6 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4 & SATA3), 1 M.2 (PCIe Gen 2 x 2 & SATA3) 2 USB (Universal Serial Bus) 3.1 Gen 2 (rear Type-A+C), 10 USB (Universal Serial Bus) 3.1 Gen 1 (4 Front, 6 Rear) Intel Gigabit LAN Polychrome RGB Overview RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB In addition to the built-in RGB illumination, it also features onboard RGB headers & an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis & so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Dual M.2 For SSD Equipped with M.2 slot that supports both SATA3 6 Gb/s & PCIe Gen 3 x 4 Ultra M.2 interface that pushes data transfer speeds up to 32 Gb/s, & is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen 3 x 4 SSD. Water Pump Header This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise. Gold Audio Jacks Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission! Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection

Includes:: various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps & support software for users to download. You can also easily optimize your system & keep your motherboard up to date with ASRock Live Update & APP Shop.

Specification Gaming Armor Power
- Hi-Density Power Connectors (24 pin, 8 pin & 4 pin) Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1) Internet
- Intel LAN Cooling
- XXL Aluminum Alloy Heatsink
- 2oz Copper PCB Audio
- Creative Sound Blaster™ Cinema 5 Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s)
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 45A Power Choke
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge & Pinnacle Ridge)
- Digi Power design
- 12 Power Phase design
- Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge) Chipset
- AMD Promontory X470 Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 (OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 (OC) / 2667/2400/2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- 15μ Gold Contact in DIMM Slots * For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. Please refer to below table for DDR4 UDIMM maximum frequency support. Ryzen Series CPUs (Pinnacle Ridge): UDIMM Memory Slot Frequency (MHZ) A1 A2 B1 B2 - SR - - 2933 - DR - - 2400 - SR - SR 2933 - DR - DR 2400 SR SR SR SR 2133 SR/DR DR SR/DR DR 1866 Ryzen Series CPUs (Summit Ridge): UDIMM Memory Slot Frequency (MHZ) A1 A2 B1 B2 - SR - - 2667 - DR - - 2667 - SR - SR 2667 - DR - DR 2400-2667 SR SR SR SR 2133-2400 SR/DR DR SR/DR DR 1866-2133 Ryzen Series CPUs (Raven Ridge): UDIMM Memory Slot Frequency (MHZ) A1 A2 B1 B2 - SR - - 2933 - DR - - 2667 - SR - SR 2667 - DR - DR 2400 SR SR SR SR 2133 SR/DR DR SR/DR DR 1866 SR: Single rank DIMM, 1 Rx 4 or 1 Rx 8 on DIMM module label DR: Dual rank DIMM, 2 Rx 4 or 2 Rx 8 on DIMM module label ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 256 Mb AMI UEFI Legal BIOS with GUI support
- Supports " Plug & Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- Direct X 12, Pixel Shader 5.0
- Max. shared memory 2GB
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 30 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI Port
- Supports 4K Ultra HD (UHD) playback with HDMI Port * Actual support may vary by CPU Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120d B SNR DAC with Differential Amplifier
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Line Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Supports Creative Sound Blaster™ Cinema 5 LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga LAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Slots AMD Ryzen series CPUs (Summit Ridge & Pinnacle Ridge)
- 2 x PCI Express 3.0 x 16 Slots (single at x 16 (PCIE1); dual at x 8 (PCIE1) / x 8 (PCIE4))* AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x 16 Slot (single at x 8 (PCIE1))*
- 4 x PCI Express 2.0 x 1 Slots
- Supports AMD Quad Cross Fire X™ & Cross Fire X™**
- Supports NVIDIA Quad SLI™ & SLI™**
- 15μ Gold Contact in VGA PCIe Slot (PCIE1) * Supports NVMe SSD as boot disks ** This feature is only supported with Ryzen Series CPUs (Summit Ridge & Pinnacle Ridge). Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 & RAID 10), NCQ, AHCI & Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s) (with Summit Ridge, Raven Ridge & Pinnacle Ridge)*
- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 2 x 2 (10 Gb/s)* * Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED & Speaker Header
- 1 x AMD Fan LED Header*
- 1 x RGB LED Header**
- 1 x Addressable LED Header***
- 1 x CPU Fan Connector (4-pin)****
- 1 x CPU/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
- 3 x Chassis/ Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x AMD LED Fan USB (Universal Serial Bus) Header
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Headers (Support 4 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection)
- 1 x Dr. Debug with LED * The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) & length up to 2.5M. ** Supports in total up to 12V/3A, 36W LED Strip *** Supports in total up to 5V/3A, 15W LED Strip **** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ***** The CPU/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ****** The Chassis/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP & CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 1 x PS/2 Mouse/ Keyboard Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 6 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)*
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *1 x Fatal 1ty Mouse Port (USB 3.1 Gen 1) is included Software & UEFI Software
- ASRock F-Stream
- ASRock Polychrome RGB
- ASRock Key Master
- ASRock XFast LAN UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x ASRock SLI_HB_ Bridge_2S Card
- 2 x Screws for M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Tachometer: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

Reviews/Comments

Add New

Intelligent Comparison

Available

ASRock Fatal1ty X370 Gaming X Socket AM4 Intel DDR4 ATX Motherboard Ebuyer

£129.98

Archived Product

ASRock X570 Phantom Gaming 4 AM4 DDR4 ATX Motherboard Ebuyer

£159.98

Available

ASRock Fatal1ty X370 Gaming-ITX/ac Socket AM4 Intel DDR4 ITX Motherboard Ebuyer

£158.93

Available

Asrock X470 Master SLI AM4 DDR4 ATX Motherboard Ebuyer

£126.74

Available

Gigabyte X370 Gaming 3 AM4 DDR4 ATX Motherboard Ebuyer

£89.99

Archived Product

ASRock X570 Phantom Gaming X AM4 DDR4 ATX Motherboard Ebuyer

£339.99

Available

ASRock X470 Taichi AM4 DDR4 ATX Motherboard Ebuyer

£174.96

Archived Product

ASRock X570 Taichi AM4 DDR4 ATX Motherboard Ebuyer

£301.98

Jargon Buster

USB - Universal Serial Bus

HDMI - High-Definition Multimedia Interface

Blu-ray - 25GB / 50GB Disc format

LAN - Local Area Network

Full HD - 1080 lines of vertical resolution

PCB - Printed Circuit Board

OHM - A measure of resistance named after George Simon Ohm

LED - Light Emitting Diode - a small light source

DIMM - Dual In-Line Memory Module

NON-ECC - Does not have error correcting code

Gold - A precious highly conductive metal

PCI - Peripheral Component Interconnect - Used as an expansion interface in computers

2GB - 2 Gigabytes

4GB - 4 Gigabytes

Copper - A metal element with a chemical formula of CU. A excellent conductor of electricity and heat.

Japan - An island in east Asia

Black - A colour which does not emit any colour of the spectrum. Black absorbs all frequencies of the spectrum.

Steel - An alloy made predominately of Iron combined with <2% carbon

SATA - Serial Advanced Technology Attachment - a connection type for additional drives

CPU - Central processing unit. The processing centre of computer programs. The faster the processor usually the faster the computer

Digital - A system that uses only 0s and 1s to transmit data

Resolution - The number of pixels a device can display

Chrome - A shiney metalic finish where chromium is electroplated onto an object

Frequency - A term used to describe how often something is done

Frequency - A wave frequency is the number of times a wave repeats within a given time

Energy Efficient - A term used to describe an electrical item which makes the good use of energy

VGA - Video Graphics Array - A term used to describe a resolution of 640x480 pixels

Cm - Centimetres, one centimetre is equal to 10 milimetres

Glass - A solid, typically transparent. Brittle and used in windows. The first patent granted in the UK was for Glass.

Date - A day on a calendar

Date - A social activity whith a current or potential partner

water - A chemical substance. Chemical formula H2O.

hot - An indication of the temperature being high and a sensation of heat to the tough

Key - A physical or virtual device or code used for opening something

Graphics - A general term for visual aspects of an item/display

Keyboard - A device with keys, letters, numbers and function keys used for interacting with a device

Keyboard - A musical instrument similar to a piano

Screws - A simple device use for physically attaching two objects together

World - A physical grouping, commonly used to describe earth and everything associated with ti

Chrome - A shiney bright metalic coating of chromium applied to metals

Intel - World leaders in silicon chip development and manufacture. Chips for Laptops, desktops and mobile devices. Their main competitor is AMD (Advanced Micro Devices)

AMD - Advanced Micro Devices. A silicon chip manufacturer for desktop, laptop and mobile devices. Also owners of ATI a leading graphics processor chip manufacturer

Microphone - A device for recording sounds. Also known as a mic.

Audio - Also known as sound. An audible vibration wave which can be heard.

speed - A measurement of how fast an object travels between two points

Quality - An object that has quality is superior in function and finish than a less quality object.

Size - is the measurement of how big an object is in space.

Quick - Something that is fast

Components - Multiple items used to complete the product.

USB - Universal Serial Bus. A method of connecting a device to a computer

Quad - Multiple items, meaning four

LED - Light Emitting Diode. A bulb that is very efficient at producing light. Often small.

Gold - A colour, a type of rich metal. Chemical symbol AU.

Convenience - A way of being able to carry out a task with little effort

Specification - A description of a product with the details of its attributes.

CD - A disc that plays music, short for compact disc.

Voltage - A measurement of volts.

Popular - Something that is admired and liked by many people.

Design - A drawing or styles that shows the look and functionality of something before its made.

Feature - An attribute that makes something stand out.

Slots - A narrow opening which something can be inserted into, or a machine commonly found in casinos to win money and tokens.

Performance - When someone is presenting a form of entertainment, also how well someone is doing within a role.

Fan - A piece of equipment that has blades that rotate to cool the air, can be installed within other equipment,

Individual - A single separate item or person.

Memory - A way to describe the way in which the brain can remember things.

Supplier Information

Ebuyer

Ebuyer.com is an uber cool website for those looking for latest electronic gadgets. With host of freebies and discounted prices across a range of electronic devices right from computers to household appliances, Ebuyer has the distinction of being one of the prominent online electronic gadget retailers in UK. The site showcases over 19,000 quality products from reputed brands such as Apple, Sony, HP and Acer. Computing devices on offer include desktops, tablets, laptops and smart phones, hard drives, flash memory, memory, processors, graphics cards from AMD and NVIDIA, motherboards and other computer components, peripherals, software, audio visual and gaming devices. This site also has a comprehensive collection of household appliances for the homemakers.

More From Contributor

Asrock Fatal1ty X470 Gaming K4 AM4 DDR4 ATX Motherboard

Product Description

Reviews/Comments

Add New

Intelligent Comparison

Price History

Vouchers

Facebook

Jargon Buster

Supplier Information

Community Generated Product Tags

Contact Us

Information

My Account
