NVIDIA Quadro NVS 450 by PNY delivers a reliable hardware & software platform for a stable environment & robust IT management tools for seamless enterprise deployment. Featuring NVIDIA n View multi-display technology & support for up to four displays, business professionals can maximize productivity through increased desktop real estate & advanced application management tools. Quadro NVS 450 is certified on leading business applications & designed to meet the needs of todays most demanding business user. Quadro NVS 450 is the chosen solution across mixed environments, including financial institutions, emergency call centers, digital signage systems, & other mission-critical environments. Featuring CUDA parallel computing processors with a unified architecture designed to dynamically allocate GPU resources, the Quadro NVS 450 solution delivers optimized performance for business graphics. Capable of supporting up to four digital displays at resolutions of up to 2560 x 1600 each through the Display Port connectors, the Quadro NVS 450 maximized productivity by enabling more screen real estate from a single graphics card. Through the NVIDIA n View advanced display software, Quadro NVS 450 enables features such as profiles, extended Windows taskbar, gridlines, & virtual desktops. In addition, Quadro NVS 450 provides high-quality HD video output & high memory bandwidth for todays more demanding digital signage requirements. ...

NVIDIA Quadro NVS™ 450 x 16 for DVI – The Standard for Quad-Display Business Graphics NVIDIA Quadro NVS 450 by PNY delivers a reliable hardware & software platform for a stable environment & robust IT management tools for seamless enterprise deployment. Featuring NVIDIA NVIEW™ & Mosaic Mode multi-display technology & support for up to four displays, business professionals can maximize productivity through increased desktop real estate & advanced application management tools. Quadro NVS 450 is certified on leading business applications & designed to meet the needs of todays most demanding business & enterprise customers. Featuring CUDA™ parallel computing processors with a unified architecture designed to dynamically allocate GPU resources, the Quadro NVS 450 solution delivers optimized performance for business graphics. Capable of supporting up to four DVI-D single-link displays at resolutions up to 1920 x 1200 at 60 Hz each through the supplied Display Port to DVI-D single-link adapters, the Quadro NVS 450 maximizes productivity by enabling more screen real estate from a single graphics card. Specifications
- Memory
- 512MB 256MB per GPU Memory Interface
- 128-bit 64-bit per GPU Memory Bandwidth
- 22.4GB/s 11.2GB/s per GPU CUDA Parallel Processing Cores
- 16 8 per GPU Maximum Power Consumption
- 34W Thermal Solution
- Passive Physical

Dimensions
- ATX, 4.376" H x 6.60" L Display Connectors
- DP + DP + DP + DP Number of Displays Supported
- 4 Maximum Display Port Resolution
- 2560 x 1600 at 60 Hz Number of DVI-D SL Adapters Provided
- 4 Maximum DVI-D SL Resolution
- 1920 x 1200 at 60 Hz Graphics Bus
- PCI Express 2.0 x 16 3D Vision Pro
- Support via USB (Universal Serial Bus) Maximum Display Resolution
- 2560 x 1600 at 60 Hz HDCP Support
- Yes Graphics APIs
- Open GL 3.3, Direct X 10.1, Shader Model 4.1 Compute APIs
- NVIDIA CUDA, Direct Compute & Open CL NVIEW Enabled
- Yes Mosaic Mode Enabled
- Yes NVIDIA Quadro NVS 450 Architecture
- 128-bit color precision 12 pixels per clock rendering engine 3D volumetric texture support 3rd generation occlusion culling 16 textures per pixel in fragment programs 16x FSAA (Full-Scene Antialiasing) Window ID clipping functionality Compliant with professional Open GL & Direct X applications Minimum System Requirements
- Windows 7, Vista, XP SP3, Linux, or Solaris Open PCI Express x 16 lane slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation 50MB of available disk space for full installation Blu-ray, DVD-ROM or CD-ROM drive DVI or Display Port compatible display (s) VGA compatible displays optional, requires PN DP-VGA-QUADKIT-PB, sold separately
























...

The NVIDIA Quadro NVS 420 by PNY Technologies for x 16 PCIE is a quad-display business graphics solution, specifically designed for small form factor systems, that delivers a reliable hardware & software platform for enterprise environments requiring robust IT management tools for seamless companywide deployment. Featuring NVIDIA n View™ advanced display software technology & support for up to four 30” displays at 2560 x 1600 resolution, business professionals can maximize productivity through increased desktop real estate & advanced application management tools. The Quadro NVS 420 is tested on leading business applications & designed to meet the needs of today’s most demanding business user. The NVIDIA Quadro NVS 420 by PNY is the chosen solution across mixed environments, including financial institutions, emergency call centers, digital signage systems, & other mission-critical environments. Featuring CUDA™ parallel computing processors with a unified architecture designed to dynamically allocate GPU resources, the Quadro NVS 420 solution delivers optimized performance for business graphics. Capable of supporting up to four digital displays at resolutions of up to 2560 x 1600 each through Display Port connectors (PN VCQ420NVS-X16-PB, DVI display users should purchase PN VCQ420NVSX16DVI-PB), the Quadro NVS 420 maximizes productivity by enabling more screen real estate from a single graphics card. Through the NVIDIA n View advanced display software, Quadro NVS 420 enables features such as profiles, extended Windows taskbar, gridlines, & virtual desktops. In addition, Quadro NVS 420 provides high-quality HD video output & high memory bandwidth for today’s more demanding digital signage requirements. NVIDIA Unified Architecture Industry’s first unified architecture designed to dynamically allocate GPU resources to deliver optimized performance. NVIDIA CUDA Parallel Computing Processor 16 CUDA parallel processing cores compatible with all CUDA accelerated applications. NVIDIA CUDA provides a C language environment & tool suite that unleashes new capabilities to solve various visualization challenges. Quad Display Port or Quad DVI-D Single Link The NVS 420 features a VHDCI connector that supports either Display Port or DVI-D Single Link displays. PN VCQ420NVS-X16-PB

Includes:: a VHDCI to quad Display Port adapter while PN VCQ420NVSX16DVI-PB

Includes:: a VHDCI to quad DVI-D Single Link adapter. Display Port supports digital displays at resolutions up to 2560 x 1600. NVIDIA Pure Video Technology NVIDIA Pure Video technology is the combination of high-definition video processors & software that delivers unprecedented picture clarity, smooth video, accurate color, & precise image scaling for SD & HD video content. Features include high-quality scaling, spatial temporal de-interlacing, inverse telecine, & high quality HF video playback from DVD. NVIDIA n View Advanced Display Software The n View advanced display software delivers maximum flexibility for single large display or multi-display configurations, providing unprecedented end-user control of the desktop experience for increased productivity. Energy Star Enabled Design Enables Energy Star compliance with low maximum & low idle power levels. Processor
- Maximum resolution
- 2560 x 1600 pixels
- Graphics processor
- NVS 420 Memory
- Graphic adapter memory
- 256 MB
- Graphics adapter memory type
- GDDR3
- Memory bus
- 128 bit
- Memory bandwidth (max)
- 22.4 GB/s Connectivity
- Interface type
- PCI Express x 16
- DVI-D ports quantity
- 4 Cooling
- Cooling type
- active Video
- Direct X
- No
- CUDA
- Yes System requirements
- Mac compatibility
- No
- Minimum system requirements
- CD/DVD-ROM
- Minimum processor
- Intel Pentium 4/ Xeon / AMD Opteron
- Minimum RAM
- 256MB
- Minimum hard disk space
- 50MB
- Minimum system power supply
- 350W Technical details
- Compatible operating systems
- Microsoft Windows XP, 2000, NT 4.0 (SP 6) / Linux







































...

NVIDIA Quadro NVS 450 by PNY delivers a reliable hardware & software platform for a stable environment & robust IT management tools for seamless enterprise deployment. Featuring NVIDIA n View multi-display technology & support for up to four displays, business professionals can maximize productivity through increased desktop real estate & advanced application management tools. Quadro NVS 450 is certified on leading business applications & designed to meet the needs of todays most demanding business user. Quadro NVS 450 is the chosen solution across mixed environments, including financial institutions, emergency call centers, digital signage systems, & other mission-critical environments. Featuring CUDA parallel computing processors with a unified architecture designed to dynamically allocate GPU resources, the Quadro NVS 450 solution delivers optimized performance for business graphics. Capable of supporting up to four digital displays at resolutions of up to 2560 x 1600 each through the Display Port connectors, the Quadro NVS 450 maximized productivity by enabling more screen real estate from a single graphics card. Through the NVIDIA n View advanced display software, Quadro NVS 450 enables features such as profiles, extended Windows taskbar, gridlines, & virtual desktops. In addition, Quadro NVS 450 provides high-quality HD video output & high memory bandwidth for todays more demanding digital signage requirements. ...

NVIDIA Quadro NVS 290 by PNY Technologies graphics boards deliver a new level of performance, quality & stability to professional 2D multi-display environments. The innovative NVIDIA unified architecture dynamically allocates geometry, shader, & compute processing power to efficiently deliver optimized performance. Business professionals who spend their days in front of a workstation understand the importance & value of a solution that helps them work more efficiently. Whether its tracking securities across multiple displays or managing several desktop applications, corporate users are looking for the right solution to fit their business requirements. The NVIDIA Quadro NVS 290 by PNY delivers the compatibility, quality & performance that corporate users dem&. From small businesses to enterprise-level corporations, the NVIDIA Quadro NVS 290 by PNY delivers solutions to fit every users needs. ...

Delivering a reliable hardware & software platform, the NVIDIA Quadro NVS 295 by PNY is designed to meet the needs of todays most demanding business user. Featuring NVIDIA n View display management software & support for up to two 30" displays at 2560 x 1600 resolutions, business professionals can maximize productivity through increased desktop real estate & advanced application management tools. Tested on industry-leading business applications, the NVIDIA Quadro NVS 295 by PNY provides a stable business environment.

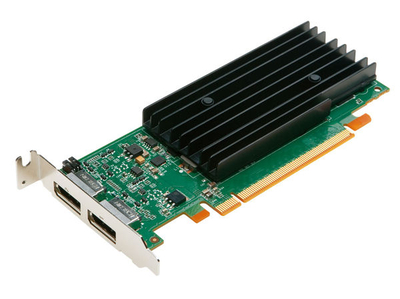

Specification Form Factor: Low Profile
- SFF Memory Size: 256MB GDDR3 Memory Interface: 64-bit Memory Bandwidth: 11.2GB/s Max Power Consumption: 23W Graphics Bus: PCI Express x 16 Display Connectors: Display Port (2) Single Link DVI-D: Yes (2 through industry standard Display Port to DVI-D adapter cables
- P/N:VCQ295NVSX16DVI-PB) Auxiliary Power Connectors: No Number of Slots: 1 Thermal Solution Passive: Passive heatsink



...

Boost your enterprise's productivity with the NVIDIA NVS™ 310 by PNY dual-display professional graphics solution. This graphics board provides a reliable hardware & software platform to enable fast, cost-effective integration, deployment, & support across large enterprises. Each NVS 310 board features Display Port 1.2, NVIDIA Mosaic™ Technology, & NVIDIA NVIEW desktop management software, & can drive up to two 30-bit displays at resolutions up to 2560x 1600 at 60 Hz. Included Display Port to DVI adapters allow two DVI-D single-link displays to be driven at resolutions up to 1920 x 1200 at 60 Hz. This allows business professionals to maximize productivity by increasing their desktop real estate & leveraging advanced application-management tools. Plus, every NVS 310 is tested on leading business applications & designed with the ideal balance of performance & power to meet the needs of today's most demanding business user. NVIDIA power management technology reduces overall system energy costs. It intelligently adapts the total power utilization of the graphics subsystem based on the applications being run by the end user. This power optimized design helps reduce Total Cost of Ownership (TCO) & increase reliability. CUDA Cores
- 48 GPU Memory
- 512MB DDR3 Memory Interface
- 64-bit Memory Bandwidth
- 14.0GB/s System Interface
- PCI Express Gen 2 x 16 Maximum Power Consumption
- 19.5W Thermal Solution
- Ultra-quiet fansink Energy Star Compliant
- Yes Form Factor
- SFF, 2.731" H x 5.70" L Display Connectors
- DP + DP Display Port 1.2
- Yes Display Port with Audio
- Yes DVI-D Single-Link Connectors
- Two via included adapters Number of Displays Supported
- 2 Maximum DP Digital Resolution
- 2560 x 1600 at 60 Hz Maximum DVI Digital Resolution
- 1920 x 1200 at 60 Hz PCIe High Definition Audio Support
- Yes HDCP Support
- Yes Graphics APIs
- Shader Model 5.0, Open GL 4.1, Direct X 11 Compute APIs
- CUDA, Direct Compute, Open CL NVIEW
- Yes Mosaic Mode
- Yes (Windows 7) Warranty
- 3 Years PNY Part Number
- VCNVS310DVI-PB NVIDIA NVS 310 Display & Audio Capabilities Integrated Display Port 1.2 support HDMI 1.4a with audio via 3rd party adapters DVI-D single-link via included adapters 480p, 720p, 1081i, & 1080p video resolution support 32k Hz, 44.1k Hz, 48k Hz, 92k Hz, 176k Hz, & 192k Hz audio frequency support 16-bit, 20-bit, 24-bit audio sampling size support Digital Content Protection Support for HDCP NVIDIA NVS 310 Video Codec Support MPEG-2 MPEG-4 Part 2 Advanced Simple Profile H.264 SVC codec support
- 3D Blu-ray support 3D Blu-ray support VC1 Div X version 3.11 & later MVC Minimum System Requirements Windows 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation Blu-ray, DVD-ROM or CD-ROM drive DVI or Display Port compatible display (s)
























...

The NVS 310 graphics board provides a reliable hardware & software platform to enable fast, cost-effective display integration & deployment, in large commercial enterprises across various industries such as financial services, digital signage, education, insurance, government, hospitals & call centres. Each board features Display Port 1.2, NVIDIA Mosaic technology, & NVIDIA n View desktop-management software, & can drive up to two 30-inch displays at 2560 x 1600 resolutions. This lets you maximize your productivity by better managing your desktop applications & optimizing your desktop real estate. Take advantage of extensive enterprise-management tools to seamlessly deploy NVIDIA technology & business applications across your enterprise for maximum uptime. Using a standard WMI-based interface, you can also remotely query & control graphics & display settings for systems spread across your corporate environments. Every PNY NVS 310 is tested on leading business applications & designed with the ideal balance of performance & power to meet your most demanding business needs. Enjoy full compatibility with industry-leading business applications such as Microsoft Office, Adobe Acrobat, Mc Afee Virus Scan, Internet Explorer, Google Chrome, & many others. ...

Key Features • Three mini Display Port 1.4 Connectors. • Display Port with Audio. • NVIDIA n View Desktop Management Software. • HDCP 2.2 Support. • NVIDIA Mosaic. • NVIDIA Iray & Mental Ray Support. • PCI Express 3.0 x 16 interface. • Maximum DP 1.4 resolution of 5120 x 2880 @60 Hz (HDR, 30-bit colour). • Maximum DVI-I DL resolution of 2560 x 1600 @60 Hz. • Maximum DVI-I SL resolution of 1920 x 1200 @60 Hz. Unmatched Power. Unmatched Creative Freedom. The NVIDIA Quadro P400 combines a 256 CUDA core Pascal GPU, large on-board memory & advanced display technologies to deliver great performance for a range of professional applications. 2 GB of ultra-fast GPU memory makes it easy to manage complex 2D & 3D models & the single-slot, low-profile form factor makes it compatible with even the most space & power-constrained chassis. Supports Multiple 4K HDR Displays Support for three 4K displays (4096x 2160 @ 60 Hz) with HDR color gives you a wide visual workspace to view your work in extremely high resolution. Made for Professionals Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, & backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly. Pascal GPU Technology Based on state-of-art 14nm Fin FET process technology with 256 CUDA cores, the Quadro P400 provides performance & efficiency for CAD, DCC & visualisation professionals in small & power efficient form factor. ...

Key Features Three mini Display Port 1.4 Connectors. • Display Port with Audio. • NVIDIA n View Desktop Management Software. • HDCP 2.2 Support. • NVIDIA Mosaic. • NVIDIA Iray & Mental Ray Support. • PCI Express 3.0 x 16 interface. Unmatched Power. Unmatched Creative Freedom. The NVIDIA Quadro P400 combines a 256 CUDA core Pascal GPU, large on-board memory & advanced display technologies to deliver great performance for a range of professional applications. 2 GB of ultra-fast GPU memory makes it easy to manage complex 2D & 3D models & the single-slot, low-profile form factor makes it compatible with even the most space & power-constrained chassis. Supports Multiple 4K HDR Displays With support for Display Port 1.4, the P400 can drive resolutions of up to 5K (5120 x 2880) at 60 Hz from a single cable. You can combine up to four Quadro GPUs in one system to simplify the deployment of display walls or other immersive display environments. Display Port 1.4 offers HDR colour support, enabling brighter displays, more saturated colours & a greater than 10, 000 to 1 contrast ratio. Made for Professionals Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, & backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly. Pascal GPU Technology Based on state-of-art 14nm Fin FET process technology with 256 CUDA cores, the Quadro P400 provides performance & efficiency for CAD, DCC & visualisation professionals in small & power efficient form factor. ...
