NVIDIA Quadro 5000G by PNY Technologies, is an ideal solution for applications requiring unprecedented levels of immersive realism or interactive visualization that utilize Frame Lock or genlock functionality to choreograph multi-device film & video environments, or visualization clusters for effects rendering, scientific or engineering use. Frame Lock synchronizes the display channels from multiple workstations, creating a single "virtual display", that can be driven by a multi-system cluster for performance scalability. Using the NVIDIA Quadro 5000G by PNY, scientists & engineers can develop scalable, open standards driven, visualization clusters that can dramatically outperform expensive proprietary solutions at a fraction of their cost. Genlock allows graphics output to be synchronized to an external source, typically for film & broadcast video applications. Offering GDDR5 graphics memory, 352 NVIDIA CUDA parallel processing cores & built on the Fermi architecture, the NVIDIA Quadro 5000 by PNY is a true technological delivering ultra-fast performance across a broad range of design, animation & video applications. The NVIDIA Quadro 5000 by PNY graphics board significantly raises the bar for high performance visualization & computation providing the ability to drive a variety of display types including: CRTs, digital flat panels, projectors & HDTVs. ...

Offering 2.5 GB of GDDR5 graphics memory, 352 NVIDIA CUDA™ parallel processing cores & built on the innovative Fermi architecture, the NVIDIA Quadro 5000 by PNY is a true technological breakthrough delivering ultra-fast performance across a broad range of design, animation & video applications. Using the Quadro 5000 graphics solution, your work flows — you can design, render & deliver higher quality projects in less time. The NVIDIA Quadro 5000 by PNY offers ECC memory & fast double precision to ensure the accuracy & fidelity of your work. Quadro is designed to run computationally intensive applications such as ray tracing, video processing & computational fluid dynamics; supports Direct X 11.0, Open GL 4.1 & Shader Model 5.0 hardware acceleration, & drives a variety of display types including: CRTs, Digital Flat Panels, Projectors & HDTVs. GPU Memory
- 2.5 GB GDDR5 Memory Interface
- 320-bit Memory Bandwidth
- 120 GB/sec CUDA Parallel Processing Cores
- 352 ECC (Error Correcting Code)
- Yes High Performance Double Precision
- Yes Maximum Power Consumption
- 150W Energy Star Compliant
- Yes Physical

Dimensions
- 4.376” H x 9.50” L Dual Slot Display Connectors
- DVI-DL + DP + DP + ST Number of Displays Supported
- 2 DP
- Yes DVI
- Yes VGA
- Yes Graphics Bus
- PCI Express 2.0 x 16 Thermal Solution
- Active 3D Vision Pro
- Support via 3-pin Mini-DIN G-Sync
- Version Available HD SDI Capture/ Output
- Version Available Maximum Digital Resolution
- 2560 x 1600 at 60 Hz Graphics APIs
- Direct X 11, Open GL 4.0 & Shader Model 5.0 Compute APIs
- NVIDIA CUDA, Direct Compute & Open CL























...

Offering 6 GB of GDDR5 graphics memory, 448 NVIDIA CUDA™ parallel processing cores & built on the innovative Fermi architecture, the NVIDIA Quadro 6000 by PNY is a true technological breakthrough delivering excellent performance across a broad range of design, animation & video applications. Using the Quadro 6000 graphics solution, your work flows — you can design, render & deliver higher quality projects in less time. The NVIDIA Quadro 6000 by PNY offers ECC memory & fast double precision to ensure the accuracy & fidelity of your work. Quadro is designed to run computationally intensive applications such as ray tracing, video processing & computational fluid dynamics; supports Direct X 11.0, Open GL 4.1 & Shader Model 5.0 hardware acceleration, & drives a variety of display types including: CRTs, Digital Flat Panels,

Specification
- Memory
- 6 GB GDDR5 Memory Interface
- 384-bit Memory Bandwidth
- 144 GB/sec CUDA Parallel Processing Cores
- 448 ECC (Error Correcting Code)
- Yes High Performance Double Precision
- Yes Maximum Power Consumption
- 204W Energy Star Compliant
- Yes Physical

Dimensions
- 4.376" H x 9.75" L Dual Slot Display Connectors
- DVI-DL + DP + DP + ST Number of Displays Supported
- 2 DP
- Yes DVI
- Yes VGA
- Yes Graphics Bus
- PCI Express 2.0 x 16 Thermal Solution
- Active 3D Vision Pro
- Support via 3-pin Mini-DIN G-Sync
- Version Available HD SDI Capture/ Output
- Version Available Maximum Digital Resolution
- 2560 x 1600 at 60 Hz Graphics APIs
- Open GL 4.1, Direct X 11.0 & Shader Model 5.0 Compute APIs
- NVIDIA CUDA, Direct Compute & Open CL


























...

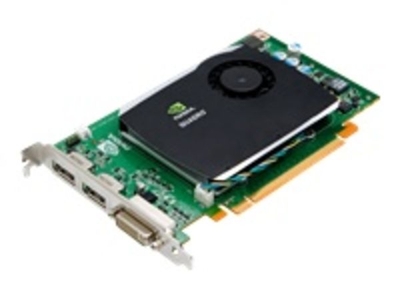

768MB GDDR3 frame buffer 192-bit memory interface 38.4GB/sec memory bandwidth DVI dual link & two Display Port PCI Express x 16 Gen 2 bus interface (compatible with Gen 1) 59W maximum power consumption Create innovative designs with the NVIDIA Quadro FX 1800 by PNY professional graphics solution architected for leading-edge manufacturing & design companies. The next generation solution within the most requested mid-range professional graphics family, Quadro FX 1800 provides a balanced price & performance combination. Featuring the NVIDIA CUDA™ parallel computing architecture, 30-bit color accuracy, & automatic configuration of application display settings for optimal performance, the Quadro FX 1800 sets the standard for power efficiency while delivering a rich user experience. ...

Digital artists & designers can now create stunning 3D designs from a professional platform. Enabling Energy Star compliance, ...

NVIDIA Quadro K2000 – Outstanding NVIDIA Kepler™ Architecture Performance & Quad Display Support Enhances Professional Productivity & Creativity The NVIDIA Quadro K2000 graphics board offers the perfect blend of performance & the latest productivity enhancing technical innovations at a very reasonable cost for a wide range of leading professional applications. You get 2GB of GDDR5 GPU memory, 384 SMX CUDA parallel processing cores, the ability to drive up to four displays simultaneously, & full Shader Model 5 compatibility; all in a single slot form factor which requires no auxiliary power to deliver full performance. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 150 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most ambitions visions – whether it's product design, visualization & simulation, or spectacular visual storytelling – & get results to market faster, more profitably, & with superior visual quality.

Specification CUDA Cores
- 384 GPU Memory
- 2GB GDDR5 Memory Interface
- 128-bit Memory Bandwidth
- 64.0GB/s System Interface
- PCI Express 2.0 x 16 Maximum Power Consumption
- 51W Energy Star Enabling
- Yes Thermal Solution
- Ultra-quiet active fansink Form Factor
- 4.376" H x 7.97" L, Single Slot, Full Height Display Connectors
- DVI-I DL + DP 1.2 + DP 1.2 Display Port 1.2
- Yes Display Port with Audio
- Yes DVI-D Single-Link Connector
- Via included adapter VGA Support
- Via included adapter Number of Displays Supported
- 3 direct, 4 DP 1.2, 2 Win XP Maximum DP 1.2 Resolution
- 3840 x 2160 at 60 Hz Maximum DVI-I DL Resolution
- 2560 x 1600 at 60 Hz Maximum DVI-I SL Resolution
- 1920 x 1200 at 60 Hz Maximum VGA Resolution
- 2048 x 1536 at 85 Hz HDCP Support
- Yes Graphics APIs
- Shader Model 5.0, Open GL 4.3, Direct X 11 Compute APIs
- CUDA, Direct Compute, Open CL NVIEW
- Yes Mosaic Mode
- Yes (Windows 7 & Linux) NVIDIA 3D Vision & 3D Vision Pro
- Yes, via USB (Universal Serial Bus) Port Minimum System Requirements Windows 8, 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation Blu-ray, DVD-ROM drive Display Port, DVI or VGA compatible display (s) 3D Graphics Architecture Scalable geometry architecture Hardware tessellation engine FXAA/TXAA dedicated anti-aliasing engine Bindless textures Shader Model 5.0 (Open GL 4.3 & Direct X 11) Up to 16K x 16K texture & render processing Transparent multisampling & super sampling 16x angle independent anisotropic filtering 32-bit per component floating point texture filtering & blending Up to 64x full scene antialiasing Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, Div X (version 3.11 & later), & Flash (10.1 & later) Dedicated H.264 encoder Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback) NVIDIA CUDA Parallel Processing Architecture SMX architecture (streaming multi-processor design that delivers greater processing & efficiency) API support including: CUDA C, CUDA C++, Direct Compute 5.0, Open CL, Java, Python, & Fortran NVIDIA Parallel Data Cache hierarchy (configurable L1 & unified L2 caches) Advanced Display Features Simultaneously run three directly connected displays, each with full display capabilities Support up to four displays with Display Port 1.2 Multi-Stream technology Dual Display Port 1.2 outputs including Multi-Stream & HBR2 support (capable of supporting resolutions such as 3840 x 2160 at 60 Hz) DVI-I Dual-Link output (up to 2560 x 1600 at 60 Hz or 1920 x 1200 at 120 Hz) Internal 400 M Hz DAC DVI-I output (analog display up to 2048 x 1536 at 85 Hz) Display Port to VGA, Display Port to DVI (single-link) & Display Port to HDMI cables available Display Port, DVI, & HDMI support HDCP 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications & connections) NVIDIA 3D Vision™ technology, 3D DLP, interleaved, & other 3D stereo format support Full Open GL quad buffered stereo support Underscan/overscan compensation & hardware scaling NVIDIA NVIEW multi-display technology NVIDIA Mosaic technology Only two displays supported under Windows XP SP3 Display Port & HDMI Digital Audio Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), & MPEG-2/MPEG-4 AAC Data rates of 44.1 K Hz, 48 K Hz, 88.2 K Hz, 96 K Hz, 176 K Hz, & 192 K Hz Word sizes of 16-bit, 20-bit, & 24-bit


























...

The NVIDIA Quadro K2000D graphics board offers the perfect blend of performance & the latest productivity enhancing technical innovations at a very reasonable cost for a wide range of leading professional applications. With two DVI-DL connectors, & the ability to drive an additional side display, the K2000D is an ideal choice for color or grayscale medical imaging applications requiring 10- or 12-bit grayscale imaging with DICOM monitor calibration support. You get 2GB of GDDR5 GPU memory, 384 SMX CUDA parallel processing cores, & full Shader Model 5 compatibility; all in a single slot form factor which requires no auxiliary power to deliver full performance. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 150 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most demanding needs – whether it’s product design, visualization & simulation, or medical & diagnostic imaging. NVIDIA Kepler GPU Architecture The NVIDIA Kepler architecture introduces the concept of bindless textures, which enables the GPU to reference textures directly in memory. This effectively eliminates the limit on the number of unique textures that can be used to render a scene, & reduces the CPU overhead to deliver enhanced performance. In fact, over one million unique textures are now possible. Fast approximate anti-aliasing (FXAA) & temporal anti-aliasing (TXAA) film-style technologies give you outstanding image quality for content creation & design reviews without compromising the interactive experience. NVIDIA SMX Technology Next-generation streaming multiprocessor (SM) design, called SMX, offers several important architectural changes. You can realise substantial increases in per-clock throughput of key graphics operations that combine to deliver unprecedented performance & power efficiency. Plus, the new Quadro solutions offer up to 4 GB frame buffer capacity, letting you work with larger models & assemblies & improving interactive manipulation performance during the design process. NVIDIA CUDA Architecture CUDA is NVIDIA’s parallel computing architecture that enables dramatic increases in computing performance by harnessing the power of the GPU (graphics processing unit). With millions of CUDA-enabled GPUs sold to date, software developers, scientists & researchers are finding broad-ranging uses for CUDA, including image & video processing, computational biology & chemistry, fluid dynamics simulation, CT image reconstruction, seismic analysis, ray tracing, & much more. NVIDIA Quadro Scalable Geometry Engine Quadro Scalable Geometry Engine dramatically improves performance across a broad range of CAD, DCC & scientific applications, enabling your work to flow interactively with models & scenes that are an order of magnitude more complex than ever before. NVIDIA Parallel Data Cache Supports a true cache hierarchy combined with on-chip shared memory. L1 & L2 caches drive exceptional throughput, accelerating features such as real-time ray tracing, physics, & texture filtering. NVIDIA 3D Vision & 3D Vision Pro Stereoscopic Solution Advanced active shutter glasses that deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (3D Vision) or RF (3D Vision Pro) technology enable a range of immersive environments from your desktop workstation to collaborative work spaces. 3D Vision & 3D Vision Pro are sold separately. NVIDIA NVIEW Advanced Desktop Software As the magnitude of data increases, it is more crucial than ever for professionals to efficiently manage their systems single or multi monitor workspace. Using NVIDIA NVIEW Software, professionals have maximum flexibility & unprecedented control over their workspace. NVIEW provides a visual overview of the entire workspace along with a range of tools to accelerate the navigation through their systems information to maximize productivity. NVIDIA Quadro Mosaic Technology Whether you want to see your designs across eight displays or project your ideas in 4K, you can with NVIDIA Mosaic multi-display technology. Featured in NVIDIA Quadro & NVIDIA NVS solutions, you can easily span any application across multiple high-resolution panels or projectors from a single workstation, without sacrificing performance or power.

Specification
- Bus Interface
- PCI Express 2.0 x 16 Output Interface
-
- 1 x DVI-I
- 1 x DVI-D
- 1 x Mini-Display Port Expansion / Connectivity
-
- Compatible Slots
- 1 x PCI Express x 16
- Width
- Single Slot GPU

Specification
-
- CUDA Cores
- 384 Memory

Specification
-
- Memory Type
- 128 bit GDDR5
- Memory Size
- 2048 MB Display

Specification
-
- Multi-Monitor Support
- Up to 4 displays*
- Max Digital Resolution
- 3840x 2160
- Max Analogue Resolution
- 2048x 1536
- Quadro SDI Enabled
- No
- Quadro Synch Enabled
- No
- Quadro SLi Enabled
- No
- Quadro Maximus Enabled
- No *4 screens via a seperate Display Port 1.2 MST Hub (not included) Thermal

Specification
-
- Max Power Usage
- 51W
- Minimum PSU Requirement
- 300W
- Required Power Connectors
- N/A Supported Technologies
-
- Technologies Direct X 11 Support
- Shader Model 5.0
- Open GL 4.3
- NVIDIA Kepler Architecture
- NVIDIA SMX Engine
- NVIDIA Scalable Geometry Engine
- NVIDIA Parallel Data Cache
- NVIDIA CUDA Architecture
- NVIDIA Quadro Mosaic Technology
- NVIDIA NVIEW Display Management
- NVIDIA FXAA & TXAA
- NVIDIA 3D Vision & 3D Vision Pro
- NVIDIA Enterprise Management Tools
- H.264 Encoder
- Bindless Textures
- Unified Driver Architecture (UDA)
- Full-Scene Antialiasing (FSAA)




































































...

NVIDIA Quadro 4000 by PNY
- Accelerate your entire workflow Offering 3 GB of GDDR5 graphics memory, 256 NVIDIA CUDA™ parallel
...

The NVIDIA Quadro K5000 taps into the new NVIDIA Kepler architecture to deliver the world’s most compatible & power-efficient GPU for accelerating professional applications. You can count on superior interaction when designing with the most complex models, richer scene details & effects for content creation, & faster results when processing massive datasets for scientific exploration. The Quadro K5000 features a range of innovative features, including SMX for increased per-clock throughput of key graphics operations & bindless textures that enable the GPU to reference textures directly in memory. Plus, it supports up to four displays—ideal for driving large-scale visualization solutions. Easily deploy ultra-high resolution scalable visualization configurations. You can now drive up to four displays simultaneously & get full support of the next-generation Display Port 1.2 standard—capable of resolutions of 3840x 2160 at 60 Hz. This makes it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment. NVIDIA’s latest technologies, coupled with a Quadro K5000, give you an easy, affordable way to perform image synchronization & resolution scaling of a synchronized display surface with multiple projectors or displays. These technologies include Quadro Sync, Quadro Mosaic, Quadro Warp/ Blend, & GPUDirect. Interact with greater levels of model complexity in the design workflow. The Quadro K5000’s next-generation streaming multiprocessor (SM) design, called SMX, offers several important architectural changes. These include substantial increases in per-clock throughput of key graphics operations that combine to deliver unprecedented performance & power efficiency. Plus the Quadro K5000 features large frame buffer capacity that lets you work with larger models & assemblies & improves interactive manipulation performance during the design process. Create richer scene details & effects for content creation. The NVIDIA Kepler architecture introduces the concept of bindless textures, which enables the GPU to reference textures directly in memory. This effectively eliminates the limit on the number of unique textures that can be used to render a scene, & reduces the CPU overhead to deliver enhanced performance. In fact, over one million unique textures are now possible. FXAA & TXAA film-style antialiasing technologies also optimize throughput of the SMX architecture, so you get outstanding image quality for content creation & design reviews without compromising the interactive experience. Certified on industry-leading professional applications. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 150 professional applications across a broad range of industries, including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to deliver the best possible experience with applications such as Adobe CS6, Avid Media Composer, Autodesk Inventor, Dassault Systemes CATIA & Solid Works, Siemens NX, PTC Creo, & many more. For maximum application performance, add a Tesla K20 to your workstation & experience the power of NVIDIA Maximus technology. Specifications CUDA Cores
- 1536 Memory Size Total
- 4 GB DDR5 Memory Interface
- 256-bit Memory Bandwidth
- 173 GB/s Shader Model
- 5 Open GL
- 4.3 Microsoft Direct X
- 11 NVIDIA Maximus
- Yes NVIDIA SLI
- Yes Quadro Sync
- Yes Quadro Mosaic
- Yes Quadro Digital Video Pipeline
- Yes NVIDIA GPUDirect
- Yes NVIDIA GPUDirect for Video
- Yes NVIDIA CUDA Architecture
- Yes NVIDIA 3D Vision & 3D Vision Pro
- Yes Digital Output
- DVI-I (1), DVI-D (1), DP 1.2 (2), Optional Stereo (1) Stereo (3-pin Mini-DIN)
- Optional Maximum Display Resolution (Digital) DVI-DL: Up to 330M Pixels/sec: (ex 1920x 1200@120 Hz, 2560x 1600@60 Hz) Display Port 1.2: Up to 540M Pixels/sec & 17.3 Gbps data rate (ex 3840x 2160@60 Hz 30bpp, 560x 1440@120 Hz 30bpp, 4096x 2160@24 Hz 36bpp, 096x 2160@50 Hz 30bpp)

















...

NVIDIA Quadro K5000 for Mac– Experience the world's most powerful professional graphics on the Apple Mac Pro platform From small agencies to large media conglomerates, creative professionals utilizing the Apple Mac Pro want tools that let them bring their vision to life as fast as possible – without sacrificing quality. The Quadro K5000 for Mac gives artists & editors unprecedented power & interactivity. Innovative capabilities for increased throughput & support for up to four displays make it ideal for maximum productivity on the desktop & driving large-scale visualization solutions. The Quadro K5000 for Mac's next-generation streaming multiprocessor design offers important architectural changes that transform workflows. These include tremendous increases in per-clock throughout of key graphics operations for new levels of performance. The 4GB frame buffer supports larger scenes & improves interactivity during the creative process. With the ability to drive up to four displays simultaneously from the two DVI & two Display Port connectors, & support for Display Port 1.2 features, the K5000 provides greater color depth, higher refresh rates & the ability to support ultra-high resolutions of 3840 x 2160 at 60 Hz or 4096 x 2160 at 48 Hz

Specification
- CUDA Cores
- 1536 GPU Memory
- 4GB GDDR5 Memory Interface
- 256-bit Memory Bandwidth
- 173.0GB/s System Interface
- PCI Express 2.0 x 16 Maximum Power Consumption
- 122W Idle Power
- 18W Energy Star Enabling
- Yes Thermal Solution
- Ultra-quiet active fansink Form Factor
- 4.376" H x 10.50" L, Dual Slot Display Connectors
- DVI-I DL + DVI-D DL + DP 1.2 + DP 1.2 Display Port 1.2
- Yes Display Port with Audio
- Yes VGA Support
- Via included adapter Number of Displays Supported
- 4 Maximum DP 1.2 Resolution
- 3840 x 2160 at 60 Hz or 4096 x 2160 at 48 Hz Maximum DVI-I DL Resolution
- 2560 x 1600 at 60 Hz Maximum VGA Resolution
- 2048 x 1536 at 85 Hz HDCP Support
- Yes Professional 3D Support
- Yes, via included stereo connector bracket Mac OS X Graphics API
- Open GL 3.2 Windows Graphics APIs
- Shader Model 5.0, Open GL 4.3, Direct X 11 Minimum System Requirements Mac Pro 3, 1; Mac Pro 4, 1; Mac Pro 5, 1 or later Mac OS X 10.8.3 or later Microsoft Windows (via Boot Camp) 8, 7, Vista, or XP SP3 (32- or 64-bit) Display Port, DVI, or VGA compatible display (s) 3D Graphics Architecture Scalable geometry architecture Hardware tessellation engine NVIDIA Giga Thread engine with dual copy engines Shader Model 5.0 (Open GL 4.3 & Direct X 11 Up to 16K x 16K texture & render processing Transparent multisampling & super sampling 16x angle independent anisotropic filtering 128-bit floating point performance 32-bit per component floating point texture filtering & blending 64X full scene antialiasing FXAA & TXAA full scene antialiasing Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, Div X (version 3.11 & later), & Flash (10.1 & later) Dedicated H.264 encoder Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback) NVIDIA CUDA Parallel Processing Architecture SMX architecture (streaming multi-processor design that delivers greater processing & efficiency) API support including: CUDA C, CUDA C++, Direct Compute 5.0, Open CL, Java, Python, & Fortran NVIDIA Parallel Data Cache hierarchy (configurable L1 & unified L2 caches) Error-Correction Code (ECC) memory 64KB of RAM (configurable partitioning of shared memory & L1 cache) Dual Warp Schedules (schedules & dispatches simultaneously instructions from two independent warps) Advanced Display Features 30-bit color (10-bit per each red, green & blue channel) Support for any combination of three connected displays Display Port 1.2 (up to 3840 x 2160 at 60 Hz & 2560 x 1600 at 120 Hz) DVI-I Dual-Link output (up to 2560 x 1600 at 60 Hz & 1920 x 1200 at 120 Hz) DVI-D Dual-Link output (up to 2560 x 1600 at 60 Hz & 1920 x 1200 at 120 Hz) Internal 400 M Hz DAC DVI-I output (analog display up to 2048 x 1536 at 85 Hz) Display Port 1.2, HDMI 1.4, & HDCP support (HDMI requires 3rd party adapter) 10-bit internal display processing NVIDIA 3D Vision™ technology, 3D DLP, interleaved, & other 3D stereo format support Full Open GL quad buffered stereo support Underscan/overscan compensation & hardware scaling NVIDIA NVIEW multi-display technology
- NVIDIA Mosaic technology Support for large-scale, ultra-high resolution visualization including Quadro Mosaic, Quadro Sync & Warp/ Blend technologies Display Port & HDMI Digital Audio Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), & MPEG-2/MPEG-4 AAC Data rates of 44.1 K Hz, 48 K Hz, 88.2 K Hz, 96 K Hz, 176 K Hz, & 192 K Hz Word sizes of 16-bit, 20-bit, & 24-bit

























...
