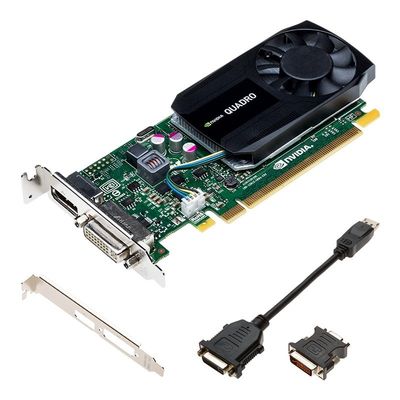

PNY NVIDIA Quadro K420 1 GB GDDR5 DVI Display Port PCI-E Graphics Card Accelerate your creativity with NVIDIA Quadro—the world’s most powerful workstation graphics. Support for multiple 4K displays, large memory capacity, advanced photorealistic rendering & flexible multi-GPU configurations. The NVIDIA Quadro K420 delivers power-efficient 3D application performance & capability. 1 GB of DDR3 GPU memory with fast bandwidth enables you to create complex 3D models, & a flexible single-slot & low-profile form factor makes it compatible with even the most space & power-constrained chassis. Plus, there’s the Display Port 1.2 support for ultra-high resolutions like 3840x 2160 @ 60 Hz with 30-bit color & the all-new display engine that drives up to four displays natively. NVIDIA Quadro is the world’s most advanced visual computing platform for workstations. Much more than a powerful graphics accelerator for sophisticated applications used by professionals, NVIDIA Quadro enables you to create & collaborate in exciting new ways. This makes it the 1 solution for designing, visualizing, & simulating your ideas. NVIDIA Quadro by PNY GPUs are designed, built, & tested by NVIDIA specifically for professional workstations powering more than 150 professional applications across a broad range of industries, including manufacturing, media & entertainment, sciences, & energy. GPU MEMORY 1 GB GDDR5 MEMORY INTERFACE 128-bit MEMORY BANDWIDTH 29 GB/s CUDA CORES 192 SYSTEM INTERFACE PCI Express 2.0 x 16 MAX POWER CONSUMPTION 41 W THERMAL SOLUTION Ultra-quiet active fansink FORM FACTOR 68.91 mm (H) x 160.02 mm (L) Single Slot, Low Profile DISPLAY CONNECTORS 1 x DVI-I DL 1 x DP1.2 MAX SIMULTANEOUS DISPLAYS 2 direct, 4 DP 1.2 Multi-Stream MAX DP 1.2 RESOLUTION 3840 x 2160 @ 60 Hz MAX DVI-I DL RESOLUTION 2560 x 1600 @ 60 Hz 1920 x 1200 @ 120 Hz MAX DVI-I SL RESOLUTION 1920 x 1200 @ 60 Hz MAX VGA RESOLUTION 2048 x 1536 at 85 Hz GRAPHICS APIS Shader Model 5.0, Open GL 4.51, Direct X 11.22 COMPUTE APIS CUDA, Direct Compute, Open CL ...

NVIDIA Quadro K420 – Power Efficient 3D Application Performance The NVIDIA Quadro K420 delivers power-efficient 3D application performance & capability. 1GB of DDR3 GPU memory with fast bandwidth enables you to create complex 3D models, & a flexible single-slot & low-profile form factor makes it compatible with even the most space & power-constrained chassis. Plus, an all-new display engine drives up to four displays with Display Port 1.2 support for ultra-high resolutions like 3840 x 2160 at 60 Hz with 30-bit color. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization & simulation, or spectacular visual storytelling—and get results to market faster. PNY provides unsurpassed service & commitment to its professional graphics customers offering: 3 year warranty, pre & post-sales support, dedicated Quadro Field Application engineers & direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, software installation disc & documentation to ensure a quick & successful install. Overview CUDA Cores 192 GPU Memory 1GB DDR3 Memory Interface 128-bit Memory Bandwidth 29GB/s System Interface PCI Express 2.0 x 16 Display Connectors DVI-D DL + DP 1.2 Display Port 1.2 Yes Warranty 3 Years PNY Part Number VCQK420-PB Minimum System Requirements Microsoft Windows 8.1, 8, 7, Vista, Linux, or Solaris PCIe x 16 expansion slot 2GB or more of system memory, 8GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) Display Port, DVI, or VGA compatible display (s) Package Contains NVIDIA Quadro K420 professional graphics board Attached low profile bracket Unattached standard height bracket Display Port to DVI-D SL adapter DVI-I to VGA adapter Driver DVD for Windows 8.1, 8, 7, & Vista (32- & 64-bit) Printed Quick Start Guide

Specification CUDA Cores 192 GPU Memory 1 GB DDR3 Memory Interface 128-bit Memory Bandwidth 29 GB/s System Interface PCI Express 2.0 x 16 Maximum Power Consumption 41 W Energy Star Enabling Yes Thermal Solution Ultra-quiet active fansink Form Factor 2.713” H x 6.30” low profile, single slot Display Connectors DVI-D DL + DP 1.2 Display Port 1.2 Yes Display Port with Audio Yes DVI-D Single-Link Connector Via included adapter VGA Support Via included adapter Number of Displays Supported 4 (DP 1.2 Multi-Streaming) Maximum DP 1.2 Resolution 3840 x 2160 at 60 Hz (direct connect) Maximum DVI-I DL Resolution 2560 x 1600 at 60 Hz Maximum DVI-I SL Resolution 1920 x 1200 at 60 Hz Maximum VGA Resolution 2048 x 1536 at 85 Hz HDCP Support Yes Graphics APIs Shader Model 5.0, Open GL 4.4, Direct X 11 Compute APIs CUDA, Direct Compute, Open CL NVIEW Yes NVIDIA Mosaic Yes (Windows 8.1, 8, 7, & Linux) NVIDIA 3D Vision & 3D Vision Pro Yes (via USB (Universal Serial Bus) connection to 3D Vision hub) Warranty 3 Years

...

PNY NVIDIA Quadro K4200 4GB GDDR5 Dual DVI Display Port PCI-E Graphics card The NVIDIA Quadro K4200 delivers incredible 3D application performance & capability, allowing you to take advantage of dual copy-engines for seamless data movement within GPU memory—all in a flexible, single-slot form factor. 4GB of GDDR5 GPU memory with ultra-fast bandwidth is ideal for creating & rendering large, complex models. An all-new display engine drives up to four displays with Display Port 1.2 support for ultra-high resolutions like 3840 x 2160 at 60 Hz with 30-bit color. The Quadro K4200 is also fully compatible with NVIDIA Quadro Sync, which means that you can frame-lock multiple displays together, & also supports NVIDIA’s SDI input & output boards for broadcast or digital cinema production workflows. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization & simulation, or spectacular visual storytelling—and get results to market faster. CUDA Cores 1344 GPU Memory 4GB GDDR5 Memory Interface 256-bit Memory Bandwidth 173GB/s System Interface PCI Express 2.0 x 16 Maximum Power Consumption 105 W Energy Star Enabling Yes Thermal Solution Ultra-quiet active fansink Form Factor 4.376” H x 9.50” L, Single Slot Display Connectors DVI-D DL + DP 1.2 + DP 1.2 Display Port 1.2 Yes Display Port with Audio Yes DVI-D Single-Link Connector Via included adapter VGA Support Via included adapter Number of Displays Supported 4 (DP 1.2 Multi-Streaming) Maximum DP 1.2 Resolution 3840 x 2160 at 60 Hz (direct connect) Maximum DVI-I DL Resolution 2560 x 1600 at 60 Hz Maximum DVI-I SL Resolution 1920 x 1200 at 60 Hz Maximum VGA Resolution 2048 x 1536 at 85 Hz HDCP Support Yes Professional 3D Support Yes, via included stereo connector bracket Quadro Sync Compatible Yes HD SDI Capture/ Output Compatible Yes NVIDIA GPU Direct Compatible Yes Graphics APIs Shader Model 5.0, Open GL 4.4, Direct X 11 Compute APIs CUDA, Direct Compute, Open CL NVIEW Yes NVIDIA Mosaic Yes (Windows 8.1, 8, 7, & Linux) NVIDIA 3D Vision & 3D Vision Pro Yes Warranty 3 Years PNY Part Number VCQK4200-PB Minimum System Requirements Microsoft Windows 8.1, 8, 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 2GB or more of system memory, 8GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) Display Port, DVI, or VGA compatible display (s) ...

PNY NVIDIA Quadro K5200 8GB GDDR5 Dual DVI Display Port PCI-E Graphics card The NVIDIA Quadro K5200 gives you amazing application performance & capability, making it faster & easier to accelerate 3D models, render complex scenes, & simulate large datasets. 8GB of GDDR5 GPU memory with ultra-fast bandwidth means that you can create & render large, complex models & compute massive datasets. Plus, there’s the all-new display engine that drives up to four displays natively with Display Port 1.2 support for ultra-high resolutions like 3840 x 2160 at 60 Hz with 30-bit color. The Quadro K5200 is also fully compatible with NVIDIA Quadro Sync, which means that you can frame-lock multiple displays together, & also supports NVIDIA’s SDI input & output boards for broadcast or digital cinema production workflows. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization & simulation, or spectacular visual storytelling—and get results to market faster. CUDA Cores 2304 GPU Memory 8GB GDDR5 Memory Interface 256-bit Memory Bandwidth 192GB/s System Interface PCI Express 3.0 x 16 Maximum Power Consumption 150 W Energy Star Enabling Yes Thermal Solution Ultra-quiet active fansink Form Factor 4.376” H x 10.50” L, Dual Slot Display Connectors DVI-I DL + DVI-D DL + DP 1.2 + DP 1.2 Display Port 1.2 Yes Display Port with Audio Yes DVI-D Single-Link Connector Via included adapters VGA Support Via included adapter Number of Displays Supported 4 Maximum DP 1.2 Resolution 4096 x 2160 at 60 Hz (directly attached) Maximum DVI-I DL Resolution 2560 x 1600 at 60 Hz Maximum DVI-I SL Resolution 1920 x 1200 at 60 Hz HDCP Support Yes Professional 3D Support Yes, via included stereo connector bracket Quadro Sync Compatible Yes HD SDI Capture/ Output Compatible Yes NVIDIA GPU Direct Compatible Yes Graphics APIs Shader Model 5.0, Open GL 4.4, Direct X 11 Compute APIs CUDA, Direct Compute, Open CL NVIEW Yes NVIDIA Mosaic Yes (Windows 8.1, 8, 7, & Linux) NVIDIA 3D Vision & 3D Vision Pro Yes Warranty 3 Years Minimum System Requirements Microsoft Windows 8.1, 8, 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 2GB or more of system memory, 8GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) Display Port, DVI, or VGA compatible display (s) ...

NVIDIA Quadro K600 – NVIDIA Kepler™ Architecture Performance & Features in an Affordable Low-Profile Professional Graphics Solution The NVIDIA Quadro K600 graphics board offers great performance & outstanding features at an affordable price for a wide range of leading professional applications. You get 1GB of on-board DDR3 GPU memory, 192 SMX CUDA parallel processing cores, & full Shader Model 5 compatibility; all in a low-profile form factor for maximum system flexibility. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 150 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most ambitions visions – whether it’s product design, visualization & simulation, or spectacular visual storytelling – & get results to market faster, more profitably, & with superior visual quality. Specifications GPU Memory
- 1GB DDR3 Memory Interface
- 128-bit Memory Bandwidth
- 29.0GB/s CUDA Cores
- 192 System Interface
- PCI Express 2.0 x 16 Maximum Power Consumption
- 41W Energy Star Enabling
- Yes Thermal Solution
- Ultra-quiet active fansink Form Factor
- 2.713” H x 6.30” L, Single Slot, Low Profile Display Connectors
- DVI-I DL + DP 1.2 Display Port 1.2
- Yes Display Port with Audio
- Yes DVI-D Single-Link Connector
- Via included adapter VGA Support
- Via included adapter Number of Displays Supported
- 2 Maximum DP 1.2 Resolution
- 3840 x 2160 at 60 Hz Maximum DVI-I DL Resolution
- 2560 x 1600 at 60 Hz Maximum DVI-I SL Resolution
- 1920 x 1200 at 60 Hz Maximum VGA Resolution
- 2048 x 1536 at 85 Hz HDCP Support
- Yes Graphics APIs
- Shader Model 5.0, Open GL 4.3, Direct X 11 Compute APIs
- CUDA, Direct Compute, Open CL NVIEW
- Yes Mosaic Mode
- Yes (Windows 7 & Linux) NVIDIA 3D Vision & 3D Vision Pro
- Yes, via USB (Universal Serial Bus) Port Minimum System Requirements Windows 8, 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Display Port, DVI, or VGA compatible display (s) 3D Graphics Architecture Scalable geometry architecture Hardware tessellation engine FXAA/TXAA dedicated anti-aliasing engine Bindless textures Shader Model 5.0 (Open GL 4.3 & Direct X 11) Up to 16K x 16K texture & render processing Transparent multisampling & super sampling 16x angle independent anisotropic filtering 32-bit per component floating point texture filtering & blending Up to 64x full scene antialiasing Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, Div X (version 3.11 & later), & Flash (10.1 & later) Dedicated H.264 encoder Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback) NVIDIA CUDA Parallel Processing Architecture SMX architecture (streaming multi-processor design that delivers greater processing & efficiency) API support including: CUDA C, CUDA C++, Direct Compute 5.0, Open CL, Java, Python, & Fortran NVIDIA Parallel Data Cache hierarchy (configurable L1 & unified L2 caches) Advanced Display Features Simultaneously run two directly connected displays, each with full display capabilities Support up to two displays with Display Port 1.2 Multi-Stream technology Display Port 1.2 output

Includes:: Multi-Stream & HBR2 support, capable of supporting resolutions up to 3840 x 2160 at 60 Hz DVI-I Dual-Link output (up to 2560 x 1600 at 60 Hz or 1920 x 1200 at 120 Hz) Internal 400 M Hz DAC DVI-I output (analog display up to 2048 x 1536 at 85 Hz) Display Port to VGA, Display Port to DVI (single-link) & Display Port to HDMI cables available Display Port, DVI, & HDMI support HDCP 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications & connections) NVIDIA 3D Vision™ technology, 3D DLP, interleaved, & other 3D stereo format support Full Open GL quad buffered stereo support Underscan/overscan compensation & hardware scaling NVIDIA NVIEW multi-display technology NVIDIA Mosaic technology Display Port & HDMI Digital Audio Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), & MPEG-2/MPEG-4 AAC Data rates of 44.1 K Hz, 48 K Hz, 88.2 K Hz, 96 K Hz, 176 K Hz, & 192 K Hz Word sizes of 16-bit, 20-bit, & 24-bit


























...

PNY NVIDIA Quadro M5000 8GB GDDR5 Dual Link DVI-D Display Port PCI-E Graphics Card NVIDIA Quadro M5000— Designed for Extreme Performance & Power Efficiency Get real interactive expression with NVIDIA Quadro—the world’s most powerful workstation graphics. NVIDIA’s advanced Maxwell GPU architecture delivers incredible performance to let you unleash your creativity & conquer extreme workloads with ease. 8 GB of ultra-fast memory with ECC lets you create & render large, complex models & compute massive datasets, all with ECC support for added reliability. A new display engine drives up to four 4K resolutions displays natively (4096 x 2160 at 60 Hz with 30-bit color). Pair up two or more outputs to drive displays greater than 4K, & take advantage of NVIDIA Quadro Sync support to frame-lock multiple displays together (see PNY PN VCQM5000SYNC-PB), or use external I/O boards & NVIDIA’s GPUDirect for Video to integrate the Quadro M5000 into broadcast, video or film production workflows. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization & simulation, or spectacular visual storytelling—and get results to market faster. To learn how NVIDIA Quadro & Iray enabled interactive physically based rendering can dramatically transform design workflows click here to receive a complementary Desktop Engineering whitepaper (registration required). Specifications CUDA Cores 2048 GPU Memory 8 GB GDDR5 ECC Memory Interface 256-bit Memory Bandwidth 211 GB/s System Interface PCI Express 3.0 x 16 Maximum Power Consumption 150 W Energy Star Enabling Yes Thermal Solution Ultra-quiet active fansink Form Factor 4.40” H x 10.50” L, Dual Slot Display Connectors DP 1.2 (4) + DVI-D DL (1) + Stereo Display Port 1.2 Yes Display Port with Audio Yes DVI-D Dual Link Connector Via optional 3rd party adapter DVI-D Single-Link Connector Via included adapter (1 only) VGA Support Via included adapter Number of Displays Supported 4 Maximum DP 1.2 Resolution 4096 x 2160 at 60 Hz Maximum DVI-D DL Resolution 2560 x 1600 at 60 Hz Maximum DVI-I SL Resolution 1920 x 1200 at 60 Hz Maximum VGA Resolution 2048 x 1536 at 85 Hz HDCP Support Yes Professional 3D Support Yes, via included stereo connector bracket Quadro Sync Compatible Yes NVIDIA GPU Direct Compatible Yes Graphics APIs Shader Model 5.0, Open GL 4.5, Direct X 12 Compute APIs CUDA, Direct Compute, Open CL NVIEW Yes NVIDIA Mosaic Yes (Windows 8.1, 8, 7, & Linux) NVIDIA 3D Vision & 3D Vision Pro Yes Warranty 3 Years PNY Part Number VCQM5000-PB Minimum System Requirements Microsoft Windows 10, 8.1, 8, 7, Vista, Linux, or Solaris PCIe x 16 Gen 3 (preferred) expansion slot 2 GB or more of system memory, 8 GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) Display Port, DVI, or VGA compatible display (s) ...

PNY NVIDIA Quadro M6000 24GB GDDR5 Dual -Link DVI-D Display Port PCI-E Graphics Card NVIDIA Quadro M6000 24GB — Real Interactive Expression Get real interactive expression with NVIDIA Quadro—the world’s most powerful workstation graphics. The NVIDIA Quadro M6000 24GB, accelerated by NVIDIA’s Maxwell™ GPU architecture, lets you conquer your most challenging visualization workloads with ease & enjoy interactive physically based rendering of your work. 24GB of GDDR5 GPU memory with ultra-fast bandwidth means that you can create & render large, complex models & compute massive datasets. Plus, there’s the all-new display engine that drives up to four 4K resolution displays natively with Display Port 1.2 support for ultra-high resolutions like 4096 x 2160 at 60 Hz with 30-bit color. Synchronize multiple displays across systems with the Quadro Sync board (see PNY PN VCQM6000SYNC24GB-PB) & accelerate data transfer with external I/O boards through GPU Direct™ for Video & dual copy engines. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization & simulation, or spectacular visual storytelling—and get results to market faster. To learn how NVIDIA Quadro & Iray enabled interactive physically based rendering can dramatically transform design workflows click here to receive a complementary Desktop Engineering whitepaper (registration required). Specifications CUDA Cores 3072 GPU Memory 24GB GDDR5 Memory Interface 384-bit Memory Bandwidth 317 GB/s System Interface PCI Express 3.0 x 16 Maximum Power Consumption 250 W Energy Star Enabling Yes Thermal Solution Ultra-quiet active fansink Form Factor 4.40” H x 10.50” L, Dual Slot Display Connectors DP 1.2 (4) + DVI-D DL (1) + Stereo Display Port 1.2 Yes Display Port with Audio Yes DVI-D Dual Link Connector Via optional adapter DVI-D Single-Link Connector Via included adapters VGA Support Via included adapter Number of Displays Supported 4 Maximum DP 1.2 Resolution 4096 x 2160 at 60 Hz Maximum DVI-I DL Resolution 2560 x 1600 at 60 Hz Maximum DVI-I SL Resolution 1920 x 1200 at 60 Hz Maximum VGA Resolution 2048 x 1536 at 85 Hz HDCP Support Yes Professional 3D Support Yes, via included stereo connector bracket Quadro Sync Compatible Yes NVIDIA GPU Direct Compatible Yes Graphics APIs Shader Model 5.0, Open GL 4.5, Direct X 12 Compute APIs CUDA, Direct Compute, Open CL NVIEW Yes NVIDIA Mosaic Yes (Windows 8.1, 8, 7, & Linux) NVIDIA 3D Vision & 3D Vision Pro Yes Warranty 3 Years PNY Part Number VCQM6000-24GB-PB Minimum System Requirements Microsoft Windows 10, 8.1, 8, 7, Linux, or Solaris PCIe x 16 Gen 3 (preferred) expansion slot 2 GB or more of system memory, 8 GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) Display Port, DVI, or VGA compatible display (s) ...

NVIDIA Quadro NVS 290 by PNY Technologies graphics boards deliver a new level of performance, quality & stability to professional 2D multi-display environments. The innovative NVIDIA unified architecture dynamically allocates geometry, shader, & compute processing power to efficiently deliver optimized performance. Business professionals who spend their days in front of a workstation understand the importance & value of a solution that helps them work more efficiently. Whether its tracking securities across multiple displays or managing several desktop applications, corporate users are looking for the right solution to fit their business requirements. The NVIDIA Quadro NVS 290 by PNY delivers the compatibility, quality & performance that corporate users dem&. From small businesses to enterprise-level corporations, the NVIDIA Quadro NVS 290 by PNY delivers solutions to fit every users needs. ...

NVIDIA Quadro NVS 290 by PNY Technologies graphics boards deliver a new level of performance, quality & stability to professional 2D multi-display environments. The innovative NVIDIA unified architecture dynamically allocates geometry, shader, & compute processing power to efficiently deliver optimized performance. Business professionals who spend their days in front of a workstation understand the importance & value of a solution that helps them work more efficiently. Whether its tracking securities across multiple displays or managing several desktop applications, corporate users are looking for the right solution to fit their business requirements. The NVIDIA Quadro NVS 290 by PNY delivers the compatibility, quality & performance that corporate users dem&. From small businesses to enterprise-level corporations, the NVIDIA Quadro NVS 290 by PNY delivers solutions to fit every users needs. ...

Features The Standard for Multi-Display Business Graphics Boost your enterprises productivity with the NVIDIA NVS™ 310 dual-display professional graphics solution. This graphics board provides a reliable hardware & software platform to enable fast, cost-effective integration, deployment, & support across large enterprises. Each NVS 310 board features Display Port 1.2, NVIDIA Mosaic™ Technology, & NVIDIA NVIEW desktop management software, & can drive up to two 30-bit displays at resolutions up to 2560x 1600 at 60 Hz. This allows business professionals to maximize productivity by increasing their desktop real estate & leveraging advanced application-management tools. Plus, every NVS 310 is tested on leading business applications & designed with the ideal balance of performance & power to meet the needs of todays most demanding business user. NVIDIA power management technology reduces overall system energy costs. It intelligently adapts the total power utilization of the graphics subsystem based on the applications being run by the end user. This power optimized design helps reduce Total Cost of Ownership (TCO) & increase reliability. PNY provides unsurpassed service & commitment to its professional graphics customers offering: 3-Year Warranty, pre & post-sales support, dedicated NVS Field Application Engineers & direct tech support hotlines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, Software installation disc & documentation to ensure a quick & successful install. Overview Minimum System Requirements Windows 10, 8.1, 8, 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation Blu-ray, DVD-ROM or CD-ROM drive Display Port compatible display (s) Package Contains NVIDIA NVS 310 1GB x 16 PCIe graphics board Attached full height bracket Unattached low profile bracket Software installation & documentation disc Printed Quick Start Guide

Specification CUDA Cores 48 GPU Memory 1GB DDR3 Memory Interface 64-bit Memory Bandwidth 14.0GB/s System Interface PCI Express Gen 2 x 16 Maximum Power Consumption 19.5W Thermal Solution Ultra-quiet fansink Energy Star Compliant Yes Form Factor SFF, 2.731" H x 5.70" L Display Connectors DP + DP Display Port 1.2 Yes Display Port with Audio Yes Number of Displays Supported 2 Maximum DP Digital Resolution 2560 x 1600 at 60 Hz PCIe High Definition Audio Support Yes HDCP Support Yes Graphics APIs Shader Model 5.0, Open GL 4.1, Direct X 11 Compute APIs CUDA, Direct Compute, Open CL NVIEW Yes Mosaic Mode Yes (Windows 8 & 7) Warranty 3 Years PNY Part Number VCNVS310DP-1GB-PB

...
