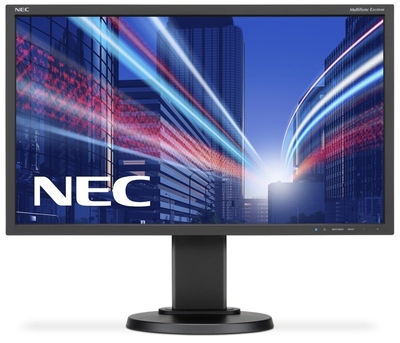

Description The Multi Sync E243 W Mi is a high class 24" 16:9 format monitor with best IPS panel & latest energy saving LED backlight technology. It offers the latest Display Port connectivity & ergonomic adjustability for professional office users. Low power consumption & low operating costs make the display perfect for use in the professional office environment. Outstanding ergonomic comfort make it very user-friendly & help to increase productivity. The ideal display for the modern high performance office. Benefits Ergonomic Office – full height adjustability (110 mm), swivel, tilt & pivot functionality ensures perfect individual ergonomic set-up. Highly flexible connectivity
- – display can be used with two digital (DVI-D, Display Port) & one analogue input. Vesa Mount (100 mm) – allows to install the monitor via various mounting solutions. Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the Na Vi Set Administrator 2 software tool. DISPLAY Panel Technology: IPS TFT with W-LED backlight Screen Size [inch/cm]: 24 / 60 Screen Aspect Ratio: 16:9 Pixel Pitch [mm]: 0.275 Brightness (typ.) [cd/m-square]: 250 Contrast Ratio (typ.): 1000:1 Viewing Angle [°]: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) Response Time (typ.) [ms]: 6 (grey-to-grey) Colours [ Mio.]: 16.7 SYNCHRONISATION RATE Horizontal Frequency [k Hz]: 31.5
- 81.1 Vertical Frequency [ Hz]: 56
- 76 RESOLUTION Optimum Resolution: 1920 x 1080 at 60 Hz Supported: 1680 x 1050; 1440 x 900; 1400 x 1050; 1366 x 768; 1360 x 768; 1280 x 1024; 1280 x 960; 1152 x 870; 1152 x 864; 1024 x 768; 832 x 624; 800 x 600; 720 x 400; 640 x 480 CONNECTIVITY Digital 1 x Display Port; 1 x DVI-D (with HDCP) Analog 1 x mini D-sub 15 pin ELECTRICAL Power Consumption on Mode [W]: 13 (Eco Mode); 21 (typ.); 26 (max.) Power Savings Mode [W]: 0.4 Power Supply: (TBD) A/ (TBD) A; 100-120 V/220-240 V; integrated power supply ENVIRONMENTAL CONDITIONS Operating Temperature [°C]: +5 to +35 Operating Humidity [%]: 20 to 80 ERGONOMICS Height adjustable stand [mm]: 110 Screen Tilt / Swivel [°]: -5 to +20; -45 to +45 Screen Rotate [°]: 0 to 90 (landscape to portrait mode) MECHANICAL Bezel Width [mm]: 14.7 (left & right); 16.8 (top & bottom)
Dimensions (W x H x D) [mm]: 557.8 x 379.6 x 213.9; Without stand: 557.8 x 331.4 x 58.5 Weight [kg]: 6.3 VESA Mounting [mm]: 100 x 100 ADDITIONAL FEATURES Special Characteristics: 23.8" (16:9) Highly efficient IPS panel with LED backlight saves more than 30 % energy; Carbon Footprint Meter; Carbon Savings Meter; Eco Modes; Ergo Design: Height adjustable stand (110 mm) with 90° Pivot features; Na Vi Set Administrator 2; s RGB Support; TORO™ Design; Windows 7 & 8 compatible Colour Versions Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet Cable Management: yes Kensington security slot: yes Plug & Play: VESA DDC2B Audio: Headphone Jack; Integrated Speakers (1 W + 1 W) Adjust Functions: Auto Adjust; Brightness; Carbon Footprint Meter / Carbon Savings Meter; Contrast; DV Mode; Eco Mode; Language Select Shipping Content: Audio Cable; Monitor; Power Cable; Setup Guide Signal Cable: [value 1] x DVI-D; VGA
- VGA Safety & Ergonomics CE; Energy Star 7.0; FCC Class B; MPR III; PSB; Ro HS; TCO 7.0; Tu V Ergonomics; Tu V GS GREEN FEATURES Energy Efficiency: Annual energy consumption: 30 k Wh (based on 4 operating hours per day); Carbon Footprint Meter / Carbon Savings Meter; ECOMode; Energy efficiency class: A; LED backlight technology Ecological
Materials: Downloadable manuals Ecological Standards: Energy Star 6.0; Er P compliant; Ro HS compliant; TCO 6.0
