Intel X79 Chipset Based • Military Class III: finest top quality & Stability • PCI Express Gen 3: World’s 1st PCI Express Gen 3 Motherboard Brand • Click BIOS II: World’s 1st Unified UEFI & Software Graphical Interface • OC Genie II: Overclock in 1 Second • Supports USB (Universal Serial Bus) 3.0 & SATA 6 Gb/s Specifications
- CPU • Supports 2nd Generation Intel Core i 7 processors in LGA2011 package. Please refer to CPU Support for compatible CPU; the above description is for reference only. Chipset • Intel X79 Chipset Main Memory • Supports eight unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1800*/2133*/2400* (OC) DRAM, 128GB Max
- Supports Quad channel mode Slots • 3 PCI Express gen 3 x 16 slots
- PCI_E1 & PCI_E4 support up to PCIE x 16 speed
- PCI_E6 supports up to PCIE x 8 speed • 2 PCI Express gen 2 x 16 slots
- PCI_E2 & PCI_E5 support up to PCIE x 1 speed • 1 PCIE x 1 slot On-Board SATA • SATAII controller integrated in Intel X79 chipset
- Up to 3 Gb/s transfer speed.
- Supports four SATAII ports (SATA3~6) by X79 • SATAIII controller integrated in Intel X79 chipset
- Up to 6 Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by X79 • SATAIII controller integrated in ASMedia ASM 1061 chipset
- Up to 6 Gb/s transfer speed.
- Supports two SATAIII ports (SATA7~8) • RAID
- SATA1~2 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1) by Intel X79
- SATA3~6 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1/5/10) by Intel X79 USB (Universal Serial Bus) 3.0 • 1 USB (Universal Serial Bus) 3.0 internal connector by NEC D720200 • 2 USB (Universal Serial Bus) 3.0 rear I/O ports by NEC D720200 Audio • Chipset integrated by Realtek ALC892
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec LAN • Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E. IEEE1394 / Fire Wire • VIA VT6315N chipset
- Supports up to two 1394 ports. (Rear panel x 1, pinheader x 1)
- Transfer rate is up to 400 Mbps. Internal I/O Connectors
- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- 4-PIN Power connector
- CPU x 1 / System x 4 FAN connectors
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 2 x USB (Universal Serial Bus) 2.0 connectors
- 1 x USB (Universal Serial Bus) 3.0 connectors
- 4 x Serial ATAII connectors
- 4 x Serial ATAIII connectors
- 1 x IEEE1394 connector
- 1 x Clear CMOS jumper
- 1 x Power button
- 1 x OC Genie button
- 2 x Direct OC buttons
- 1 x Multi BIOS switch
- 1 x Voice Genie connector
- 1 x Multi Connect Panel connector Back Panel I/O Ports
- 1 x PS/2 Mouse/ Keyboard port
- 1 x Clear CMOS button
- 1 x Coaxial SPDIF port
- 1 x Optical SPDIF port
- 1 x IEEE1394 port
- 1 x RJ45 LAN Jack
- 8 x USB (Universal Serial Bus) 2.0 ports
- 2 x USB (Universal Serial Bus) 3.0 ports
- 1 x 6 in 1 audio jack BIOS • The motherboard BIOS provides " Plug & Play" BIOS which detects the peripheral devices & expansion cards of the board automatically. • The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications. Dimension • 30.5cm (L) x 24.4cm (W) ATX Form Factor Mounting • 9 mounting holes.













































...

Intel X79 Chipset Based • Military Class III: finest top quality & Stability • PCI Express Gen 3: World’s 1st PCI Express Gen 3 Motherboard Brand • Click BIOS II: World’s 1st Unified UEFI & Software Graphical Interface • OC Genie II: Overclock in 1 Second • Supports USB (Universal Serial Bus) 3.0 & SATA 6 Gb/s Specifications CPU • Supports 2nd Generation Intel Core i 7 processors in LGA2011 package. Please refer to CPU Support for compatible CPU; the above description is for reference only. Chipset • Intel X79 Chipset Main Memory • Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1800*/2133*/2400* (OC) DRAM, 64GB Max
- Supports Quad channel mode Slots • 2 PCI Express gen 3 x 16 slots • 2 PCIE x 1 slots On-Board SATA • SATAII controller integrated in Intel X79 chipset
- Up to 3 Gb/s transfer speed.
- Supports four SATAII ports (SATA3~6) by X79 • SATAIII controller integrated in Intel X79 chipset
- Up to 6 Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by X79
- SATA1~6 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1/5/10) by Intel X79 USB (Universal Serial Bus) 3.0 • 1 USB (Universal Serial Bus) 3.0 internal connector by NEC D720200 • 2 USB (Universal Serial Bus) 3.0 rear I/O ports by NEC D720200 Audio • Chipset integrated by Realtek ALC892
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec LAN • Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E. Internal I/O Connectors
- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU x 1 / System x 2 FAN connectors
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 2 x USB (Universal Serial Bus) 2.0 connectors
- 1 x USB (Universal Serial Bus) 3.0 connectors
- 4 x Serial ATAII connectors
- 2 x Serial ATAIII connectors
- 1 x Clear CMOS jumper
- 1 x TPM module connector
- 1 x Voice Genie connector
- 1 x Multi Connect Panel connector
- 1 x V-Check Point connector Back Panel I/O Ports
- 1 x PS/2 Mouse/ Keyboard port
- 1 x Clear CMOS button
- 1 x Coaxial SPDIF port
- 1 x Optical SPDIF port
- 1 x RJ45 LAN Jack
- 6 x USB (Universal Serial Bus) 2.0 ports
- 2 x USB (Universal Serial Bus) 3.0 ports
- 1 x 6 in 1 audio jack BIOS • The motherboard BIOS provides " Plug & Play" BIOS which detects the peripheral devices & expansion cards of the board automatically. • The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications. Dimension • 24.4cm (L) x 24.4cm (W) M-ATX Form Factor Mounting • 8 mounting holes.































...

MSI X99 XPOWER ac Socket LGA 2011-3 7.1-Channel High Definition Audio E-ATX Motherboard The MSI Overclocking motherboards are designed based on four principles: Continuous implementation of professional overclockers' feedback Continue MSI's leading position in power efficiency & stability The best overclocking tools Infuse the DNA of MSI's LIGHTNING graphics cards Socket 2011-3 CPU (Max Support) i 7 Baseclock/ Hyper Transport 100 / 125 / 167 M Hz Chipset Intel X99 Express Chipset DDR4 Memory DDR4 2133/2200*/2400*/2600*/2666*/2750*/3000*/3110*/3333* (*OC) Memory Channel Quad DIMM Slots 8 Max Memory (GB) 128 PCI-Ex 16 5 PCI-E Gen Gen 3 PCI-Ex 1 1 SATA Express 1 SATAIII 10 (2 x ports reserved for SATA Express port) M.2 port 1 RAID 0/1/5/10 (SATA1~6 only) LAN 10/100/1000*2 USB (Universal Serial Bus) 3.0 ports (Front) 4 USB (Universal Serial Bus) 3.0 ports (Rear) 10 USB (Universal Serial Bus) 2.0 ports (Front) 5 USB (Universal Serial Bus) 2.0 ports (Rear) 2 Audio ports (Rear) 5 + Optical S/PDIF OUT VGA Max Share Memory (MB) 1760 Form Factor E-ATX SLI Y 4-way SLI Y Cross Fire Y ...

Supports New Intel Core™ i 7 processors Extreme Edition in LGA 2011-3 socket Supports Quad Channel DDR4-3333 (OC) Memory USB (Universal Serial Bus) 3.1: Delivering speeds up to 10 Gb/s, USB (Universal Serial Bus) 3.1 offers performance twice as fast as a regular USB (Universal Serial Bus) 3.0 connection Turbo M.2: delivering next generation M.2 Gen 3 x 4 performance with transfer speeds up to 32 Gb/s SATA Express + USB (Universal Serial Bus) 3.1 + SATA 6 Gb/s Multi-GPU: Quad NVIDIA SLI & AMD Cross Fire Support OC Engine: Reach higher overclocking results with more flexible BCLK adjustments at 100/125/167 M Hz. Audio Boost 2: Reward Your Ears with True Quality Killer Ethernet: Kill Your Lag USB (Universal Serial Bus) Audio Power: Super Stable 5V Power & Better Signal Transmission over USB (Universal Serial Bus) XSplit Gamecaster: Show off you skills to the world with a six month premium license for this popular streaming software Guard-Pro: enhanced Protection & Power Efficiency OC Genie 4: Overclock in 1 Second Gaming App: Boost your framerate Click BIOS 4: Easily Fine-tune Your System Sound Blaster Cinema 2: Benefit from Creative software to get a more realistic surround sound experience Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices CPU Supports New Intel Core™ i 7 Processor Extreme Edition for LGA2011-3 Socket Please refer to CPU Support for compatible CPU; the above description is for reference only Chipset Intel X99 Express Chipset Main Memory Support eight DDR4 2133/2200*/2400*/2600*/2666*/2750*/3000*/3110*/3333* (*OC)MHz DRAM, 128GB Max
- Quad channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports RDIMM 1 Rx 8 memory module (Operates in non-ECC mode) Slots 4 x PCIe 3.0 x 16 slots, support up to 3-way mode
- 1-way mode: x 16/ x 0/ x 0/ x 0
- 2-way mode: x 16/ x 16/ x 0/ x 0*, 16/ x 8/ x 0/ x 0**
- 3-way mode: x 16/ x 16/ x 0/ x 8*, x 8/ x 8/ x 8/ x 0** 2 x PCIe 2.0 x 1 slots * For the CPU that supports 40 PCIe lanes ** For the CPU that supports 28 PCIe lanes Storage Intel X99 Express Chipset 10 x SATA 6 Gb/s ports (2 ports reserved for SATA Express port)*
- SATA1~6 support RAID 0, RAID 1, RAID 5 & RAID 10
- SATA7~10 ports only support IDE mode & AHCI mode
- Supports Intel Smart Response Technology (Windows 7/ 8/ 8.1) 1 x SATA Express port* 1 x M.2 port, supports M.2 SATA 6 Gb/s module* or M.2 PCIe module up to 32 Gb/s speed**
- M.2 port supports 4.2cm/ 6cm/ 8cm length module
- M.2 PCIe module does not support RAID 0, RAID1, RAID 5 & RAID 10 * The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen 2 x 2 mode) module in the M.2 port ** Intel RST does not support PCIe M.2 SSD with Legacy ROM USB (Universal Serial Bus) Intel X99 Express Chipset
- 6 x USB (Universal Serial Bus) 3.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 3.0 connectors*)
- 6 x USB (Universal Serial Bus) 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 2.0 connectors) ASMedia ASM1142 Chipset
- 2 x USB (Universal Serial Bus) 3.1 ports on the back panel VIA VL805
- 4 x USB (Universal Serial Bus) 3.0 ports on the back panel * Internal JUSB1 connector supports MSI Super Charger Audio Realtek ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output LAN 1x Killer E2205 Gigabit LAN controller* * The Killer Network Manager is only available for Windows 7 & Windows 8/8.1 currently. The supported drivers for other operating systems would be available on the website if provided by vendor. Multi-GPU Supports 3-Way AMD Cross Fire TM Technology* Supports 3-Way NVIDIA SLI™ Technology * Supports Windows 7 & Windows 8/8.1 Internal I/O Connectors 1 x 24-pin AT x main power connector 1 x 8-pin AT x 12V power connector 10 x SATA 6 Gb/s connectors 1 x SATA Express connector 1 x M.2 connector 2 x USB (Universal Serial Bus) 2.0 connectors (supports additional 4 USB (Universal Serial Bus) 2.0 ports) 2 x USB (Universal Serial Bus) 3.0 connectors (supports additional 4 USB (Universal Serial Bus) 3.0 ports) 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Power button 1 x Reset button 1 x OC Genie button 1 x Multi-BIOS switch 1 x Audio power switch 1 x Slow mode booting jumper 1 x 2-Digit Debug Code LED Back Panel I/O Ports 1 x PS/2 keyboard/ mouse combo port 2 x USB (Universal Serial Bus) 2.0 ports 1 x Clear CMOS button 6 x USB (Universal Serial Bus) 3.0 ports 2 x USB (Universal Serial Bus) 3.1 ports 1 x LAN (RJ45) port 1 x Optical S/PDIF OUT connector 5 x OFC audio jacks BIOS The motherboard BIOS provides " Plug & Play" BIOS which detects the peripheral devices & expansion cards of the board automatically The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications Dimension 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor Mounting 9 mounting holes
















...

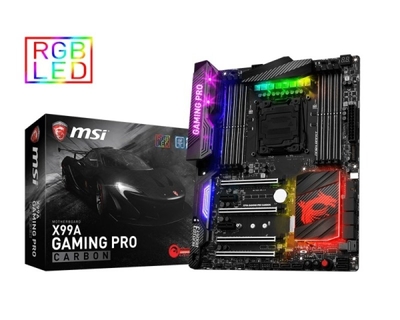

MSI X99A Gaming Pro Carbon socket LGA 2011-3 8 Channel HD Audio Motherboard MYSTIC LIGHT & Extension The CARBON motherboards black scheme combines great looks with sophistication. Customize & control any color scheme with 16.8 million colors & 17 LED effects simply by using a mobile phone. Mystic Light Extension is available to expand your style & PC personalization, using external RGB LED strips with ease. GAME IN STYLE MSI Performance GAMING motherboards deliver a polished gaming experience, whether you are racking up frags on the battlefield, questing for the latest unlocks or trying to level up your favorite gaming character. The Performance GAMING series motherboardsoffer a unique, customizable, design & distinguished look & feel with the best options tailored to gamers. MSI GAMING LAN & LAN PROTEC Lower Latency, powered by Intel 15KV Anti-surge Protection 2X FASTER USB (Universal Serial Bus) 3.1 Gen 2 TYPE A + C MULTI-GPU 3-way NVIDIA SLI & AMD Cross Fire AUDIO BOOST 3 & NAHIMIC 115d B SNR 192k Hz/24-bits MYSTIC LIGHT EXTENSION Include 2 Extension Cables Supports Standard 5050 RGB LED Strips MILITARY CLASS 5 Titanium Choke 5X Components Lifecycle EZ DEBUG LED Easiest Way to Troubleshoot DDR4 BOOST & STEEL ARMOR Unique Isolated Memory Circuitry DIRECT USB (Universal Serial Bus) TYPE-C Designed for Reversible Connector M.2 STEEL ARMOR Up to 32 Gb/s Best Signal Stability TURBO U.2 Up to 32 Gb/s, supports NVMe STEEL ARMOR 4X Slot Strength GAME BOOST game performance With 8 Profiles in 1 sec Specifications CPU support Supports New Intel Core i 7 Processor Extreme Edition CPU socket LGA 2011-3 Socket Chipset Intel X99 chipset Graphics interface 4 * PCI-E 3.0 x 16 slots with Steel Armor 3-Way NVIDIA SLI / AMD Cross Fire support Memory support 8 DIMMs DDR4 Steel Armor Quad Channel DDR4-3433+ (OC) Expansion slots 2 * PCI-E x 1 slots U.2 / M.2 1 x Turbo U.2 32 Gb/s, 1 x Turbo M.2 32 Gb/s SATA 1 * M.2 32 Gb/s, 6 * SATA 6 Gb/s (2 ports reserved for SATA Express) SATA RAID RAID 0, 1, 5, 10
- Available at ports SATA1-SATA6 USB (Universal Serial Bus) 1 * USB (Universal Serial Bus) 3.1 Gen 2 Type-C, 1 * USB (Universal Serial Bus) 3.1 Gen 2 Type-A, 1 * USB (Universal Serial Bus) 3.1 Gen 1 Type-C (Front), 8 * USB (Universal Serial Bus) 3.1 Gen 1, 8 * USB (Universal Serial Bus) 2.0 LAN Intel I218-V Gigabit LAN Audio 8-channel (7.1) HD Audio with Audio Boost 3
...

MSI X99A RAIDER Socket LGA2011-3 7.1-Channel HD Audio ATX Motherboard Specifications CPU Supports New Intel Core i 7 Processor Extreme Edition for LGA2011-3 Socket. Support lntel Turbo Boost Max Technology 3.0 Please refer to CPU Support for compatible CPU; the above description is for reference only. Chipset: Intel X99 Express Chipset Main Memory Support eight DDR4 DIMMs 2133/2200 (OC)/2400 (OC)/2600 (OC)/2666 (OC)/2750 (OC)/3000 (OC)/3110 (OC)/3333 (OC) MHz, up to 128GB Max. Supports Quad-Channel mode Supports UDIMM ECC/ RDIMM memory modules Supports Intel Extreme Memory Profile (XMP) Slots 3 x PCIe 3.0 x 16 slots (PCI_E1, 3, 5), support up to 3-way mode 1-way mode: x 16/ x 0/ x 0 2-way mode: x 16/ x 16/ x 0*, 16/ x 8/ x 0** 3-way mode: x 8/ x 16/ x 8*, x 8/ x 8/ x 8** 2 x PCIe 2.0 x 1 slots (PCI_E2, 4) For the CPU that supports 40 PCIe lanes For the CPU that supports 28 PCIe lanes Multi-GPU Support Supports 3-Way NVIDIA SLI™ Technology Supports 3-Way AMD Cross Fire™ Technology* Supports Windows 7 & Windows 8/ 8.1 On-Board SATA Intel X99 Express Chipset 10 x SATA 6 Gb/s ports (2 x ports compatible with 1 x SATA Express port)* SATA1~6 support RAID 0, RAID 1, RAID 5 & RAID 10 SATA7~10 ports only support IDE mode & AHCI mode. Supports Intel Smart Response Technology (Windows 7/ 8/ 8.1) 1 x SATA Express port* 1 x M.2 Key M Socket supports type 2280/2260/2242 storage devices in both PCIE Gen 3 x 4 & SATA mode** M.2 port supports 4.2cm/ 6cm/ 8cm length module M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 & RAID 10. The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen 2 x 2 mode) module in the M.2 port. Intel RST does not support PCIe M.2 SSD with Legacy ROM. USB (Universal Serial Bus) Intel X99 Express Chipset 6 x USB (Universal Serial Bus) 3.0 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) 3.0 connectors*) 6 x USB (Universal Serial Bus) 2.0 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) 2.0 connectors) ASMedia ASM1142 2x USB (Universal Serial Bus) 3.1 ports on the back panel Internal JUSB1 connector supports MSI Super Charger. Audio Realtek ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output LAN: 1 x Intel I218 Gigabit LAN Internal I/O Connectors 1 x 24-pin AT x main power connector 1 x 8-pin AT x 12V power connector 10 x SATA 6 Gb/s connectors 1 x SATA Express connector 1 x M.2 connector 1 x USB (Universal Serial Bus) 2.0 connectors (supports additional 2 USB (Universal Serial Bus) 2.0 ports) 1 x USB (Universal Serial Bus) 3.0 connectors (supports additional 2 USB (Universal Serial Bus) 3.0 ports) 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Slow mode booting jumper 1 x Multi-BIOS switch Back Panel I/O Ports 1 x PS/2 keyboard/ mouse combo port 4 x USB (Universal Serial Bus) 2.0 ports 1 x Clear CMOS button 4 x USB (Universal Serial Bus) 3.0 ports 2 x USB (Universal Serial Bus) 3.1 ports 1 x LAN (RJ45) port 1 x Optical S/PDIF OUT connector 5 x OFC audio jacks BIOS The motherboard BIOS provides " Plug & Play" BIOS which detects the peripheral devices & expansion cards of the board automatically. The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications. 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor Mounting: 9 mounting holes ...

Specifications CPU Supports New Intel Core i 7 Processor Extreme Edition for LGA2011-3 Socket. Please refer to CPU Support on MSI website for compatible CPU; the above description is for reference only. Chipset Intel X99 Express Chipset Main Memory Support eight DDR4 DIMMs 2133/2200 (OC)/2400 (OC)/2600 (OC)/2666 (OC)/2750 (OC)/3000 (OC)/3110 (OC)/3333 (OC) MHz, up to 128GB Max. Supports Quad-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Slots 4 x PCIe 3.0 x 16 slots, support up to 3-way mode 1-way mode: x 16/ x 0/ x 0/ x 0 2-way mode: x 16/ x 16/ x 0/ x 0*, 16/ x 8/ x 0/ x 0** 3-way mode: x 16/ x 16/ x 0/ x 8*, x 8/ x 8/ x 8/ x 0** 2 x PCIe 2.0 x 1 slots For the CPU that supports 40 PCIe lanes For the CPU that supports 28 PCIe lanes Multi-GPU Support Supports 3-Way NVIDIA SLI„¢ Technology Supports 3-Way AMD Cross Fire„¢ Technology* Supports Windows 7 & Windows 8/ 8.1 On-Board SATA Intel X99 Express Chipset 10 x SATA 6 Gb/s ports (2x ports reserved for SATA Express port)* SATA1~6 support RAID 0, RAID 1, RAID 5 & RAID 10 SATA7~10 ports only support IDE mode & AHCI mode. Supports Intel Smart Response Technology (Windows 7/ 8/ 8.1) 1 x SATA Express port* 1 x M.2 port, supports M.2 SATA 6 Gb/s module* or M.2 PCIe module up to 32 Gb/s speed** M.2 port supports 4.2cm/ 6cm/ 8cm length module M.2 PCIe module does not support RAID 0, RAID1, RAID 5 & RAID 10 The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen 2 x 2 mode) module in the M.2 port Intel RST does not support PCIe M.2 SSD with Legacy ROM USB (Universal Serial Bus) Intel X99 Express Chipset 6 x USB (Universal Serial Bus) 3.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 3.0 connectors*) 6 x USB (Universal Serial Bus) 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 2.0 connectors) ASMedia ASM1142 2 x USB (Universal Serial Bus) 3.1 ports on the back panel VIA VL805 4 x USB (Universal Serial Bus) 3.0 ports on the back panel Internal JUSB1 connector supports MSI Super Charger Audio Realtek ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output LAN 1 x Intel I218 Gigabit LAN Internal I/O Connectors 1 x 24-pin AT x main power connector 1 x 8-pin AT x 12V power connector 10 x SATA 6 Gb/s connectors 1 x SATA E xpress connector 1 x M.2 connector 2 x USB (Universal Serial Bus) 2.0 connectors (supports additional 4 USB (Universal Serial Bus) 2.0 ports) 2 x USB (Universal Serial Bus) 3.0 connectors (supports additional 4 USB (Universal Serial Bus) 3.0 ports) 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Slow mode booting jumper 1 x Power button 1 x Reset button 1 x OC Genie button 1 x Multi-BIOS switch Back Panel I/O Ports 1 x PS/2 keyboard/ mouse combo port 2 x USB (Universal Serial Bus) 2.0 ports 1 x Clear CMOS button 6 x USB (Universal Serial Bus) 3.0 ports 2 x USB (Universal Serial Bus) 3.1 ports 1 x LAN (RJ45) port 1 x Optical S/PDIF OUT connector 5 x OFC audio jacks BIOS The motherboard BIOS provides " Plug & Play" BIOS which detects the peripheral devices & expansion cards of the board automatically. The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications

Dimensions 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor Mounting 9 mounting holes

...

NON-STOP GAMING Equip yourself with the MSI Arsenal GAMING Series motherboards to improve your game. MSI Arsenal GAMING Series motherboards are covered in full black camouflage with LED ambient lights & is packed with gaming features, making them the perfect weapon to dominate the battlefield. ARMOR STRENGTH To deliver the best performance, coupled with super strong armor design. FULL IO & AUDIO COVER Awesome looking protective shield helps to prevent interference from other components. HEAVY PLATED HEATSINK DESIGN Premium heatsinks make sure your system stays cool during even the longest overclocking or gaming sessions. ARMOR STRENGTH To deliver the best performance, coupled with super strong armor design. FULL IO & AUDIO COVER Awesome looking protective shield helps to prevent interference from other components. MYSTIC LIGHT EXTENSION Dedicated HEADER for 4-PIN RGB-STRIP & LIGHTING CONTROL Designed for anyone who simply wants to have a perfectly stylish gaming rig. With MSIs Mystic Light Extension header, it provides the most intuitive way to control the fascinated LED strip without the ordinary controller. Just install the standard 12V RGB strips onto the 4-pin Mystic Light Extension RGB-strip header, then control your lighting to any style you want. Extend the Mystic Light to whole gaming rig & your gaming room. * The Mystic Light Extension header supports standard 5050 RGB LED strips with a maximum power rating of 3A (12V). For highest brightness, strip length should not exceed 2m. *2 extension cables, without RGB LED strips, are included in package. MAXIMIZE YOUR STORAGE DEVICES Activate all the devices at the same time with 40 Lan CPU UNMATCHED MEMORY PERFORMANCE & STABILITY DDR4 Boost With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces & fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance & stability. Gaming LAN
- DOMINATE THE GAME WITH LOWEST LATENCY Get ready to crush your enemies on the battlefield with MSI GAMING LAN, featuring carefully selected components to ensure the best online gaming experience without lag. TWIN GAMING LAN WITH INTEL Designed with gaming DNA, TWIN GAMING LAN, powered by Intel, is optimized to give the best online gaming experience. Featuring 2 of Intel’s best dedicated gaming network controllers, combined with MSI GAMING LAN manager, you get to experience the ultimate in speed & best networking performance for games. GAMING OPTIMIZED BANDWITH MANAGEMENT Dedicated to giving you the best online gaming experience with optimized traffic prioritization & low latency, MSI GAMING LAN Manager automatically classifies & prioritizes the latency-sensitive applications for online games. MSI GAMING LAN MANAGER • Automatically prioritizes games above other applications • means that you can change applications traffic priority • means that you can customize bandwidth for each application LAN PROTECT Featuring 15KV anti-surge protection to shield your network from lightning strikes & static electricity, LAN Protect is a LAN connector designed to give you the best networking experience. Its highlighted with a red LED inside the RJ45 connector to show its functionality. MSI Xtreme Audio DAC
- REWARD YOUR EARS WITH STUDIO GRADE SOUND QUALITY With Audio Boost 3, powered by Nahimic Sound Technology, were delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound & music through 8-channel HD Audio or high impenda?nce headphones & truly dominate the game. • Golden Audio Jacks • High Quality EMI-Shielded HD Audio Processor • Isolated Audio PCB with LED Line • Chemi-Con Audio Capacitors • Dual Headphone Amplifiers • Front Dedicated Headphone Out GAME BOOST Overclock your system instantly & generate more FPS in games with 1 push of a button using Game Boost! You can also easily enable XMP using the XMP button in Click BIOS. * Features may vary according to your platform & model GAMING HOTKEY Gaming Hotkey enables more functionality using your own keyboard. Simply assign functions to any key & launch your favorite games, load overclocking profiles or do real-time overclocking with the push of a single button. The possibilities are endless! • Customize any shortcut on your keyboard • User friendly, easy to use application • 1 key load up of your favorite game TOTAL FREEDOM, MAXIMUM EASE Easily program your most used commands to be executed with a single keystroke. You are free to choose any key you want. * Real GAMING Hotkey settings depend on the configuration Shortcut Hotkeys
- Assign your own keyboard special functions Windows keys Quick launch any application or folder Quick launch of mail, browser or more MSI Smart keys One press to login (program passwords) Login Keys SUPER CHARGER With MSI Super Charger you can deliver more power than regular USB (Universal Serial Bus) chargers to your smartphone, tablet, USB (Universal Serial Bus) game controller or portable console. You can quickly charge these devices when youre not gaming on your PC, eliminating the need for wall power sockets. SUPER CHARGER USB (Universal Serial Bus) REDRIVER FRONT USB (Universal Serial Bus) 3.1 DOUBLE ESD PROTECTION 2X FASTER MSI USB (Universal Serial Bus) 3.1 GEN2 Transfer your favorite games, music & movies over USB (Universal Serial Bus) faster than ever. USB (Universal Serial Bus) 3.1 Gen 2 enables lightning-fast transfer speeds up to 10 Gb/s! USB3.1 Benefits: • 2X faster than USB (Universal Serial Bus) 3.1 Gen 1 • 20X faster than USB (Universal Serial Bus) 2.0 • Up to 10 Gbps data transfer bandwidth • Boost transfer rate for your PC & peripherals REVERSIBLE DESIGN
- Type-C with reversible design Get all the performance benefits from USB (Universal Serial Bus) 3.1 Gen 2 combined with the convenience of the USB (Universal Serial Bus) Type-C connector. This reversible connector allows for effortless connecting of USB (Universal Serial Bus) devices. FAST STORAGE WITH SATA EXPRESS SATA Express offers a solution in high speed storage through PCI-Express, providing more bandwidth for the latest generation SSDs up to 16 Gb/s. TURBO M.2 STEEL ARMOR Delivering speeds up to 32 Gb/s using Gen 3 x 4, Turbo M.2 is more than 5 times faster than a regular SATA III connection! Exclusive Steel Armor provides best signal quality. Enjoy a blazing fast system boot up & insanely fast loading of applications & games. Turbo U.2 On Board Turbo U.2 connector delivers performance up to 32 Gb/s & allows support for next gen 2.5-inch SSDs using the U.2 connector. DATA TRANSFER SPEED SUPPORTS MSI STEEL ARMOR BEST PROTECTION STEEL ARMOR: REINFORCED PCI EXPRESS SLOT With the increased size & weight of modern high end graphics cards, traditional PCI Express slots often show signs of bending or even breaking. Meet STEEL Armor, strengthened PCI Express slots using more solder points to make sure you never have to worry about breaking off any of the slots. PREVENT DAMAGE! Worried about damaging the PCI-Express slot or your graphics card because of the weight? MSI STEEL ARMOR
- REINFORCED, HEAVY SOLDERED CONNECTIONS STEELSERIES CERTIFIED Get ready to enjoy the best gaming experience with MSI & Steel Series! Enthusiast gaming gear brand Steel Series has officially approved MSI GAMING motherboards as ‘ Steel Series Certified (SSC)’. This certification is based on the performance demands & stability of MSI GAMING motherboards & Steel Series products. Your Steel Series headset, mouse & other finest top quality gaming gear works best on MSI GAMING motherboards. GAMING CERTIFIED Our GAMING motherboards are tested in our gaming lab, internet cafes & together with the world’s best e Sports players to make sure you get top performance & reliability in the world’s most popular games. Through 24-hour on- & offline game testing, MSI ensures the onboard network configuration, audio reception & FPS performance are tested & tuned to perfection for you to enjoy the best possible gameplay experience. Only the motherboards that pass this test receive the GAMING CERTIFIED status & are considered true MSI GAMING motherboards. MILITARY CLASS 5 COMPONENTS Military Class 5 is the latest evolution in high quality components. The Titanium Choke & Dark CAP ensure that your PC runs stable under extreme gaming conditions. Titanium Choke Titanium Choke uses a Titanium core that has better ability in thermal & higher temperature tolerance. This allows the Titanium Choke to run at a 220 degree Celsius high temperature, have a 40% higher current capacity, a 30% improvement in power efficiency & better overclocking power stability. DARK CAP With their aluminum core design, Dark CAPs has been a staple in high-end motherboard designs & provides lower Equivalent Series Resistance (ESR) as well as its over-10-year lifespan. HUMIDITY PROTECTION Reduction in moisture absorption helps prevent " Conductive Anodic Filament". Untreated PCBs can have 10x higher failure rate. HIGH TEMPERATURE PROTECTION All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments. CIRCUIT PROTECTION Carefully selected materials, multiple PCB layers & shielding result in the best circuit protection for our GAMING motherboards. ESD PROTECTION Each & every I/O port is protected against the hazards of Electro Static Discharge. EMI PROTECTION All MSI motherboards comply with strict American FCC regulations & reduce the impact of Electromagnetic Interference. AMD Cross Fire/NVIDIA SLI OPTIMIZED FOR MULTIPLE GRAPHICS CARDS
- SLI /CROSSFIRE SUPPORT This motherboard supports SLI / Cross Fire. Optimal PCI-Express slot placement allows for better fitting & airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an NVIDIA SLI™ or AMD Cross Fire™ setup. PREVENT DAMAGE! Worried about damaging the PCI-Express slot or your graphics card because of the weight? MSI STEEL ARMOR Steel Armor has more solder points on the PCB for more strength & protects the PCI-Express signals against electromagnetic interference for a stutter-free gaming experience & higher GPU overclocking. THE ALL NEW, AWARD-WINNING CLICK BIOS 5 Explore the greatly enhanced, award-winning CLICK BIOS 5 & use it to tune your system to maximum performance to get the most out of your games. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10. Control your system in two modes: EZ mode, for the most used settings & functions. Advanced mode for more detailed settings & fine-tuning options to boost your system’s performance. • Variety of options to boost your game performance • Next gen UEFI BIOS with award winning design • High-resolution multi language scalable font • Easy to use • Advanced overclocking GAMING DEVICE PORT MSI Gaming Device Port is optimized to deliver the best connectivity for high end gaming mice to fully utilize its speed. You can customize your mouse’ DPI to change accuracy & program macro combinations using the easy to use Mouse Master software to perform multiple commands with just one click. Gaming benefits: • More responsive, faster reactions • Customizable mouse settings • Customizable mouse accuracy (DPI) • Program macros for multiple actions in 1 click • Smoother gameplay • Technical benefits • 3x more gold than regular connectors • 10x longer lifetime when plugging/un-plugging • Prevents oxidation WTFast WTFast is the Gamers Private Network; like a global automated army of IT specialists all working together to optimize your game connection from end to end. WTFast reports rich connection stats for your online game, so you can see exactly what is happening with your game connection. • Built just for MMO gamers • Reduce average ping • Greatly reduce connection flux, spikes & packet loss Your Game, Your Stream, Your Fame
- HOW TO ACTIVATE MSI PREMIUM LICENSE XSplit Gamecaster & Broadcaster V2 lets you easily record your gaming moments & broadcast your live gameplay sessions to Twitch, You Tube, UStream & more. Its simple, easy to use & ideal for sharing your gameplay with friends, family or the world
- or for capturing those perfect gaming moments, just for the heck of it. RECORD & STREAM Use XSplit Gamecaster to stream all of your gaming activities VIDEO EDITOR Edit your recordings & conquer the world REALTIME NOTES Draw attention whilst casting with in-game annotations Tri Def Smart Cam Fully automatic chroma key that can work on any background Adaptive Bitrate Automatically adjusts your bitrate according to your network conditions GAME DETECTION Game Capture Auto Detect allows for automatic streaming when starting a game OVERCLOCKING MADE EASY Outperform your competition with the MSI GAMING APP which allows simultaneous control of both your Motherboard & Graphics Cards overclocking. Simply select your preferred mode with the click of a button: • Silent • Gaming • OC ON-SCREEN SPEED & TEMPERATURES Real-time monitor GPU Core, DRAM Frequency, GPU & CPU Temperatures & much more, in game or in other fullscreen applications, customizable to your preference. A DIFFERENT VIEW ON GAMING MSI Dragon Eye means that you can watch a You Tube video or Twitch Stream while playing a game simultaneously. Simply add a link or stream to the Dragon Eye application & select the size, position, volume & transparency & start gaming. With a few hotkeys you can start/pause your video or set the volume. CPU-Z MSI GAMING EDITION MSI has worked closely with CPUID to develop this special edition of CPU-Z featuring the famous MSI GAMING dragon. Use CPU-Z to gather key information on the main devices of your system, such as your CPU speed, Memory speed & timings, motherboard BIOS version & much more. RAMDisk
- SSD NOT FAST ENOUGH? TRY MSI RAMDISK! Get an unlimited RAMDisk for free (worth $35) with MSI GAMING motherboards. RAMDisk means that you can create a virtual drive from your system memory, enabling speeds up to 25x faster than a modern SSD. You can load complete games, speed up your browser or your page file significantly increasing system performance! You even increase your SSDs lifespan by using RAMDisk as it reduces unnecessary read & write operations to your SSD. • Speed up system performance • Speed up games, apps & browser • Increase SSD lifespan Please note: 3x PCIe 3.0 x 16 slots
- Support x 16, x 16/x 16, x 8/x 16/x 8 with the CPU that supports 40 PCIe lanes.
- Support x 16, x 16/x 8, x 8/x 8/x 8 with the CPU that supports 28 PCIe lanes. Features Supports New Intel Core™ i 7 processors Extreme Edition in LGA 2011-3 socket Supports Quad Channel DDR4-3333+ (OC) Memory DDR4 Boost: Give your DDR4 memory a performance boost Supports lntel Turbo Boost Max Technology 3.0. USB (Universal Serial Bus) 3.1 Gen 2 2X FASTER: USB (Universal Serial Bus) 3.1 Gen 2 offers performance twice as fast as a regular USB (Universal Serial Bus) 3.0 connection Turbo M.2 32 Gb/s + Turbo U.2 32 Gb/s + USB (Universal Serial Bus) 3.1 Gen 2 Type-A+C + SATA 6 Gb/s TWIN GAMING LAN with LAN Protect, powered by Intel: The best online gaming experience with lowest latency Audio Boost 3: Reward your ears with studio grade sound quality GAMING Hotkey: Assign macros, launch your favorite games or do real-time overclocking using a single button XSplit Gamecaster v 2.5: 1 year free premium license to show off your skills & achievements to the world Steel Series Certified: Optimized for Steel Series gaming gear Military Class 5: The latest evolution in high quality components featuring the brand new Titanium Chokes MULTI-GPU with Steel Armor: Steel Armor PCI-E slots. Supports 3-Way NVIDIA SLI™ & AMD Crossfire™ Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font GAMING CERTIFIED: 24-hour on- & offline game testing by e Sports players for the best gaming experience USB (Universal Serial Bus) Speed Up: for up to 30% performance improvement on USB (Universal Serial Bus) devices










...

MSI X99A XPOWER AC Socket LGA 2011-3 7.1-Channel HD Audio E-ATX Motherboard CPU Supports New Intel Core i 7 Processors Extreme Edition for LGA 2011-3 Socket Please refer to CPU Support for compatible CPU; the above description is for reference only. Chipset Intel X99 Express Chipset Main Memory Support eight DDR4 DIMMs 2133/2200 (OC)/2400 (OC)/2600 (OC)/2666 (OC)/2750 (OC)/3000 (OC)/3110 (OC)/3333 (OC)DRAM (128GB Max) Supports Quad-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Supports RDIMM 1 Rx 8 memory module (Operates in non-ECC mode) Slots 5 x PCIe 3.0 x 16 slots (PCI_E1~E4, PCI_E6), support up to 4-way mode 1-way mode: x 16/ x 0/ x 0/ x 0/ x 0 2-way mode: x 16/ x 0/ x 0/ x 16/ x 0*, x 16/ x 0/ x 0/ x 8/ x 0** 3-way mode: x 16/ x 0/ x 0/ x 16/ x 8*, x 8/ x 8/ x 0/ x 8/ x 0** 4-way mode: x 8/ x 8/ x 0/ x 16/ x 8*, x 8/ x 8/ x 0/ x 8/ x 4** 1 x PCIe 2.0 x 1 slot (PCI_E5) For the CPU that supports 40 PCIe lanes For the CPU that supports 28 PCIe lanes Multi-GPU Support Supports 4-Way AMD Cross Fire TM Technology* Supports 4-Way NVIDIA SLI„¢ Technology (For the CPU that supports 40 PCIe lanes) Supports 3-Way NVIDIA SLI„¢ Technology (For the CPU that supports 28 PCIe lanes) Supports Windows 7 & Windows 8/ 8.1 Storage Intel X99 Express Chipset 10x SATA 6 Gb/s ports (2x ports reserved for SATA Express port)* SATA1~6 support RAID 0, RAID 1, RAID 5 & RAID 10 SATA7~10 ports only support IDE mode & AHCI mode. Supports Intel Smart Response Technology (Windows 7/ 8/ 8.1) 1 x SATA Express port* 1 x M.2 port, supports M.2 SATA 6 Gb/s module* or M.2 PCIe module up to 32 Gb/s speed** M.2 port supports 4.2cm/ 6cm/ 8cm length module M.2 PCIe module does not support RAID 0, RAID1, RAID 5 & RAID 10. The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen 2 x 2 mode) module in the M.2 port. Intel RST does not support PCIe M.2 SSD with Legacy ROM. USB (Universal Serial Bus) Intel X99 Express Chipset 4 x USB (Universal Serial Bus) 3.0 ports available through the internal USB (Universal Serial Bus) connectors* 7x USB (Universal Serial Bus) 2.0 ports (2 ports on the back panel, 5 ports available through the internal USB (Universal Serial Bus) connectors*) 2 x ASMedia ASM1074 Chipset 8x USB (Universal Serial Bus) 3.0 ports on the back panel ASMedia ASM1142 Chipset 2x USB (Universal Serial Bus) 3.1 ports on the back panel Internal JUSB1 connector supports MSI Super Charger. Audio Realtek ALC1150 Codec 7.1-Channel High Definition Audio Supports S/PDIF output LAN 1 x Intel I218-V Gigabit LAN
- Dual interconnect between the integrated Media Access Controller (MAC) & physical layer (PHY) 1 x Intel I210-AT Gigabit LAN controller WIreless LAN Wi-Fi/ Bluetooth expansion module with Intel Dual Band Wireless-AC 7260 chip. Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4 G Hz, 5 G Hz) up to 867 Mbps speed. Bluetooth Wi-Fi/ Bluetooth expansion module with Intel Dual Band Wireless-AC 7260 chip. Supports Bluetooth v 4.0 (
Includes: BLE* & Bluetooth 3.0+HS) * BLE: Bluetooth Low Energy Internal I/O Connectors 1 x 24-pin AT x main power connector 1 x 8-pin AT x 12V power connector 1 x 4-pin AT x 12V power connector 1 x 4-pin flat AT x 12V power connector* 10 x SATA 6 Gb/s connectors 3 x USB (Universal Serial Bus) 2.0 connectors (supports additional 5 USB (Universal Serial Bus) 2.0 ports) 2 x USB (Universal Serial Bus) 3.0 connectors (supports additional 4 USB (Universal Serial Bus) 3.0 ports) 2 x 4-pin CPU fan connectors 5 x 4-pin system fan connectors 1 x Clear CMOS jumper 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 9 x V-Check connectors 1 x GO2BIOS button 1 x Power button 1 x Reset button 2 x Base Clock control buttons 2 x CPU Ratio control buttons 1 x OC Genie button 1 x Discharge button 1 x Multi-BIOS switch 1 x OC Genie mode switch 1 x Slow mode switch 1 x Base Clock step swtich 1 x PCIe Cease Fire switch 1 x 2-Digit Debug Code LED 1 x Wi-Fi/ Bluetooth module connector Provides additional power to PCIe x 16 slots Back Panel I/O Ports 1 x PS/2 port 2 x USB (Universal Serial Bus) 2.0 ports 1 x Clear CMOS button 8 x USB (Universal Serial Bus) 3.0 ports 2 x USB (Universal Serial Bus) 3.1 ports 1 x Optical S/PDIF OUT connector 2 x LAN (RJ45) ports 5 x OFC audio jacks BIOS The motherboard BIOS provides " Plug & Play" BIOS which detects the peripheral devices & expansion cards of the board automatically. The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications. Dimension 12.0 in. x 10.7 in. (30.5 cm x 27.2 cm) E-ATX Form Factor Mounting 9 mounting holes.

...

Features Supports New Intel Core™ i 7 processors Extreme Edition in LGA 2011-3 socket Supports Quad Channel DDR4-3400+ (OC) Memory DDR4 Boost: Give your DDR4 memory a performance boost Support lntel Turbo Boost Max Technology 3.0. USB (Universal Serial Bus) 3.1 Gen 2 2X FASTER: USB (Universal Serial Bus) 3.1 Gen 2 offers performance twice as fast as a regular USB (Universal Serial Bus) 3.0 connection Turbo M.2 32 Gb/s + Turbo U.2 32 Gb/s + USB (Universal Serial Bus) 3.1 Gen 2 Type-A+C + SATA 6 Gb/s GAMING LAN with LAN Protect, powered by Intel: The best online gaming experience with lowest latency Audio Boost 3: Reward your ears with studio grade sound quality Nahimic Audio Enhancer: Immersive sound quality that pushes the limits of reality Game Boost: This one goes up to eleven; 8 levels of easy overclocking GAMING Hotkey: Assign macros, launch your favorite games or do real-time overclocking using a single button Designed for overclocking: with OC Essentials & OC Engine XSplit Gamecaster v 2.5: 1 year free premium license to show off your skills & achievements to the world Steel Series Certified: Optimized for Steel Series gaming gear Military Class 5: The latest evolution in high quality components featuring the brand new Titanium Chokes MULTI-GPU with Steel Armor: Steel Armor PCI-E slots. Supports 4-Way NVIDIA SLI™ & AMD Crossfire™ Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font BIOS Flashback+: Easy BIOS recovery without the need of a CPU, memory & VGA card GAMING CERTIFIED: 24-hour on- & offline game testing by e Sports players for the best gaming experience USB (Universal Serial Bus) Speed Up: for up to 30% performance improvement on USB (Universal Serial Bus) devices

Specification CPU • Supports New Intel Core™ i 7 Processor Extreme Edition for LGA2011-3 Socket • Supports Intel Turbo Boost Max Technology 3.0* * This function will be supported depend on the CPU. Chipset • Intel X99 Chipset Main Memory • 8 x DDR4 memory slots, support up to 128GB*
- Supports DDR4 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200 (OC)/ 3000 (OC)/ 2933 (OC)/ 2800 (OC)/ 2666 (OC)/ 2600 (OC)/ 2400/ 2200 (OC)/ 2133 MHz • Quad channel memory architecture • Supports non-ECC, un-buffered memory • Supports Intel Extreme Memory Profile (XMP) • Supports RDIMM 1 Rx 8 memory module (Operates in non- ECC mode) * Hyper DIMM support depends on the individual CPU physical characteristics * For the latest information about memory, please visit http://www.msi.com Slots • 5 x PCIe 3.0 x 16 slots (PCI_E1~PCI_E4 & PCI_E6*), support up to 4-way mode.
- 1-way mode: x 16/x 0/x 0/x 0/x 0
- 2-way mode: x 16/x 0/x 0/x 16/x 0**, x 16/x 0/x 0/x 8/x 0*** ƒ- 3-way mode: x 16/x 0/x 0/x 16/x 8** x 8/x 8/x 0/x 8/x 0*** ƒ- 4-way mode: x 8/x 8/x 0/x 16/x 8**, x 8/x 8/x 0/x 8/x 4*** • 1x PCIe 2.0 x 1 slot (PCI_E5) * PCI_E6 slot, U.2 port & M.2 PCIe 3.0 x 4 share the same bandwidth. Please refer to page 33 for PCIe bandwidth tables. ** For the CPU that supports 40 PCIe lanes *** For the CPU that supports 28 PCIe lanes Multi-GPU • Supports 4-Way AMD Cross Fire™ Technology • Supports 4-Way NVIDIA SLI™ Technology Storage • Intel X99 Chipset • 10 x SATA 6 Gb/s ports (2 ports from SATAe port) • 1 x M.2 slot (Key M)
- Supports up to PCIe 3.0 x 4 & SATA 6 Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices • 1 x U.2 port*
- Supports PCIe 3.0 x 4 NVMe storage • 1 x SATAe port (compatible with 2 SATA ports)**
- Supports up to PCIe 2.0x 2 • Supports Intel Smart Response Technology*** * The U.2 port will be unavailable when installing the PCIe device in PCI_E6 slot. ** SATAe port is backward compatible with SATA. RAID • Intel X99 Chipset • SATA1~6 ports support RAID 0, RAID1, RAID 5 & RAID 10 • SATA7~10 ports only support IDE mode & AHCI mode. USB (Universal Serial Bus) • ASMedia ASM1142 Chipset
- 2 x USB (Universal Serial Bus) 3.1 Gen 2 (Super Speed USB (Universal Serial Bus) 10 Gbps) ports (1 Type-A port & 1 Type-C port on the board) ƒ- 2 x USB (Universal Serial Bus) 3.1 Gen 1 (Super Speed USB) ports available through the internal JUSB4 connector. • VIA VL805 Chipset
- 4 x USB (Universal Serial Bus) 3.1 Gen 1 (Super Speed USB) ports on the back panel • Intel X99 Chipset
- 5 x USB (Universal Serial Bus) 3.1 Gen 1 (Super Speed USB) ports (2 Type-A ports on the back panel, 1 internal Type-C port on the board, 2 ports available through the internal JUSB3 connector)
- 7 x USB (Universal Serial Bus) 2.0 (High-speed USB) ports (3 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) connectors) Audio • Realtek ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output WLAN & Bluetooth • Wi-Fi/ Bluetooth expansion module with Intel Dual Band Wireless-AC 8260 chip
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4 G Hz, 5 G Hz) up to 867 Mbps speed.
- Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2 LAN • 1 x Intel I218-V Gigabit LAN controller Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x flat 4-pin ATX 12V power connector*
- 10 x SATA 6 Gb/s connectors
- 2 x USB (Universal Serial Bus) 2.0 connectors (supports additional 4 USB (Universal Serial Bus) 2.0 ports)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 connectors (supports additional 4 USB (Universal Serial Bus) 3.1 Gen 1 ports)
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Type-C port
- 1 x 4-pin CPU fan connector
- 1 x 4-pin Water Pump connector
- 2 x 4-pin OPT fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x OC retry button
- 1 x OC force enter BIOS button
- 2 x Front panel connectors
- 1 x Chassis Intrusion connector * Provides additional power to PCIe x 16 slots Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse combo port
- 3 x USB (Universal Serial Bus) 2.0 ports
- 1 x BIOS FLASHBACK+ port
- 1 x Clear CMOS button
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 port
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C port
- 6 x USB (Universal Serial Bus) 3.1 Gen 1 ports
- 1 x LAN (RJ45) port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks Dimension • 12.0 in. x 10.7 in. (30.5 cm x 27.2 cm) • ATX Form Factor Mounting • 9 mounting holes X99A XPOWER GAMING TITANIUM back IO All images & descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product

Specification, functions & appearance may vary by models & differ from country to country. All specifications are subject to change without notice. Please consult the product specifications page for full details. Although we endeavor to present the most precise & comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.















































...
